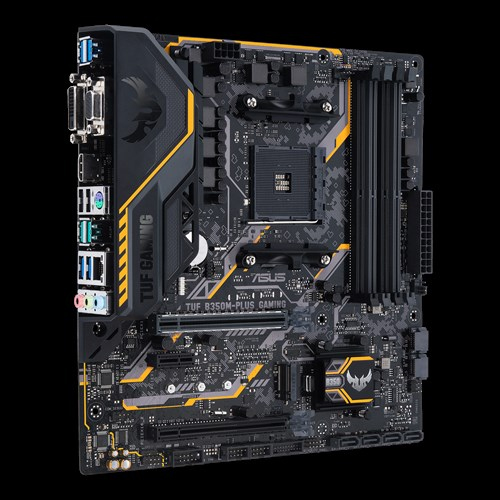

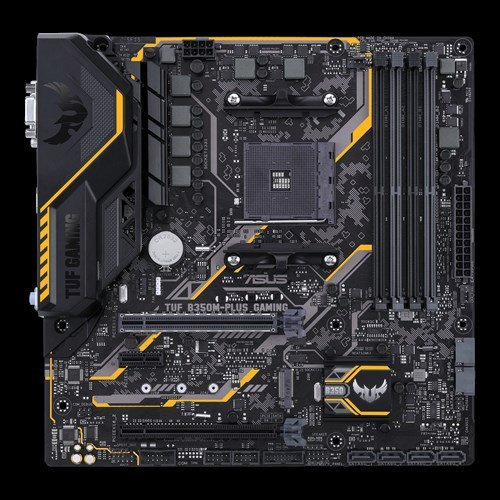

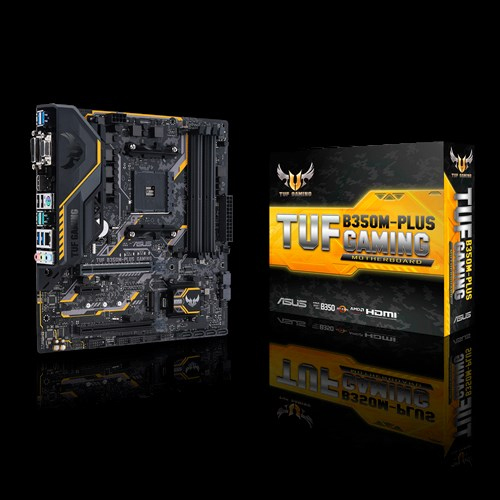

DDR4-3200MHz、32Gbps M.2、およびUSB 3.1 Gen 2をサポートするAMD AM4 micro-ATXゲーミングマザーボード
・JAN/UPC：0889349741825
・TEKWIND型番：ASU-TUF/B350M-PLUS/GAMING
【主な特長】
・ TUFプロテクション: SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, 長寿命ステンレスI/Oバックパネル
・ TUFコンポーネント: 耐久性を最大限に高めるTUF LANGuard, TUFチョークコイル, TUFコンデンサ, TUF MOSFETを採用
・ Fan Xpert 2+：すべてのファンが最高の冷却性能と静音性のバランスを実現
・ ネイティブM.2：最新SSD用の組込みインターフェースが最大32Gbpsの驚異的なストレージ速度を実現
・ オンボードUSB 3.1 Gen 2：10Gbpsの超高速転送が可能な最新の接続性
製品についてお気軽にお問い合わせください
この製品を問い合わせる製品画像
スペック
| 対応CPU | AMD AM4 Socket for AMD Ryzen™/7th Generation A-series/Athlon™ Processors Supports CPU up to 8 cores * Refer to www.asus.com for CPU support list |
|---|---|
| 搭載チップセット | AMD B350 |
| メインメモリ | AMD Ryzen™ Processors 4 x DIMM, Max. 64GB, DDR4- 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *1 AMD 7th Generation A-series/Athlon™ Processors 4 x DIMM, Max. 64GB, DDR4- 2400/2133 MHz Non-ECC, Un-buffered Memory デュアルチャンネル Memory Architecture * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| グラフィックス機能 | Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU *2 Multi-VGA output support : HDMI/DVI/RGB ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 2048 MB (for iGPU exclusively) |
| マルチGPU対応 | Supports AMD CrossFireX™ Technology |
| 拡張スロット | AMD Ryzen™ Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD 7th Generation A-series/Athlon™ Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD B350 chipset 1 x PCIe 2.0 x16 (max at x4 mode) 1 x PCIe 2.0 x1 |
| ストレージ機能 | AMD B350 chipset : 4 x SATA 6Gb/s port(s), gray, Support Raid 0, 1, 10 AMD Ryzen™/7th Generation A-series/Athlon™ Processors : 2 x SATA 6Gb/s port(s), gray, AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*3 AMD 7th Generation A-series/Athlon™ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*4 |
| LAN機能 | Realtek® RTL8111H, 1000BASE-T/100BASE-TX/10BASE-T×1 |
| オーディオ機能 | Realtek® ALC887 8-Channel High Definition Audio CODEC |
| USB機能 | AMD Ryzen™/7th Generation A-series/Athlon™ Processors : 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue) AMD B350 chipset : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, teal blue) AMD B350 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) AMD B350 chipset : 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board) |
| 独自機能 | ASUS TUF PROTECTION - ASUS SafeSlot: Protect your graphics card Investment - ASUS ESD Guard: Enhanced ESD protection - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 6 Phase digital power design ASUS Exclusive Features : - AI Suite 3 - Ai Charger - Turbo LAN - PC Cleaner ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution & MOS Heatsink - ASUS Fan Xpert 2+ ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM |
| 動作対応OS | Windows® 10 64ビット |

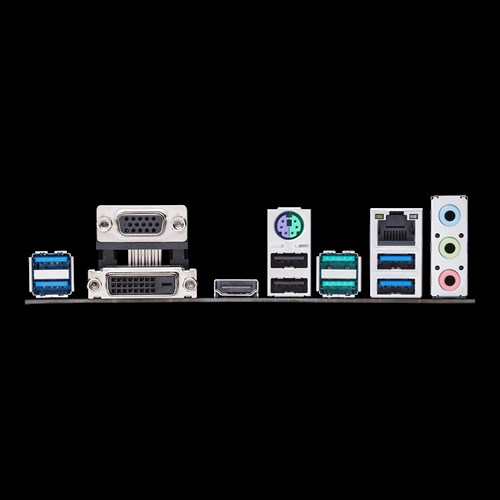

| 背面インターフェース | 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 (teal blue) 4 x USB 3.1 Gen 1 (blue) , 2 x USB 2.0 3 x Audio jack(s) |
| 基板上インターフェース | 1 x Fan RGB header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x Speaker connector |

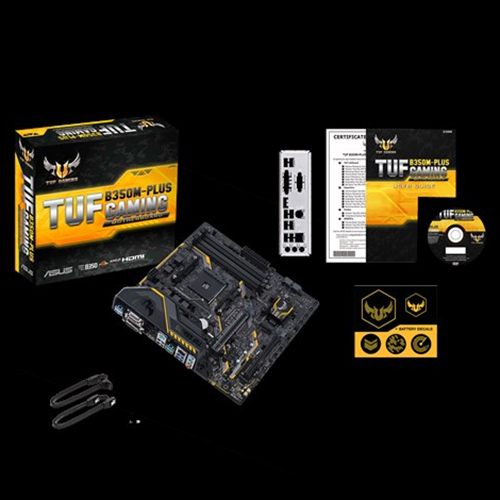

| 主な付属品 | User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x TUF Gaming Sticker 1 x TUF Certification card(s) |
| BIOS機能 | 128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0,SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control |
| OS | Windows® 10 64-bit |
| Warranty | TUF Gaming Series 3-year warranty support |
| フォームファクター （サイズW×D） |
mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| その他 | 1*Due to the limitation of AMD Ryzen™ processors, memory frequencies higher than DDR4 2666 MHz are supported only when using one DIMM per channel. 2*AMD Ryzen™ Processor does not support. 3*The M.2 Socket shares bandwidth with the SATA6G_5/6 ports, therefore the SATA6G_5/6 ports cannot be used when a SATA/PCIE mode M.2 device is installed. 4*The M.2 Socket shares bandwidth with the SATA6G_5/6 ports, therefore the SATA6G_5/6 ports cannot be used when a SATA mode M.2 device is installed. |
