STRIX B350-I GAMING

新機軸のM.2オーディオコンボカード採用で大型ゲーミングモデルにも引けを取らない高性能なAMD AM4 B350搭載mini-ITXゲーミングマザーボード

・JAN/UPC：0889349892480
・TEKWIND型番：ASU-STRIX/B350-I/GAMING

【主な特長】

・ AMD AM4ソケットRyzen™、第7世代AシリーズAPUおよびAthlon™ APUに対応
・ゲーミングイノベーション: 新機軸のM.2オーディオコンボカードによって、クリーンなオーディオを提供し、より多くの機能のためにボードスペースを削減
・ SupremeFXオーディオ: 直感的な「Sonic Studio III」と「Sonic Radar III」による最高のオーディオパフォーマンス
・ゲーミングコネクティビティ: デュアルM.2、USB 3.1 Gen 2 Type-Aコネクターを搭載
・最高のゲーミングネットワーク: Intel Gigabit Ethernet, LANGuard GameFirstを搭載し、2x2 802.11ac Wi-FiのMU-MIMOに対応
・ Aura Sync RGB: アドレスサブルRGBストリップを含む、対応する多彩なPCギアによるシンクロしたLEDイルミネーション
・ゲーミングデュラビリティ: ASUS Safeslotおよびプレミアムコンポーネントの採用で最大限の耐久性を実現

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

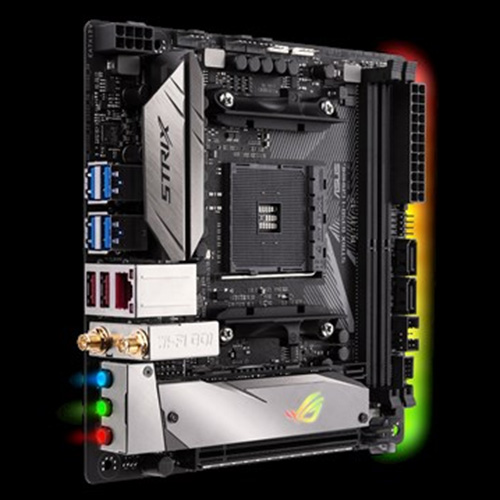

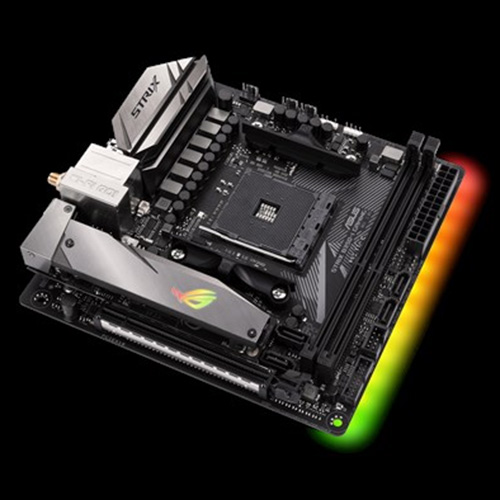

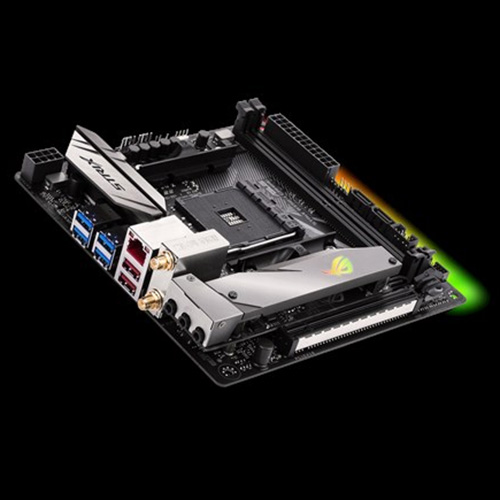

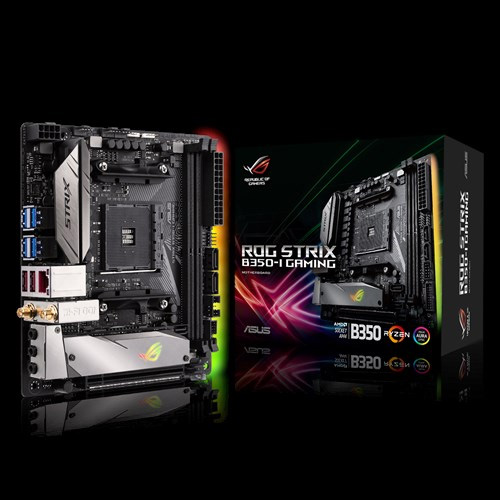

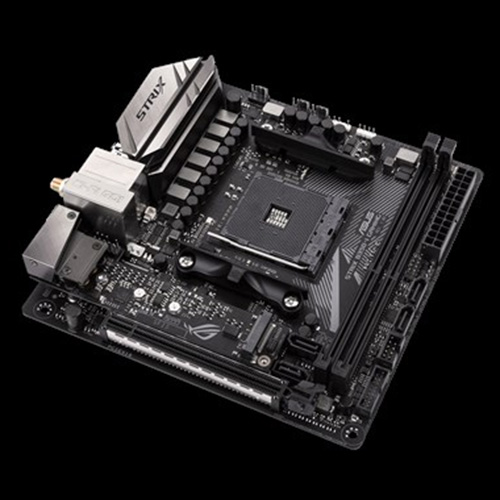

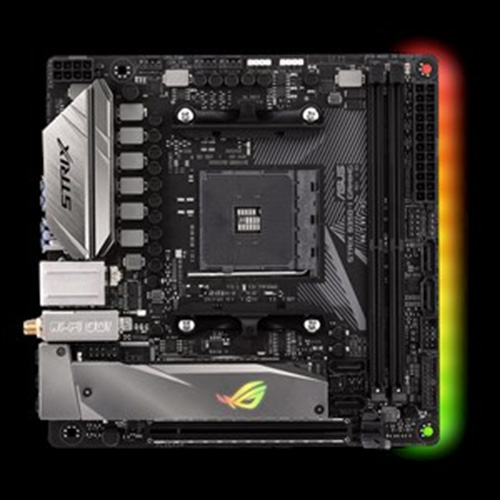

製品画像

スペック

対応CPU	AMD AM4 Socket for AMD Ryzen™/7^th Generation A-series/Athlon™ Processors Supports AM4 Socket 14 nm CPU * Refer to www.asus.com for CPU support list
搭載チップセット	AMD B350
メインメモリ	AMD Ryzen™ Processors 2 x DIMM, Max. 32GB, DDR4 3600(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and Non-ECC, Un-buffered Memory * AMD 7th Generation A-series/Athlon™ Processors 2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
拡張スロット	AMD Ryzen™ Processors 1 x PCIe 3.0 x16 (x16 mode) AMD 7th Generation A-series/Athlon™ Processors 1 x PCIe 3.0/2.0 x16 (x8 mode)
ストレージ機能	AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD 7th Generation A-series/Athlon™ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) AMD B350 chipset : 4 x SATA 6Gb/s port(s)*¹, 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE 2.0 x4)
LAN機能	Intel^® I211-AT, 1 x Gigabit LAN Controller(s) Anti-surge LANGuard ROG GameFirst IV
無線機能	Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO
Bluetooth機能	Bluetooth v4.2, 4.0LE, 3.0+HS
オーディオ機能	SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback ² LED-illuminated audio jacks Audio Feature :* - Sonic Radar III - Sonic Studio III + Sonic Studio Link
USB機能	AMD Ryzen™/7th Generation A-series/Athlon™ Processors : 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue) AMD B350 chipset : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, red, Type-A) AMD B350 chipset : 2 x USB 3.1 Gen 1 port(s) AMD B350 chipset : 2 x USB 2.0 port(s) (2 at mid-board)
R.O.G.シリーズ独自搭載機能	ROG RAMCache II ROG CPU-Z ROG CloneDrive Overwolf GameFirst IV
独自機能	5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. Fan Xpert4 - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control Gamer's Guardian: - ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable Components - DIGI+ VRM - SafeSlot ASUS TPU : - Auto Tuning - TurboV ASUS EPU : - EPU AURA : - Aura Lighting Control ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Digi+VRM Turbo APP - featuring system performance tuning for selected applications
動作対応OS	Windows^® 10 64-bit

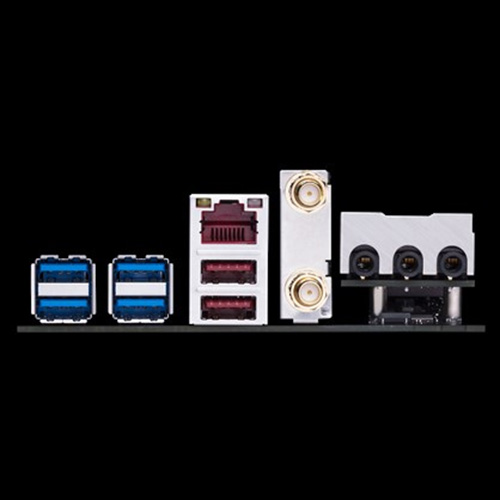

背面インターフェース	1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 (red)Type-A 4 x USB 3.1 Gen 1 (blue) 3 x LED-illuminated audio jacks 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2)
基板上インターフェース	1 x Aura Addressable Strip Header(s) 1 x RGB Header(s) 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) ( x 4 -pin) 1 x Chassis Fan connector(s) ( x 4 -pin) 1 x AIO_PUMP connector ( x 4 -pin) 1 x 8-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Thermal sensor connector 1 x Speaker connector

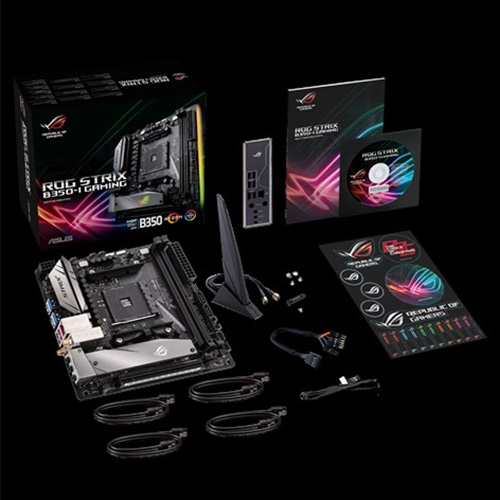

主な付属品	User's manual M.2 mounting kit I/O Shield 4 x SATA 6Gb/s cable(s) 2 x M.2 Screw Package 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x ROG Strix stickers 1 x Cable ties pack(s) 1 x Extension cable for Addressable LED 1 x Panel cable
BIOS機能	128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information
管理機能	WfM 2.0, WOL by PME, PXE
サポートDVDの内容	Drivers ASUS Utilities Anti-virus software
フォームファクター（サイズW×D）	Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm )
その他	1 Supports RAID 0,1,10 2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. *3 Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
