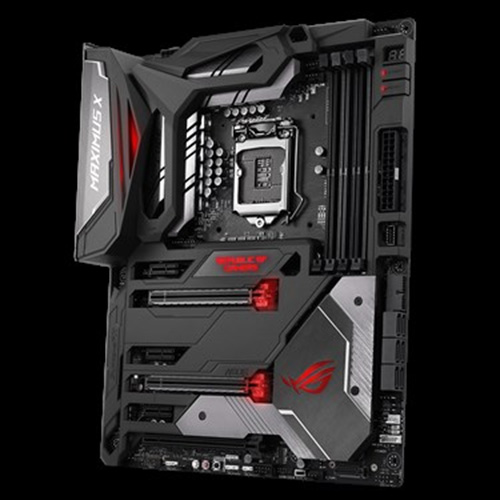

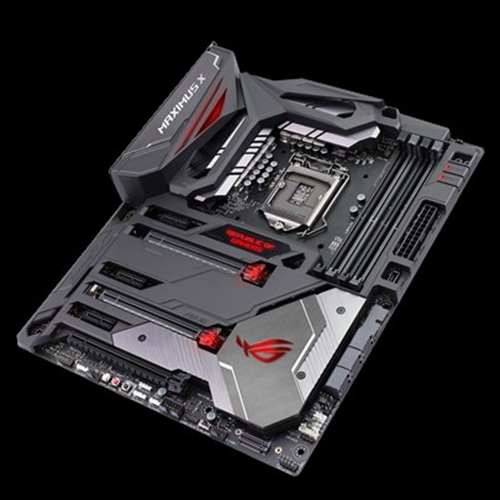

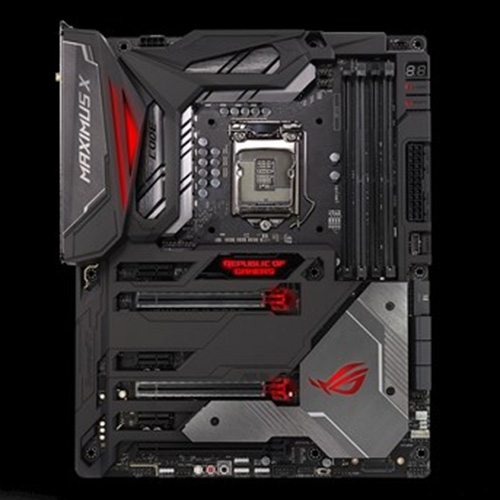

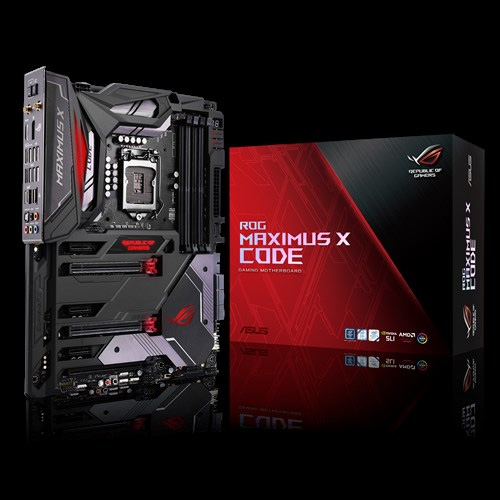

優れたカスタマイズ性を備えた自作PCに最適なZ370搭載ATXマザーボード
・JAN/UPC：0889349906330
・TEKWIND型番：ASU-ROG/MAXIMUS/10/CODE
【主な特長】
・ デスクトップ向け第8世代Intel® Core™プロセッサ用LGA1151ソケット搭載
・ 個性を強化するイルミネーション機能: ASUS独自のAura Sync RGBライティング、ノーマル/アドレサブル両対応のRGBヘッダーを搭載
・ オンボードM.2ヒートシンク: M.2ドライブを冷却し、パフォーマンスと安定性を向上
・ ゲーミングオーディオ: SupremeFXとSonic Studio IIIの組合せにより、シーンに奥行きをもたせ、没入感を向上します。
・ 豊富な接続性: Intel Gigabit イーサネット、LANGuard、2x2 802.11ac Wi-Fi、デュアルM.2、USB 3.1 Gen 2 Type-A/Type-C™コネクターを搭載
・ 優れた耐久性: ROGアーマー、プリマウントI/Oシールドを搭載し、各部にプレミアムなコンポーネントを採用
製品についてお気軽にお問い合わせください
この製品を問い合わせる製品画像
スペック
| 対応CPU | Intel® Socket 1151 for 8th Generation Core™ Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list |
|---|---|
| 搭載チップセット | Intel® Z370 |
| メインメモリ | 4 x DIMM, Max. 64GB, DDR4 4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| グラフィックス機能 | Integrated Graphics Processor Multi-VGA output support : HDMI/DisplayPort 1.2 ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Maximum shared memory of 1024 MB |
| マルチGPU対応 | Supports NVIDIA® 2-Way SLI™ Technology Supports AMD 3-Way CrossFireX™ Technology |
| 拡張スロット | 2 x PCIe 3.0/2.0 x16 (x16, x8/x8, or x8/x4+x4) 1 x PCIe 3.0/2.0 x16 (x4 mode, black) *1 3 x PCIe 3.0/2.0 x1 |
| ストレージ機能 | Intel® Z370 Chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*2 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*3 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Supports Intel® Smart Response Technology*4 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready |
| LAN機能 | Intel® I219V Anti-surge LANGuard ROG GameFirst IV |
| 無線機能 | Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO |
| Bluetooth機能 | Bluetooth V4.2 |
| オーディオ機能 | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - ESS® ES9023P - Supports up to 32-Bit/192kHz playback *5 Audio Feature : - Gold-plated jacks - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III |
| USB機能 | ASMedia® USB 3.1 Gen 2 controller : 1 x USB 3.1 Gen 2 front panel connector port(s) ASMedia® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, black+red, Type-A + USB Type-C™) Intel® Z370 Chipset : 6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board) Intel® Z370 Chipset : 6 x USB 2.0 port(s) (4 at back panel, black, 2 at mid-board) |
| R.O.G.シリーズ独自 搭載機能 |
Clear CMOS button ROG Armor ROG RAMCache II ROG CPU-Z ROG CloneDrive Pre-mounted I/O Shield MemOK! Button Slow Mode Overwolf ReTry Button Safe Boot Button Start Button Reset Button LN2 Mode GameFirst IV Extreme Engine Digi+ : - MicroFine Alloy Chokes - NexFET™ Power Block MOSFET - 10K Black Metallic Capacitors KeyBot II - X.M.P. - ClrCMOS - Power On UEFI BIOS features : - O.C. Profile - Tweakers' Paradise - ROG SSD Secure Erase - Graphic Card Information Preview ROG RAMDisk Extreme Tweaker USB BIOS Flashback |
| 独自機能 | ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App Gamer's Guardian: - SafeSlot LiveDash OLED 1.3 ” AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s) ASUS Exclusive Features : - MemOK! - AI Suite 3 ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS USB BIOS Flashback ASUS Q-Design : - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall) |

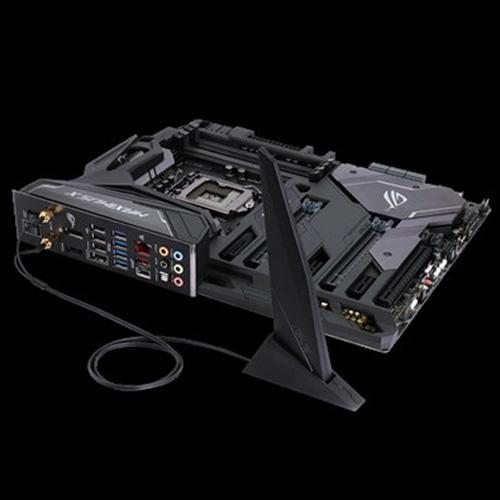

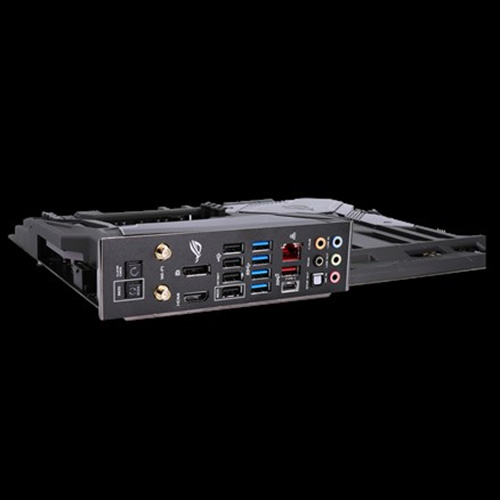

| 背面インターフェース | 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 1 x USB 3.1 Gen 2 (red)Type-A 1 x USB 3.1 Gen 2 (black)USB Type-C™ 4 x USB 3.1 Gen 1 (blue) 4 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x Clear CMOS button(s) 1 x USB BIOS Flashback Button(s) 1 x ASUS 2x2 Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2 module |
| 基板上インターフェース | 2 x Aura Addressable Strip Header(s) 2 x Aura RGB Strip Headers 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x H_AMP fan connector 1 x W_PUMP+ connector (1 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x MemOK! button(s) 1 x Slow Mode switch(es) 1 x Reset button(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x EXT_Fan header 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Thermal sensor connector 1 x Start button 1 x USB 3.1 Gen 2 front panel connector |
| 主な付属品 | User's manual 1 x ROG logo plate sticker 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x CPU installation tool 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x SLI HB BRIDGE(2-WAY-M) 1 x ROG big sticker 1 x Q-Connector 1 x M.2 bracket 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x ROG coaster(s) 1 x USB 3.1 Gen 1 Header to USB 2.0 adapter cable |
| BIOS機能 | 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information. |
| OS | Windows® 10 64-bit |
| フォームファクター （サイズW×D） |
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| その他 | *1 The PCIe x4_3 slot shares bandwidth with PCIex1_3. The PCIe x4_3 is default set at x2 mode. *2 When the M.2_1 Socket 3 is operating in SATA mode, SATA port 1 will be disabled. *3 When the M.2_2 Socket 3 is operating in PCIe 3.0 x4 mode, SATA ports 5 and 6 will be disabled. *4 This function will work depending on the CPU installed. *5 Due to limitations in HDA bandwidth, 32-bit/192kHz is not supported for 8-Channel audio |
