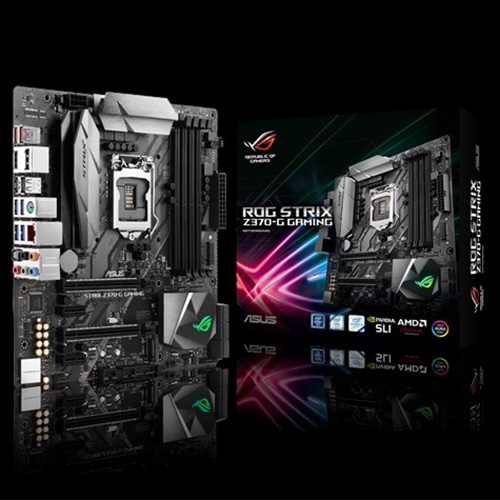

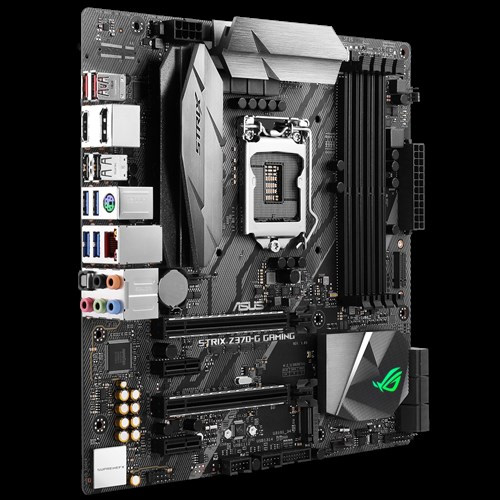

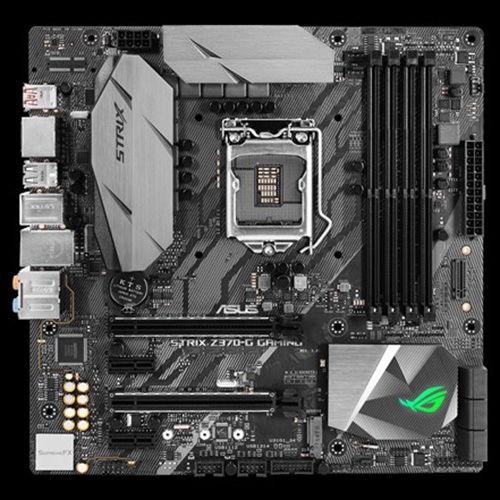

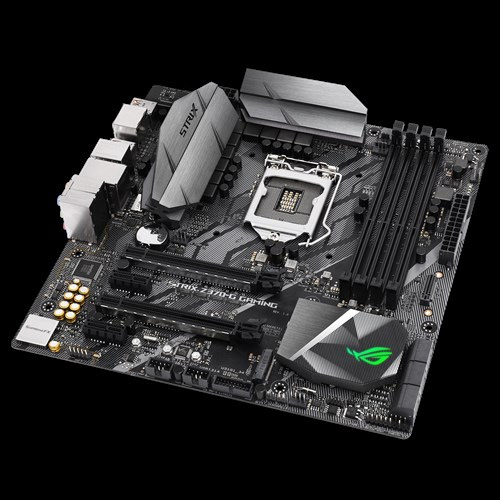

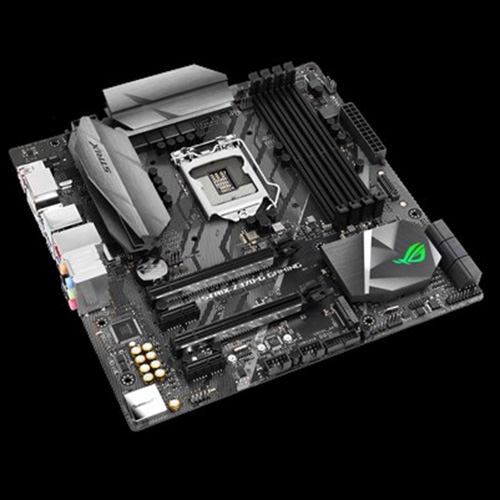

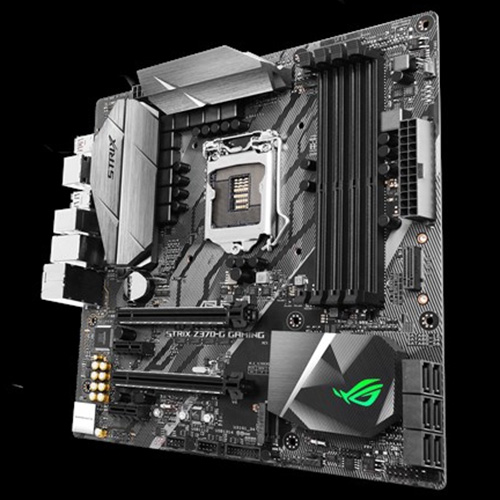

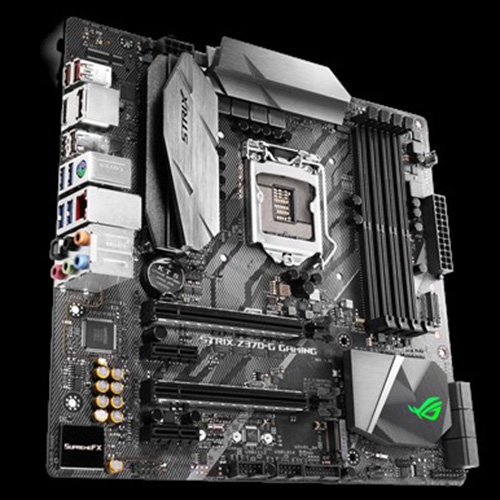

高度なカスタマイズ性でゲーミングPCの自作に最適なIntel Z370搭載mATXマザーボード
・JAN/UPC：0889349882900
・TEKWIND型番：ASU-ROG/STRIX/Z370-G/GAMING
【主な特長】
・ デスクトップ向け第8世代Intel® Core™プロセッサ用LGA1151ソケット搭載
・ Aura Sync RGB: 対応するPCギアによるシンクロLEDイルミネーション
・ 5-Way Optimization: PCの構成ごとに最適化されたシステム全体のチューニングプロファイルを自動生成
・ ゲーミングオーディオ: 「SupremeFX S1220A」と「Sonic Studio III」の組み合わせで風景を描くような奥行きのあるサウンドを実現し、アクションへの没入感を向上
・ ゲーミングコネクティビティ: デュアルM.2、USB 3.1 Gen 2 Type-Aコネクターを搭載
・ ゲーミングネットワーク: Intel Gigabitイーサネット、LANGuard、GameFirst搭載
・ ゲーマーズガーディアン: ASUS Safeslot、最高の耐久性を実現するプレミアムコンポーネントを採用
製品についてお気軽にお問い合わせください
この製品を問い合わせる製品画像
スペック
| 対応CPU | Intel® Socket 1151 for 8th Generation Core™ Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list |
|---|---|
| 搭載チップセット | Intel® Z370 |
| 対応メモリ | 4 x DIMM, Max. 64GB, DDR4- 4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered, Register Memory デュアルチャンネル Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| グラフィックス機能 | Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/DisplayPort 1.2 ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Maximum shared memory of 1024 MB Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ Supports up to 3 displays simultaneously DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays |
| マルチGPU対応 | Supports NVIDIA® 2-Way SLI™ Technology Supports AMD 2-Way CrossFireX Technology |
| 拡張スロット | 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) 2 x PCIe 3.0/2.0 x1 |
| ストレージ機能 | Intel® Z370 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready *2 |
| LAN機能 | Intel® I219V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY) Anti-surge LANGuard ROG GameFirst Technology |
| オーディオ機能 | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual Headphone Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback Audio Feature : - SupremeFX Shielding™ Technology - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III + Sonic Studio Link |
| USB機能 | Intel® Z370 Chipset : *3 6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board) Intel® Z370 Chipset : *3 6 x USB 2.0 port(s) (2 at back panel, blue, 4 at mid-board) ASMedia® USB 3.1 Gen 2 controller : *3 2 x USB 3.1 Gen 2 port(s) (2 at back panel, red, Type-A) |
| R.O.G.シリーズ独自 搭載機能 |
ROG RAMCache II ROG CPU-Z ROG CloneDrive Overwolf GameFirst IV |
| 独自機能 | 5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. TPU - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors - Auto Tuning, TPU, GPU Boost selection for optimized system cooling control Gamer's Guardian: - ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable Components - DIGI+ VRM - SafeSlot ASUS EPU : - EPU AURA : - Aura Lighting Control - Aura Lighting Effects Synchronization with compatible ASUS ROG devices ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Digi+VRM Turbo APP |

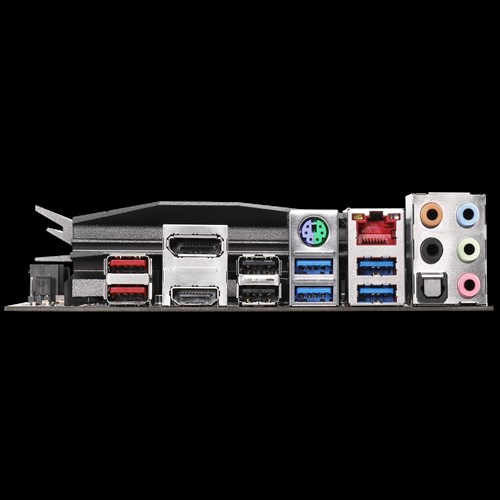

| 背面インターフェース | 1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 Type-A 2 x USB 2.0 4 x USB 3.1 Gen 1 1 x Optical S/PDIF out 5 x Audio jack(s) |
| 基板上インターフェース | 1 x AAFP connector 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x W_PUMP+ connector (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x CPU_OV jumper |
| 主な付属品 | User's manual 1 x Vertical M.2 bracket set I/O Shield 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x CPU installation tool 1 x Supporting DVD 1 x Strix door hanger 1 x SLI HB BRIDGE(2-WAY-S) 1 x Cable ties pack(s) 1 x Thermistor cable(s) 1 x STRIX series sticker |
| BIOS機能 | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information. |
| 管理機能 | WfM2.0, DMI3.0, WOL by PME, PXE |
| サポートDVDの内容 | Drivers ASUS Utilities EZ Update Anti-virus software (OEM version) |
| OS | Windows® 10 64-bit |
| フォームファクター （サイズW×D） |
mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| その他 | *1 The M.2_1 socket shares bandwidth with SATA_1 port when using M.2 SATA mode device. Adjust BIOS settings to use SATA device. *2 Intel® Optane Technology only supported when using 8th Generation Intel® Processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website. *3 Supports 3A power output |
