ROG MAXIMUS X HERO (WI-FI AC)

優れたカスタマイズ性を備えた自作PCに最適なZ370搭載ATXマザーボード

・JAN/UPC：0889349864111
・TEKWIND型番：ASU-ROG/MAXIMUS/10/HERO/WI-FI/AC

【主な特長】

・デスクトップ向け第8世代Intel^® Core™プロセッサ用ソケットLGA1151搭載
・シンクロしたRGB LEDイルミネーション: Aura Syncを搭載し、対応するPCギアやアドレサブルLEDストリップで多彩なイルミネーションを実現します。
・オンボードM.2ヒートシンク: M.2ドライブを冷却し、パフォーマンスと安定性を向上
・ゲーミングオーディオ: SupremeFXとSonic Studio IIIの組合せにより、シーンに奥行きをもたせ、没入感を向上します。
・ゲーミングコネクティビティ: Intel Gigabitイーサネット、LANGuard、2x2 802.11ac Wi-Fi、デュアルM.2、USB 3.1 Gen 2 Type-A/Type-C™コネクター
・ゲーミングデュラビリティ: ASUS Safeslotおよびプレミアムコンポーネントの採用で最大限の耐久性を実現

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

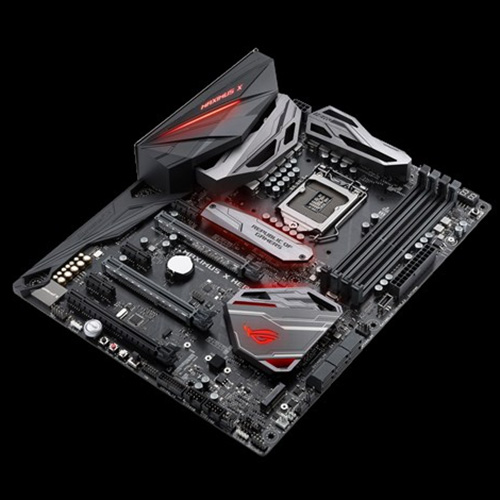

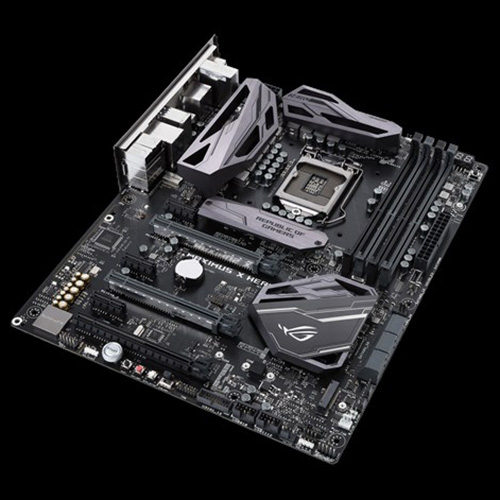

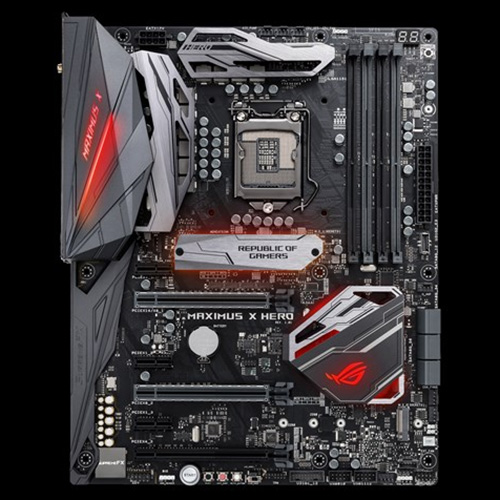

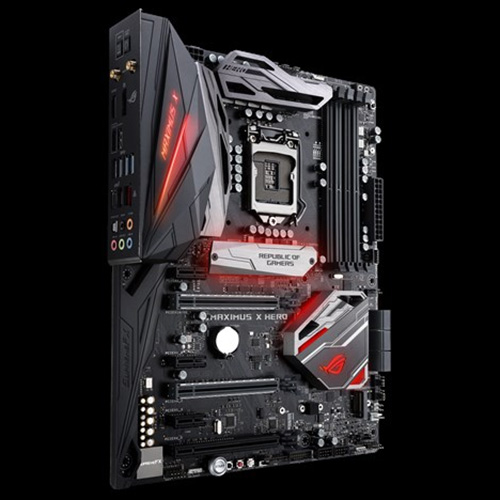

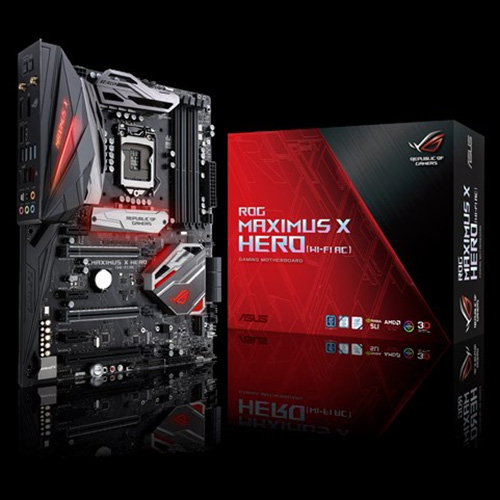

製品画像

スペック

対応CPU	Intel^® Socket 1151 for 8^th Generation Core™ Processors Supports Intel^® 14 nm CPU Supports Intel^® Turbo Boost Technology 2.0 * The Intel^® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list
搭載チップセット	Intel^® Z370
対応メモリ	4 x DIMM, Max. 64GB, DDR4- 4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory デュアルチャンネル Memory Architecture Supports Intel^® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
グラフィックス機能	Integrated Graphics Processor Multi-VGA output support : HDMI/DisplayPort 1.2 ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Maximum shared memory of 1024 MB
マルチGPU対応	Supports NVIDIA^® 2-Way SLI™ Technology Supports AMD 3-Way CrossFireX™ Technology
拡張スロット	Intel^® Z370 Chipset 2 x PCIe 3.0 x16 (x16 or dual x8 or x8/x4/x4) 1 x PCIe 3.0 x16 (x4 mode) *¹ 3 x PCIe 3.0/2.0 x1
ストレージ機能	Intel^® Z370 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)² 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)³ 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Supports Intel^® Smart Response Technology*⁴ Intel^® Optane™ Memory Ready
LAN機能	Intel^® I219V Anti-surge LANGuard ROG GameFirst IV
無線機能	Wi-Fi IEEE802.11ac/n/a/g/b Supports dual band frequency 2.4/5 GHz Supports MU-MIMO
Bluetooth機能	Bluetooth V4.2
オーディオ機能	ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - ESS^® ES9023P - Supports up to 32-Bit/192kHz playback ⁵ Audio Feature :* - Gold-plated jacks - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III
USB機能	ASMedia^® USB 3.1 Gen 2 controller : 1 x USB 3.1 Gen 2 front panel connector port(s) ASMedia^® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-C™) Intel^® Z370 Chipset : 6 x USB 3.1 Gen 1 port(s) (4 at back panel, +blue, 2 at mid-board) Intel^® Z370 Chipset : 6 x USB 2.0 port(s) (2 at back panel, +black, 4 at mid-board)
R.O.G.シリーズ独自搭載機能	ROG RAMCache II ROG CPU-Z ROG CloneDrive Pre-mounted I/O Shield MemOK! Button Slow Mode Overwolf GameFirst IV Extreme Engine Digi+ : - MicroFine Alloy Chokes - NexFET™ Power Block MOSFET - 10K Black Metallic Capacitors Mem TweakIt ROG Extreme OC kit : - ReTry button - Safe Boot button - Start button - Reset button - LN2 Mode KeyBot II - One-click Overclocking - X.M.P. - DirectKey - ClrCMOS - Power On UEFI BIOS features : - O.C. Profile - Tweakers' Paradise - ROG SSD Secure Erase ROG RAMDisk Extreme Tweaker USB BIOS Flashback Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall)
独自機能	ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s) ASUS Exclusive Features : - AI Suite 3 - Disk Unlocker ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 CPU Installation Tool - Three-step simplicity and safety ASUS Q-Design : - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Gaming Aesthetics : - 3D printing friendly - AURA-RGB Lighting

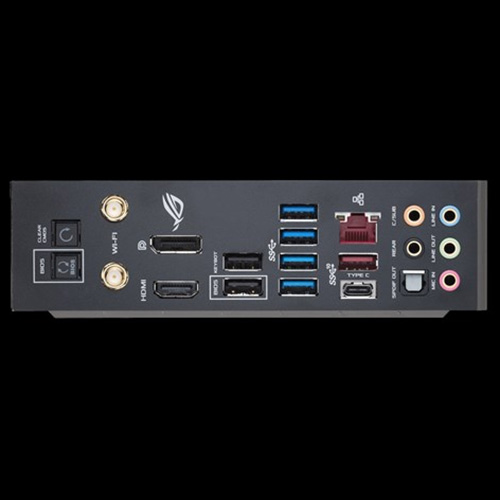

背面インターフェース	1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 Type-A + USB Type-C™ 4 x USB 3.1 Gen 1 (blue) 2 x USB 2.0 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS Flashback Button(s) 1 x ASUS 2x2 Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2 module 5 x Gold-plated audio jacks
基板上インターフェース	1 x Aura Addressable Strip Header(s) 2 x Aura RGB Strip Headers 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x H_AMP fan connector 1 x W_PUMP+ connector (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! button(s) 1 x Slow Mode switch(es) 1 x Reset button(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 3 x 3D Mount screw port(s) 1 x EXT_Fan header 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Thermal sensor connector 1 x Start button 1 x USB 3.1 Gen 2 front panel connector
主な付属品	User's manual 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x CPU installation tool 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x MOS fan bracket kit 1 x SLI HB BRIDGE(2-WAY-M) 1 x ROG big sticker 1 x Q-Connector 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x 3D printing mount package 1 x ROG coaster(s)
BIOS機能	1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.
OS	Windows^® 10 64-bit
フォームファクター（サイズW×D）	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
その他	1 The PCIe x4_3 slot shares bandwidth with PCIex1_3. The PCIe x4_3 runs x2 mode by default. 2 When the M.2_1 socket is operating in SATA mode, SATA port 1 will be disabled. 3 When the M.2_2 socket is operating in PCIEX4 mode, SATA port 5. 6 will be disabled. 4 This function will work depending on the CPU installed. *5 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
