PRIME Z370-A

デュアルM.2、Intel Optaneメモリー対応で豊富な接続性を備えたIntel Z370搭載ATXマザーボード

・JAN/UPC：0889349843376
・TEKWIND型番：ASU-PRIME/Z370-A

【主な特長】

・最新のIntel製プロセッサに対応: デスクトップ向け第8世代Intel Core CPU用LGA1151ソケット搭載
・ 5-Way Optimization: ワンクリックでシステム全体のチューニングを施し、CPU/GPU負荷型のタスクに最適化されたオーバークロックとインテリジェントな冷却を実現。
・ ASUS OptiMem: 信号の整合性を向上するトレースとビアの慎重なルーティングによりメモリオーバークロックを強化
・業界をリードする冷却機能:　Fan Xpert 4、または、ASUSのUEFIで水冷やファンを総合的に管理
・次世代の接続性: Intel Optaneメモリ、Thunderbolt 3、デュアルM.2に対応し、優れた柔軟性を実現
・ M.2 ヒートシンク: 超効率的なM.2 SSDヒートシンクが、サーマルスロットルを作動させない転送速度と信頼性の強化のため、20°Cまで温度を低減
・ ASUS Aura Sync: オンボードRGB LEDは、Aura対応ハードウェアと簡単に同期が可能でイルミネーションに対応

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

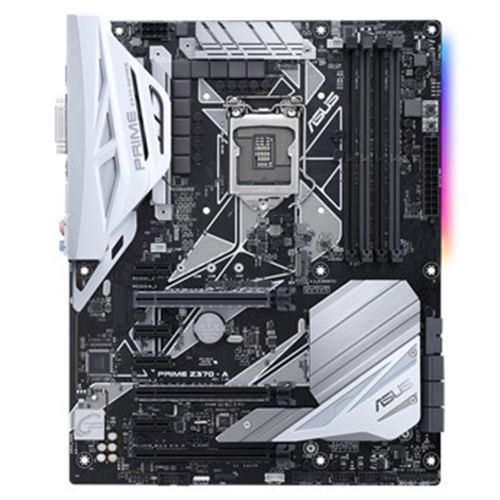

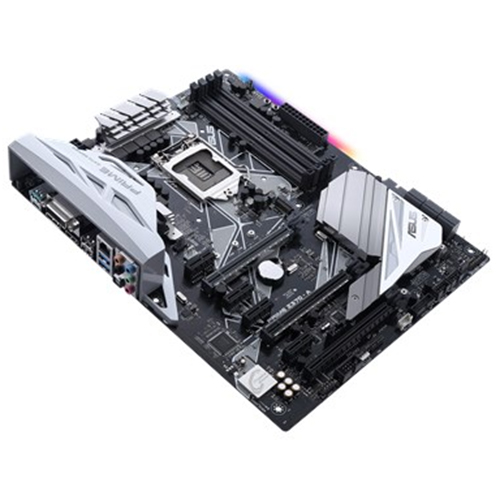

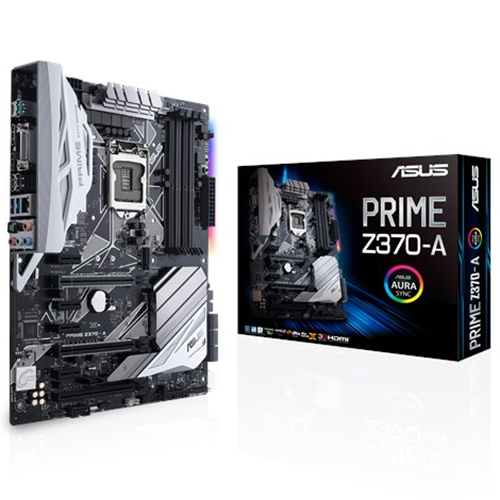

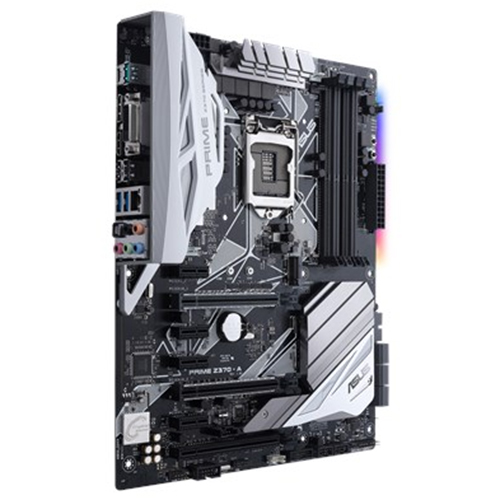

製品画像

スペック

対応CPU	Intel^® Socket 1151 for 8^th Generation Core™ Processors Supports Intel^® 14 nm CPU Supports Intel^® Turbo Boost Technology 2.0 * Refer to www.asus.com for CPU support list
搭載チップセット	Intel^® Z370
対応メモリ	4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel^® Extreme Memory Profile (XMP) * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor.
グラフィックス機能	Integrated Graphics Processor- Intel^® HD Graphics support Multi-VGA output support : HDMI/DVI-D/DisplayPort ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Maximum shared memory of 1024 MB Supports up to 3 displays simultaneously DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
マルチGPU対応	Supports NVIDIA^® 2-Way SLI™ Technology Supports AMD 3-Way CrossFireX™ Technology
拡張スロット	2 x PCIe 3.0/2.0 x16 (x16 or dual x8) * 1 x PCIe 3.0/2.0 x16 (max at x4 mode) 4 x PCIe 3.0/2.0 x1 * For 2 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_2 slot, enable this card under BIOS settings. ** For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.
ストレージ機能	1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)¹ 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)² 6 x SATA 6Gb/s port(s), gray Support Raid 0, 1, 5, 10 Intel^® Rapid Storage Technology supports Supports Intel^® Smart Response Technology Intel^® Optane™ Memory Ready
LAN機能	Intel^® I219V, 1 x Gigabit LAN Controller(s) ASUS Turbo LAN Utility ASUS LAN Guard
オーディオ機能	Realtek^® S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3 - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Front panel audio connector (AAFP) - Supports up to 32-Bit/192kHz playback ³ Audio Feature :* - DTS Connect - DTS Headphone:X - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs - EMI protection cover to prevent electrical noise to affect the amplifier quality - Power pre-regulator: Reduces power input noise to ensure consistent performance Separate layer for left and right track, ensuring both sound deliver equal quality
USB機能	ASMedia^® USB 3.1 Gen 2 controller : 1 x USB 3.1 Gen 2 port(s) (1 at back panel, teal blue, Type-A, Support 3A power output) ASMedia^® USB 3.1 Gen 2 controller : 1 x USB 3.1 Gen 2 port(s) (1 at back panel, , USB Type-C™, Support 3A power output) Intel^® Z370 Chipset : 6 x USB 3.1 Gen 1 port(s) (2 at back panel, , 4 at mid-board) Intel^® Z370 Chipset : 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
独自機能	OC Design - ASUS PRO Clock Technology - Full BCLK range for extreme overclocking performance 5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 8 Phase digital power design ASUS TPU : - Auto Tuning - GPU Boost ASUS EPU : - EPU AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices ASUS Exclusive Features : - MemOK! - AI Suite 3 - Ai Charger - Turbo LAN - Crystal Sound 3 - EZ XMP ASUS Exclusive Features - PC Cleaner File Transfer - Cloud GO! - File Transfer ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert 4 ASUS EZ DIY : - Precision Tweaker 2 - ASUS O.C. Tuner - ASUS O.C. Profile - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Multi-language BIOS CPU Installation Tool - Three-step simplicity and safety ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Special Memory O.C. Design Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall) Turbo APP

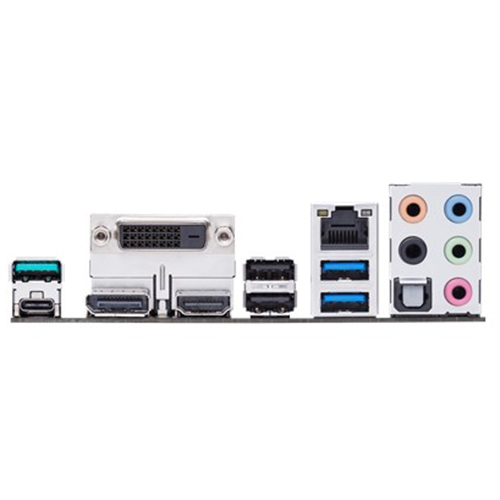

背面インターフェース	1 x DVI-D 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 1 x USB 3.1 Gen 2 Type-A 1 x USB 3.1 Gen 2 USB Type-C™ 2 x USB 3.1 Gen 1 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s)
基板上インターフェース	1 x Aura RGB Strip Header 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x EZ XMP switch 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x MemOK! button(s) 1 x CPU OV 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x 14-1 pin TPM connector 1 x COM port header 1 x T_Sensor Connector 1 x AIO PUMP Header 2 x 3D Mount screw port(s) 1 x M.2 Fan Header

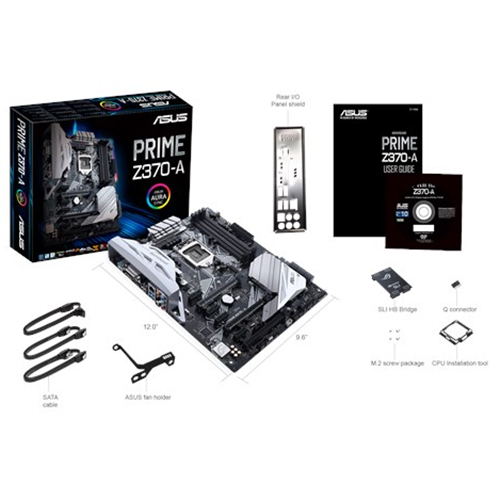

主な付属品	User's manual ASUS Q-Shield 1 x ASUS Fan Holder 3 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x CPU installation tool 1 x Supporting DVD 1 x SLI HB BRIDGE(2-WAY-M) 1 x Q-connector(s) (1 in 1)
BIOS機能	128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.
管理機能	WfM 2.0, DMI 3.0, WOL by PME, PXE
OS	Windows^® 10 64-bit
フォームファクター（サイズW×D）	ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
その他	1. The M.2_1 socket shares SATA_1 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device. 2. The M.2_2 socket shares SATA_56 ports when use M.2 PCIE mode device in X4 mode. Adjust BIOS settings to use M.2 PCIE devices in X4 mode. *3. Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. 32-Bit/192kHz is only available under Windows^® 10.
