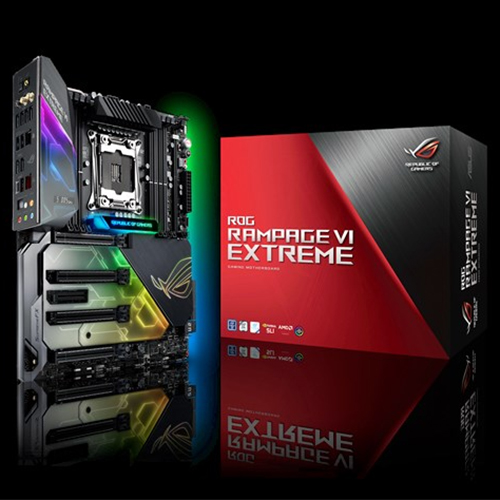

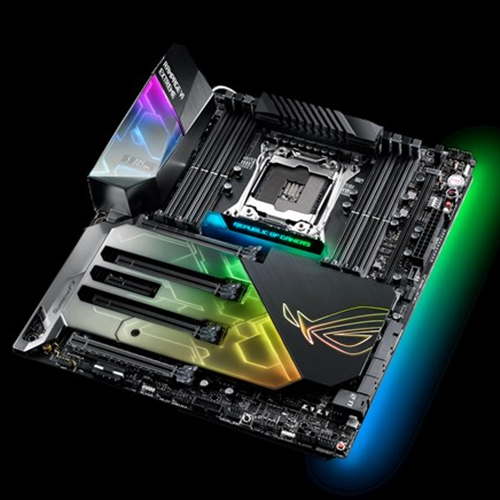

トリプルM.2、10G LAN採用で圧倒的なスピードを誇るIntel X299搭載型EATXゲーミングマザーボード
・JAN/UPC：0889349805534
・TEKWIND型番：ASU-ROG/RAMPAGE/6/EXTREME
【主な特長】
・ Intel® Core™ Xシリーズプロセッサファミリー: 最新のCPUソケット「LGA2066」に対応
・ クアッドチャネルDDR4(OC)対応

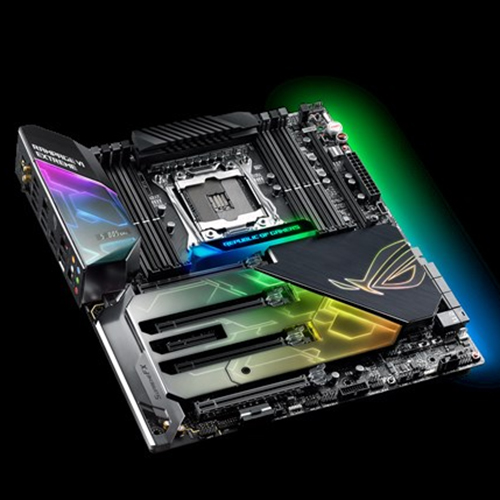

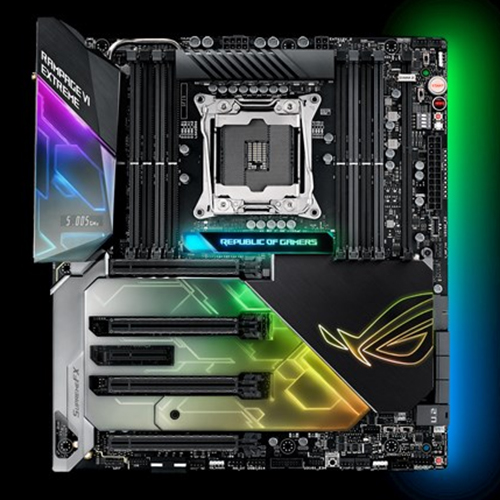

・ シンクロしたRGB LEDイルミネーション: Aura Syncを搭載し、対応するPCギアやアドレサブルLEDストリップで多彩なイルミネーションを実現します。

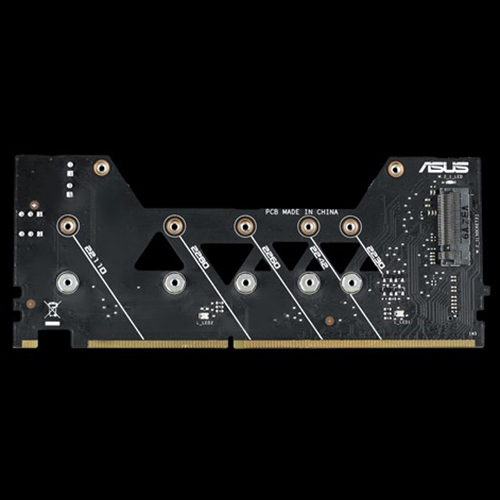

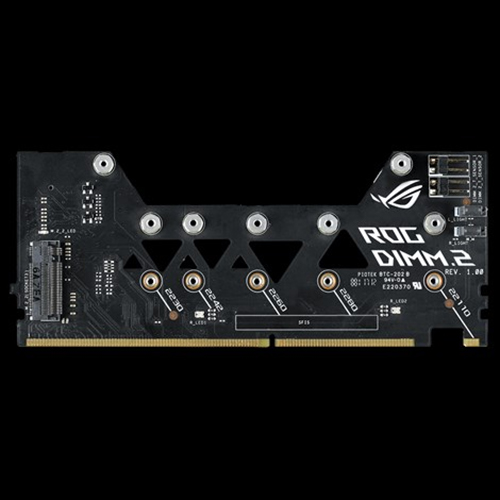

・ ROG DIMM.2: Dual M.2拡張カードによりスロットリングを防止する冷却ファンを使用可能です。
・ 5-Way Optimization: PCビルドに合わせてカスタマイズされたオーバークロックと冷却の設定を提供し、自動的にシステム全体のチューニングを施します。
・ LiveDash OLED: カスタマイズ可能な液晶パネルにシステム情報やオリジナルのロゴを表示することができます。
・ ゲーミングオーディオ: SupremeFXとSonic Studio IIIの組合せにより、シーンに奥行きをもたせ、没入感を向上します。
製品についてお気軽にお問い合わせください
この製品を問い合わせる製品画像
スペック
| 対応CPU | Intel® Socket 2066 Core™ X-Series Processor 79xx, 78xx Series Processors Supports Intel® Virtual RAID on CPU (VROC) Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Max Technology 3.0 * Refer to www.asus.com for CPU support list * The Intel® Turbo Boost Technology 3.0 Support Depends on the CPU types. |
|---|---|
| 搭載チップセット | Build in Intel® X299 |
| 対応メモリ | 8 x DIMM, Max. 128GB, DDR4- 4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory Quad Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| マルチGPU対応 | Supports NVIDIA® 4-Way SLI™ Technology * Supports NVIDIA® 3-Way SLI™ Technology Supports NVIDIA® 2-Way SLI™ Technology Supports AMD 4-Way CrossFireX Technology * Supports AMD 3-Way CrossFireX™ Technology Supports AMD 2-Way CrossFireX Technology * 28-LANE CPUs can only support up to 3-Way SLI™/ 3-Way CrossFireX™ |
| 拡張スロット | 4 x PCIe 3.0 x16 (x16, x16/x16, x16/x0/x16/x8, or x16/x8/x8/x8 mode with 44-LANE CPU; x16, x16/x8 orx8/x8/x8 mode with 28-LANE CPU) * 1 x PCIe 3.0 x4 * When M.2_2(DIMM.2) is populated, PCIEx8_4 runs at x4 mode * The PCIE_X8_4 slot shares bandwidth with M.2_2(DIMM.2) |
| ストレージ機能 | Intel® Core™ X-series Processors (6-core above) : 1 x ROG DIMM.2 Module support(CPU_DIMM.2), M.2 X4 with M Key design, type 2230/2242/2260/2280/22110 storage devices support (Support PCIE SSD only)*1 1 x ROG DIMM.2 Module support(PCH_DIMM.2), M.2 X4 with M Key design, type 2230/2242/2260/2280/22110 storage devices support (Support PCIE SSD only)*2 1 x U.2 port, , support PCIe 3.0 x4 NVM Express storage Intel® X299 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology 15 support Supports Intel® Smart Response Technology Intel® Optane™ Memory Ready |
| LAN機能 | Aquantia AQC-107 10G Intel® I219V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY) Anti-surge LANGuard ROG GameFirst Technology |
| 無線機能 | Wi-Fi 802.11 a/b/g/n/ac+ WiGig 802.11ad Supports dual band frequency 2.4/5 GHz Supports MU-MIMO Up to 4600Mbps transfer speed |
| Bluetooth機能 | Bluetooth® v4.1 |
| オーディオ機能 | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - ESS®SABRE9018Q2C DAC/AMP Audio Feature : - Optical S/PDIF out port(s) at back panel - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Sonic Radar III - Sonic Studio III |
| USB機能 | Intel® X299 Chipset : 4 x USB 3.1 Gen 1 port(s) (4 at mid-board) Intel® X299 Chipset : *3 2 x USB 2.0 port(s) ASMedia® USB 3.1 Gen 2 controller : 1 x USB 3.1 Gen 2 front panel connector port(s) ASMedia® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, ) ASMedia® USB 3.1 Gen 1 controller : 8 x USB 3.1 Gen 1 port(s) ( at back panel, ) |
| R.O.G.シリーズ独自 搭載機能 |
Clear CMOS button ROG RAMCache II ROG CPU-Z ROG CloneDrive Pre-mounted I/O Shield MemOK! Button Overwolf ReTry Button Safe Boot Button Start Button Reset Button LN2 Mode GameFirst IV ROG Aura - Aura Lighting Control - Aura RGB Strip Headers Extreme Engine Digi+ : - MicroFine Alloy Chokes - NexFET™ Power Block MOSFET - 10K Black Metallic Capacitors ProbeIt KeyBot II - One-click Overclocking - X.M.P. - DirectKey - ClrCMOS - Power On UEFI BIOS features : - GPU.DIMM Post - Tweakers' Paradise - ROG SSD Secure Erase - Graphic Card Information Preview |
| 独自機能 | OC Design - ASUS PRO Clock II Technology ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App Gamer's Guardian: - 10K Black Metallic Capacitors - Stainless Steel Back I/O - SafeSlot LiveDash OLED SafeDIMM slot ASUS Wi-Fi GO! ASUS Exclusive Features : - AI Suite 3 - Ai Charger - USB 3.1 Boost ASUS Quiet Thermal Solution : - ASUS Fan Xpert 4 ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Performance Optimization : - DIGI + VRM - GPU Boost - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control - AI Suite 3 Digi+VRM Turbo App |
| 背面インターフェース | 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 8 x USB 3.1 Gen 1 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS Flashback Button(s) 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac+ WiGig 802.11ad and Bluetooth v4.1) 5 x LED-illuminated audio jacks 1 x Aquantia AQC-107 10G LAN port |
| 基板上インターフェース | 1 x W_PUMP+ 1 1 x W_PUMP+ 2 1 x WB_SENSOR 1 x Aura Addressable Strip Header(s) 1 x U.2 port 1 x Aura RGB Strip Headers 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x TPM connector(s) 6 x SATA 6Gb/s connector(s) 1 x VROC_HW_Key 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x H_AMP fan connector 1 x Thunderbolt header(s) 1 x 8-pin EATX 12 V Power connector 1 x 4-pin EATX 12 V_1 Power connector(s) 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Slow Mode switch(es) 1 x ProbeIt Measurement Points 1 x BIOS Switch button(s) 1 x LN2 Mode jumper(s) 1 x ROG extension (ROG_EXT) header(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 1 x PCIe x16 lane switch 2 x T_Sensor Connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Start button 1 x USB 3.1 Gen 2 front panel connector |

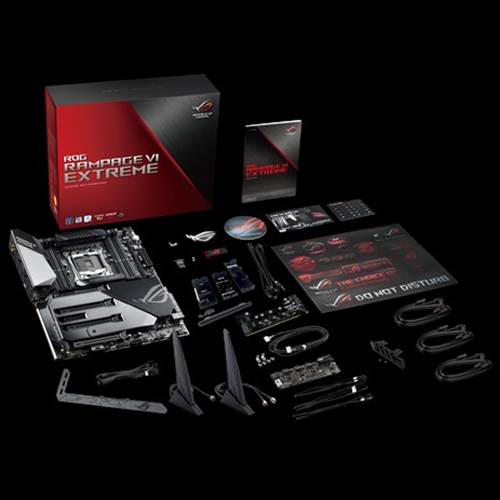

| 主な付属品 | User's manual 1 x ROG logo plate sticker 6 x SATA 6Gb/s cable(s) 3 x M.2 Screw Package 1 x ASUS WiGig 802.11ad moving antenna *4 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x MOS fan bracket kit 1 x ROG VGA Holder 1 x ROG DIMM.2 Fan Stand Pack (s) 1 x Fan Extension Card (3 x 4-pin fan out) 1 x Fan Extension card screw pack 1 x Fan Extension card cable 1 x 3-Way SLI bridge(s) 1 x 4-Way SLI bridge(s) 1 x SLI HB BRIDGE(2-WAY-L) 1 x ROG big sticker 1 x Q-Connector 1 x 10-in-1 ROG cable label 3 x Thermistor cable(s) 1 x ROG coaster(s) |
| BIOS機能 | 2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information. |
| 管理機能 | WfM 2.0, WOL by PME, PXE |
| OS | Windows® 10 64-bit |
| フォームファクター （サイズW×D） |
Extended ATX Form Factor 12 inch x 10.9 inch ( 30.5 cm x 27.7 cm ) |
| その他 | *1 When M.2_1(DIMM.2) comes from CPU, it will be shared with U.2 *2 When M.2_1(DIMM.2) comes from PCH, It will be shared withPCIex4slot. *3 1 x USB 2.0 header support additional 2 x USB 2.0 ports [one connector via ROG_EXT header] *4 Wi-Fi 802.11ad(WiGig) is only available in certified countries |
