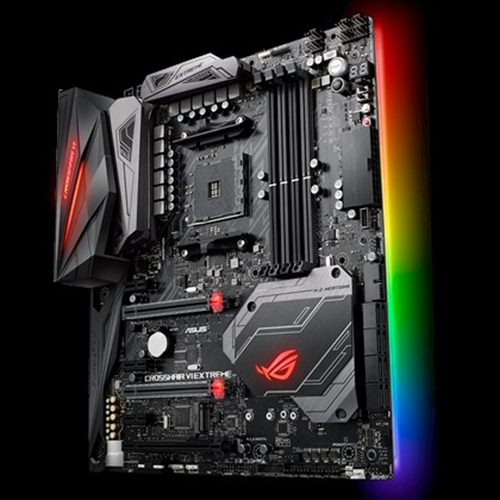

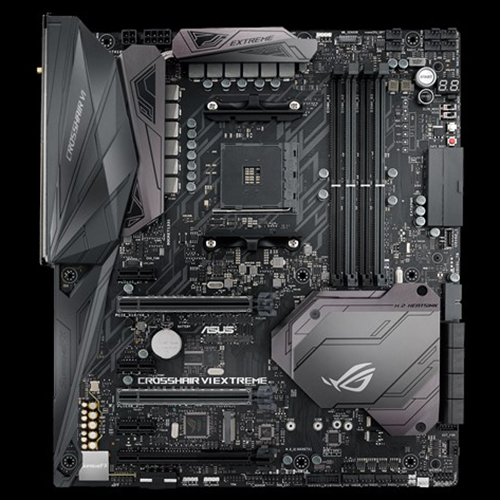

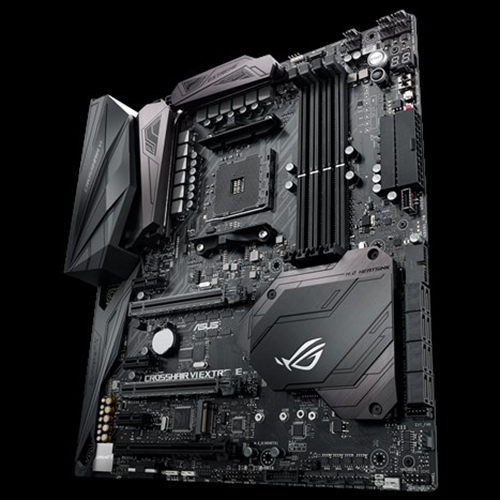

高度なオーバークロックに対応したAMD X370搭載のEATXゲーミングマザーボード
・JAN/UPC：0889349735602
・TEKWIND型番：ASU-ROG/CROSSHAIR/6/EXTREME
【主な特長】

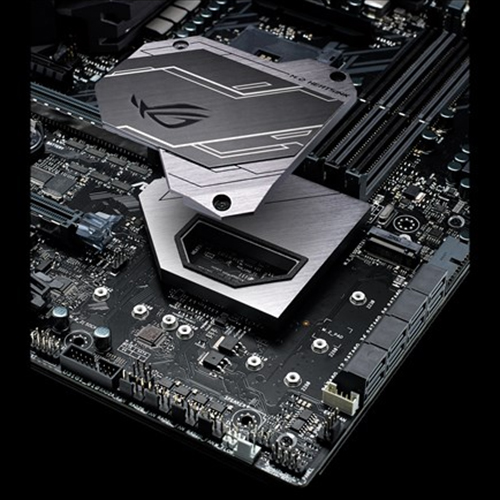

・ オンボードPCH M.2ヒートシンク: ゲーミングパフォーマンスのための最適な放熱設計
・ 最適な冷却: AM3/AM4用クーラーおよび水冷ヘッダーゾーンに対応
・ Aura Sync RGB LED: 2基のAura 4ピンRGBストリップヘッダーと1基のアドレサブルヘッダーでシンクロした素晴らしいLEDイルミネーションを実現
・ 最高のゲーム用オーディオ: 「SupremeFX S1220」と「Sonic Studio III」の組合せで、シーンに奥行きをもたせ、没入感を向上
・ 最高のゲーミングネットワーク: Intel Gigabit Ethernet, LANGuard GameFirstを搭載し、2x2 802.11ac Wi-FiのMU-MIMOに対応
・ ゲーミング仕様の接続性: デュアルM.2およびUSB 3.1 Gen 2 Type-A/Type-C™ コネクターを搭載
製品についてお気軽にお問い合わせください
この製品を問い合わせる製品画像
スペック
| 対応CPU | AMD AM4 Socket for AMD Ryzen™/7th Generation A-series/Athlon™ Processors Supports AM4 Socket 14 nm CPU Supports CPU up to 8 cores * Refer to www.asus.com for CPU support list |
|---|---|
| 搭載チップセット | AMD X370 |
| 対応メモリ | AMD Ryzen™ Processors 4 x DIMM, Max. 64GB, DDR4- 3200(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory * AMD 7th Generation A-series/Athlon™ Processors 4 x DIMM, Max. 64GB, DDR4- 2400/2133 MHz Non-ECC, Un-buffered Memory * デュアルチャンネル Memory Architecture * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| マルチGPU対応 | Supports NVIDIA® 2-Way SLI™ Technology *1 Supports AMD 3-Way CrossFireX™ Technology *1 |
| 拡張スロット | AMD Ryzen™ Processors 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) *2 AMD 7th Generation A-series/Athlon™ Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD X370 chipset 1 x PCIe 2.0 x16 (max at x4 mode) *3 3 x PCIe 2.0 x1 *3 |
| ストレージ機能 | AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*2 AMD 7th Generation A-series/Athlon™ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD X370 chipset : 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| LAN機能 | Intel® I211-AT, 1000BASE-T/100BASE-TX/10BASE-T×1 Anti-surge LANGuard ROG GameFirst IV |
| 無線機能 | Wi-Fi IEEE802.11ac/n/a/g/b Supports dual band frequency 2.4/5 GHz Supports MU-MIMO |
| Bluetooth機能 | Bluetooth V4.2*4 |
| オーディオ機能 | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - ESS® ES9023P - Supports up to 32-Bit/192kHz playback *5 Audio Feature : - Gold-plated jacks - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III |
| USB機能 | AMD Ryzen™/7th Generation A-series/Athlon™ Processors : 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue) AMD X370 chipset : 6 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 4 at mid-board) AMD X370 chipset : 5 x USB 2.0 port(s) (4 at back panel, black, 1 at mid-board) ASMedia® USB 3.1 Gen 2 controller : 1 x USB 3.1 Gen 2 front panel connector port(s) ASMedia® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-C™) |
| R.O.G.シリーズ独自 搭載機能 |
Clear CMOS button ROG RAMCache II ROG CPU-Z ROG CloneDrive Pre-mounted I/O Shield Slow Mode Overwolf ReTry Button Safe Boot Button Start Button Reset Button LN2 Mode GameFirst IV Extreme Engine Digi+ : - MicroFine Alloy Chokes - NexFET™ Power Block MOSFET - 10K Black Metallic Capacitors Mem TweakIt KeyBot II - One-click Overclocking - DirectKey - ClrCMOS - Power On UEFI BIOS features : - O.C. Profile - Tweakers' Paradise - ROG SSD Secure Erase - Graphic Card Information Preview ROG RAMDisk Extreme Tweaker USB BIOS Flashback |
| 独自機能 | ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App TPU - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors Gamer's Guardian: - SafeSlot AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s) ASUS Exclusive Features : - AI Suite 3 ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS USB BIOS Flashback ASUS Q-Design : - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-DIMM - ASUS Q-Connector Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall) |

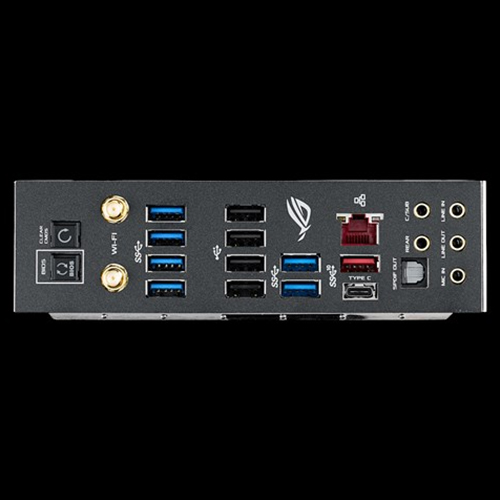

| 背面インターフェース | 1 x LAN (RJ45) port(s) 1 x USB 3.1 Gen 2 (black)USB Type-C™ 1 x USB 3.1 Gen 2 (red)Type-A 6 x USB 3.1 Gen 1 (blue) 4 x USB 2.0 (one port can be switched to USB BIOS Flashback) 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS Flashback Button(s) 1 x ASUS 2x2 Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2 module 5 x Gold-plated audio jacks |
| 基板上インターフェース | 1 x Aura Addressable Strip Header(s) 2 x Aura RGB Strip Headers 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 1 USB 2.0 port(s) 1 x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x W_PUMP+ connector (1 x 4 -pin) 1 x 8-pin EATX 12 V Power connector 1 x 4-pin EATX 12 V_1 Power connector(s) 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) (Q-Connector) 1 x Slow Mode switch(es) 7 x ProbeIt Measurement Points 1 x EZ Plug connector(s) (4-pin Molex power connector) 1 x Reset button(s) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x LN2 Mode jumper(s) 1 x ROG extension (ROG_EXT) header(s) 1 x Safe Boot button 1 x ReTry button 1 x W_IN header 2 x W_OUT header 1 x W_FLOW header 1 x Thermal sensor connector 1 x Start button 1 x USB 3.1 Gen 2 front panel connector 1 x 9 pin Monoblock sensor 8 x Radiator Fan Headers |
| 主な付属品 | User's manual 1 x ROG logo plate sticker 8 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x Fan Extension Card (3 x 4-pin fan out) 1 x Fan Extension card screw pack 1 x Fan Extension card cable 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n compliant) 1 x SLI HB BRIDGE(2-WAY-M) 1 x ROG big sticker 1 x Q-Connector 1 x 10-in-1 ROG cable label 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 3 x Thermistor cable(s) 1 x ROG coaster(s) |
| BIOS機能 | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information |
| 管理機能 | WfM 2.0, WOL by PME, PXE |
| サポートDVDの内容 | Drivers AURA ROG GameFirst IV*5 ROG RAMDisk ROG RAMCache II ROG CPU-Z ROG Mem TweakIt ROG Keybot II Sonic Studio III Sonic Radar III Overwolf CloneDrive Kaspersky® Anti-Virus DAEMON Tools Software Winzip ASUS Utilities |
| OS | Windows® 10 64-bit |
| フォームファクター （サイズW×D） |
Extended ATX Form Factor 12 inch x 10.6 inch ( 30.5 cm x 26.9 cm ) |
| その他 | *1 Due to CPU limitation, AMD 7th Generation A-series/Athlon™ Processors support AMD® 2-Way CrossFireX™ Technology only. *2 The PCIEX8_2 slot shares bandwidth with M.2_2 *3 The PCIEX4_3 slot shares bandwidth with the PCIEX1_1, PCIEX1_2, PCIEX1_3 slots *4 Support for the Bluetooth specification depends on the Windows version. Win7/8.1 support up to Bluetooth 4.0. *5 Due to limitations in HDA bandwidth, 32-bit/192kHz is not supported for 8-Channel audio and due to Windows 7 limitations, 32-bit playback is unavailable for Windows 7. *5 ROG GameFirst Technology is only available for Windows 10/8.1 64-bit |
