PRIME A320M-A

5X Protection III採用で安定性と信頼性に優れたmicroATXサイズのAMD AM4マザーボード

・JAN/UPC：0889349765371
・TEKWIND型番：ASU-PRIME/A320M-A

【主な特長】

・ 5X Protection III: 複数のハードウェアプロテクションの組合せによる絶対的な保護
・ LEDイルミネーション: オーディオトレースパスのライティングコントロール
・ Native M.2: 超高速ストレージ
・ワン・ストップ・コントロール: 各メディアから高い評価を得たEZ Flash 3搭載のUEFI BIOS

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

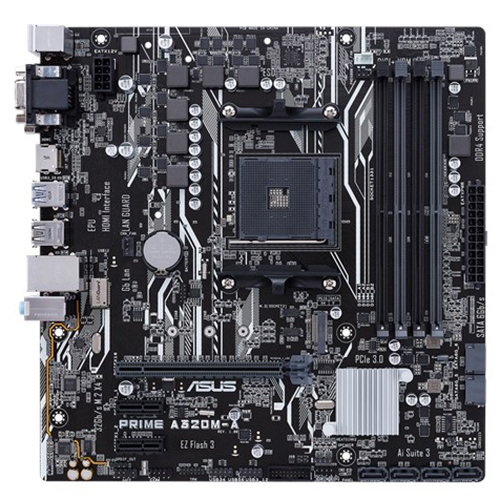

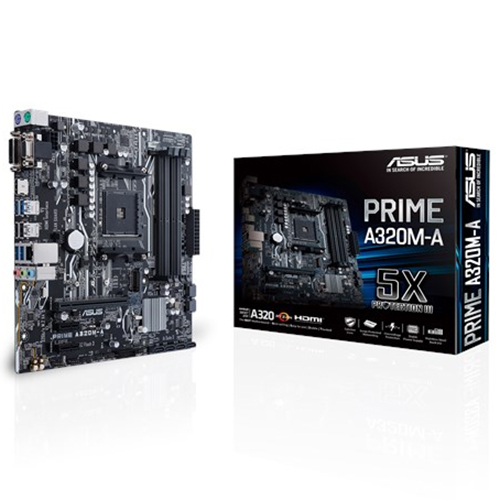

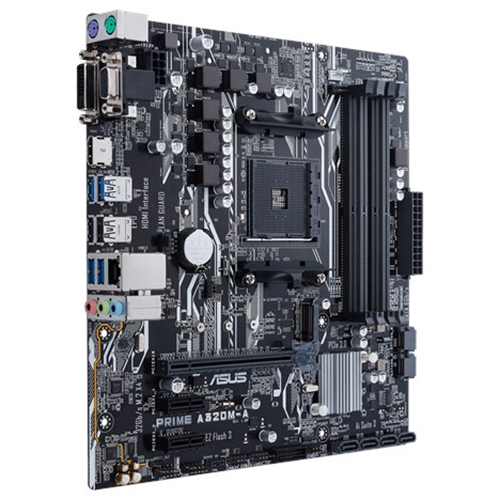

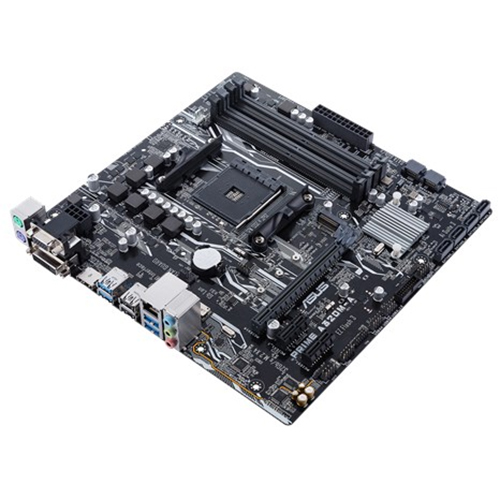

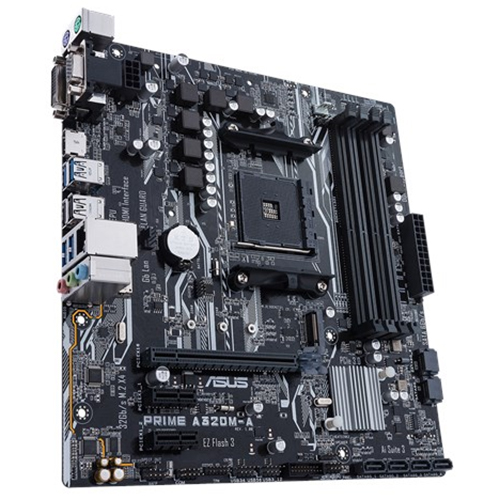

製品画像

スペック

対応CPU	AMD AM4 Socket for AMD Ryzen™/7^th Generation A-series/Athlon™ Processors Supports CPU up to 8 cores * Refer to www.asus.com for CPU support list
搭載チップセット	AMD A320
対応メモリ	AMD Ryzen™ Processors 4 x DIMM, Max. 64GB, DDR4- 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory ¹ AMD 7th Generation A-series/Athlon™ Processors* 4 x DIMM, Max. 64GB, DDR4- 2400/2133 MHz Non-ECC, Un-buffered Memory デュアルチャンネル Memory Architecture * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
グラフィックス機能	Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU *² Multi-VGA output support : HDMI/DVI/RGB ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 2048 MB
拡張スロット	AMD Ryzen™ Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD 7th Generation A-series/Athlon™ Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD A320 chipset 2 x PCIe 2.0 x1
ストレージ機能	AMD A320 chipset : 4 x SATA 6Gb/s port(s), gray, Support Raid 0, 1, 10 AMD Ryzen™/7th Generation A-series/Athlon™ Processors : 2 x SATA 6Gb/s port(s), gray, AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)³ AMD 7th Generation A-series/Athlon™ Processors :* 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*⁴
LAN機能	Realtek^® RTL8111H, 1000BASE-T/100BASE-TX/10BASE-T×1
オーディオ機能	Realtek^® ALC887 8-Channel High Definition Audio CODEC
USB機能	AMD Ryzen™/7th Generation A-series/Athlon™ Processors : 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue) AMD A320 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) AMD A320 chipset : 6 x USB 2.0 port(s)
独自機能	ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 6 Phase digital power design ASUS Exclusive Features : - AI Suite 3 - Ai Charger - Turbo LAN - PC Cleaner ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM
動作対応OS	Windows^® 10 64ビット

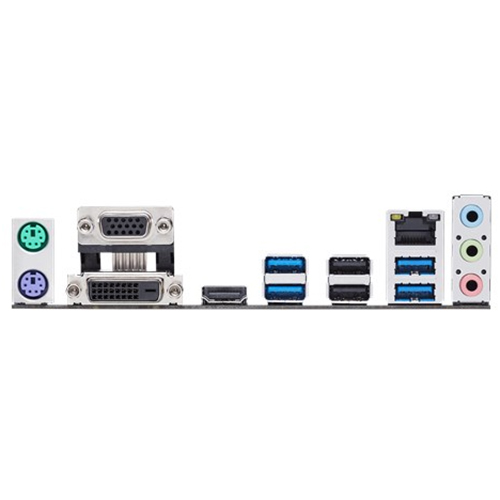

背面インターフェース	1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 1 (blue) 2 x USB 2.0 3 x Audio jack(s)
基板上インターフェース	1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x Speaker connector

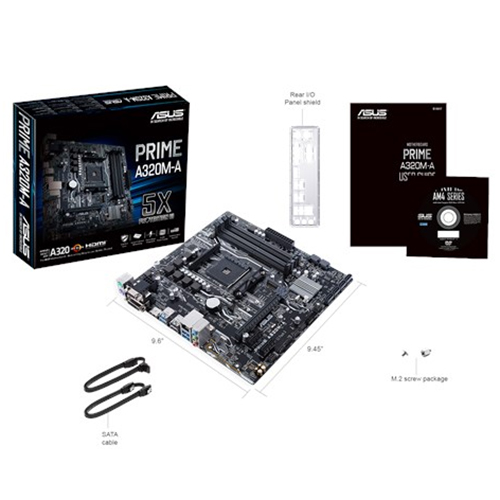

主な付属品	User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD
BIOS機能	128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
OS	Windows^® 10 64-bit
フォームファクター（サイズW×D）	mATX Form Factor 9.6 inch x 9.45 inch ( 24.4 cm x 24 cm )
その他	1Due to the limitation of AMD Ryzen™ processors, memory frequencies higher than DDR4 2666 MHz are supported only when using one DIMM per channel. 2AMD Ryzen™ Processor does not support. 3When a SATA / PCIE mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports. 4When a SATA mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports
