販売終了

信頼性と安定性を誇るTUF基準のIntel X299マザーボード

TUF X299 MARK 2

JAN/UPC:0889349775172
TEKWIND型番:ASU-TUF/X299/MARK/2

【主な特長】

・ Thermal Radar 3 - オーバークロック中にシステムを安定に保つように設計されたThermal Radar 3は、完全なシステムの冷却制御と温度監視オプションを提供
・ Pro Clock II & T-Topology - Pro Clock II テクノロジーは、OC時に柔軟な微調整を可能とし、T-Topologyは、高い周波数でメモリを動作させる際に安定性を向上
・ TUFコンポーネント - ミリタリースタンダードテストをパスしたコンデンサ、チョーク、MOSFETsを搭載搭載
・ デュアル PCI Express® スロット - 1.5倍の転送帯域幅を実現するSLIブリッジ接続をサポート
・ ASUS Aura Sync: Aura対応製品のすべてを1つのアプリケーション上で統合制御することで、完璧に同期した光のハーモニーを実現


製品についてお気軽にお問い合わせください

この製品を問い合わせる

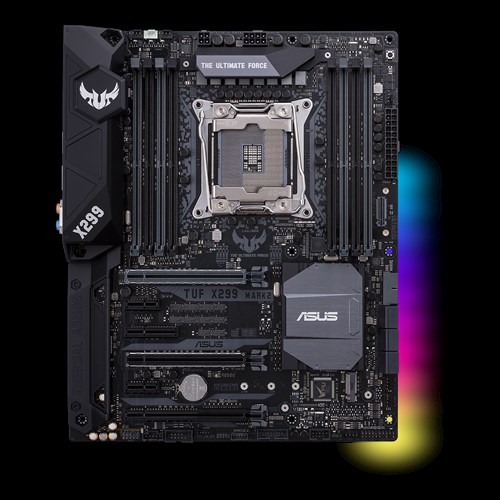

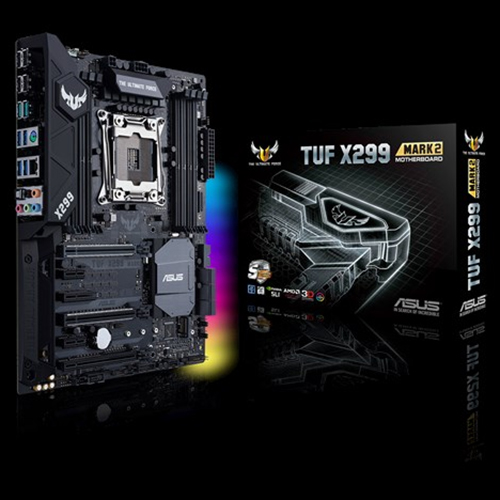

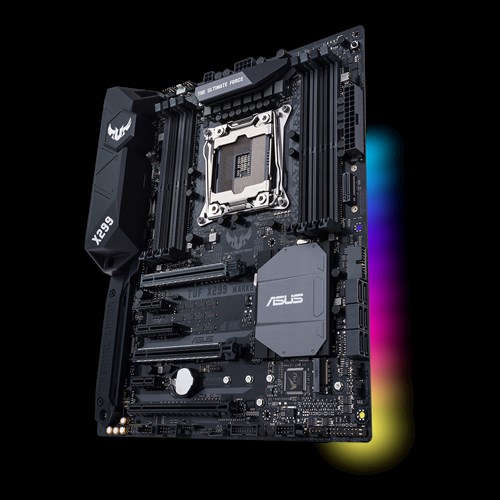

製品画像

スペック

対応CPU Intel® Socket 2066 Core™ X-Series Processors
* The Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types
* Refer to www.asus.com for CPU support list
搭載チップセット Intel® X299
対応メモリ Intel® Core™ X-series Processors (6-core above)
8 x DIMM, Max. 128GB, DDR4- 4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Intel® Core™ X-series Processors (4-core)
4 x DIMM, Max. 64GB, DDR4- 4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
マルチGPU対応 Supports NVIDIA® Quad-GPU SLI™ Technology
Supports NVIDIA® 3-Way SLI™ Technology
Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology
Supports AMD 3-Way CrossFireX™ Technology
拡張スロット 44-Lane CPU-
3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
1 x PCIe 3.0 x4 (max at x2 mode) *1
2 x PCIe 3.0/2.0 x1
28-Lane CPU-
3 x PCIe 3.0/2.0 x16 ( x16, x16/x8, x16/x8/x4)
1 x PCIe 3.0 x4 (max at x2 mode) *1
2 x PCIe 3.0/2.0 x1
16-Lane CPU-
3 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x8/x1)
1 x PCIe 3.0 x4 (max at x2 mode) *1
2 x PCIe 3.0/2.0 x1
ストレージ機能 Intel® X299 Chipset :
1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel Rapid Start Technology*2
Intel® Optane™ Memory Ready
LAN機能 Intel® I219V, 1000BASE-T/100BASE-TX/10BASE-T×1, featuring Turbo LAN
ASUS Turbo LAN Utility
オーディオ機能 Realtek® ALC S1220A 8-Channel High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
Separate layer for left and right track, ensuring both sound deliver equal quality
USB機能 ASMedia® USB 3.1 Gen 2 controller :
2 x USB 3.1 Gen 2 port(s) (Type-A)
Intel® X299 Chipset :
8 x USB 3.1 Gen 1 port(s) (4 at back panel, , 4 at mid-board)
Intel® X299 Chipset :
6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)
独自機能 OC Design - ASUS PRO Clock Technology

TUF Features:
TUF ENGINE! Power Design :
- 7 +1 Digital Phase Power Design
- TUF Components (Choke, Cap. & MOSFET; certified by military-standard)
Ultimate COOL! Thermal Solution :
- TUF Thermal Armor
Thermal Radar 3
Safe & Stable! Guardian Angel :
- TUF ESD Guards 2
- TUF LANGuard
AURA :
- Aura Lighting Control
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
ASUS Exclusive Features :
- MemOK!
- AI Suite 3
- Ai Charger
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Turbo LAN

ASUS EZ DIY :
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

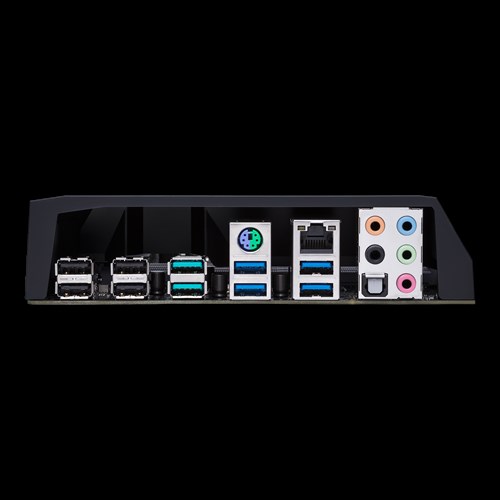

背面インターフェース 1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 Type-A
4 x USB 3.1 Gen 1
4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
1 x Optical S/PDIF out
5 x Audio jack(s)
基板上インターフェース 1 x AAFP connector
2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x M.2_FAN connector ()
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x W_PUMP+ connector
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x System panel(s) (Q-Connector)
1 x MemOK! button(s)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x CPU_OV jumper

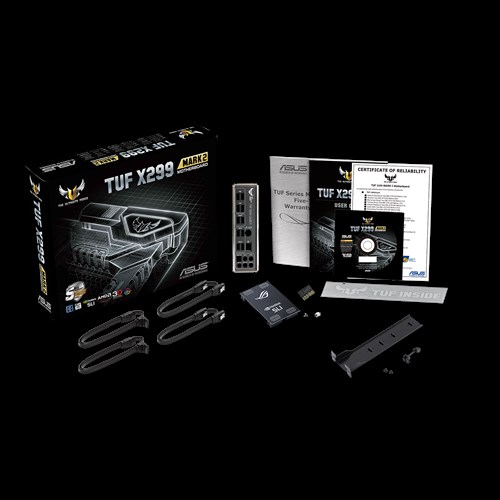

主な付属品 User's manual
ASUS Q-Shield
1 x Vertical M.2 bracket set
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x SLI HB BRIDGE(2-WAY-M)
1 x Q-Connector
1 x TUF Certification card(s)
1 x TUF 5 Year Warranty manual(s) (by region)
1 x TUF Inside sticker(s)(white)
BIOS機能 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS,
ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information
管理機能 WfM 2.0, DMI 3.0, WOL by PME, PXE
サポートDVDの内容 Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)
OS Windows® 10 64-bit
フォームファクター
(サイズW×D)
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
その他 1. When using 28-lane & 16-lane CPUs, PCIEX16_3 will be disabled.
