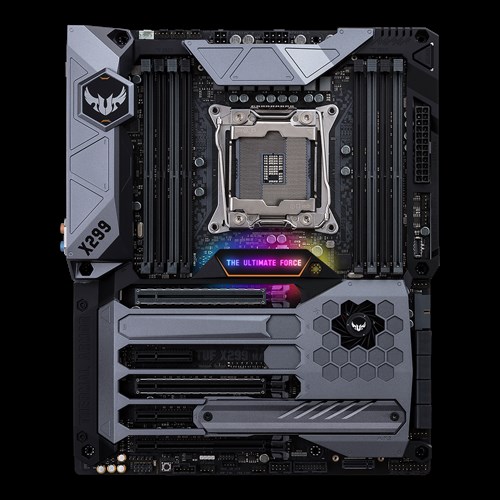

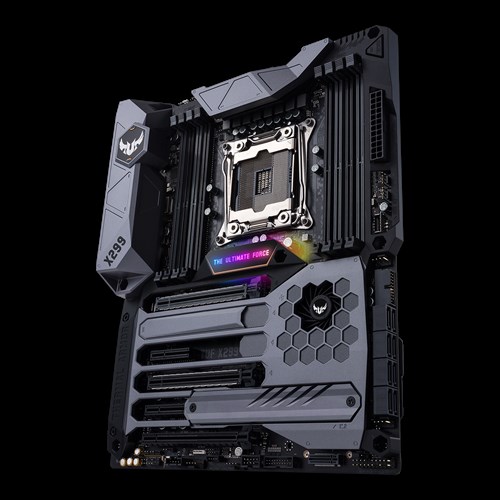

抜群の高耐久と安定性に特化したフル装備のIntel X299マザーボード
・JAN/UPC：0889349774380
・TEKWIND型番：ASU-TUF/X299/MARK/1
【主な特長】
・ サーマルアーマー＆M.2ヒートシンク - サーマルアーマーは重要な箇所へと直接冷気を送り込み、40mmファンとM.2ヒートシンクによってSSD温度を25℃まで冷却。

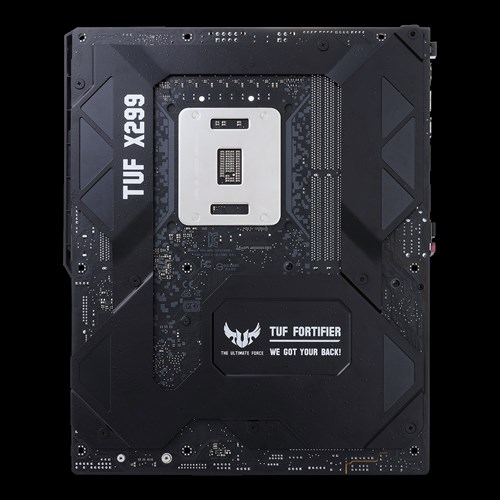

・ TUF Fortifier、SafeSlot＆VGAホルダー - 強化されたバックプレートはボードの剛性を高め、強化型PCIeスロットSafeSlot と TUF VGAホルダーによって重量級グラフィックスカードをサポート。
・ Thermal Radar 3 & TUF ICe - オーバークロック中にシステムを安定に保つように設計されたThermal Radar 3は、完全なシステムの冷却制御と温度監視オプションを提供。

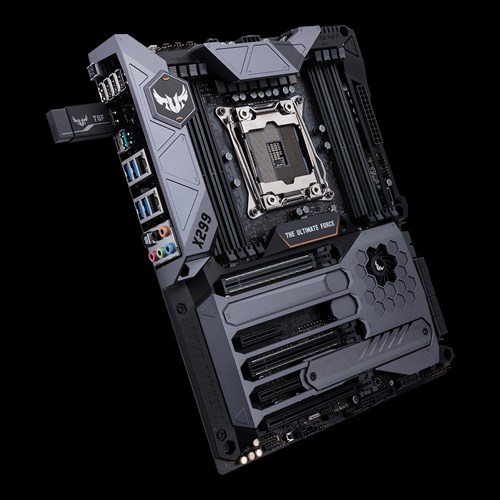

・ TUF Detective 2 - TUF Detective 2 アプリケーションは、Bluetooth接続経由で情報を確認し、エラーを検出して診断することで、システムを起動することなく重要な設定の調整が可能。
・ ASUS Aura Sync: 増え続けるAura Sync対応製品のRGB LEDを同期。
製品についてお気軽にお問い合わせください
この製品を問い合わせる製品画像
スペック
| 対応CPU | Intel® Socket 2066 Core™ X-Series Processors * The Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types * Refer to www.asus.com for CPU support list |
|---|---|
| 搭載チップセット | Intel® X299 |
| 対応メモリ | Intel® Core™ X-series Processors (6-core above) 8 x DIMM, Max. 128GB, DDR4 4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Intel® Core™ X-series Processors (4-core) 4 x DIMM, Max. 64GB, DDR4 4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| マルチGPU対応 | Supports NVIDIA® Quad-GPU SLI™ Technology Supports NVIDIA® 3-Way SLI™ Technology Supports NVIDIA® 2-Way SLI™ Technology Supports AMD Quad-GPU CrossFireX™ Technology Supports AMD 3-Way CrossFireX™ Technology |
| 拡張スロット | 44-Lane CPU- 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) 2 x PCIe 3.0 x4 (max at x4 mode) *1 28-Lane CPU- 3 x PCIe 3.0/2.0 x16 ( x16, x16/x8, x16/x8/x4) 2 x PCIe 3.0 x4 (max at x4 mode) *1 16-Lane CPU- 3 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x8/x1) 2 x PCIe 3.0 x4 (max at x4 mode) *1 |
| ストレージ機能 | Intel® X299 Chipset : 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Supports Intel® Smart Response Technology, Intel Rapid Start Technology*2 Intel® Optane™ Memory Ready |
| LAN機能 | Intel® I219V, 1 x Gigabit LAN Controller(s), featuring Turbo LAN Intel® I211, 1 x Gigabit LAN, featuring Turbo LAN ASUS Turbo LAN Utility |
| オーディオ機能 | Realtek® ALC S1220A 8-Channel High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - DTS Connect - DTS Headphone:X - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs Separate layer for left and right track, ensuring both sound deliver equal quality |
| USB機能 | ASMedia® USB 3.1 Gen 2 controller : 1 x USB 3.1 Gen 2 port(s) (1 at mid-board) ASMedia® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (Type-A + USB Type-C™) Intel® X299 Chipset : 8 x USB 3.1 Gen 1 port(s) (4 at back panel, , 4 at mid-board) Intel® X299 Chipset : 6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board) |
| 独自機能 | OC Design - ASUS PRO Clock Technology TUF Features: TUF ENGINE! Power Design : - 8 +2 Digital Phase Power Design - TUF Components (Choke, Cap. & MOSFET; certified by military-standard) Ultimate COOL! Thermal Solution : - TUF Thermal Armor - Thermal Radar 3 - TUF ICe Safe & Stable! Guardian Angel : "We Got Your Back!" Shape Force - Dust Defenders - TUF Fortifier - TUF VGA Holder - TUF ESD Guards 2 - TUF LANGuard AURA : - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices ASUS Exclusive Features : - USB BIOS Flashback - MemOK! - AI Suite 3 - Ai Charger - Onboard Button : Power - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Turbo LAN ASUS EZ DIY : - ASUS EZ Flash 3 - ASUS USB BIOS Flashback - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) |

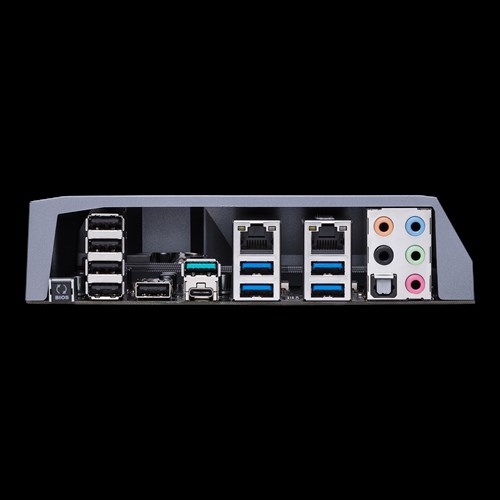

| 背面インターフェース | 2 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 Type-A + USB Type-C™ 4 x USB 3.1 Gen 1 4 x USB 2.0 (one port can be switched to USB BIOS Flashback) 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x USB BIOS Flashback Button(s) 1 x TUF Detective USB port |
| 基板上インターフェース | 1 x AAFP connector 1 x Aura RGB Strip Header 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s connector(s) 1 x VROC_HW_Key 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 5 x Chassis Fan connector(s) 1 x Assistant Fan connector(s) 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x System panel(s) (Q-Connector) 1 x MemOK! button(s) 3 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x USB 3.1 Gen 2 front panel connector 1 x CPU_OV jumper |

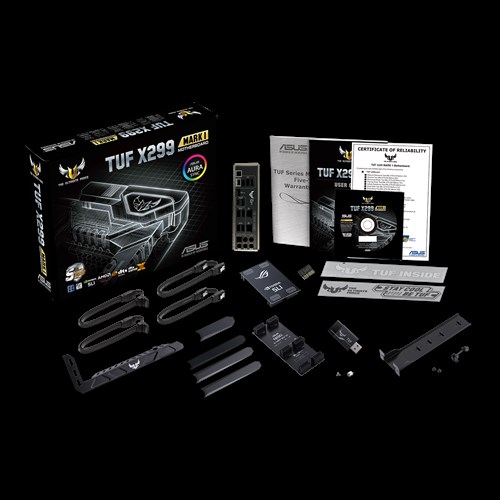

| 主な付属品 | User's manual ASUS Q-Shield 1 x Vertical M.2 bracket set 4 x SATA 6Gb/s cable(s) 1 x ASUS 2-Way/3-Way SLI bridge 1 x M.2 Screw Package 1 x Supporting DVD 1 x SLI HB BRIDGE(2-WAY-M) 1 x Q-Connector 1 x TUF Certification card(s) 1 x TUF 5 Year Warranty manual(s) (by region) 1 x TUF Inside sticker(s)(white) 1 x STAY COOL BE TUF sticker(s)(gray) 1 x TUF Dongle 1 x Accessory Package(s): - 3 x PCIe x16 slot dust cover(s) - 1 x PCIe x4 slot dust cover(s) 1 x TUF VGA Holder |
| BIOS機能 | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information |
| 管理機能 | WfM 2.0, DMI 3.0, WOL by PME, PXE |
| サポートDVDの内容 | Drivers ASUS Utilities EZ Update Anti-virus software (OEM version) |
| OS | Windows® 10 64-bit |
| フォームファクター （サイズW×D） |
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| その他 | 1. PCIEX4_1 max. at x1 mode and or shared with PCIEX16_3 when using 28 / 16 lane CPU; PCIEX4_2 max. at x4 mode; 2. SATA6G_5/6/7/8 share bandwidth with PCIEX4_2. |
