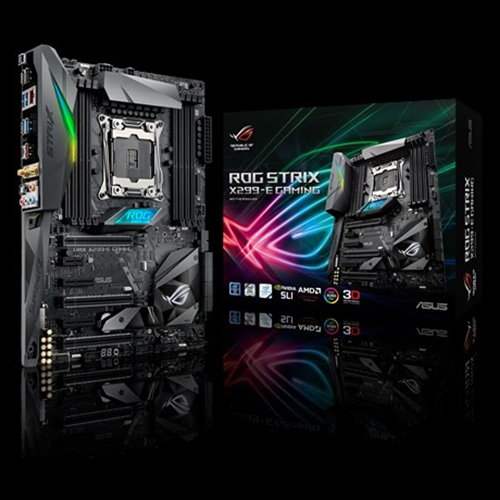

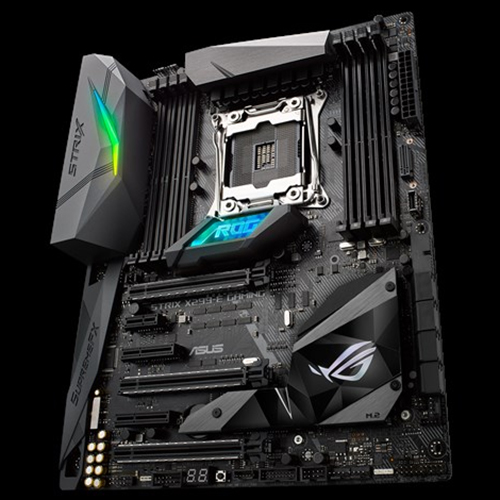

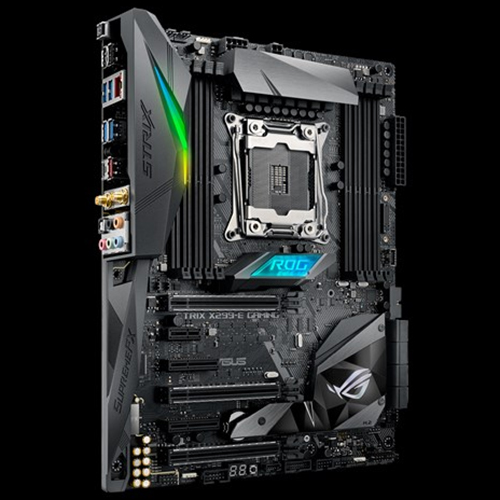

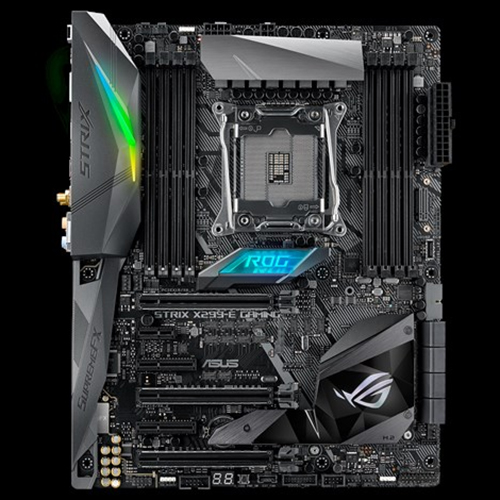

最新機能を網羅したATX規格のIntel X299ゲーミングマザーボード
・JAN/UPC：0889349773093
・TEKWIND型番：ASU-ROG/STRIX/X299-E/GAMING
【主な特長】
・ Intel® Core™ X シリーズ プロセッサファミリー: 最新のCPUソケットLGA 2066に対応。
・ Aura Syncに対応したPCギアとの間でRGB LEDの発光を同期。アドレサブルLEDストリップに対応。
・ オンボードM.2ヒートシンク: M.2ドライブを冷却し、ストレージパフォーマンスの安定性と信頼性を向上。
・ 5-Way Optimization: システム全体のチューニングを自動化し、ユーザー個人のシステム構成に最適なオーバークロックと冷却用のプロファイルを提供。
・ ゲーミングオーディオ: SupremeFX S1220A と Sonic Studio III の連携が深みのあるサウンドを生み出し、臨場感を向上。
・ ゲーミングネットワーク: Intel Gigabit イーサネット、 LANGuard GameFirst、MU-MIMO対応 2x2 802.11ac Wi-Fi を搭載。
製品についてお気軽にお問い合わせください
この製品を問い合わせる製品画像
スペック
| 対応CPU | Intel® Socket 2066 Core™ X-Series Processors * Refer to www.asus.com for CPU support list * The Intel® Turbo Boost Technology 3.0 Support Depends on the CPU types. |
|---|---|
| 搭載チップセット | Intel® X299 |
| 対応メモリ | Intel® Core™ X-series Processors (6-core above) 8 x DIMM, Max. 128GB, DDR4- 4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Intel® Core™ X-series Processors (4-core) 4 x DIMM, Max. 64GB, DDR4- 4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| マルチGPU対応 | Supports NVIDIA® Quad-GPU SLI™ Technology Supports NVIDIA® 3-Way SLI™ Technology Supports NVIDIA® 2-Way SLI™ Technology Supports AMD Quad-GPU CrossFireX™ Technology Supports AMD 3-Way CrossFireX™ Technology Supports AMD 2-Way CrossFireX Technology |
| 拡張スロット | 44-Lane CPU- Intel® Core™ X-Series Processors Family 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) 2 x PCIe 3.0 x4 (max at x4 mode) *1 1 x PCIe 3.0/2.0 x1 28-Lane CPU- Intel® Core™ X-Series Processors Family 3 x PCIe 3.0/2.0 x16 (x16, x16/x8, x16/x8/x1) 2 x PCIe 3.0 x4 (max at x4 mode) *1 1 x PCIe 3.0/2.0 x1 16-Lane CPU- Intel® Core™ X-Series Processors Family 3 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x8/x1) 2 x PCIe 3.0 x4 (max at x4 mode) *1 1 x PCIe 3.0/2.0 x1 |
| ストレージ機能 | Intel® Core™ X-Series Processors Family : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Supports Intel® Smart Response Technology, Intel Rapid Start Technology Intel® Optane™ Memory Ready |
| LAN機能 | Intel® I219V Anti-surge LANGuard ROG GameFirst IV |
| 無線機能 | Wi-Fi IEEE802.11ac/n/a/g/b |
| Bluetooth機能 | Bluetooth V4.2 |
| オーディオ機能 | SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual Headphone Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR stereo playback input - SupremeFX Shielding Technology - Supports up to 32-Bit/192kHz playback *2 Audio Feature : - SupremeFX Shielding™ Technology - Optical S/PDIF out port(s) at back panel - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Sonic Radar III - Sonic Studio III |
| USB機能 | ASMedia® USB 3.1 Gen 2 controller : 1 x USB 3.1 Gen 2 front panel connector port(s) ASMedia® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-C™) Intel® X299 Chipset : 8 x USB 3.1 Gen 1 port(s) (4 at back panel, +blue, 4 at mid-board) Intel® X299 Chipset : 4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board) |
| R.O.G.シリーズ独自 搭載機能 |
ROG RAMCache II ROG CPU-Z ROG CloneDrive Overwolf GameFirst IV ROG Aura - Aura Lighting Control - Aura RGB Strip Headers |
| 独自機能 | OC Design - ASUS PRO Clock Technology ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s) ASUS Exclusive Features : - USB BIOS Flashback - AI Suite 3 - Ai Charger - Onboard Button : Power - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface ASUS EZ DIY : - ASUS EZ Flash 3 - ASUS USB BIOS Flashback - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Gaming Aesthetics : - 3D printing friendly - AURA-RGB Lighting M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) |

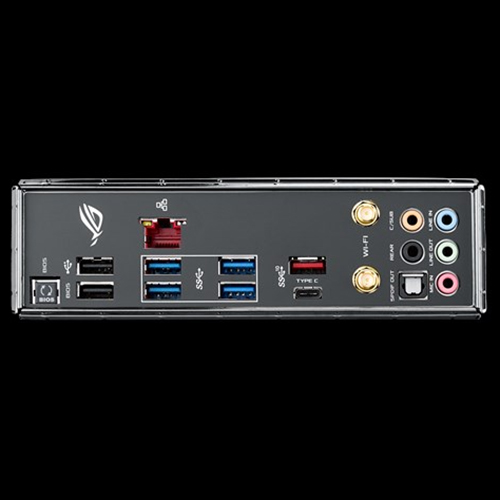

| 背面インターフェース | 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 Type-A + USB Type-C™ 4 x USB 3.1 Gen 1 (blue) 2 x USB 2.0 (one port can be switched to USB BIOS Flashback) 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x USB BIOS Flashback Button(s) 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0/3.0+HS) |
| 基板上インターフェース | 1 x Aura Addressable Strip Header(s) 1 x AAFP connector 2 x Aura RGB Strip Headers 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s connector(s) 1 x M.2_FAN connector () 1 x VROC_HW_Key () 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel connector(s) 1 x System panel(s) (Q-Connector) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x USB 3.1 Gen 2 front panel connector 1 x CPU_OV jumper |
| 主な付属品 | User's manual ASUS Q-Shield 1 x Vertical M.2 bracket set 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x SLI HB BRIDGE(2-WAY-M) 1 x Q-Connector 1 x 10-in-1 ROG cable label 1 x M.2 screw kit (long screw and mount) 1 x Thermal sensor cable pack(s) 1 x Cable ties pack(s) ROG Fan Label 1 x ROG Door Hanger 1 x Extension cable for Addressable LED 1 x Extension Cable for RGB strips (80 cm) 1 x 3D printing mount package |
| BIOS機能 | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information |
| 管理機能 | WfM 2.0, DMI 3.0, WOL by PME, PXE |
| サポートDVDの内容 | Drivers ASUS Utilities EZ Update Anti-virus software (OEM version) |
| OS | Windows® 10 64-bit |
| フォームファクター （サイズW×D） |
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| その他 | 1. PCIEX4_1 max. at x4 mode 2. Due to limitations in HDA bandwidth, 32-bit/192kHz is not supported for 8-Channel audio |
