STRIX X370-F GAMING

ゲーム用の機能を満載したゲーマー向けのAMD X370マザーボード

・JAN/UPC：0889349697108
・TEKWIND型番：ASU-STRIX/X370-F/GAMING

【主な特長】

・プロ仕様のゲーミングマザーボード
・ Aura Sync RGB LED: 完全にシンクロしたLEDイルミネーションを実現する Aura 4ピン RGBストリップヘッダーを2期搭載
・ SupremeFX オーディオ: Sonic Studio III と Sonic Radar III によって、直感的な操作で最高のオーディオパフォーマンスを実現
・ 5-Way Optimization: ワンクリックでシステム全体のオーバクロックと冷却性能を最適化
・ゲーム仕様の豊富なインターフェース: USB 3.1フロントパネルコネクタ、M.2、USB 3.1 Type-AおよびType-C™の各種接続インターフェースに対応
・ゲーミング仕様のネットワーク: Intel^® Gigabit イーサネット、LANGuard, GameFirstテクノロジーを搭載
・ゲーミング仕様の耐久性: プレミアム品質の部品と ASUS SafeSlot によって実現した最高級の耐久性

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

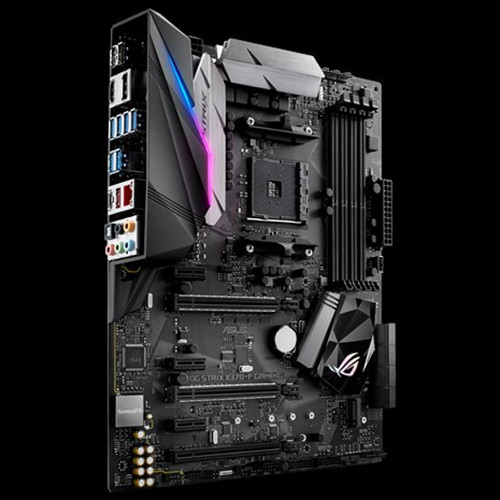

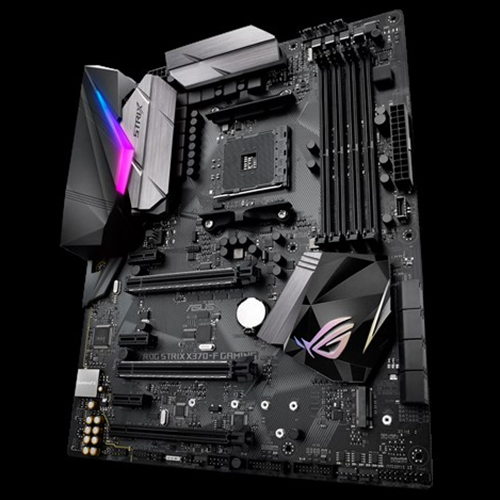

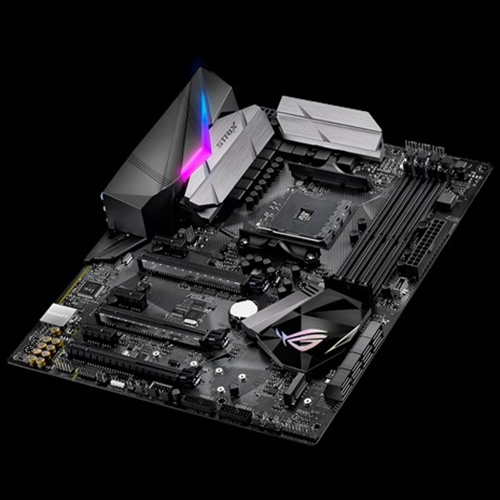

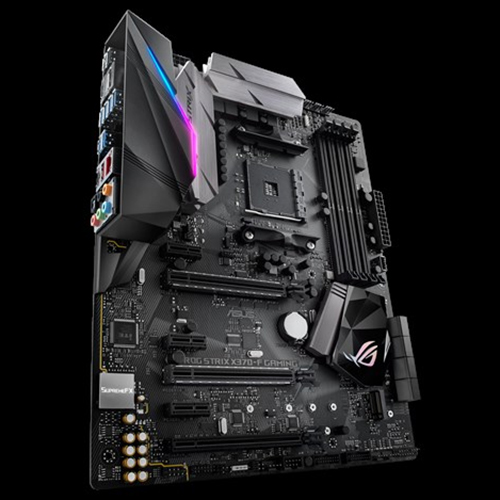

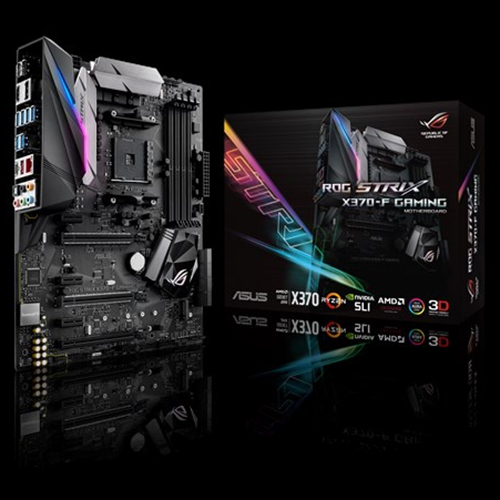

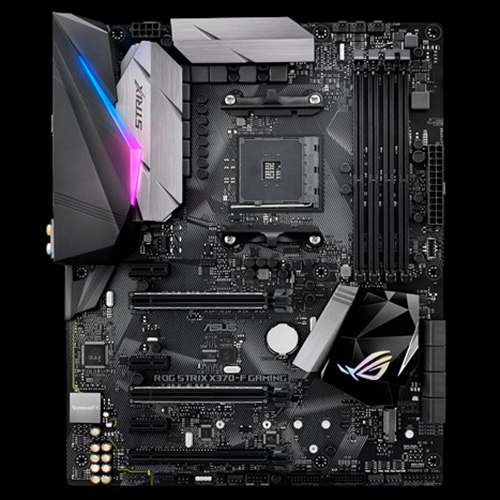

製品画像

スペック

対応CPU	AMD AM4 Socket for AMD Ryzen™/7^th Generation A-series/Athlon™ Processors Supports AM4 Socket 14 nm CPU Supports CPU up to 8 cores * Refer to www.asus.com for CPU support list
搭載チップセット	AMD X370
対応メモリ	AMD Ryzen™ Processors 4 x DIMM, Max. 64GB, DDR4- 3200(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory * AMD 7th Generation A-series/Athlon™ Processors 4 x DIMM, Max. 64GB, DDR4- 2400/2133 MHz Non-ECC, Un-buffered Memory * デュアルチャンネル Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
マルチGPU対応	Supports NVIDIA^® 2-Way SLI™ Technology Supports AMD 3-Way CrossFireX™ Technology
拡張スロット	AMD Ryzen™ Processors 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) AMD 7th Generation A-series/Athlon™ Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD X370 chipset 1 x PCIe 2.0 x16 (max at x4 mode) *¹ 3 x PCIe 2.0 x1
ストレージ機能	AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD 7th Generation A-series/Athlon™ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode) AMD X370 chipset : 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
LAN機能	Intel^® I211-AT, 1000BASE-T/100BASE-TX/10BASE-T×1 Anti-surge LANGuard ROG GameFirst Technology
オーディオ機能	ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual Headphone Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - Supports up to 32-Bit/192kHz playback ² Audio Feature :* - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III
USB機能	AMD Ryzen™/7th Generation A-series/Athlon™ Processors : 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue) AMD X370 chipset : 1 x USB 3.1 Gen 2 front panel connector port(s) AMD X370 chipset : 6 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 4 at mid-board) AMD X370 chipset : 4 x USB 2.0 port(s) (2 at back panel, black, 2 at mid-board) ASMedia^® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, red, Type-A + USB Type-C^TM)
R.O.G.シリーズ独自搭載機能	ROG RAMCache II ROG CPU-Z ROG CloneDrive Overwolf GameFirst IV
独自機能	5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. TPU - Auto Tuning, TurboV, GPU Boost - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors Gamer's Guardian: - ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable Components - DIGI+ VRM - SafeSlot ASUS EPU : - EPU AURA : - Aura Lighting Control ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Gaming Aesthetics : - 3D printing friendly - AURA-RGB Lighting Digi+VRM

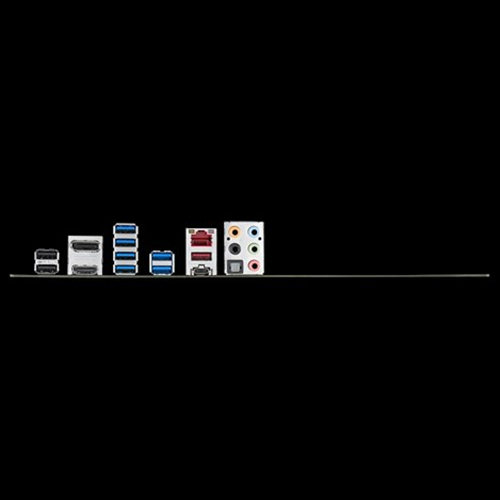

背面インターフェース	1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 Type-A + USB Type-C^TM 6 x USB 3.1 Gen 1 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s)
基板上インターフェース	2 x RGB Header(s) 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x TPM connector(s) 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x USB 3.1 Gen 2 front panel connector

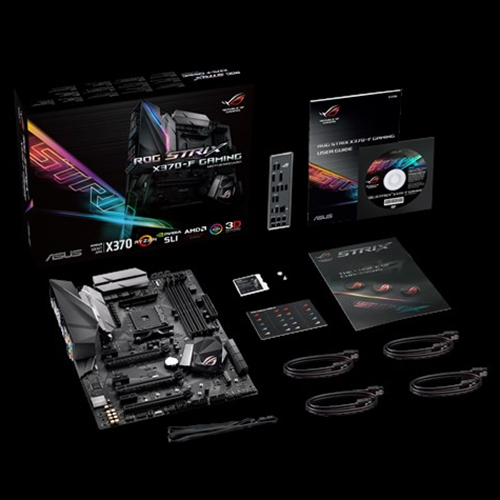

主な付属品	User's manual I/O Shield 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x SLI HB BRIDGE(2-WAY-M) 1 x ROG Strix stickers 1 x 10-in-1 ROG cable label 1 x Cable ties pack(s) 1 x Extension Cable for RGB strips (80 cm) 1 x 3D printing mount package
BIOS機能	128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0 ACPI 6.1, Multi-language BIOS,ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
管理機能	WfM 2.0, DMI 3.0, WOL by PME, PXE
サポートDVDの内容	Drivers ASUS Utilities Anti-virus software (OEM version)
OS	Windows^® 10 64-bit
フォームファクター（サイズW×D）	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
その他	1 PCIEX16_3 Socket shares bandwidth witch PCIEX1_2 and PCIEX1_3 2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. *3 ROG GameFirst IV is only available for Windows^® 10 64-bit.
