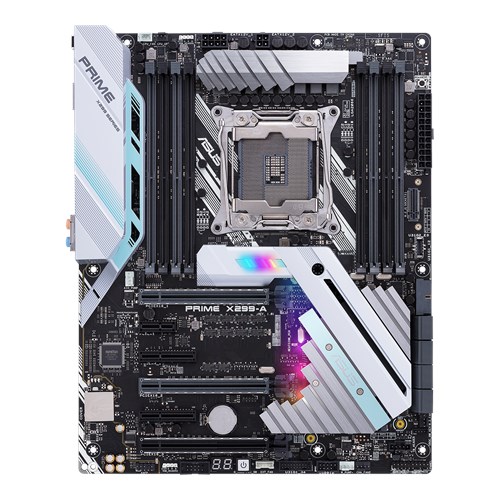

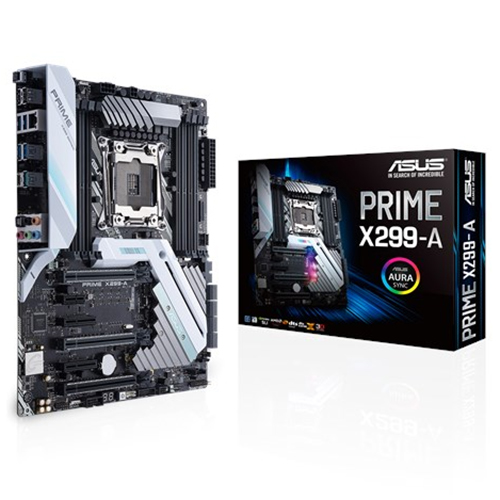

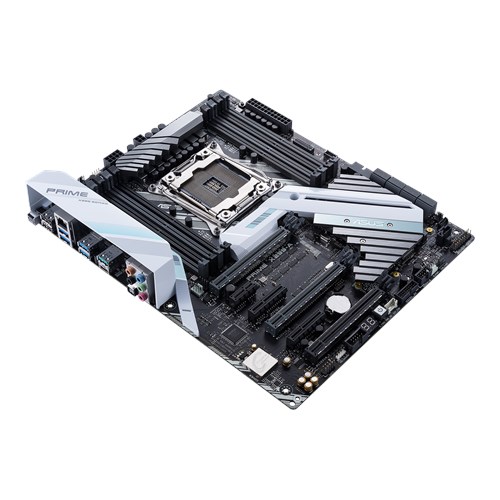

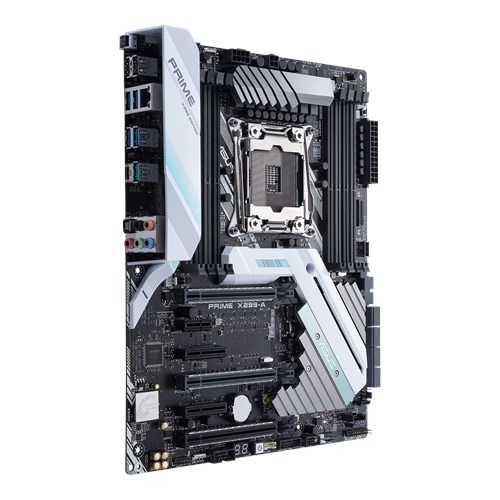

Intel LGA 2066 ATX マザーボード. M.2 ヒートシンク, DDR4 4133MHz, デュアル M.2, Intel VROC サポート, SATA 6Gb/s, フロントパネル用 USB 3.1 Gen 2 コネクター
・JAN/UPC：0889349769430
・TEKWIND型番：ASU-PRIME/X299-A
【主な特長】
・ 5-Way Optimization: オーバークロック設定や省電力設定やファン設定を自動で設定する便利機能
・ 業界をリードする冷却機能: Fan Xpert または、ASUSのUEFIで水冷やファンを簡単に制御
・ M.2 ヒートシンク: 効率的なヒートシンクにより、M.2 SSDの温度を最大20度下げる事が可能
・ Aura Sync: 対応製品で、簡単にビデオカード、キーボード、マウス、PCケースなどと同期してLEDを光らせる
製品についてお気軽にお問い合わせください
この製品を問い合わせる製品画像
スペック
| 対応CPU | Intel® Socket 2066 Core™ X-Series Processors * The Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types * Refer to www.asus.com for CPU support list |
|---|---|
| 搭載チップセット | Intel® X299 |
| 対応メモリ | Intel® Core™ X-series Processors (6-core above) 8 x DIMM, Max. 128GB, DDR4- 4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Intel® Core™ X-series Processors (4-core) 4 x DIMM, Max. 64GB, DDR4- 4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| マルチGPU対応 | Supports NVIDIA® Quad-GPU SLI™ Technology Supports NVIDIA® 3-Way SLI™ Technology Supports NVIDIA® 2-Way SLI™ Technology Supports AMD Quad-GPU CrossFireX™ Technology Supports AMD 3-Way CrossFireX™ Technology |
| 拡張スロット | 44-Lane CPU- 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) 2 x PCIe 3.0 x4 (max at x4 mode) *1 1 x PCIe 3.0/2.0 x1 *3 28-Lane CPU- 3 x PCIe 3.0/2.0 x16 (x16, x16/x8, x16/x8/x1) *4 2 x PCIe 3.0 x4 (max at x4 mode) *1 1 x PCIe 3.0/2.0 x1 *3 16-Lane CPU- 3 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x8/x1) *4 2 x PCIe 3.0 x4 (max at x4 mode) *1 1 x PCIe 3.0/2.0 x1 *3 |
| ストレージ機能 | Intel® X299 Chipset : 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Supports Intel® Smart Response Technology, Intel Rapid Start Technology Intel® Optane™ Memory Ready |
| LAN機能 | Intel® I219V, 1000BASE-T/100BASE-TX/10BASE-T×1, featuring Turbo LAN ASUS Turbo LAN Utility ASUS LAN Guard |
| オーディオ機能 | Realtek® ALC S1220A 8-Channel High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - DTS Connect - DTS Headphone:X - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs - EMI protection cover to prevent electrical noise to affect the amplifier quality Separate layer for left and right track, ensuring both sound deliver equal quality |
| USB機能 | ASMedia® USB 3.1 Gen 2 controller : 1 x USB 3.1 Gen 2 port(s) (1 at mid-board) ASMedia® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (Type-A + USB Type-CTM) Intel® X299 Chipset : 8 x USB 3.1 Gen 1 port(s) (4 at back panel, , 4 at mid-board) Intel® X299 Chipset : 4 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board) |
| 独自機能 | OC Design - ASUS PRO Clock II Technology ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App AURA : - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices ASUS Exclusive Features : - USB BIOS Flashback - MemOK! - AI Suite 3 - Ai Charger - Onboard Button : Power - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Turbo LAN - Crystal Sound 3 - Cloud GO! - File Transfer ASUS EZ DIY : - ASUS EZ Flash 3 - ASUS USB BIOS Flashback - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Gaming Aesthetics : - 3D printing friendly - AURA-RGB Lighting M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) |

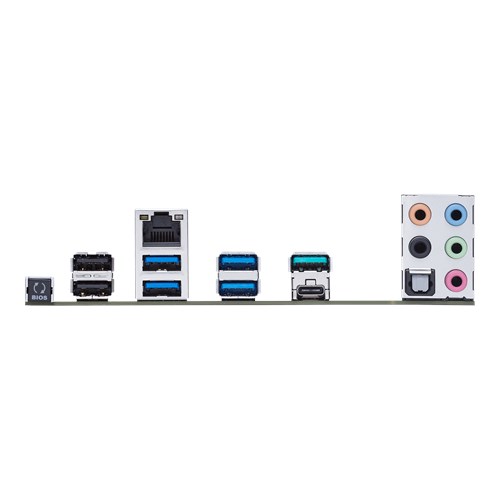

| 背面インターフェース | 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 Type-A + USB Type-CTM 4 x USB 3.1 Gen 1 2 x USB 2.0 (one port can be switched to USB BIOS Flashback) 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x USB BIOS Flashback Button(s) |
| 基板上インターフェース | 1 x AAFP connector 2 x Aura RGB Strip Header 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s connector(s) 1 x M.2_FAN connector 1 x VROC_HW_Key 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x System panel(s) (Q-Connector) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x MemOK! button(s) 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x USB 3.1 Gen 2 front panel connector 1 x CPU_OV jumper |

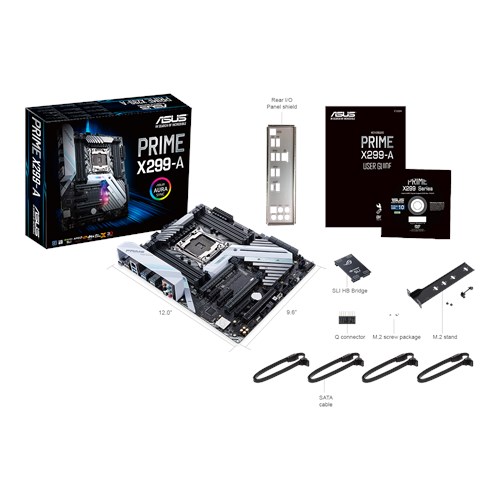

| 主な付属品 | User's manual ASUS Q-Shield 1 x Vertical M.2 bracket set 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x SLI HB BRIDGE(2-WAY-M) 1 x Q-Connector |
| BIOS機能 | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information |
| 管理機能 | WfM 2.0, DMI 3.0, WOL by PME, PXE |
| サポートDVDの内容 | Drivers ASUS Utilities EZ Update Anti-virus software (OEM version) |
| OS | Windows® 10 64-bit |
| フォームファクター （サイズW×D） |
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| その他 | 1. PCIEX4_1 max. at x1 mode, PCIEX4_2 max. at x4 mode 2. SATA6G_5/6/7/8 share bandwidth with PCIEX4_2. 3. PCIEX1_1 shares bandwidth with Front USB 3.1 GEN 2 4. PCIEX16_3 share bandwidth with PCIEX4_1 when using x28 or x16 lane CPU |
