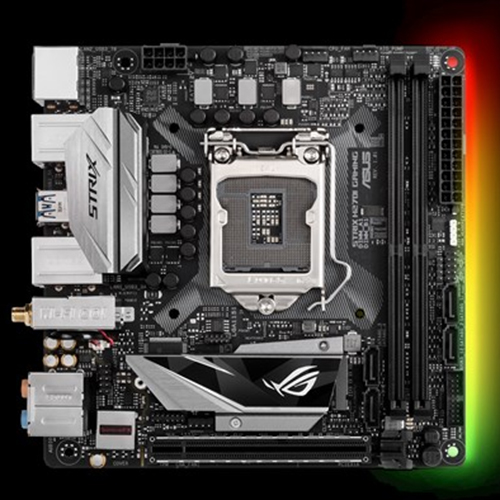

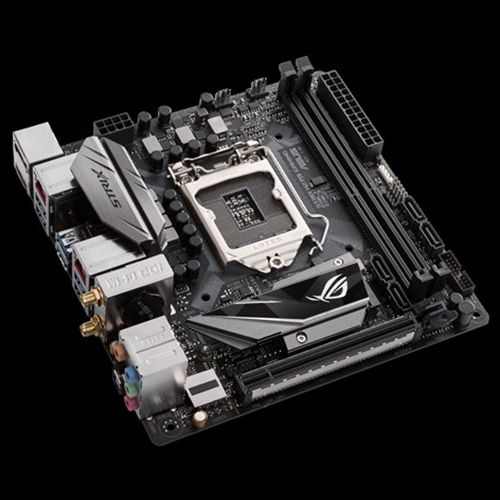

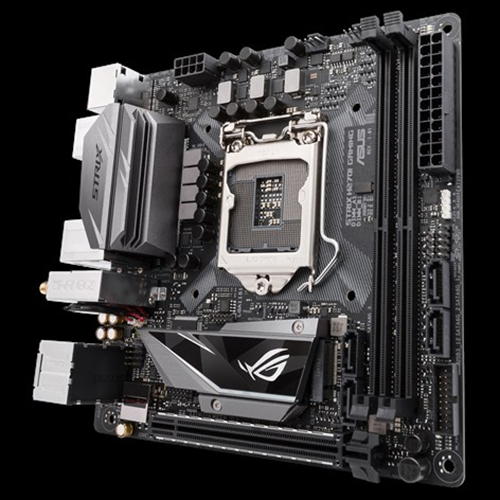

Intel LGA-1151 mini-ITX H270 ゲーミング マザーボード、二層式ヒートシンク, Aura Sync RGB LED, デュアル LAN, 802.11ac Wi-Fi, デュアル M.2 and SATA 6Gbps
・JAN/UPC：0889349677049
・TEKWIND型番：ASU-STRIX/H270I/GAMING
【主な特長】
・ H170 PRO GAMING後継のMini-ITXマザーボード
・ LGA1151対応
・ Intel Core i7/i5/i3、Pentium、CeleronシリーズCPU対応
・ Intel H270チップセット搭載
・ 二層式ヒートシンク(PCH and M.2)

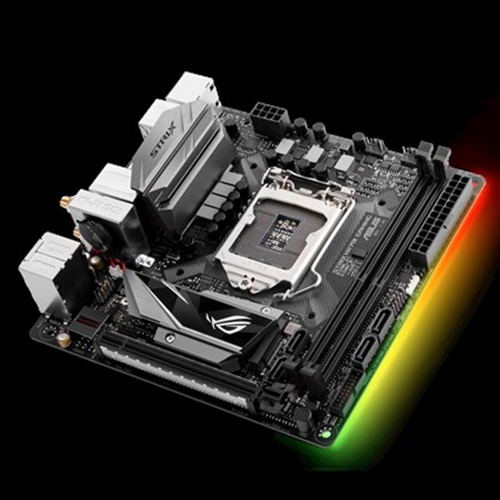

・ 鮮やかに光るイルミネーション機能「Aura」
・ ゲーム用オーディオ機能「ROG SupremeFX」
・ デュアル LAN (Intel®, Realtek®), 2x2 802.11ac MU-MIMO Wi-Fi
・ デュアル M.2 スロット、Intel® OptaneTM Memory 対応
・ SafeSlotでPCIeスロットを強化
製品についてお気軽にお問い合わせください
この製品を問い合わせる製品画像
スペック
| 対応CPU | Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list |
|---|---|
| 搭載チップセット | Intel® H270 |
| 対応メモリ | 2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz. ** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz. |
| グラフィックス機能 | Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/DisplayPort 1.2 ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60 Hz Maximum shared memory of 1024 MB Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ |
| 拡張スロット | 1 x PCIe 3.0/2.0 x16 |
| ストレージ機能 | Intel® H270 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)* 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)* Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology 15 support*1 4 x SATA 6Gb/s port(s), Intel® Optane™ Memory Ready *2 |
| LAN機能 | Intel® I219V, 1 x Gigabit LAN Controller(s), Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY) Realtek® RTL8111H, 1 x Gigabit LAN Anti-surge LANGuard ROG GameFirst IV |
| 無線機能 | Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO |
| Bluetooth機能 | Bluetooth V4.1*3 |
| オーディオ機能 | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual Headphone Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - Supports up to 32-Bit/192kHz playback *4 Audio Feature : - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III |
| USB機能 | Intel® H270 Chipset : 8 x USB 3.1 Gen 1 port(s) (6 at back panel, +blue, 2 at mid-board) |
| R.O.G.シリーズ独自 搭載機能 |
ROG RAMCache II ROG CPU-Z ROG CloneDrive Overwolf GameFirst IV ROG Aura - Aura Lighting Control - Aura RGB Strip Headers |
| 独自機能 | Gamer's Guardian: - ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports - DRAM Overcurrent Protection - Highly Durable Components - DIGI+ VRM - SafeSlot ASUS EPU : - EPU AURA : - Aura Lighting Control - Aura RGB Strip Headers ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution : - ASUS Fan Xpert 4 Core ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM |

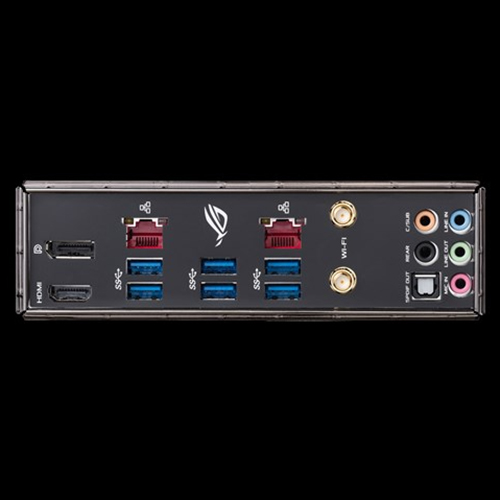

| 背面インターフェース | 1 x DisplayPort 1 x HDMI 2 x LAN (RJ45) port(s) 6 x USB 3.1 Gen 1 (blue) 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x Wi-Fi antenna port(s) |
| 基板上インターフェース | 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Clear CMOS jumper(s) |

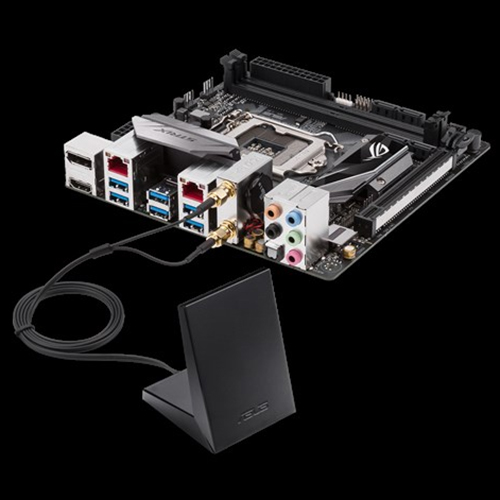

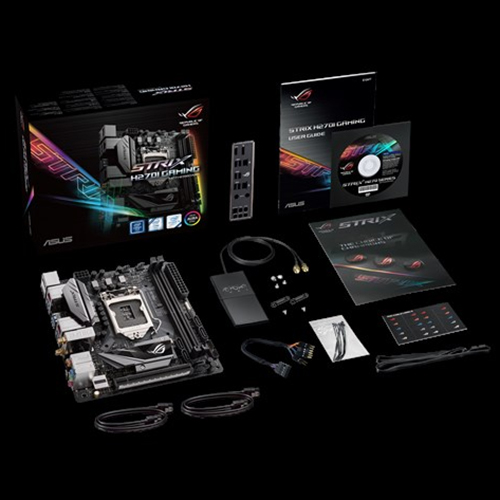

| 主な付属品 | User's manual M.2 2242 mounting kit I/O Shield 2 x SATA 6Gb/s cable(s) 2 x M.2 screws 1 x pack of cable tie 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n compliant) 1 x ROG Strix stickers 1 x 10-in-1 ROG cable label 1 x Extension Cable for RGB strips (80 cm) 1 x Panel cable |
| BIOS機能 | 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information. |
| OS | Windows® 10 64-bit Windows® 8.1 64-bit *5 Windows® 7 32-bit *5 Windows® 7 64-bit *5 |
| フォームファクター （サイズW×D） |
Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm ) |
| その他 | * For a 2242 storage device, use the bundled 2242 mounting kit. *1 This function will work depending on the CPU installed. *2 Intel® OptaneTM Technology is only supported when using 7th Generation Intel® Processors. Before using Intel® OptaneTM memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website. *3 Support for the Bluetooth specification depends on the Windows version. Windows® 7/8.1 support up to Bluetooth 4.0. *4 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio and due to Windows 7 limitations, 32-Bit playback is unavailable for Windows 7. *5 Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors |
