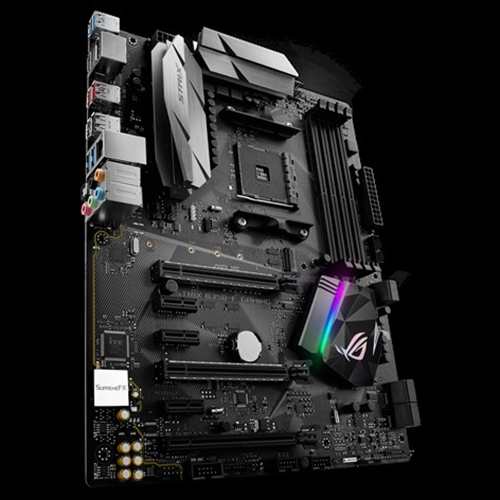

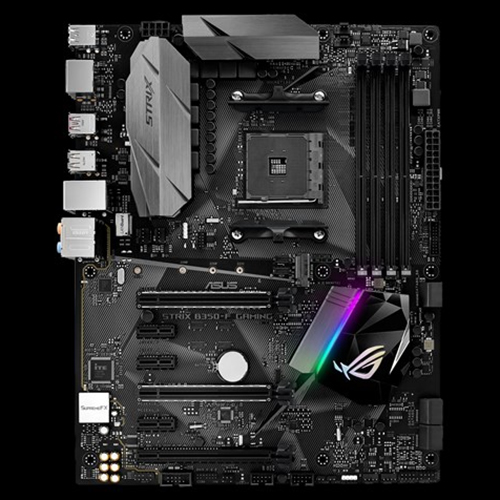

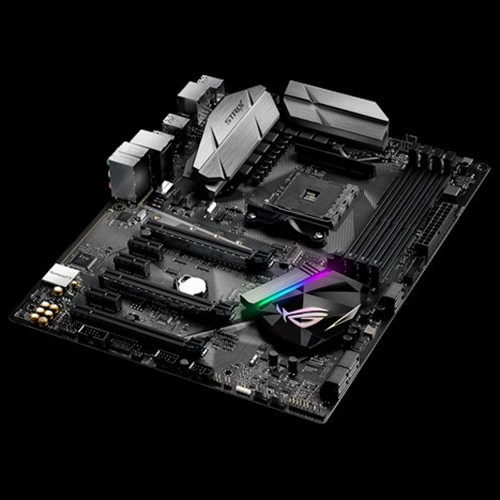

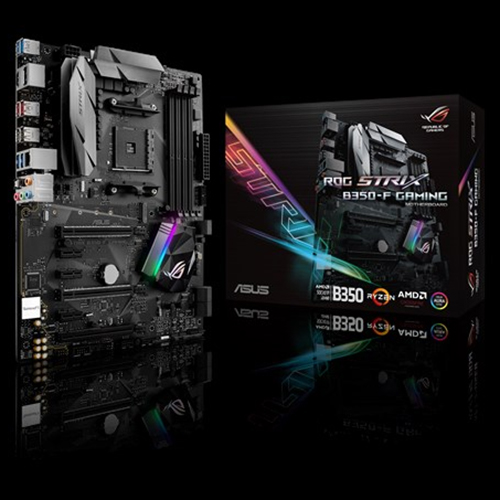

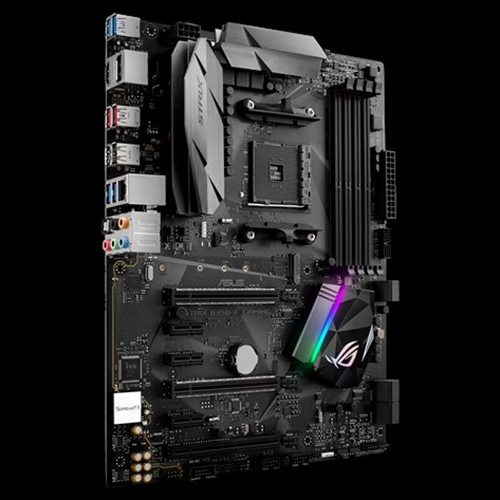

ゲーム用の機能を満載したゲーマー向けのAMD B350マザーボード
・JAN/UPC：0889349747124
・TEKWIND型番：ASU-STRIX/B350-F/GAMING
【主な特長】
・ Socket AM4対応
・ AMD Ryzen/A/AthlonシリーズCPU対応
・ AMD B350チップセット搭載
・ DDR4メモリ×4枚（最大64GB）対応
・ DisplayPort 1.2×1、HDMI 1.4b×1
・ PCIe 3.0 x16×2、PCIe 2.0 x16×1、PCIe 2.0 x1×3
・ M.2×1、SATA 6Gb/s×6
・ USB 3.1 Gen 2×2、USB 3.1 Gen 1×6、USB 2.0×6
・ 1000BASE-T×1
・ デジタル電源回路「DIGI+ VRM」
・ オーバークロック専用チップ「TPU」
・ 省電力を実現する電力制御チップ「EPU」
・ 鮮やかに光るイルミネーション機能「Aura」
・ 高性能ファンコントロール機能「Fan Xpert 4」
・ ゲーム用オーディオ機能「ROG SupremeFX」
・ LAN機能を静電気から守る「LANGuard」
製品についてお気軽にお問い合わせください
この製品を問い合わせる製品画像
スペック
| 対応CPU | AMD AM4 Socket for AMD Ryzen™/7th Generation A-series/Athlon™ Processors Supports AM4 Socket 14 nm CPU Supports CPU up to 8 cores * Refer to www.asus.com for CPU support list |
|---|---|
| 搭載チップセット | AMD B350 |
| 対応メモリ | AMD Ryzen™ Processors 4 x DIMM, Max. 64GB, DDR4- 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory * AMD 7th Generation A-series/Athlon™ Processors 4 x DIMM, Max. 64GB, DDR4- 2400/2133 MHz Non-ECC, Un-buffered Memory * デュアルチャンネル Memory Architecture * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| グラフィックス機能 | Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz Maximum shared memory of 2048 MB |
| マルチGPU対応 | Supports AMD 3-Way CrossFireX™ Technology |
| 拡張スロット | AMD Ryzen™ Processors 2 x PCIe 3.0/2.0 x16 (x16 or x8/x4) AMD 7th Generation A-series/Athlon™ Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD B350 chipset 1 x PCIe 2.0 x16 (max at x4 mode) *1 3 x PCIe 2.0 x1 |
| ストレージ機能 | AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*5 2 x SATA 6Gb/s port(s), AMD 7th Generation A-series/Athlon™ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 2 mode)*6 AMD B350 chipset : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| LAN機能 | Intel® I211-AT, 1000BASE-T/100BASE-TX/10BASE-T×1 Anti-surge LANGuard ROG GameFirst Technology |
| オーディオ機能 | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual Headphone Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - Supports up to 32-Bit/192kHz playback Audio Feature : - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III |
| USB機能 | AMD Ryzen™/7th Generation A-series/Athlon™ Processors : 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue) AMD B350 chipset : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, red) AMD B350 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) AMD B350 chipset : 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board) |
| R.O.G.シリーズ独自 搭載機能 |
ROG RAMCache II ROG CPU-Z ROG CloneDrive Overwolf GameFirst IV |
| 独自機能 | 5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. TPU - Auto Tuning, TurboV, GPU Boost - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors Gamer's Guardian: - ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable Components - DIGI+ VRM - SafeSlot ASUS EPU : - EPU AURA : - Aura Lighting Control ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Gaming Aesthetics : - AURA-RGB Lighting Digi+VRM |

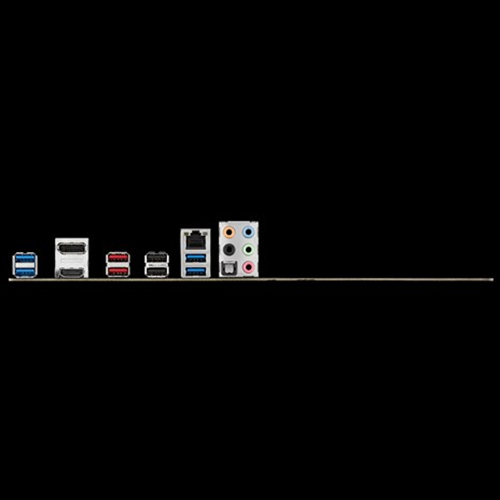

| 背面インターフェース | 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 Type-A 4 x USB 3.1 Gen 1 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) |
| 基板上インターフェース | 2 x RGB Header(s) 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x TPM connector(s) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector |

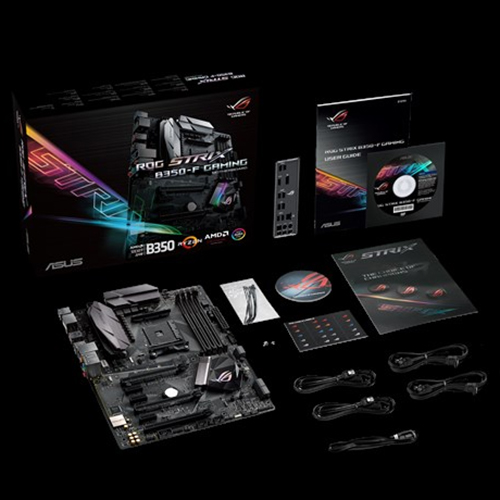

| 主な付属品 | User's manual I/O Shield 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x ROG Strix stickers 1 x 10-in-1 ROG cable label 1 x Cable ties pack(s) 1 x Extension Cable for RGB strips (80 cm) 1 x ROG coaster(s) |
| BIOS機能 | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0 ACPI 6.1, Multi-language BIOS,ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| 管理機能 | WfM 2.0, DMI 3.0, WOL by PME, PXE |
| サポートDVDの内容 | Drivers ASUS Utilities ASUS EZ Update Anti-virus software (OEM version) |
| OS | Windows® 10 64-bit |
| フォームファクター （サイズW×D） |
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| その他 | *1 PCIEX16_3 Socket shares bandwidth witch PCIEX1_1 and PCIEX1_3 *2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. *3 Due to AMD Ryzen™ Processor limitation, More than DDR4-2666 is supported by one DIMM per channel only *4 ROG GameFirst IV is only available for Windows® 10 64-bit. *5 When a SATA / PCIE mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports. *6 When a SATA mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports |
