PCパーツ > マザーボード > LGA1151

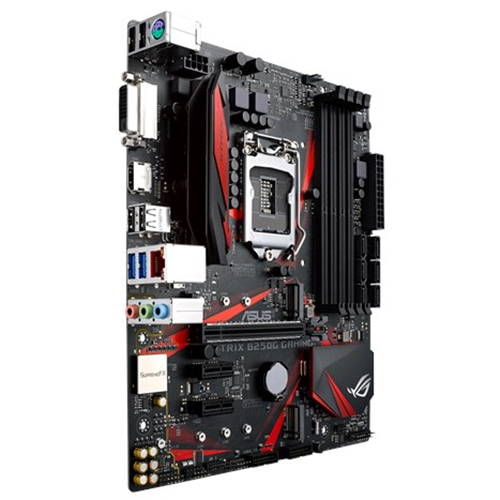

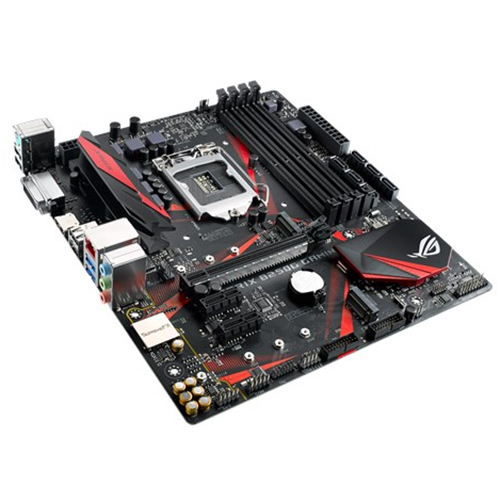

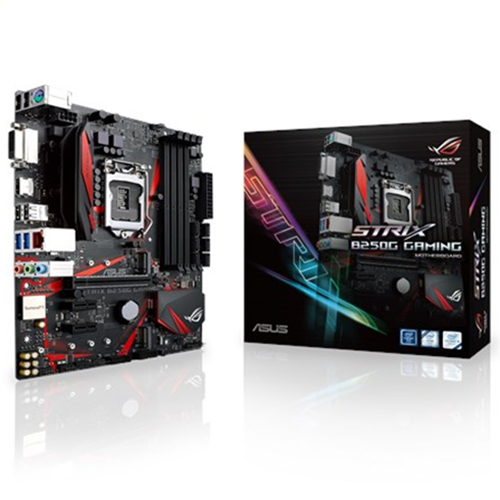

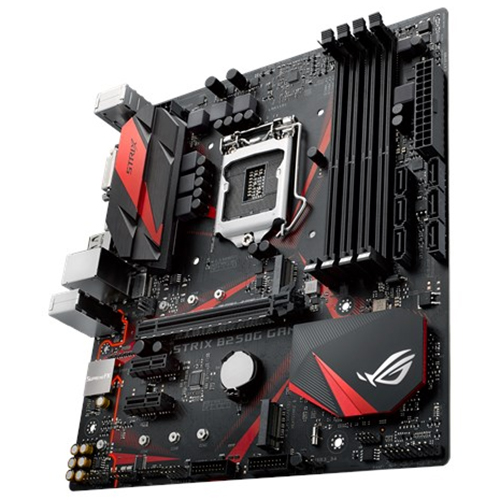

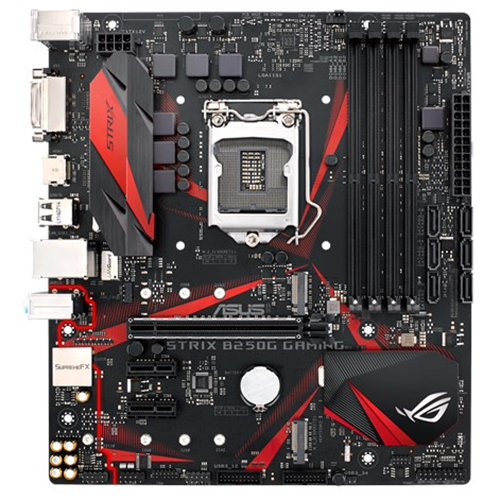

Intel LGA-1151 mATX B250G Gaming motherboard with SupremeFX S1220A audio codec, Intel Gigabit LAN, DDR4 2400MHz, dual M.2, HDMI, DVI and SATA 6 Gbps
・JAN/UPC:0889349663806
・TEKWIND型番:ASU-STRIX/B250G/GAMING
・ The successor to Pro Gaming motherboards
・ ROG SupremeFX S1220A audio — Renowned audio technology with dual headphone amplifiers for crystal-clear sound
・ Gaming networking — Best-in-class Intel® Gigabit Ethernet for optimized LAN and online gaming experiences, plus surge-protecting LANGuard
・ Next-gen connectivity — Dual onboard M.2 slots for up to 32Gbps of PCIe bandwidth and Intel® Optane™ memory ready
・ Patent-pending ASUS SafeSlot for enhanced PCIe retention and shearing resistance
スペック
CPU | Build in Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors * Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list |
---|---|
Chipset | Build in Intel® B250 |
Memory | 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory * Supports Intel® Extreme Memory Profile (XMP) * Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz. ** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz. |
Graphic | Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/DVI ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ |
Expansion Slots | 1 x PCIe 3.0/2.0 x1 (x16 mode) 2 x PCIe 3.0/2.0 x1 |
Storage | Intel® B250 Chipset : 6 x SATA 6Gb/s port(s), Intel® B250 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)* Intel® Optane™ Memory Ready * |
LAN | Intel® I219V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY) Anti-surge LANGuard |

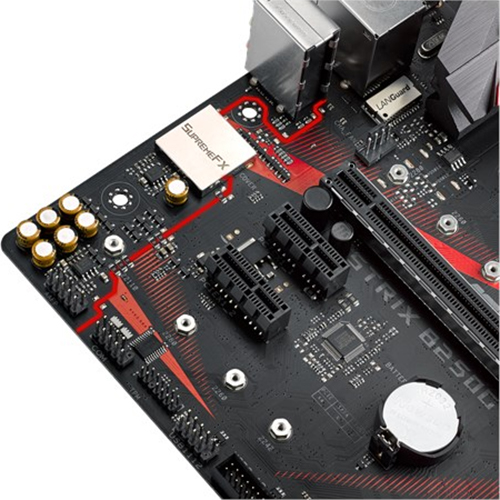

Audio | SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual Headphone Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - Supports up to 32-Bit/192kHz playback *1 Audio Feature : - LED-lit Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path Premium Japan-made audio capacitors provides warm, natural, and immersive sound with exceptional clarity and fidelity |
USB Ports | Intel® B250 Chipset : 6 x USB 3.0 port(s) (2 at back panel, , 4 at mid-board) Intel® B250 Chipset : 6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board) |
ROG Exclusive Features |
ROG CPU-Z Overwolf |
Special Features | Gamer's Guardian: - ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable Components - DIGI+ VRM - SafeSlot GPU Boost ASUS Exclusive Features : - AI Suite 3 - Ai Charger - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS MyLogo ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Slot - ASUS Q-DIMM Fan Xpert 3 |

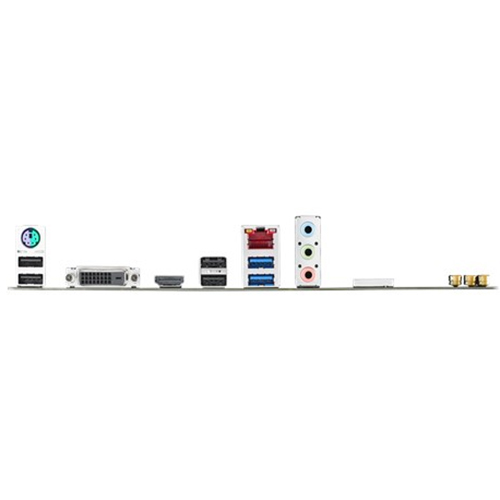

Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 2.0 2 x USB 3.1 Gen 1 3 x Audio jack(s) |
Internal I/O Ports | 1 x AAFP connector 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM connector(s) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) ( x 4 -pin) 1 x Chassis Fan connector(s) ( x 4 -pin) 1 x 8-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector |
Accessories | User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x ROG Strix stickers 1 x 10-in-1 ROG cable label |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information |
Manageability | WfM2.0, DMI3.0, WOL by PME, PXE |
Support Disc | Drivers ASUS Utilities EZ Update Anti-virus software (OEM version) |
Operating System | Windows® 10 64-bit Windows® 8.1 64-bit *1 Windows® 7 32-bit *1 Windows® 7 64-bit *1 *2 |
Form Factor | Micro ATX Form Factor 9.6 inch x 8.6 inch ( 24.4 cm x 21.8 cm ) |
Note | *1 *Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-channel audio and due to Windows 7 limitations, 32-bit playback is unavailable for Windows 7. *2 Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors. |
