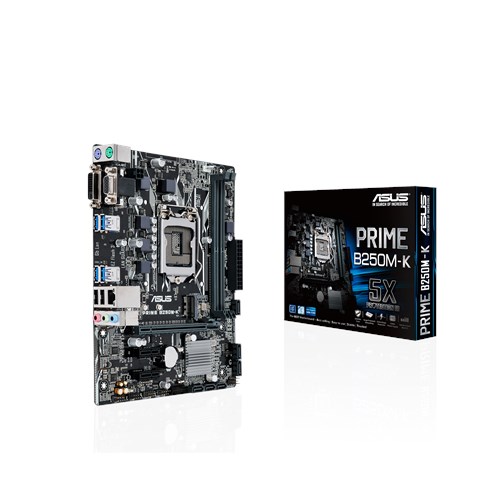

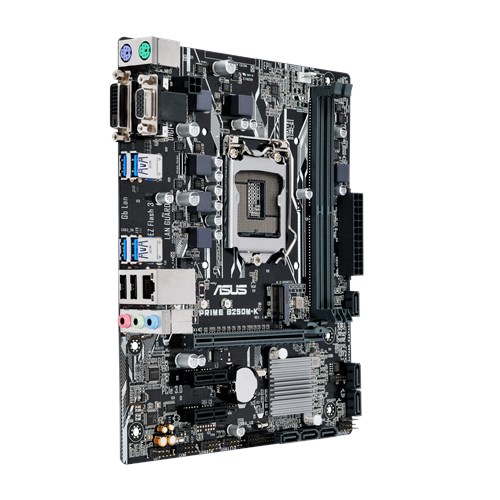

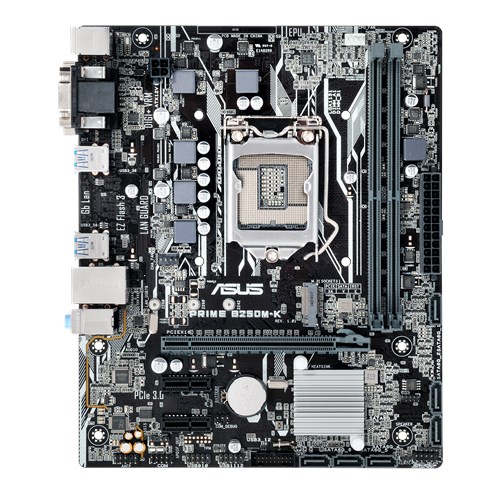

搭載機能を厳選した質実剛健なmicroATXマザーボード
・JAN/UPC：0889349602256
・TEKWIND型番：ASU-PRIME/B250M-K
【主な特長】
・ LGA1151対応
・ Intel Core i7/i5/i3、Pentium、CeleronシリーズCPU対応
・ Intel B250チップセット搭載
・ DDR4メモリ×2枚（最大32GB）対応
・ DVI-D×1、D-Sub 15ピン×1
・ PCIe 3.0 x16×1、PCIe 3.0 x1×2
・ M.2×1、SATA 6Gb/s×6
・ USB 3.0×6、USB 2.0×6
・ 1000BASE-T×1
・ デジタル電源回路「DIGI+ VRM」
・ 省電力を実現する電力制御チップ「EPU」
・ CPUファン＋ケースファンを細かく設定できる「Fan Xpert」
・ 優れた信号特性を実現した高性能LANポートの「LANGuard」
・ microATXフォームファクター
製品についてお気軽にお問い合わせください
この製品を問い合わせる製品画像
スペック
| CPU | Build in Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list |
|---|---|
| Chipset | Build in Intel® B250 |
| Memory | 2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz. ** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz. |
| Graphic | Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : DVI-D/RGB ports - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ |
| Expansion Slots | 1 x PCIe 3.0/2.0 x16 (x16 mode, gray) 2 x PCIe 3.0/2.0 x1 |
| Storage | Intel® B250 Chipset : 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)*1 6 x SATA 6Gb/s port(s), gray, |
| LAN | Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) ASUS LAN Guard |
| Audio | Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity |
| USB Ports | Intel® B250 Chipset : 6 x USB 3.0/2.0 port(s) (4 at back panel, blue, Type-A, 2 at mid-board) Intel® B250 Chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, black, 4 at mid-board) |
| Special Features | ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 5 Phase digital power design ASUS EPU : - EPU ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS MyLogo 2 ASUS Q-Design : - ASUS Q-DIMM M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) |

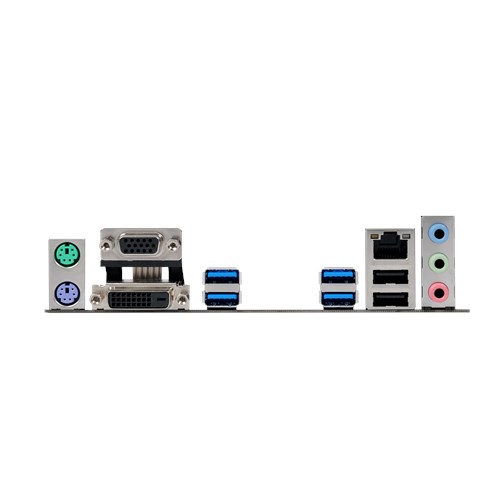

| Back I/O Ports | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x LAN (RJ45) port(s) 4 x USB 3.0 (blue) Type-A 2 x USB 2.0 1 x 8-channel Audio I/O |
| Internal I/O Ports | 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector |

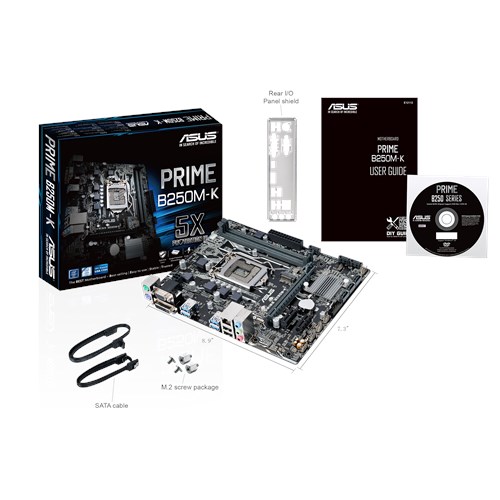

| Accessories | User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 screws 1 x Supporting DVD |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability | WfM 2.0, DMI 3.0, WOL by PME, PXE |
| Operating System | Windows® 10 64-bit Windows® 8.1 64-bit *2 Windows® 7 32-bit *2 Windows® 7 64-bit *2 |
| Form Factor | mATX Form Factor 8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm ) |
| Note | *1 When a device in SATA mode is installed on the M.2 socket,SATA_1 port cannot be used. *2 Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors. |
