PRIME B350M-A

用途を選ばない使いやすいmicroATXサイズのエントリーモデル

・JAN/UPC：0889349673584
・TEKWIND型番：ASU-PRIME/B350M-A

【主な特長】

・ Socket AM4対応
・ AMD Ryzen、A、AthlonシリーズCPU対応
・ AMD B350チップセット搭載
・ DDR4メモリ×4枚（最大64GB）対応
・ HDMI 1.4b×1、DVI-D×1、D-Sub 15ピン×1
・ PCIe 3.0 x16×1、PCIe 2.0 x1×2
・ M.2×1、SATA 6Gb/s×6
・ USB 3.1×2、USB 3.0×6、USB 2.0×4
・ 1000BASE-T×1
・デジタル電源回路「DIGI+ VRM」
・高性能ファンコントロール機能「Fan Xpert」
・ microATXフォームファクター

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

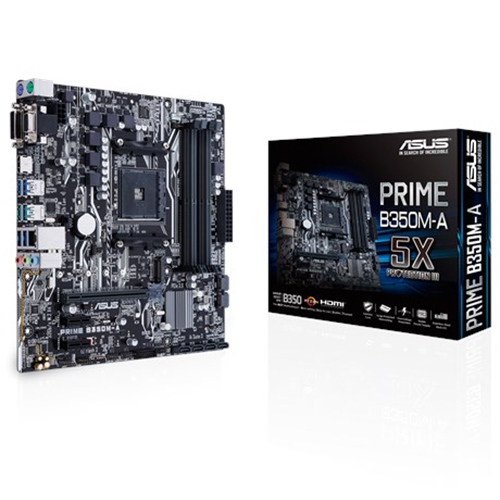

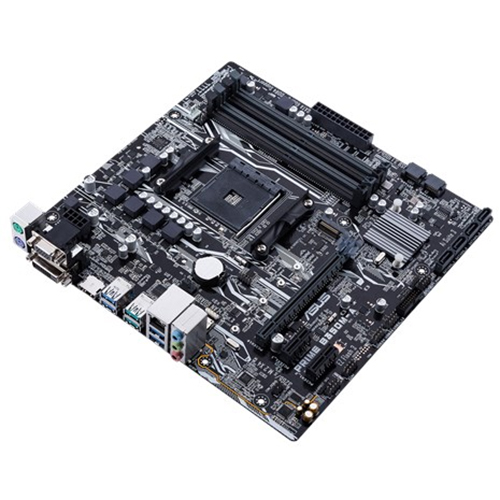

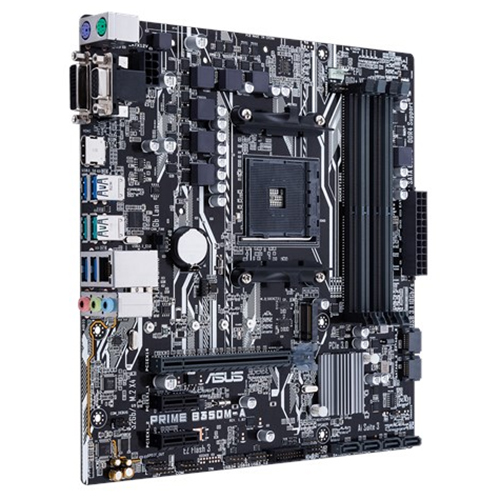

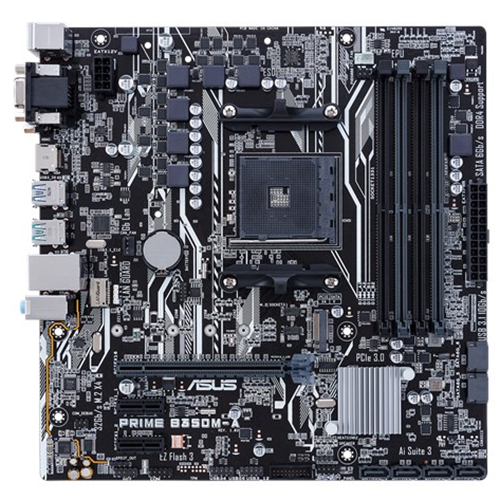

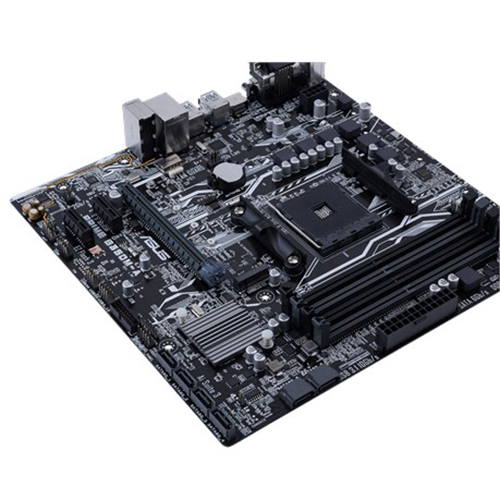

製品画像

スペック

CPU	AMD AM4 Socket for AMD Ryzen™/7^th Generation A-series/Athlon™ Processors Supports CPU up to 8 cores * Refer to www.asus.com for CPU support list
Chipset	AMD B350
Memory	AMD Ryzen™ Processors 4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory ¹ AMD 7th Generation A-series/Athlon™ Processors* 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic	Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU Multi-VGA output support : HDMI/DVI/RGB ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 2048 MB
Expansion Slots	AMD Ryzen™ Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD 7th Generation A-series/Athlon™ Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD B350 chipset 2 x PCIe 2.0 x1
Storage	AMD B350 chipset : 4 x SATA 6Gb/s port(s), gray, Support Raid 0, 1, 10 AMD Ryzen™/7th Generation A-series/Athlon™ Processors : 2 x SATA 6Gb/s port(s), gray, AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)² AMD 7th Generation A-series/Athlon™ Processors :* 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 2 mode)*³
LAN	Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
Audio	Realtek® ALC887 8-Channel High Definition Audio CODEC
USB Ports	ASMedia® USB 3.1 controller : 2 x USB 3.1 port(s) (2 at back panel, teal blue) AMD Ryzen™/7th Generation A-series/Athlon™ Processors : 4 x USB 3.0 port(s) (4 at back panel, blue) AMD B350 chipset : 2 x USB 3.0 port(s) (2 at mid-board) AMD B350 chipset : 4 x USB 2.0 port(s) (4 at mid-board)
Special Features	ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 6 Phase digital power design ASUS Exclusive Features : - AI Suite 3 - Ai Charger - Turbo LAN - PC Cleaner ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM
Operating System Support	Windows® 10 , 64bit

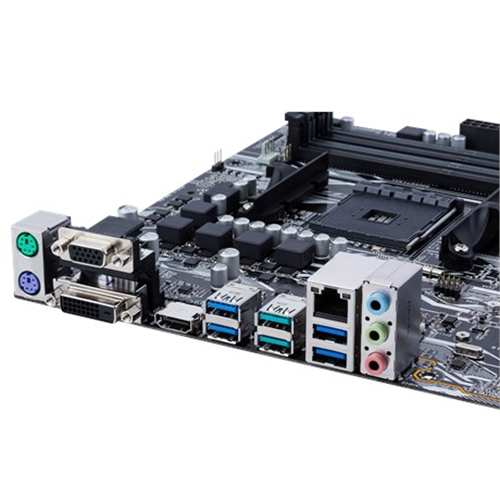

Back I/O Ports	1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 (teal blue) 4 x USB 3.0 (blue) 3 x Audio jack(s)
Internal I/O Ports	1 x Fan RGB header 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x Speaker connector

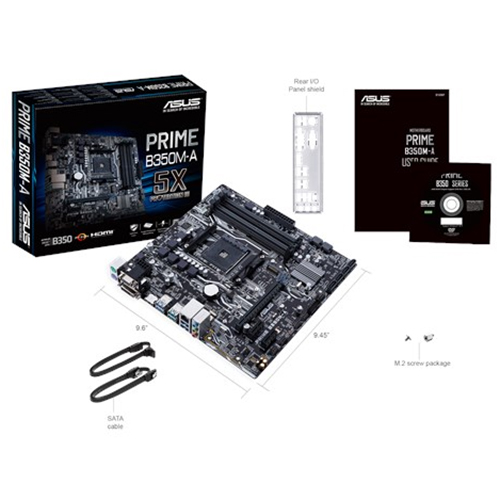

Accessories	User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
Operating System	Windows® 10 64-bit
Form Factor	mATX Form Factor 9.6 inch x 9.45 inch ( 24.4 cm x 24 cm )
Note	1Due to the limitation of AMD Ryzen™ processors, memory frequencies higher than DDR4 2666 MHz are supported only when using one DIMM. 2When a SATA / PCIE mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports. 3*When a SATA mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports
