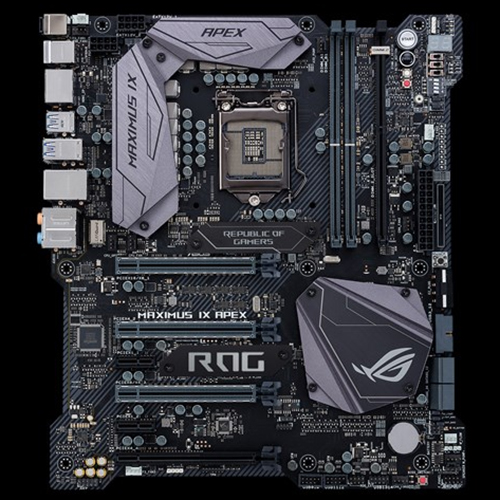

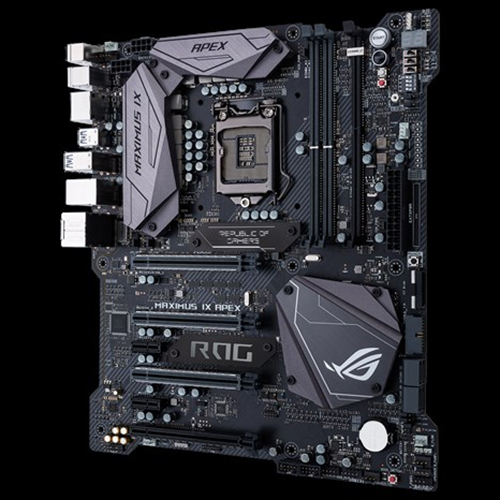

メモリスロットを2本に絞ってメモリ特性を向上したオーバークロッカー向けモデル
・JAN/UPC：0889349650684
・TEKWIND型番：ASU-MAXIMUS9/APEX
【主な特長】
・ LGA1151対応
・ Intel Core i7/i5/i3、Pentium、CeleronシリーズCPU対応
・ Intel Z270チップセット搭載
・ DDR4メモリ×2枚（最大32GB）対応
・ DisplayPort 1.2×1、HDMI 1.4b×1
・ PCIe 3.0 x16×4、PCIe 3.0 x1×2
・ M.2×2、SATA 6Gb/s×4
・ USB 3.1 Type-C×1、USB 3.1×1、USB 3.0×8、USB 2.0×6
・ 1000BASE-T×1
・ OC対応のデジタル電源回路「Extreme Engine Digi+」
・ 鮮やかに光るイルミネーション機能「Aura」
・ 高性能ファンコントロール機能「Fan Xpert 4」
・ ゲーム用オーディオ機能「ROG SupremeFX」
・ ExtendedATXフォームファクター
製品についてお気軽にお問い合わせください
この製品を問い合わせる製品画像
スペック
| CPU | Intel® for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. |
|---|---|
| Chipset | Intel® Z270 |
| Memory | 2 x DIMM, Max. 32GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3500(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory * Hyper DIMM support is subject to the physical characteristics of individual CPUs. |
| Graphic | Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Maximum shared memory of 1024 MB |
| Multi-GPU Support | Supports NVIDIA® Quad-GPU SLI™ Technology Supports NVIDIA® 2-Way SLI™ Technology Supports AMD 4-Way CrossFireX Technology |
| Expansion Slots | 2 x PCIe 3.0/2.0 x16 (x16 or dual x8, gray) 1 x PCIe 3.0/2.0 x16 (max at x4 mode, gray) 2 x PCIe 3.0/2.0 x1 (black) 1 x PCIe 3.0/2.0 x16 (x4 mode, black) |
| Storage | Intel® Z270 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 4 x SATA 6Gb/s port(s) Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready *1 |
| LAN | Intel® I219V, 1 x Gigabit LAN Controller(s) ASUS LAN Guard Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY) |
| Audio | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A*2 - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - ESS® ES9023P Audio Feature : - SupremeFX Shielding™ Technology - Optical S/PDIF out port(s) at back panel |
| USB Ports | Intel® Z270 Chipset : 8 x USB 3.0 port(s) Intel® Z270 Chipset : *3 6 x USB 2.0 port(s) ASMedia® USB 3.1 controller : 2 x USB 3.1 port(s) (2 at back panel, , Type-A + Type-C) |
| ROG Exclusive Features |
ROG RAMCache II ROG CPU-Z ROG CloneDrive MemOK! Button Slow Mode CMOS button Overwolf ReTry Button Safe Boot Button Start Button Reset Button LN2 Mode ROG Aura - Aura Lighting Control - Aura RGB Strip Headers Extreme Engine Digi+ : - MicroFine Alloy Chokes - NexFET™ Power Block MOSFET - 10K Black Metallic Capacitors Mem TweakIt UEFI BIOS features : |
| Special Features | 5-Way Optimization by Dual Intelligent Processors 5 SafeDIMM slot AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices ASUS Exclusive Features : - MemOK! - AI Suite 3 - Anti-Surge ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS USB BIOS Flashback - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-Connector Gaming Aesthetics : - 3D printing friendly - AURA-RGB Lighting Performance Optimization : - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control |

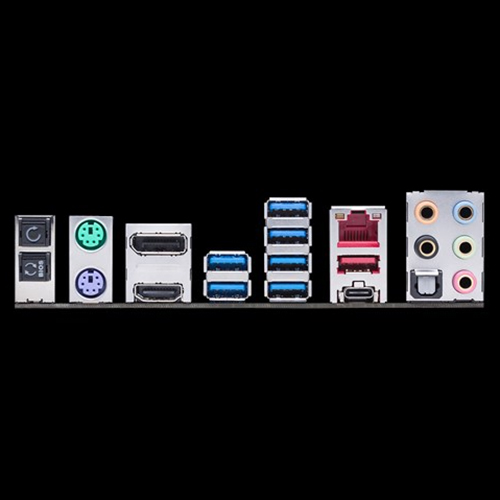

| Back I/O Ports | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 ()Type-A + Type-C 6 x USB 3.0 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS Flashback Button(s) 5 x Gold-plated audio jacks |
| Internal I/O Ports | 1 x AAFP connector 2 x RGB Header(s) 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x W_PUMP+ connector 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x Slow Mode switch(es) 1 x EZ Plug connector(s) (4-pin Molex power connector) 1 x Reset button(s) 1 x LN2 Mode switch(es) 1 x BIOS Switch button(s) 1 x Safe Boot button 1 x ReTry button 1 x 14-1 pin TPM connector 1 x 3D Mount screw port(s) 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 2 x Thermal sensor connector 1 x Start button 1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110) 3 x 4-pin Full Speed Fan connectors 1 x MemOK! Button 1 x System panel connector 1 x PCIe x16 Lane Switch 9 x ProbeIt measurement points 2 x DRAM Channel Headers 3 x LED ON/OFF Headers 1 x PAUSE Switch 1 x RSVD Switch |

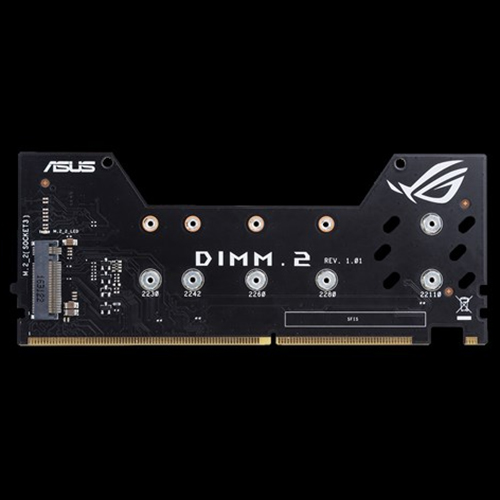

| Accessories | User's manual I/O Shield 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x SLI HB BRIDGE(2-WAY-L) 1 x Q-Connector 1 x 10-in-1 ROG cable label 1 x DIMM.2 extension card with 2 x M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x 3D printing mount package 1 x ROG coasters 1 x ROG sticker 1 x Extension Cable for RGB Strips 1 x Customizable NamePlate Accessory Pack |
| Operating System | Windows® 10 64-bit Windows® 8.1 64-bit *4 Windows® 7 32-bit *4 Windows® 7 64-bit *4 |
| Form Factor | Extended ATX Form Factor 12 inch x 10.7 inch ( 30.5 cm x 27.2 cm ) |
| Note | *1 Intel® Optane Technology only supported when using 7th Generation Intel® Processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website. *2 Due to limitations in HDA bandwidth, 32-bit/192kHz is not supported for 8-Channel audio and due to Windows 7 limitations, 32-bit playback is unavailable for Windows 7. *3 2 x USB2.0 port at mid-board share with ROG extension (ROG_EXT) port. *4 Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors |
