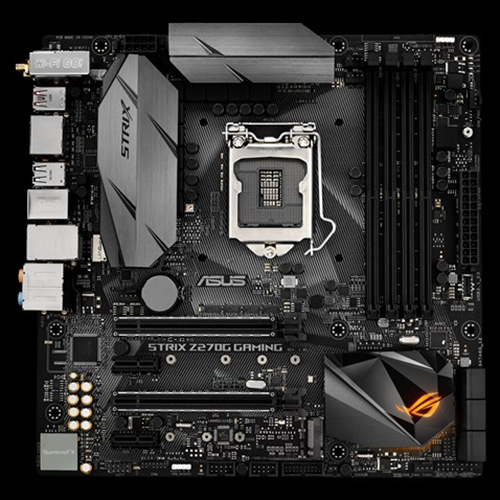

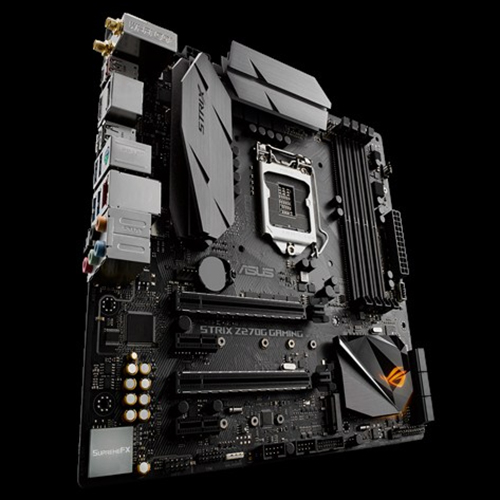

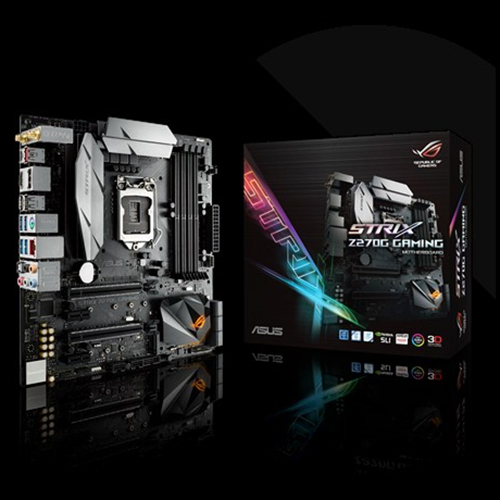

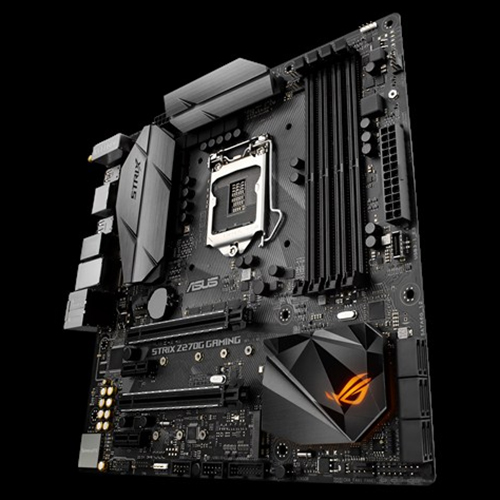

STRIX Z270G GAMING

小型ゲームPCの自作に最適なゲーム用のmicroATXモデル

・JAN/UPC：0889349587188
・TEKWIND型番：ASU-STRIX/Z270G/GAMING

【主な特長】

・ LGA1151対応
・ Intel Core i7/i5/i3、Pentium、CeleronシリーズCPU対応
・ Intel Z270チップセット搭載
・ DDR4メモリ×4枚（最大64GB）対応
・ DisplayPort 1.2×1、HDMI 1.4b×1
・ PCIe 3.0 x16×2、PCIe 3.0 x1×2
・ M.2×2、SATA 6Gb/s×6
・ USB 3.1 Type-C×1、USB 3.1×2、USB 3.0×6、USB 2.0×6
・ 1000BASE-T×1
・デジタル電源回路「DIGI+ Power Control」
・鮮やかに光るイルミネーション機能「Aura」
・高性能ファンコントロール機能「Fan Xpert 4」
・ゲーム用オーディオ機能「ROG SupremeFX」
・ microATXフォームファクター

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

製品画像

スペック

CPU	Intel® Socket 1151 for 7^th/6^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset	Intel® Z270
Memory	4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered, Register Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic	Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/DisplayPort 1.2 ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Maximum shared memory of 1024 MB Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ Supports up to 3 displays simultaneously DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
Multi-GPU Support	Supports NVIDIA® 2-Way SLI™ Technology Supports AMD 2-Way CrossFireX Technology
Expansion Slots	2 x PCIe 3.0/2.0 x16 (x16 or dual x8) 2 x PCIe 3.0/2.0 x1
Storage	Intel® Z270 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)¹ 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)² 6 x SATA 6Gb/s port(s) Intel® Optane™ Memory Ready *³
LAN	Intel® I219V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY) Anti-surge LANGuard ROG GameFirst Technology
Wireless Data Network	Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO
Bluetooth	Bluetooth V4.1
Audio	ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual Headphone Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback ⁴ Audio Feature :* - SupremeFX Shielding™ Technology - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III
USB Ports	Intel® Z270 Chipset : 6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board) Intel® Z270 Chipset : 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board) ASMedia® USB 3.1 controller : 1 x USB 3.1 front panel connector port(s) ASMedia® USB 3.1 controller : 2 x USB 3.1 port(s) (2 at back panel, black+red, Type-A + Type-C)
ROG Exclusive Features	ROG RAMCache II ROG CPU-Z ROG CloneDrive Overwolf GameFirst IV
Special Features	5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. TPU - Auto Tuning, TurboV, GPU Boost - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control Gamer's Guardian: - ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable Components - DIGI+ VRM - SafeSlot ASUS EPU : - EPU AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Gaming Aesthetics : - 3D printing friendly Digi+VRM
Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Type-A + Type-C 2 x USB 2.0 4 x USB 3.0 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.1)
Internal I/O Ports	1 x AAFP connector 2 x Aura RGB Strip Headers 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x W_PUMP+ connector (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x USB 3.1 front panel connector 1 x CPU_OV jumper
Accessories	User's manual I/O Shield 4 x SATA 6Gb/s cable(s) 1 x CPU installation tool 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x SLI HB BRIDGE(2-WAY-S) 1 x ROG Strix stickers 1 x M.2 screw kit (long screw and mount) 1 x M.2 screw kit (short screw and mount) 1 x 10 in 1 Cable Label (s) 1 x Extension Cable for RGB strips (40 cm) 1 x 3D printing mount package 1 x ROG coasters
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.
Manageability	WfM2.0, DMI3.0, WOL by PME, PXE
Support Disc	Drivers ROG GameFirst IV* ROG RAMCache II ROG Clone Drive Aura ROG CPU-Z Anti-virus software (OEM version) ASUS WebStorage ASUS Utilities *ROG GameFirst IV is only available for Windows 10/8.1 64-bit
Operating System	Windows® 10 64-bit Windows® 8.1 64-bit ⁵ Windows® 7 32-bit ⁵ Windows® 7 64-bit *⁵
Form Factor	mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Note	1 The M.2_1 socket shares bandwidth with SATA_1 port when using M.2 SATA mode device. Adjust BIOS settings to use SATA device. 2 Located at back of the motherboard 3 Intel® Optane Technology only supported when using 7th Generation Intel® Processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website. 4 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio *5 Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors.
