PRIME Z270-K

PCIスロットを搭載する使いやすいエントリーモデル

・JAN/UPC：0889349570074
・TEKWIND型番：ASU-PRIME/Z270-K

【主な特長】

・ LGA1151対応
・ Intel Core i7/i5/i3、Pentium、CeleronシリーズCPU対応
・ Intel Z270チップセット搭載
・ DDR4メモリ×4枚（最大64GB）対応
・ DisplayPort 1.2×1、HDMI 1.4b×1、DVI-D×1
・ PCIe 3.0 x16×2、PCIe 3.0 x1×2、PCI×2
・ M.2×2、SATA 6Gb/s×6
・ USB 3.1×2、USB 3.0×6、USB 2.0×6、USB 5Gb/s Type-C×1
・ 1000BASE-T×1
・デジタル電源回路「DIGI+ VRM」
・高性能ファンコントロール機能「Fan Xpert 4 Core」
・ ATXフォームファクター

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

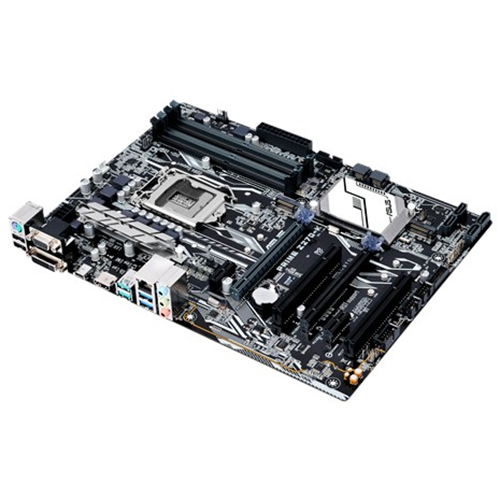

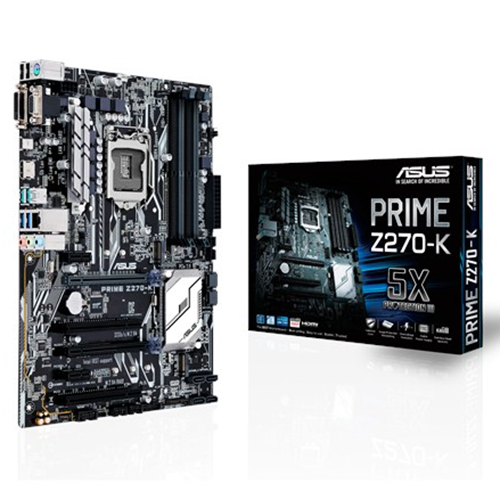

製品画像

スペック

CPU	Intel® Socket 1151 for 7^th/6^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list
Chipset	Intel® Z270
Memory	4 x DIMM, Max. 64GB, DDR4 3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor.
Graphic	Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/DVI-D/RGB ports - Supports VGA with max. resolution 1920 x 1200 @ 60 Hz - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB Supports up to 3 displays simultaneously
Multi-GPU Support	Supports AMD CrossFireX™ Technology
Expansion Slots	1 x PCIe 3.0/2.0 x16 (x16 mode) 1 x PCIe 3.0/2.0 x16 (max at x4 mode) 2 x PCIe 3.0/2.0 x1 2 x PCI
Storage	1 x M.2 Socket 3¹, , with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3², , with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 6 x SATA 6Gb/s port(s), gray Support Raid 0, 1, 5, 10 Supports Intel® Smart Response Technology³ Intel® Optane™ Memory Ready ⁵
LAN	Intel® I219V, 1 x Gigabit LAN Controller(s)
Audio	Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
USB Ports	ASMedia® USB 3.1 controller : 2 x USB 3.1 port(s) (2 at back panel, +teal blue, Type-A) Intel® Z270 Chipset : 1 x USB 5Gb/s port(s) port(s) Intel® Z270 Chipset : 6 x USB 3.0 port(s) (2 at back panel, +blue) Intel® Z270 Chipset : 6 x USB 2.0 port(s) (2 at back panel, )
Special Features	ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 7 Phase digital power design ASUS EPU : - EPU ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution & MOS Heatsink - ASUS Fan Xpert 4 Core ASUS EZ DIY : - ASUS O.C. Tuner - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Slot - ASUS Q-DIMM Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall) M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

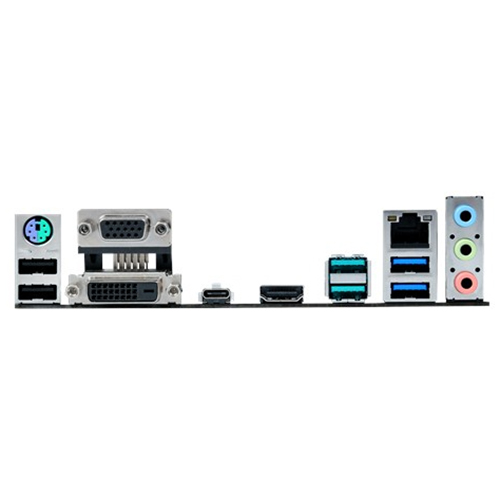

Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 1 x USB 5Gb/s port(s) Type-C ( support 3A power output ) 2 x USB 3.1 (teal blue) 2 x USB 3.0 (blue) Type-A 2 x USB 2.0 3 x Audio jack(s)
Internal I/O Ports	2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x AIO PUMP Header
Accessories	User's manual ASUS Q-Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x SCD
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability	WfM 2.0, DMI 3.0, WOL by PME, PXE
Support Disc	Drivers ASUS Utilities ASUS EZ Update Anti-virus software (OEM version)
Operating System	Windows® 10 64-bit Windows® 8 64-bit Windows® 7 32-bit Windows® 7 64-bit *⁶
Form Factor	ATX Form Factor 12.0 inch x 8.9 inch ( 30.5 cm x 22.6 cm )
Note	When a device in SATA mode is installed on the M.2_1 socket, SATA_1 port cannot be used. 2. When a device is installed on the M.2_2 socket, SATA_5/6 ports cannot be used. 3. These functions will work depending on the CPU installed. 4.Intel® Optane Technology is only supported when using 7th Generation Intel® processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website. 5. These functions will work depending on the CPU installed. 6. Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors
