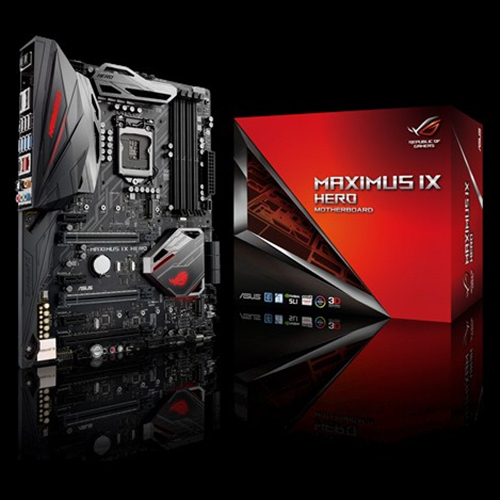

質実剛健なゲーマー向けミドルモデル
・JAN/UPC：0889349580653
・TEKWIND型番：ASU-MAXIMUS9/HERO
【主な特長】
・ LGA1151対応
・ Intel Core i7/i5/i3、Pentium、CeleronシリーズCPU対応
・ Intel Z270チップセット搭載
・ DDR4メモリ×4枚（最大64GB）対応
・ DisplayPort 1.2×1、HDMI 1.4b×1
・ PCIe 3.0 x16×3、PCIe 3.0 x1×3
・ M.2×2、SATA 6Gb/s×6
・ USB 3.1 Type-C×1、USB 3.1×2、USB 3.0×6、USB 2.0×6
・ 1000BASE-T×1
・ OC対応のデジタル電源回路「Extreme Engine Digi+」
・ 鮮やかに光るイルミネーション機能「Aura」
・ 高性能ファンコントロール機能「Fan Xpert 4」
・ ゲーム用オーディオ機能「ROG SupremeFX」

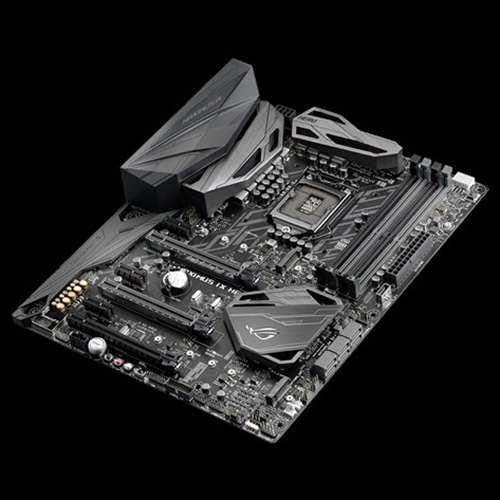

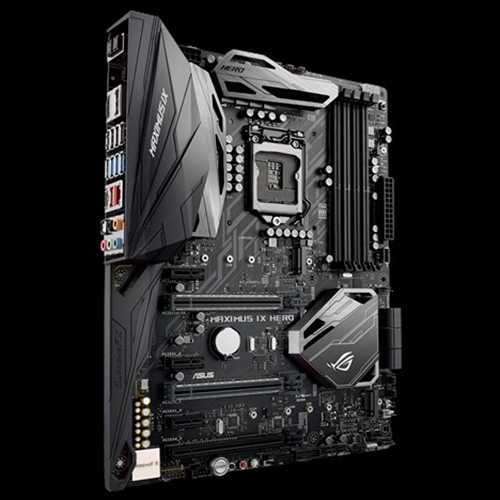

・ ATXフォームファクター
製品についてお気軽にお問い合わせください
この製品を問い合わせる製品画像
スペック
| CPU | Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list |
|---|---|
| Chipset | Intel® Z270 |
| Memory | 4 x DIMM, Max. 64GB, DDR4 4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133(O.C.) MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphic | Integrated Graphics Processor Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Maximum shared memory of 1024 MB |
| Multi-GPU Support | Supports NVIDIA® 2-Way SLI™ Technology Supports AMD 3-Way CrossFireX™ Technology |
| Expansion Slots | 2 x PCIe 3.0/2.0 x16 1 x PCIe 3.0/2.0 x16 *1 3 x PCIe 3.0/2.0 x1 |

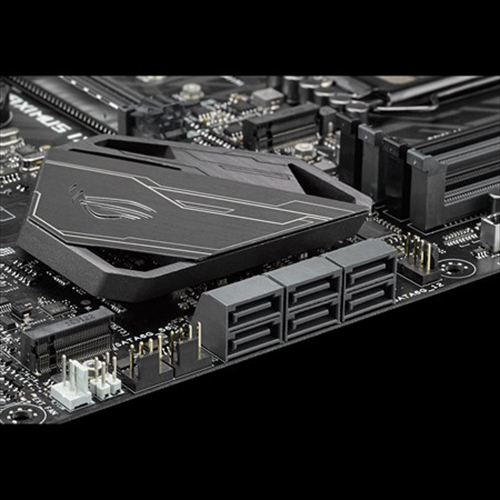

| Storage | Intel® Z270 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*3 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports*4 Supports Intel® Smart Response Technology*4 Intel® Optane™ Memory Ready *5 |
| LAN | Intel® I219V Anti-surge LANGuard ROG GameFirst Technology |

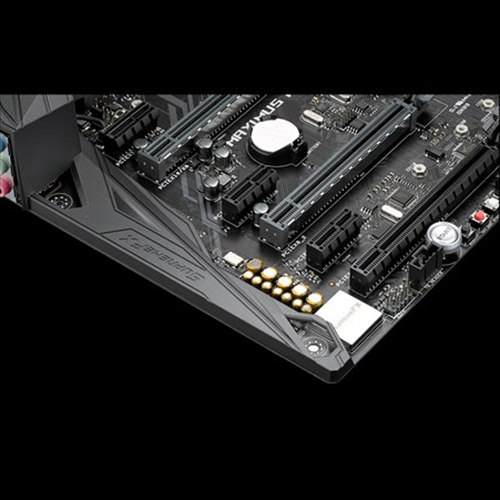

| Audio | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - ESS® ES9023P - Supports up to 32-Bit/192kHz playback *6 Audio Feature : - Gold-plated jacks - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III |
| USB Ports | ASMedia® USB 3.1 controller : 1 x USB 3.1 front panel connector port(s) ASMedia® USB 3.1 controller : 2 x USB 3.1 port(s) (2 at back panel, , Type-A + Type-C) Intel® Z270 Chipset : 6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board) Intel® Z270 Chipset : *7 6 x USB 2.0 port(s) (4 at back panel, black, 2 at mid-board) |
| ROG Exclusive Features |
ROG RAMCache II ROG CPU-Z ROG CloneDrive MemOK! Button Overwolf ReTry Button Safe Boot Button Start Button Reset Button LN2 Mode GameFirst IV ROG Aura - Aura Lighting Control - Aura RGB Strip Headers Extreme Engine Digi+ : - MicroFine Alloy Chokes - NexFET™ Power Block MOSFET - 10K Black Metallic Capacitors Mem TweakIt KeyBot II - One-click Overclocking - X.M.P. - DirectKey - ClrCMOS - Power On UEFI BIOS features : - O.C. Profile - Tweakers' Paradise - ROG SSD Secure Erase - Graphic Card Information Preview ROG RAMDisk Loadline Calibration |
| Special Features | ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App TPU - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors Gamer's Guardian: - SafeSlot ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, VGA, Boot Device LED) - ASUS Q-DIMM - ASUS Q-Connector |

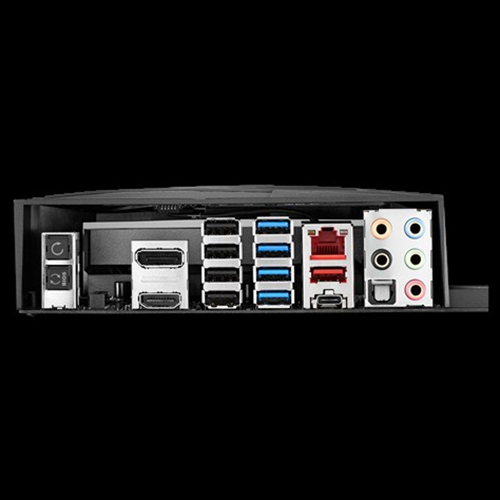

| Back I/O Ports | 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 1 x USB 3.1 (black)Type-C 1 x USB 3.1 (red)Type-A 4 x USB 3.0 (blue) 4 x USB 2.0 (one port can be switched to USB BIOS Flashback) 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS Flashback Button(s) 5 x Gold-plated audio jacks |
| Internal I/O Ports | 2 x RGB Header(s) 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x AIO_PUMP connector 1 x Thunderbolt header(s) 1 x 8-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! button(s) 1 x Thermal sensor connector(s) 1 x Reset button(s) 1 x LN2 Mode switch(es) 1 x Clear CMOS button(s) 1 x USB BIOS Flashback button(s) 1 x ROG extension (ROG_EXT) header(s) 1 x Safe Boot button 1 x ReTry button 1 x Slow Mode jumper(s) 1 x System panel connector 3 x 3D Mount screw port(s) 1 x Start button 1 x USB 3.1 front panel connector 1 x Fan Extension connector 1 x Water In header 1 x Water Out header 1 x Water Flow header |

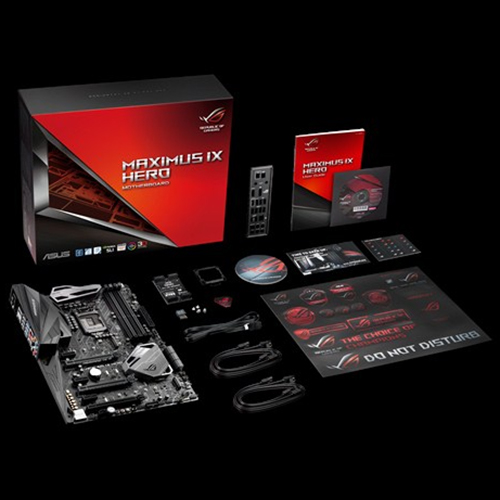

| Accessories | User's manual ASUS Q-Shield 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x CPU installation tool 1 x Supporting DVD 1 x SLI HB BRIDGE(2-WAY-M) 1 x ROG big sticker 1 x Q-Connector 1 x 10-in-1 ROG cable label 1 x Extension Cable for RGB strips (80 cm) 1 x 3D printing mount package 1 x ROG coasters |
| BIOS | 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information. |
| Manageability | WfM2.0, DMI3.0, WOL by PME, PXE |
| Operating System | Windows® 10 64-bit Windows® 8.1 64-bit *8 Windows® 7 32-bit *8 Windows® 7 64-bit *8 |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Note | *1 The PCIe x4_3 slot shares bandwidth with PCIex1_3. The PCIe x4_3 is default set at x2 mode. *2 When the M.2_1 Socket 3 is operating in SATA mode, SATA port 1 will be disabled. *3 When the M.2_2 Socket 3 is operating in PCIEX4 mode, SATA port 5. 6 will be disabled. *4 This function will work depending on the CPU installed. *5 Intel® Optane Technology only supported when using 7th Generation Intel® Processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website. *6 Due to limitations in HDA bandwidth, 32-bit/192kHz is not supported for 8-Channel audio and due to Windows 7 limitations, 32-bit playback is unavailable for Windows 7. *7 2 x USB2.0 port at mid-board comes from the ROG extension (ROG_EXT) port. *8 Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors *9 ROG GameFirst technology is only available for Windows 10/8.1 64-bit |
