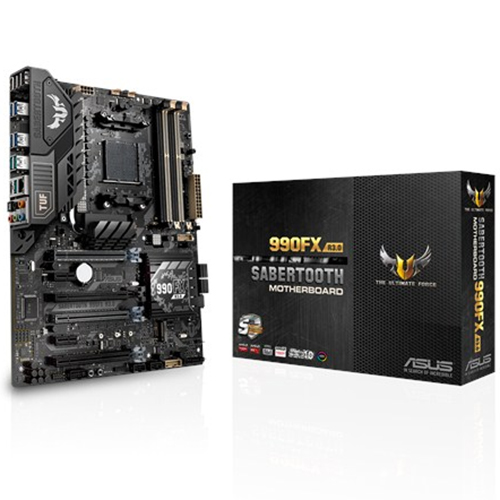

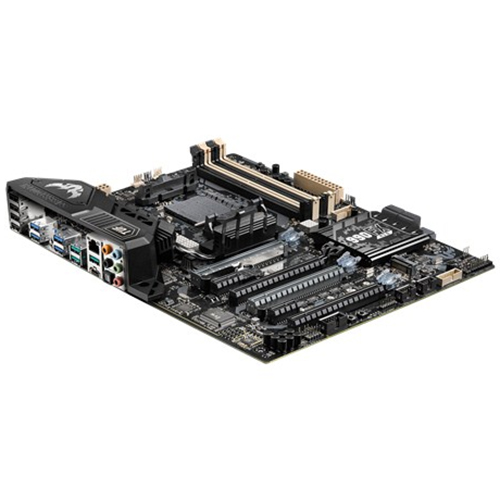

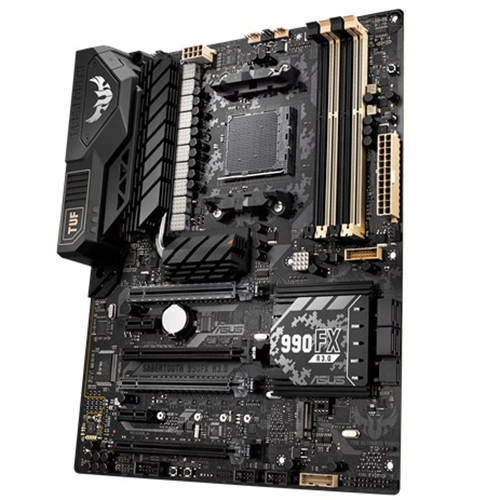

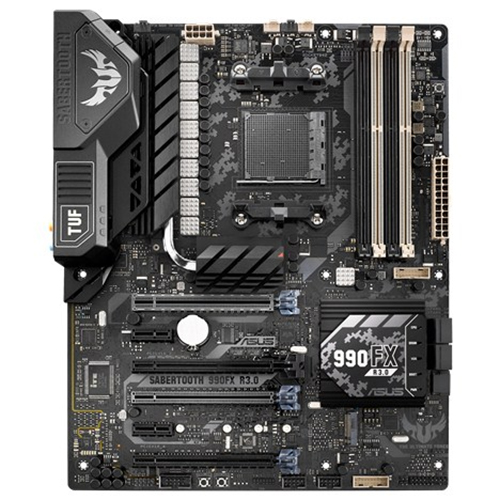

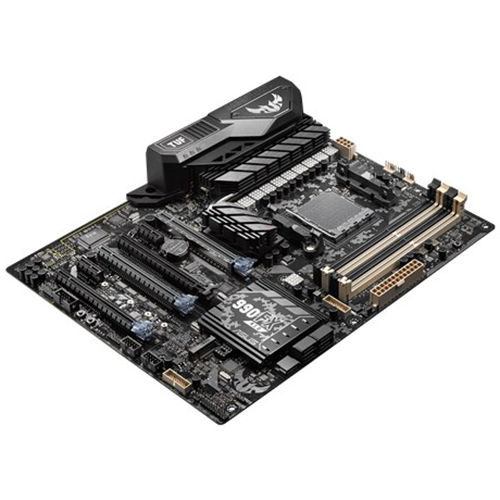

SABERTOOTH 990FX R3.0

耐久性と信頼性に特化したAMD 990FXマザーボード

・JAN/UPC：0889349475324
・TEKWIND型番：ASU-SABERTOOTH/990FX/R3.0

【主な特長】

・Socket AM3+対応
・AMD FX/Phenom II/Athlon II/Sempron 100シリーズCPU対応
・AMD 990FX+AMD SB950チップセット搭載
・DDR3メモリ×4枚（最大32GB）対応
・高機能ファンコントロール機能「TUF Thermal Radar 2」
・デジタル電源回路の「TUF ENGINE!」
・搭載チップを静電気から守る「TUF ESD Guards 2」
・Military Standard規格をクリアしたコイル/コンデンサ/MOSFETを搭載
・LEDで拡張スロットのロック部分が鮮やかに光る「Aura」機能を搭載
・重いカードも安心な高耐久PCI Expressスロット「SafeSlot」
・優れた信号特性を実現した高性能LANポート「TUF LANGuard」
・USB 3.1の転送速度をブーストする「USB 3.1 Boost」機能

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

製品画像

スペック

対応CPU	AMD AM3+ FX™/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors Supports AM3+ 32 nm CPU Supports CPU up to 8 cores Supports CPU up to 220 W AMD Cool 'n' Quiet™ Technology
搭載チップセット	AMD 990FX/SB950
対応メモリ	4 x DIMM, Max. 32GB, DDR3- 1866/1600/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory デュアルチャンネル Memory Architecture
System Bus	Up to 5.2 GT/s HyperTransport™ 3.0
マルチGPU対応	Supports NVIDIA® 3-Way SLI™ Technology Supports AMD 3-Way CrossFireX™ Technology
拡張スロット	3 x PCIe 2.0 x16 (dual x16 or x16/x8/x8) ¹ 1 x PCIe 2.0 x16 (x4 mode, black) ² 2 x PCIe 2.0 x1
ストレージ機能	AMD SB950 controller : 5 x SATA 6Gb/s port(s), Support Raid 0, 1, 5, 10, JBOD AMD SB950 controller : 1 x M.2 Socket 3, gray, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)
LAN機能	Intel® I211, 1000BASE-T/100BASE-TX/10BASE-T×1
オーディオ機能	Realtek® ALC1150 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound - Blu-ray audio layer Content Protection - Optical S/PDIF out port(s) at back panel - BD Audio Layer Content Protection - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Audio amplifier: Provides the highest-quality sound for headphone and speakers
USB機能	ASMedia® USB 3.1 controller : 1 x USB 3.1/3.0/2.0 port(s) (1 at back panel, , Type-C, Reversible, Support 3A power output) ASMedia® USB 3.1 controller : 3 x USB 3.1/3.0/2.0 port(s) (3 at back panel, teal blue, Type-A, Support 3A power output) ASMedia® USB 3.0 Hub : 8 x USB 3.0/2.0 port(s) (4 at back panel, blue, 4 at mid-board) AMD SB950 controller : 8 x USB 2.0/1.1 port(s) (4 at back panel, , 4 at mid-board)
独自機能	TUF ENGINE! Power Design : - 8 +2 Digital Phase Power Design - TUF Components (Alloy choke, Cap. & MOSFET; certified by military-standard) - ASUS DIGI+ Power Control Utility Ultimate COOL! Thermal Solution : - TUF Thermal Radar 2 Safe & Stable! Guardian Angel : - TUF ESD Guards 2 - TUF LANGuard ASUS Exclusive Features : - USB BIOS Flashback - MemOK! - AI Suite 3 - Onboard Button : Power - Front Panel USB 3.0 Support - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - USB 3.1 Boost - Turbo LAN Remote Entertainment - Media Streamer ASUS EZ DIY : - Precision Tweaker 2 - ASUS O.C. Profile - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 - Multi-language BIOS ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector AURA: RGB Lighting Control
動作対応OS	Windows® 10 Windows® 8.1 Windows® 7

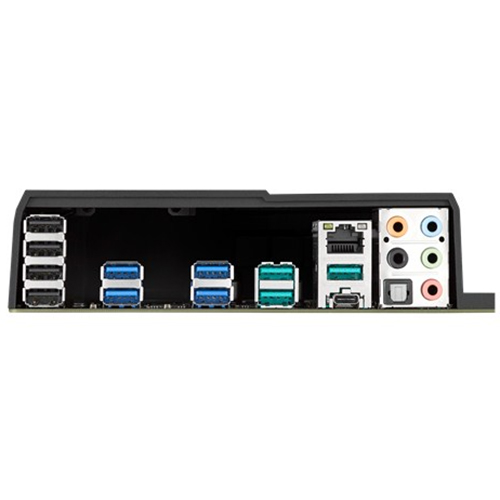

背面インターフェース	1 x LAN (RJ45) port(s) 1 x USB 3.1 Type-C 3 x USB 3.1 (teal blue)Type-A 4 x USB 3.0 (blue) 4 x USB 2.0 (one port can be switched to USB BIOS Flashback) 1 x Optical S/PDIF out 5 x Audio jack(s)
基板上インターフェース	2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin, beige) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD) 1 x TPM connector(s) 1 x COM port(s) connector(s) 5 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel connector(s) 1 x System panel(s) (Q-Connector) 1 x DRCT header(s) 1 x MemOK! button(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x USB BIOS Flashback button(s) 1 x Water Pump header (4-pin)
主な付属品	User's manual ASUS Q-Shield 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x SLI bridge(s) 1 x Q-connector(s) (2 in 1) 1 x TUF Certification card(s) 1 x support DVD 1 x TUF Inside sticker(s)(white)
BIOS機能	64 Mb Flash ROM, UEFI BIOS, PnP, SLP2.1, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information
管理機能	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
サポートDVDの内容	Drivers Anti-virus software (OEM version) ASUS Update ASUS Utilities
フォームファクター（サイズW×D）	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
その他	1: When running dual graphics cards, be sure to insert the card in the first and third PCIex16 slot to get the best performance. 2: When M.2 bandwidth is set to x4, PCIex16_2 will have no function.
