J3455M-E

Celeron J3455 CPUをオンボードで搭載しバックパネルにパラレルポートを備えるファンレス仕様のmicroATXマザーボード

・JAN/UPC：0889349539170
・TEKWIND型番：ASU-J3455M-E

【主な特長】

・ Intel Celeron J3455 CPUをオンボード搭載
・ DDR3メモリ×2枚（最大16GB）対応
・ HDMI×1、D-Sub 15ピン×1
・ PCIe 2.0 x16×1、PCIe 2.0 x1×2
・ SATA 6Gb/s×2
・ USB 3.0×4、USB 2.0×4
・ 1000BASE-T×1
・ CPUファン＋ケースファンを細かく設定できる「Fan Xpert」
・ microATXフォームファクター

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

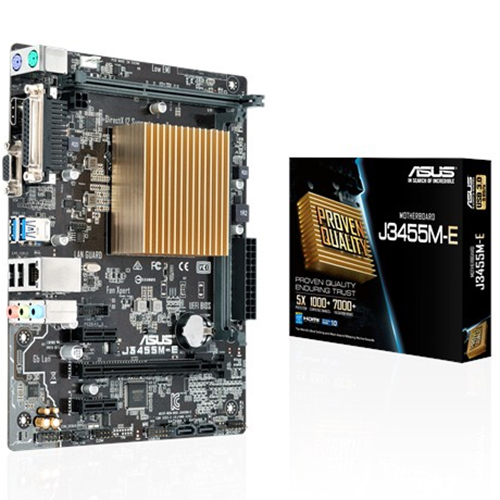

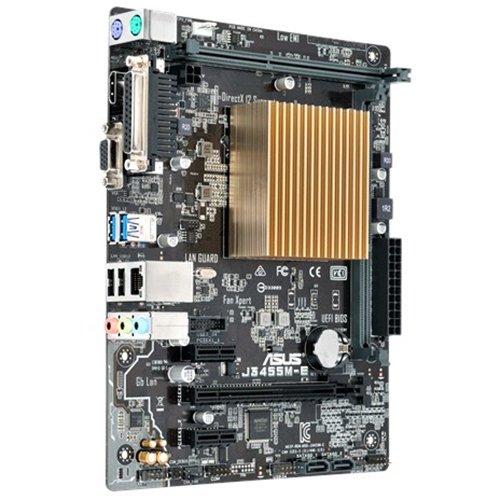

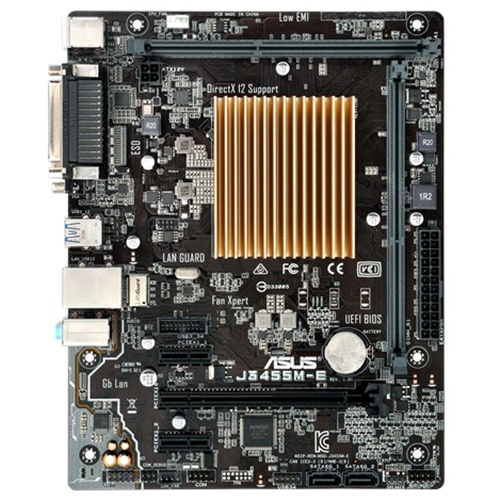

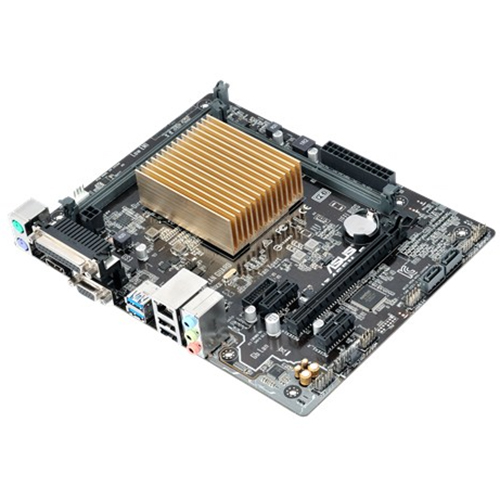

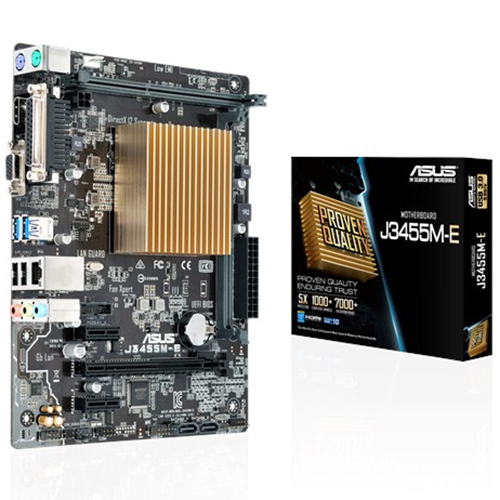

製品画像

スペック

CPU	Intel® Celeron® Quad Core Processor J3455 SoC onboard Processors
Memory	2 x U-DIMM, max 16GB, DDR3/DDR3L 1333/1600/1866* MHz, non-ECC, un-buffered memory Dual-channel memory architecture * The default memory operation frequency is dependent on its Serial Presence Detect (SPD), which is the standard way of accessing information from a memory module. Under the default state, some memory modules for overclocking may operate at a lower frequency than the vendor-marked value. ** Due to the chipset limitation, we recommend that you use single-sided 4GB or 8GB, or double-sided 8GB DDR3 per DIMM slot. The maximum memory for the two DIMM slots is 16GB.
Graphics	Integrated Graphics Processor - Intel® HD Graphics support Multi-VGA output support: HDMI, D-Sub port - Supports HDMI with max. resolution of 3840 x 2160 @ 30Hz - Supports D-sub with max. resolution of 1920 x 1200 @60Hz - Maximum shared memory of 512MB
Expansion Slots	1 x PCI Express 2.0 x16 slot (@x1 mode) 2 x PCI Express 2.0 x1 slots
Storage	2 x SATA 6.0Gb/s connectors
LAN	Realtek® 8111H PCIe Gigabit LAN controller
Audio	Realtek® ALC887 8-channel High Definition Audio CODEC - Supports Jack-Detection and Front Panel Jack-Retasking * Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
USB	4 x USB 3.0/2.0 ports (2 at the front panel, 2 at the back panel, blue) 4 x USB 2.0/1.1 ports (2 at the front panel, 2 at the back panel, black)
ASUS Unique Features	ASUS Exclusive Features ASUS AI Suite 3 ASUS Quiet Thermal Solution - ASUS Fan Xpert - Fanless Design Heatsink ASUS EZ DIY - ASUS UEFI BIOS (EZ Mode) - ASUS MyLogo 2 - ASUS EZ-Flash 3

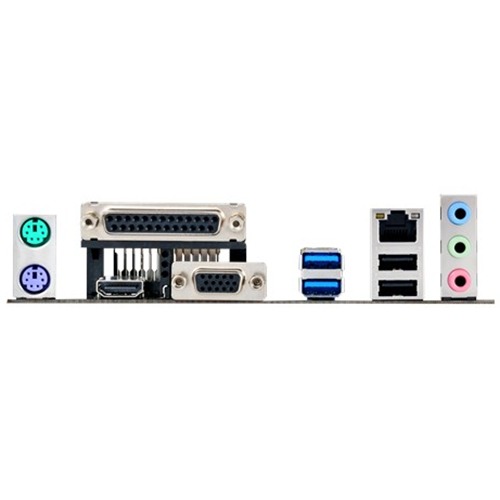

Back Panel I/O Ports	1 x PS/2 keyboard port (purple) 1 x PS/2 mouse port (green) 1 x HDMI port 1 x D-Sub port 1 x LPT Port 2 x USB 3.0/2.0 ports 2 x USB 2.0/1.1 ports 1 x Gigabit LAN (RJ-45) port 3 x Audio jacks support 8-channel audio output
Internal I/O Connectors	1 x USB 3.0/2.0 connector supports additional 2 USB 3.0/2.0 ports 1 x USB 2.0/1.1 connector supports additional 2 USB 2.0/1.1 ports 2 x SATA 6.0Gb/s connectors 1 x CPU Fan connector 1 x Chassis Fan connector 1 x Front panel audio connector 1 x COM connector 1 x 24-pin EATX Power connector 1 x 4-pin ATX 12V Power connector 1 x System Panel connector
BIOS	128Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability	Wfm 2.0, DMI 3.0, WOL by PME

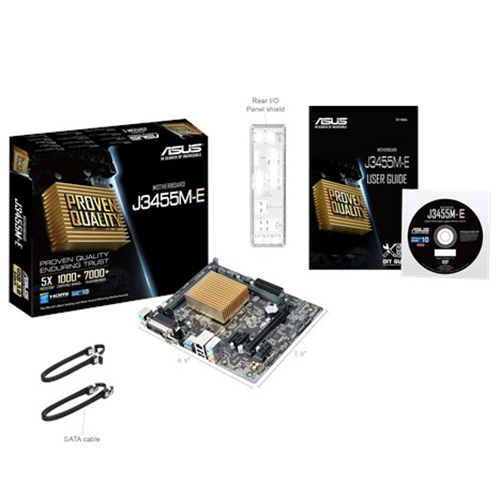

Accessories	1 x User manual 1 x I/O Shield 1 x Support DVD 2 x Serial ATA 6.0Gb/s cables
Support CD	Drivers ASUS utilities EZ Update Anti-virus software (OEM version)
Operating System Support	Windows® 10 64-bit
Form Factor	m-ATX Form Factor, 8.9” x 7.0” (22.6cm x 17.8cm)
