H110T

Thin Mini-ITXに対応するIntel H110マザーボード

・JAN/UPC：0889349372562
・TEKWIND型番：ASU-H110T

【主な特長】

・LGA1151対応
・Intel Core i7/i5/i3、Pentium、CeleronシリーズCPU対応
・intel H110チップセット搭載
・DDR4メモリ×2枚（最大32GB）対応
・DisplayPort×1、HDMI×1、LVDS×1
・SATA 6Gb/s×2、M.2×1
・USB 3.0×4、USB 2.0×5
・1000BASE-T×2
・デジタル電源回路「DIGI+ VRM」
・CPUファン＋ケースファンを細かく設定できる「Fan Xpert」
・Mini-ITXフォームファクター（Thin Mini-ITX）

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

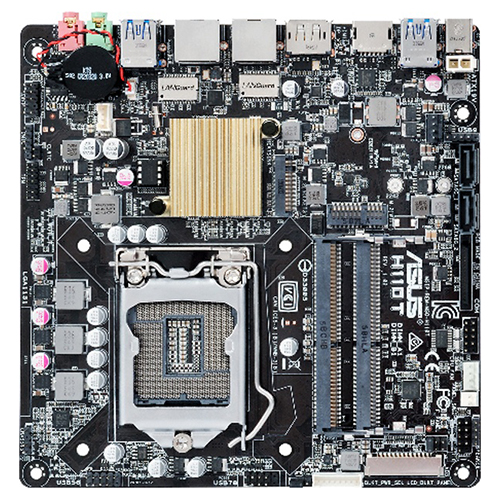

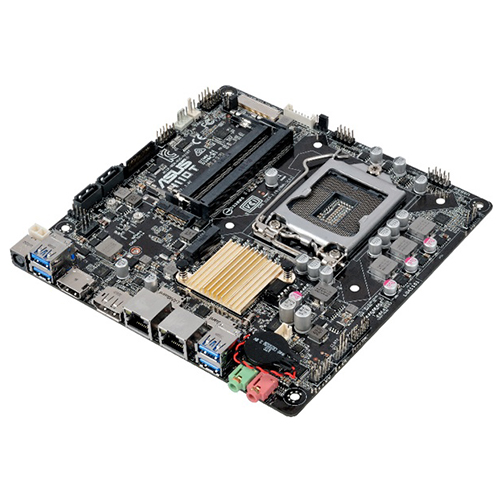

製品画像

スペック

CPU	LGA1151
LAN	1 x Realtek RTL8111H Gigabit LAN, 1 x Intel I219V Gigabit LAN
USB	4 x USB 3.0/2.0 port,5 x USB 2.0/1.1 port
オーディオ機能	Realtek ALC887 7.1-Channel High Definition Audio CODEC *1
チップセット	Intel H110
メモリ	2 x SO-DIMM, Max. 32GB, DDR4 2133 MHz Non-ECC, Un-buffered Memory
背面端子類	1 x DisplayPort,1 x HDMI,2 x LAN (RJ45) port,4 x USB 3.0,2 x Audio jack,1 x DC power connector

CPU	Intel® for 6^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list
Chipset	Intel® H110
Memory	2 x SO-DIMM, Max. 32GB, DDR4 2133 MHz Non-ECC, Un-buffered Memory Supports Intel® Extreme Memory Profile (XMP) * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic	Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/LVDS/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports LVDS with max. resolution 1920 x 1200 @ 60 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Maximum shared memory of 1024 MB Supports up to 2 displays simultaneously
Storage	Intel® H110 chipset : 1 x M.2 Socket 3, with M key, type 2242/2260 storage devices support (both SATA & PCIE mode) 2 x SATA 6Gb/s port(s)
LAN	Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) Intel® I219V, 1 x Gigabit LAN
Audio	Realtek® ALC887 7.1-Channel High Definition Audio CODEC *¹ - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
USB Ports	Intel® H110 chipset : 4 x USB 3.0/2.0 port(s) (4 at back panel, blue) Intel® H110 chipset : 5 x USB 2.0/1.1 port(s) (5 at mid-board)
Special Features	ASUS 5X Protection II : - ASUS LANGuard - 2.5X higher surge tolerance - ASUS Overvoltage Protection - World-class circuit-protecting power design - ASUS DIGI+ VRM - 3 Phase digital power design - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability ASUS Exclusive Features : - AI Suite 3 - Ai Charger - Mobo Connect - PC Cleaner ASUS Quiet Thermal Solution : - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Push Notice 100% All High-quality Conductive Polymer Capacitors Media Streamer
Operating System Support	Windows® 10 , 64bit Windows® 8.1 , 64bit Windows® 7 , 32bit/64bit *²

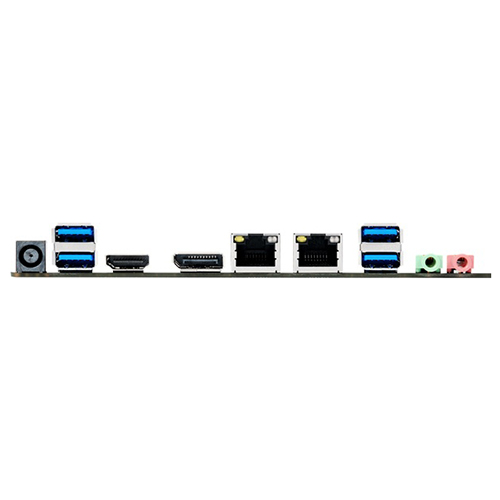

Back I/O Ports	1 x DisplayPort 1 x HDMI 2 x LAN (RJ45) port(s) 4 x USB 3.0 (blue) 2 x Audio jack(s) 1 x DC power connector(s)
Internal I/O Ports	3 x USB 2.0 connector(s) support(s) additional 5 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260 storage devices support (both SATA & PCIE mode) 1 x COM port(s) connector(s) 2 x SATA 6Gb/s connector(s) 1 x SATA power connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) () 1 x Front panel audio connector(s) (AAFP) 1 x Chassis Intrusion connector(s) 1 x Clear CMOS jumper(s) 1 x 2-pin internal DC power connector 1 x Stereo speaker connector 1 x DMIC header 1 x Backlight inverter voltage selection header 1 x FPD brightness header 1 x Panel voltage selection header 1 x Panel off header 1 x LVDS connector(s) 1 x 14-1 pin TPM connector 1 x System panel connector 1 x M.2 Socket 1 with E key, type 2230 for Wi-Fi/BT devices support or PCIE/USB mode
Accessories	User's manual I/O Shield Thin Mini ITX I/O Shield 1 x SATA power cable 2 x SATA 6Gb/s cable(s) 2 x M.2 Screw Package 1 x Supporting DVD
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3,CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function,F6 Qfan Control
Manageability	WfM 2.0, DMI 3.0, WOL by PME
Support Disc	Drivers ASUS Utilities ASUS EZ Update Anti-virus software (OEM version)
Form Factor	Thin Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm )
Note	1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output. 2: Please refer to ASUS website and download “Windows® 7 installation guide” and “ASUS EZ installer” to install Windows® 7.
