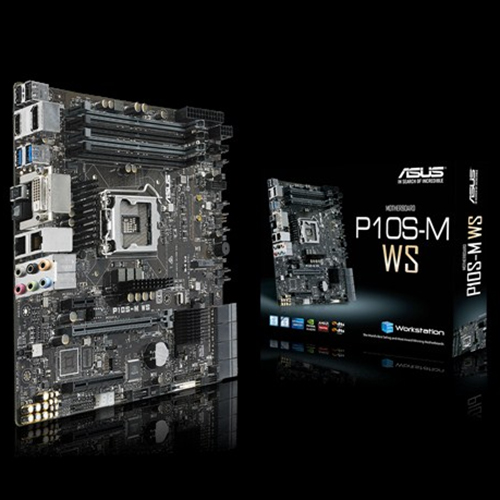

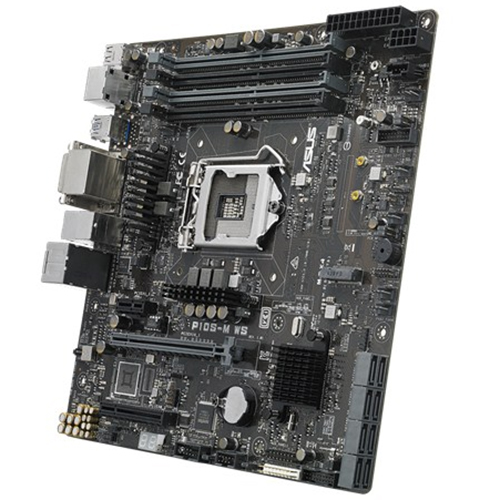

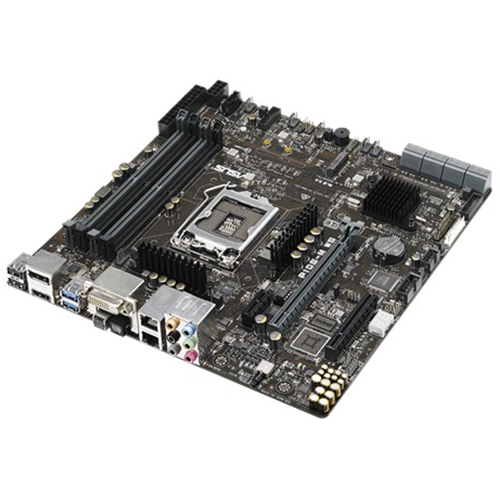

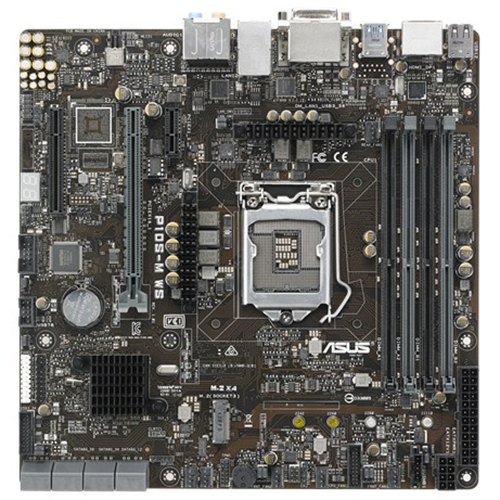

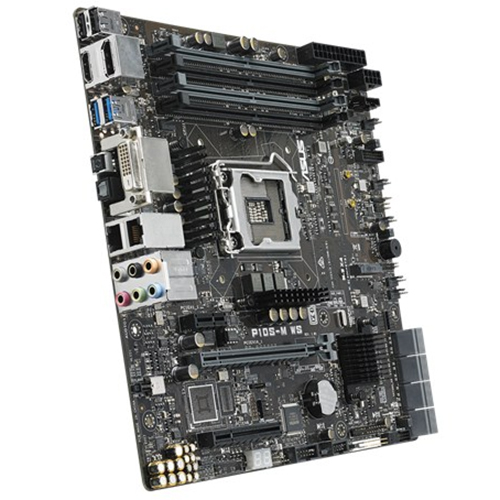

Xeon E3-1200 v5シリーズに対応するmicroATXサイズのワークステーションマザーボード
・JAN/UPC：0889349268742
・TEKWIND型番：ASU-P10S-M/WS
【主な特長】
・ LGA1151対応
・ Intel Xeon E3-1200 v5、Core i7/i5/i3、Pentium、CeleronシリーズCPU対応
・ Intel C236チップセット搭載
・ DDR4メモリ×4枚（最大64GB）対応
・ DisplayPort×1、HDMI×1、DVI-D×1
・ PCIe 3.0 x16×1、PCIe 3.0 x8×1、PCIe 3.0 x1×1
・ SATA 6Gb/s×8、M.2×1
・ USB 3.0×6、USB 2.0×4
・ 1000BASE-T×2
・ 32Gb/sの転送速度に対応するPCIe 3.0 x4接続のM.2スロットを搭載
・ microATXフォームファクター
製品についてお気軽にお問い合わせください
この製品を問い合わせる製品画像
スペック
| CPU | LGA1151 socket for Intel® Xeon® E3-1200 v5 Processor Family LGA1151 socket for Intel® Core™ i7/i5/i3 processors LGA1151 socket for Intel® Pentium™ processors LGA1151 socket for Intel® Celeron™ processors Support Intel® 14nm CPU Support Intel® Turbo Boost Technology ** Refer to www.asus.com for Intel® CPU support list |
|---|---|
| Chipset | Intel® C236 Chipset |
| Memory | 4 x DIMM, Max 64GB, DDR4 2133 MHz, ECC/ non-ECC UDIMM Dual channel architecture **Refer to www.asus.com for the Memory QVL(Qualified Vendors List) |
| Expansion Slots | PCIEX1_1: PCI-E x1 slot, x1 Gen3 Link, from PCH PCIEX16_1: PCI-E x16 slot, x16 Gen3 Link from CPU PCIEX8_1: PCI-E x8 slot, x4 Gen3 Link, from PCH |
| VGA Output | Integrated Graphics Processor x 1 Multi-VGA output support: DVI-D/HDMI/DisplayPort - Supports DVI-D with Max resolution 1920 x 1200@60 Hz - Supports HDMI with Max resolution 4096 x 2160@60/24 Hz - Supports DisplayPort with Max resolution 4096 x 2304@60 Hz - Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ - Maximum shared memory of 512MB |
| Storage | Intel® C236 Chipset: 8 x SATA 6Gb/s ports or 7 x SATA 6Gb/s with 1 x M.2 (SATA 6Gb/s & PCI-E Gen3 x4 link, NGFF 22110/2280/2260/2242) Intel® RSTe (Windows & Linux) |
| LAN | 2 x Intel® 1210 GbE LAN (Support teaming function) |
| USB | Intel® C236 Chipset - 4 x USB 2.0 ports (2 ports at front panel, 2 ports at back panel) - 6 x USB 3.0 ports (4 ports at front panel, 2 ports at back panel) |
| Audio | Realtek® ALC1150 8-channel high definition audio CODEC - Separate layer for left and right track, ensuring both sound deliver equal - Top notch audio sensation delivers according to the audio configuration - Audio shielding ensures precise analog/digital separation and greatly reduced - Audio Amplifier to enhance the highest quality sound for headphone and - Premium Japan-made audio capacitors provides warm, natural, and - High quality 112dB SNR stereo playback output (Line-out@back) & 104dB - Absolute Pitch 192khz/24bit true BD lossless sound - BD audio layer content protection - DTS Studio Sound - DTS Connect - Supports jack-detection, multi-streaming, front panel jack-retasking (MIC) - Optical S/PDIF out port at back I/O |
| ASUS Unique Features |
ASUS DIGI + Power Control: 3+2 Phase Power Design - CPU Power: Digital 3-phase power design - iGPU Power: Digital 2-phase power design ASUS Quiet Thermal Solution: -ASUS Fanless Design: Heat-sink solution ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash Utility |

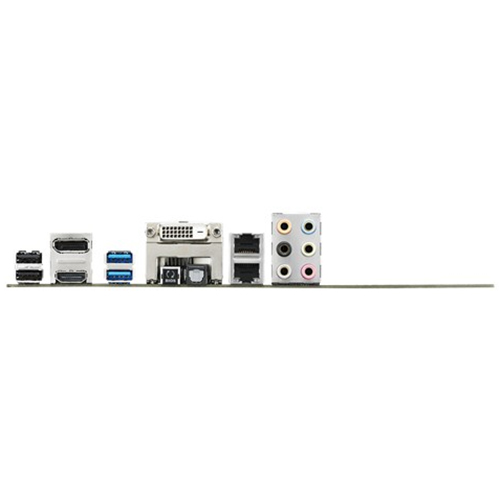

| Back Panel I/O Ports |
- 1 x Optical S/PDIF Out - 1 x HDMI - 1 x DisplayPort - 2 x USB 3.0 ports - 2 x USB 2.0 ports - 2 x RJ-45 ports - 1 x DVI-D - 1 x USB BIOS Flashback switch - 8-channel Audio I/O ports (6 x Audio jacks) |
| Internal I/O Connectors |
- 2 x USB 3.0/2.0 connector support additional 4 USB ports (19-pin) - 1 x USB 2.0/1.1 connectors support additional 2 USB ports (9-pin) - 8 x STAT 6.0 Gb/s ports - 1 x M.2 Socket - 24-pin EATX Power connector - 8-pin EATX 12V Power connector - CPU fan with PWM control - Front Fan 1~4 - Rear Fan 1 - 1 x AAFP connector - 1 x COM port header - 1 x TPM header - 1 x Chassis intrusion header - 1 x S/PDIF Out header - 19-pin front panel connector - 18-pin AUX panel connector |
| Accessories | - 8 x Serial ATA 6Gb/s cables - 1 x Com port cable - 1 x IO Shield - 1 x Support CD - 1 x manual - 1 x OSG manual - 1 x Metal Plate for LGA1151 |
| BIOS Feature | 16 MB Flash ROM, EFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI |
| Manageability | WfM 2.0, DMI 3.0, WOL by PME, WOR by PME, PXE |
| OS | - Windows Server 2008 R2 SPI - Windows Server 2012 R2 - Windows 8.1 - Windows 7 SP1 - Windows 10 - RedHatR Enterprise Linux - SUSE Linux Enterprise Server - CentOS - Scientific Linux - Ubuntu 14 - Fedora |
| WHQL | - Windows 8.1/64 bit - Windows 10/64 bit - Windows 2012 R2 64 bit - Windows 7 SP1 |
| Form Factor | Micro ATX Form Factor, 9.6” x 9.6” (244mm x 244mm) |
