RAMPAGE V EDITION 10

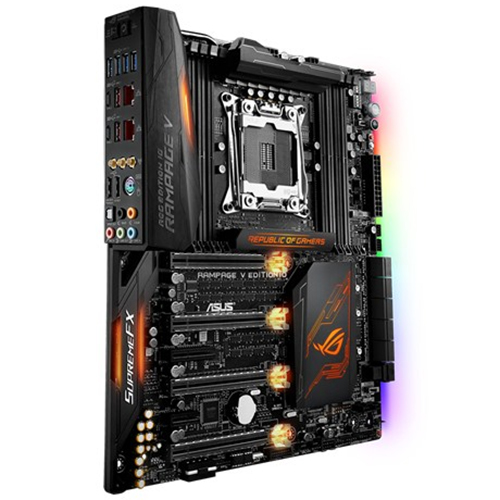

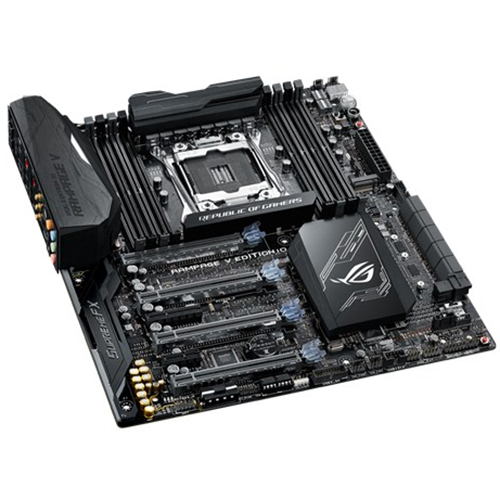

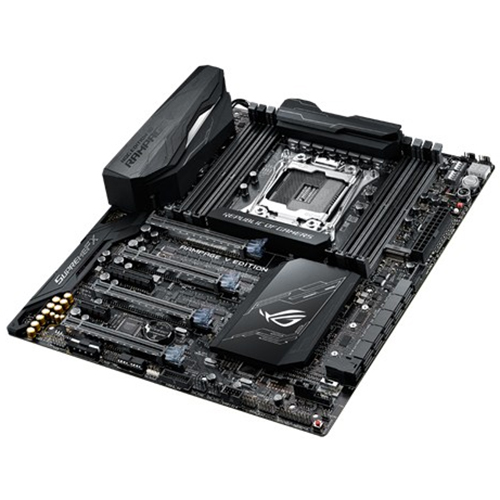

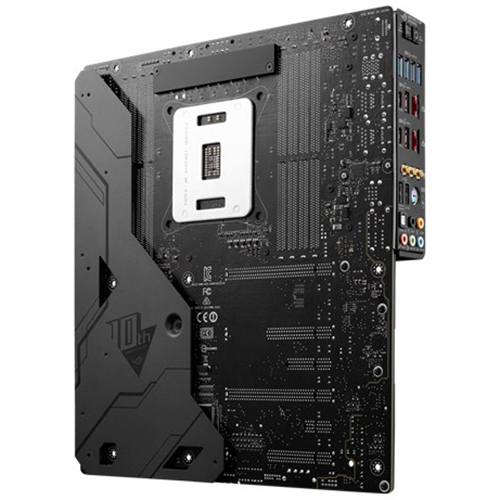

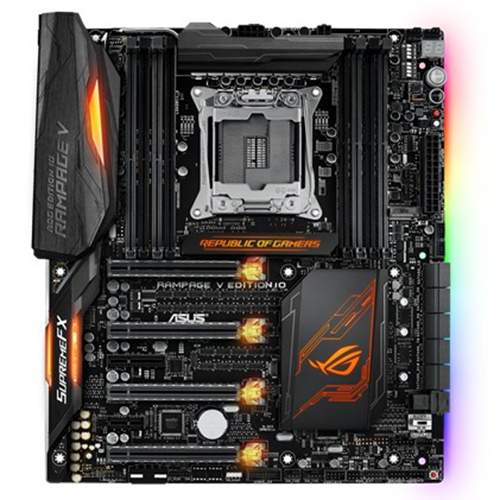

ROG RAMPAGE V EDITION 10

• CPU
  Intel® Socket 2011-v3 Core™ i7 X-Series Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Max Technology 3.0
  * Refer to www.asus.com for CPU support list
• Chipset
  Intel® X99
• Memory
  8 x DIMM, Max. 128GB, DDR4 3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/
  2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
  Quad Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Multi-GPU Support
  Supports NVIDIA® 4-Way SLI™ Technology *¹
  Supports NVIDIA® 3-Way SLI™ Technology
  Supports NVIDIA® 2-Way SLI™ Technology
  Supports AMD 4-Way CrossFireX Technology *¹
  Supports AMD 3-Way CrossFireX™ Technology
  Supports AMD 2-Way CrossFireX Technology
• Expansion Slots
  4 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x8/x8, x16/x8/x8/x8 or x8/x8/x8/x8 mode with 40-LANE CPU; x16, x8/x8 or x8/x8/x8 mode with 28-LANE CPU) *²
  1 x PCIe 2.0 x4 *³
  1 x PCIe 2.0 x1
• Storage
  New Intel® Core™ i7 X-Series Processors :
  1 x M.2 Socket 3, with M Key, type 2260/2280/22110 storage devices support ( Supports PCIE SSDs only)*⁴
  1 x U.2 port, support PCIe 3.0 x4 NVM Express storage*⁴
  Intel® X99 chipset :
  10 x SATA 6Gb/s port(s),
  Support Raid 0, 1, 5, 10
  Supports Intel® Smart Response Technology*⁵
• LAN
  Intel® I218V, 1 x Gigabit LAN Controller(s)
  Intel® I211-AT, 1 x Gigabit LAN Controller(s)
  Dual Gigabit LAN controllers- 802.3az Energy Efficient Ethernet (EEE) appliance
  Anti-surge LANGuard
  ROG GameFirst Technology
• Wireless Data
  Network
  Wi-Fi 802.11 a/b/g/n/ac
  Supports dual band frequency 2.4/5 GHz
  Support ASUS Wi-Fi Go! Utility
  Up to 1300Mbps transfer speed
• Bluetooth
  Bluetooth V4.0
• Audio
  ROG SupremeFX 8-Channel High Definition Audio CODEC
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  Audio Feature :
  - SupremeFX Shielding™ Technology
  - DTS Connect
  - Optical S/PDIF out port(s) at back panel
  - Audio amplifier: Provides the highest-quality sound for headphone and speakers
  - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  - Sonic Studio II
  - Sonic Radar II
• USB Ports
  Intel® X99 chipset : *³
  4 x USB 3.0 port(s) (4 at mid-board)
  Intel® X99 chipset : *⁶
  6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
  ASMedia® USB 3.1 controller :
  2 x USB 3.1 port(s) (2 at back panel, black, Type-C)
  ASMedia® USB 3.1 controller : *³
  2 x USB 3.1 port(s) (2 at back panel, red, Type-A)
  ASMedia® USB 3.0 controller :
  4 x USB 3.0 port(s) (4 at back panel, blue)
• ROG Exclusive
  Features
  1 x DRAM channel switch
  ROG RAMCache
  Extreme Engine Digi+ :
  - IR3555 PoweIRstage®
  - MicroFine Alloy Chokes
  - 10K Black Metallic Capacitors
  ROG Extreme OC kit :
  - ReTry button
  - Safe Boot button
  - Start button
  - Reset button
  - Slow Mode
  - LN2 Mode
  - PCIe x16 Lane Switch
  ProbeIt
  KeyBot II
  - One-click Overclocking
  - X.M.P.
  - DirectKey
  - ClrCMOS
  - Power On
  UEFI BIOS features :
  - O.C. Profile
  - GPU.DIMM Post
  - Tweakers' Paradise
  - ROG SSD Secure Erase
  - Graphic Card Information Preview
  ROG RAMDisk
  Extreme Tweaker
• Special Features
  5-Way Optimization by Dual Intelligent Processors 5
  - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App
  AURA :
  - Aura Lighting Control
  - Aura RGB Strip Headers
  - Aura Lighting Effects Synchronization with compatible ASUS ROG devices
  ASUS Wi-Fi GO!
  - Wi-Fi GO! Function: Cloud GO!, Remote Desktop, Remote Keyboard & Mouse, File Transfer
  ASUS Exclusive Features :
  - MemOK!
  - AI Suite 3
  - Ai Charger+
  - Anti-Surge
  - USB 3.1 Boost
  Remote Entertainment
  - Media Streamer
  - HyStream
  ASUS Quiet Thermal Solution :
  - ASUS Fan Xpert 4
  ASUS EZ DIY :
  - ASUS CrashFree BIOS
  - ASUS EZ Flash 3
  - ASUS USB BIOS Flashback
  - ASUS UEFI BIOS EZ Mode
  - Multi-language BIOS
  - Push Notice
  ASUS Q-Design :
  - ASUS Q-Code
  - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
  - ASUS Q-DIMM
  - ASUS Q-Connector
  Overclocking Protection :
  - ASUS C.P.R.(CPU Parameter Recall)
  Turbo App
• Operating System
  Support
  Windows® 10 , 64bit
  Windows® 8.1 , 32bit/64bit
  Windows® 7 , 32bit/64bit

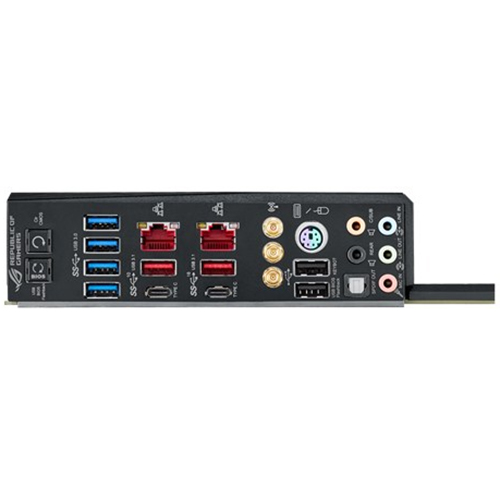

• Back I/O Ports
  1 x PS/2 keyboard/mouse combo port(s)
  2 x LAN (RJ45) port(s)
  2 x USB 3.1 (black)Type-C
  2 x USB 3.1 (red)Type-A
  4 x USB 3.0 (blue)
  2 x USB 2.0 (one port can be switched to USB BIOS Flashback)
  1 x Optical S/PDIF out
  5 x Audio jack(s)
  1 x Clear CMOS button(s)
  3 x Wi-Fi antenna port(s)
  1 x USB BIOS Flashback Button(s)
• Internal I/O Ports
  1 x Aura RGB Strip Header
  2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 for M Key, type 2260/2280/22110 storage devices support ( Support PCIE SSD only)
  1 x TPM header
  10 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s)
  1 x CPU OPT Fan connector(s)
  3 x Chassis Fan connector(s)
  1 x Power Fan connector(s)
  1 x Thunderbolt header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x 4-pin ATX 12V Power connector(s)
  1 x SLI/CFX switch (2/3-WAY adjustments)
  1 x Front panel audio connector(s) (AAFP)
  1 x MemOK! button(s)
  1 x Slow Mode switch(es)
  9 x ProbeIt Measurement Points
  1 x Thermal sensor connector(s)
  1 x EZ Plug connector(s) (4-pin Molex power connector)
  1 x Power-on button(s)
  1 x Reset button(s)
  1 x BIOS Switch button(s)
  1 x 5-pin EXT_FAN(Extension Fan) connector
  1 x Water Pump header (4-pin)
  1 x LN2 Mode jumper(s)
  1 x ROG extension (ROG_EXT) header(s)
  1 x Safe Boot button
  1 x ReTry button
  1 x U.2 connector
  1 x System panel connector
  1 x DRAM channel switch
  1 x PCIe x16 lane switch
• Accessories
  User's manual
  SupremeFX Hi-Fi Kit:
  - 1 x SupremeFX Hi-Fi
  - 1 x SupremeFX Hi-Fi cable
  1 x 2-Way SLI bridge(s)
  10 x SATA power cable
  1 x M.2 Screw Package
  2 x CPU installation tool

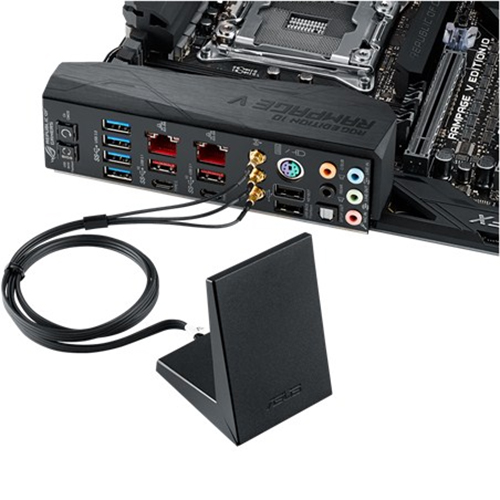

  1 x ASUS 3T3R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
  1 x Fan Extension Card (3 x 4-pin fan out)
  1 x Fan Extension card screw pack
  1 x 3-Way SLI bridge(s)
  1 x 4-Way SLI bridge(s)
  1 x Q-connector(s) (1 in 1)
  1 x 12 in 1 ROG Cable Label(s)
  ROG Fan Label
  1 x 5-pin to 5-pin cable
  1 x Extension Cable for RGB strips (80 cm)
  3 x Thermistor cable(s)
  1 x USB drive with utilities and drivers
  1 x I/O frame
  2 x ROG coasters
• BIOS
  128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.
• Manageability
  WfM 2.0, WOL by PME, PXE
• Form Factor
  Extended ATX Form Factor
  12 inch x 10.7 inch ( 30.5 cm x 27.2 cm )
• Note
  *1 28-LANE CPUs can only support up to 3-Way SLI™/ 3-Way CrossFireX™
  *2 The PCIEx8_4 slot shares bandwidth with M.2 and U.2.
  *3 The PCIEx4_1 slot shares bandwidth with front USB3_34 ports and back USB3.1_EC1_EA2 ports. If a X2 device is connected to the PCIEx4_1 slot, the front USB3_34 ports will be disabled. If a X4 or higher device is connected to the PCIEx4_1 slot, both front USB3_34 and back USB3.1_EC1_EA2 ports will be disabled.
  *4 These ports share bandwidth with PCIEx8_4 slot.
  *5 These functions will work depending on the CPU installed.
  *6 2 x USB2.0 port at mid-board shares with ROG extension (ROG_EXT) port.

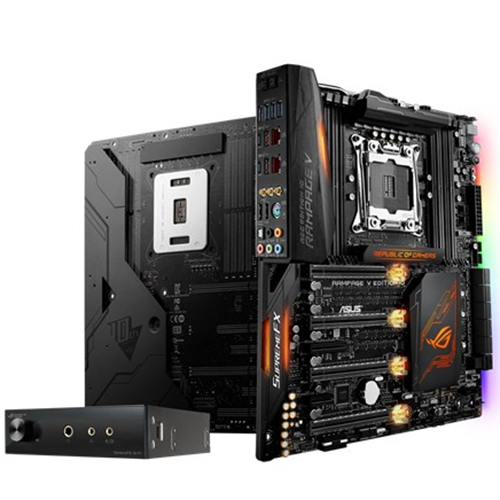

SUPREMEFX HI-FI

• SupremeFX Hi-Fi
  Hardware:
  - 1 x ESS ES9018K2M SABRE DAC
  - 2 x LM4562 Op amps
  - 1 x TPA6120A2 Headphone amp
  - 1 x Cirrus Logic CS5361
  - 5 x RC4580 Op amps
  Headphone Output Performance:
  - Supported formats: Up to 32-bit/384kHz*
  - Output (32Ohms): 4.8VRMS (720mW RMS per channel)
  - Output (600Ohms): 6.8VRMS (77mW RMS per channel)
  - THD+N @ 1K (-3dB): -104dB (<0.0007%)
  - Signal to Noise Ratio (A-weighted): -121.1dB
  - Crosstalk: -98dB
  Rear I/O Ports:
  - POWER : 1 x 6-pin PCIe power connector
  - SIGNAL : 1 x USB 2.0 header
  Front I/O Ports:
  - 1 x Volume control knob
  - 1 x 6.3mm headphone jack**
  - 1 x 3.5mm headphone jack**
  - 1 x 3.5mm mic/line in jack
  Dimensions:
  - 5.25" ODD drive bay Form Factor (14.5 x 4.2x 14cm [W x H x D])***
• Note
  *Sample rates greater than 32-bit/96kHz
  **Only one of these jacks will be active at a given time
  ***The face of this device is designed to be flush with a standard drive bay with the knob extending 1cm

• Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.
• *Precise specifications and features vary by model . Please refer to the specification page
• The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

• Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
• All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
• Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.
• PCB color and bundled software versions are subject to change without notice.
• Brand and product names mentioned are trademarks of their respective companies.
