A88X-PLUS/USB 3.1

USB 3.1ポートを2ポート搭載するAMD Socket FM2+対応マザーボード

・JAN/UPC：0889349375341
・TEKWIND型番：ASU-A88X-PLUS/USB3.1

【主な特長】

・ Socket FM2+対応
・ AMD A/AthlonシリーズAPU対応
・ AMD A88Xチップセット搭載
・ DDR3メモリ×4枚（最大64GB）対応
・ PCIe 3.0 x16×1、PCIe 2.0 x16×1、PCIe 2.0 x1×2、PCI×3
・ SATA 6Gb/s×8
・ USB 3.1 Type-A×2、USB 3.0×4、USB 2.0×8
・ 1000BASE-T×1
・デジタル電源回路の「DIGI+ VRM」を搭載
・省電力を実現する電力制御チップの「EPU」を搭載
・ CPUファン＋ケースファンを細かく設定できる「Fan Xpert」機能を搭載
・ USB 3.1の転送速度をブーストする「USB 3.1 Boost」機能を搭載
・ ATXフォームファクター

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

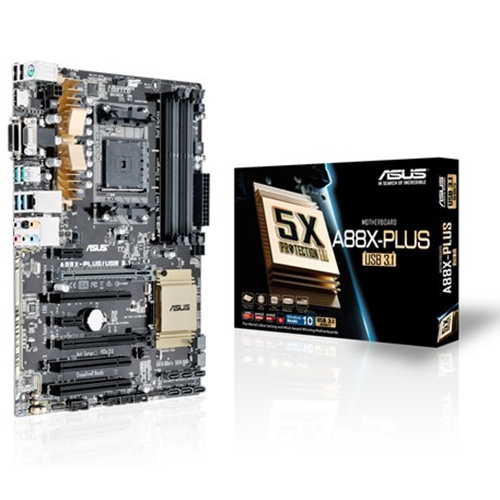

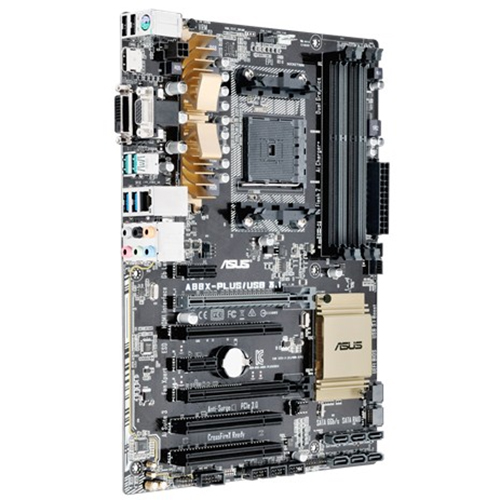

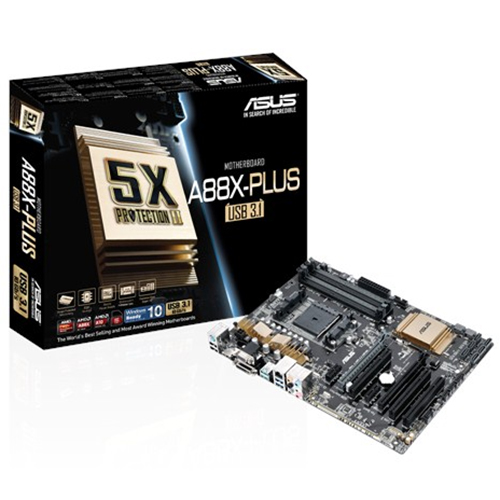

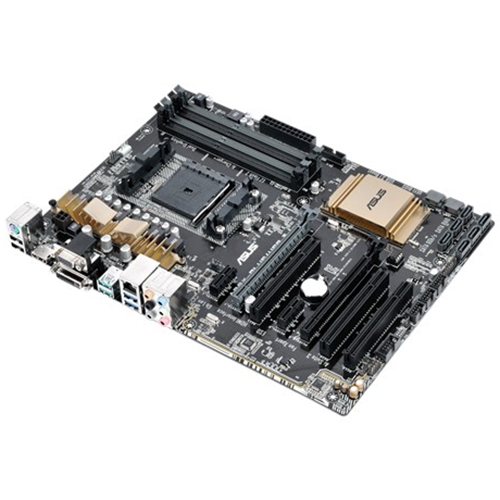

製品画像

スペック

CPU	AMD Socket FM2+
LAN	1 x Realtek Gigabit LAN
USB	4x USB3.0,8x USB2.0, 2x USB3.1
オーディオ機能	Realtek ALC887 8ch
チップセット	AMD A88X FCH (Bolton D4)
メモリ	4 x DIMM, Max. 64GB, DDR3 2400MHz(O.C.), Non-ECC, Un-buffered Memory
拡張スロット	1 x PCIe 3.0/2.0 x16 (x16), 1 x PCIe 2.0 x16 (max at x4), 2 x PCIe x1, 3 x PCI
背面端子類	1x PS/2 KB,Mouse,1x HDMI, 1x DVI, 1x D-Sub, 1x LAN, 2x USB3.1,2x USB3.0, 2x USB2.0, 6x AJ

CPU
AMD Socket FM2+ Athlon™/A- Series Processors
Supports CPU up to 4 cores
Supports AMD® Turbo Core 3.0 Technology
* Refer to www.asus.com for CPU support list
Chipset
AMD A88X (Bolton D4)
Memory
4 x DIMM, Max. 64GB, DDR3 2400(O.C.)/2250(O.C.)/2200(O.C.)/2133/1866/1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Support AMD Memory Profile (AMP) memory
* The Max. 64GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market.
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
Graphic
Integrated AMD Radeon™ R/HD8000/HD7000 Series Graphics in the A-Series APU
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 1920 x 1200 @ 60 Hz*¹
- Supports DVI with max. resolution 2560 x 1600 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
Maximum shared memory of 2048 MB
AMD® Dual Graphics technology support *²
Multi-GPU Support
Supports AMD Quad-GPU CrossFireX™ Technology
Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 mode) *³
1 x PCIe 2.0 x16 (max at x4 mode) *⁴
2 x PCIe x1
3 x PCI
Storage
AMD A88X FCH(Bolton D4) chipset :
8 x SATA 6Gb/s port(s), gray,
Support Raid 0, 1, 5, 10, JBOD
LAN
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking
USB Ports
AMD A88X FCH(Bolton D4) chipset :
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
AMD A88X FCH(Bolton D4) chipset :
8 x USB 2.0 port(s) (2 at back panel, black, 6 at mid-board)
ASMedia® USB 3.1 controller :
2 x USB 3.1 port(s) (2 at back panel, teal blue)
Special Features
ASUS 5X Protection II :
- ASUS LANGuard - 2.5X higher surge tolerance
- ASUS DIGI+ VRM - 6 Phase digital power design
- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
- ASUS ESD Guards - Electrostatic discharge protection
ASUS EPU :
- EPU
ASUS Exclusive Features :
- TurboV EVO
- AI Suite 3
- Ai Charger+
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.1 Boost
- Disk Unlocker
- Mobo Connect
- PC Cleaner
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Slot
Operating System
Support
Windows® 10 , 64bit
Windows® 8.1 , 64bit
Windows® 7 , 32bit/64bit
Windows® XP , 32bit

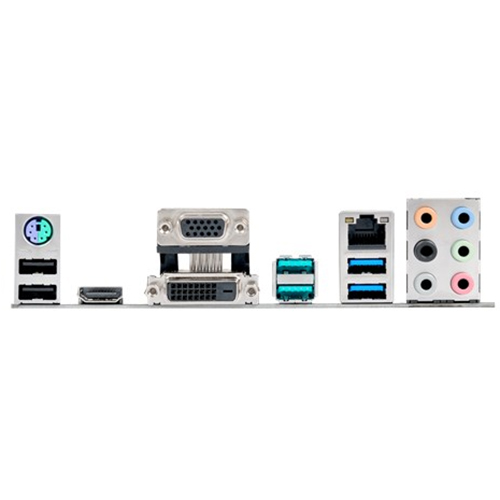

Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 (teal blue)
2 x USB 3.0 (blue)
2 x USB 2.0
6 x Audio jack(s)
Internal I/O Ports
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x COM port(s) connector(s)
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)

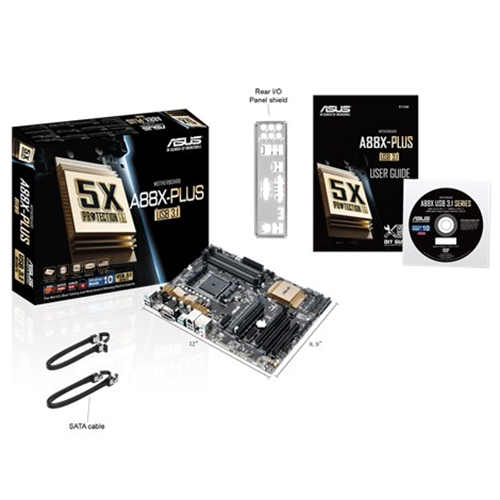

Accessories
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information
Support Disc
Drivers, ASUS utilities, ASUS Update, Anti-virus software (OEM version)
Form Factor
ATX Form Factor
12 inch x 8.9 inch ( 30.5 cm x 22.6 cm )
Note
*1: Only FM2+ APU can support up to 4096 x 2160 resolution display via HDMI port.
*2: Refer to http://www.amd.com/us/products/technologies/dual-graphics/Pages/dual-graphics.aspx#3 for the discrete GPUs which support Dual Graphics technology.
*3: Only FM2+ Processors can support PCIe3.0.
*4: The PCIe x16_2 slot shares bandwidth with USB 3.1_E12. The PCIe x16_2 is default set at x2 mode.
