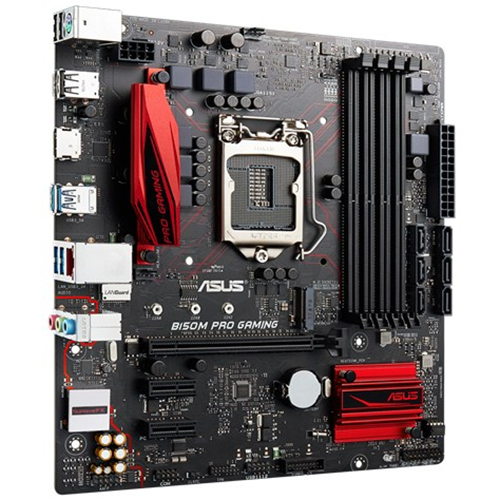

ASUS（エイスース） B150M PRO GAMING

ゲーム用オーディオ機能やゲームに最適なLAN機能を搭載するmicroATXサイズのゲーム用Intel B150マザーボード

・JAN/UPC：0889349323434
・TEKWIND型番：ASU-B150M/PRO/GAMING

【主な特長】

・ LGA1151対応
・ Intel Core i7/i5/i3、Pentium、CeleronシリーズCPU対応
・ Intel B150チップセット搭載
・ DDR4メモリ×4枚（最大64GB）対応
・ HDMI×1
・ PCIe 3.0 x16×1、PCIe 3.0 x1×2
・ SATA 6Gb/s×6、M.2×1
・ USB 3.0×6、USB 2.0×6
・ 1000BASE-T×1
・ゲーム用の「SupremeFX」オーディオ機能を搭載
・デジタル電源回路「DIGI+ VRM」
・省電力を実現する電力制御チップ「EPU」
・ CPUファン＋ケースファンを細かく設定できる「Fan Xpert」
・ USB 3.0をブーストする「USB 3.1 Boost」
・ microATXフォームファクター

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

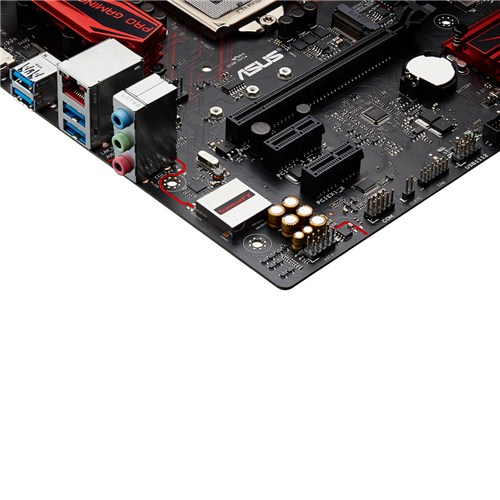

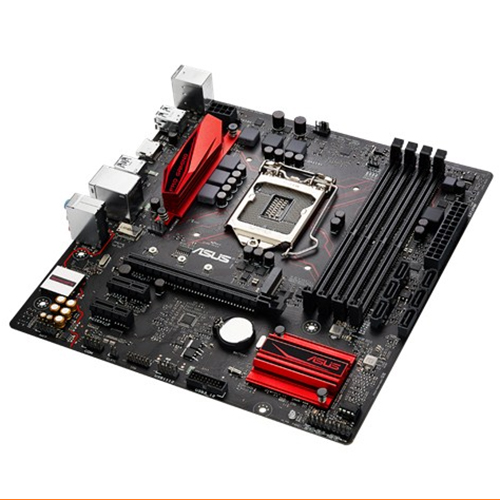

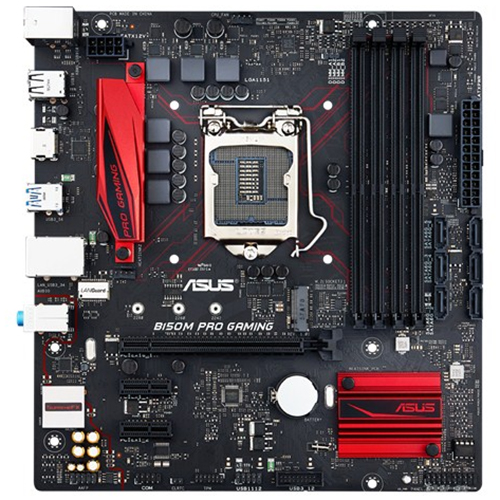

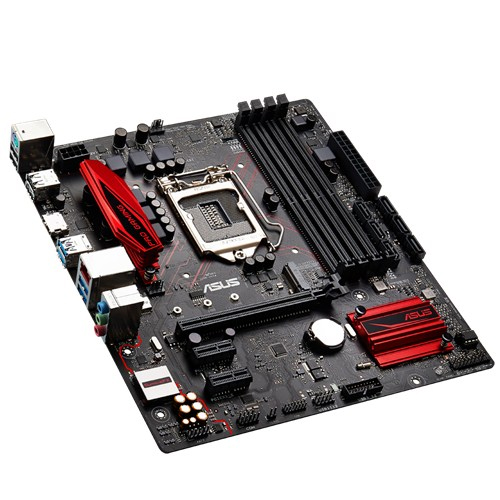

製品画像

スペック

CPU	LGA1151
LAN	Intel Gigabit LAN
USB	6 x USB 3.0, 6 x USB 2.0
オーディオ機能	SupremeFX 8-Channel High Definition Audio CODEC
チップセット	INTEL B150
メモリ	4x DIMM, Max. 64GB, DDR4 2133 MHz,Non-ECC, Un-buffered Memory
拡張スロット	1x PCIe3.0x16, 2x PCIe3.0x1
背面端子類	1x PS/2 K/M,1xHDMI,1x LAN,4x USB3.0,4xUSB2.0,8-channel audio I/O

CPU
Intel® for 6^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Chipset
Intel® B150
Memory
4 x DIMM, Max. 64GB, DDR4 2133 MHz Non-ECC, Un-buffered Memory
Graphic
Integrated Graphics Processor- Intel® HD Graphics support
VGA output support : HDMI port
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 mode)
2 x PCIe 3.0/2.0 x1
Storage
Intel® B150 chipset :
1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*¹
LAN
Intel® I219V
Anti-surge LANGuard
Audio
SupremeFX 8-Channel High Definition Audio CODEC *²
- Supports : Jack-detection, Front Panel MIC Jack-retasking
- High quality 115 dB SNR stereo playback output
Audio Feature :
- SupremeFX Shielding™ Technology
USB Ports
Intel® B150 chipset :
6 x USB 3.0/2.0 port(s)
Intel® B150 chipset :
6 x USB 2.0/1.1 port(s)
Special Features
Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Slot
- ASUS Q-DIMM
Media Streamer
Operating System
Support
Windows® 10 , 64bit
Windows® 8.1 , 64bit
Windows® 7 , 32bit/64bit

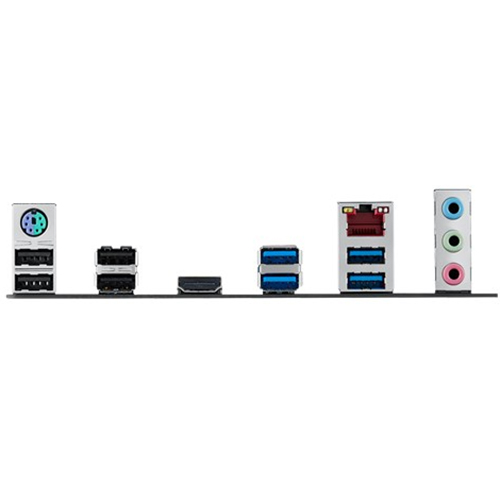

Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.0
4 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x 14-1 pin TPM connector
Accessories
User's manual
ASUS Q-Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x pack of cable tie
1 x Supporting DVD
1 x 12 in 1 Cable Label (s)
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3,
CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE
Support Disc
Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)
Form Factor
mATX Form Factor
9.2 inch x 8.6 inch ( 23.4 cm x 21.8 cm )
Note
*1:When the M.2 Socket 3 is operating in SATA mode, SATA port 1 will be disabled.
*2:Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
