販売終了

Xeon E3-1200 v5シリーズに対応するゲーム用Intel C232マザーボード

E3 PRO GAMING V5

JAN/UPC:0889349282892
TEKWIND型番:ASU-E3/PRO/GAMING/V5

【主な特長】

・ LGA1151対応
・ Intel Xeon E3・1200 v5、Core i7/i5/i3、Pentium、CeleronシリーズCPU対応
・ Intel C232チップセット搭載
・ DDR4メモリ×4枚(最大64GB)対応
・ PCIe 3.0 x16×2、PCIe 3.0 x1×2、PCI×2
・ SATA 6Gb/s×6、M.2×1
・ ゲーム用の「SupremeFX」オーディオ機能を搭載
・ ネットワークゲームの通信優先度を高める「GameFirst IV」機能を搭載
・ デジタル電源回路「DIGI+ VRM」
・ 省電力を実現する電力制御チップ「EPU」
・ CPUファン+ケースファンを細かく設定できる「Fan Xpert 3」
・ USB 3.1をブーストする「USB 3.1 Boost」
・ ATXフォームファクター


製品についてお気軽にお問い合わせください

この製品を問い合わせる

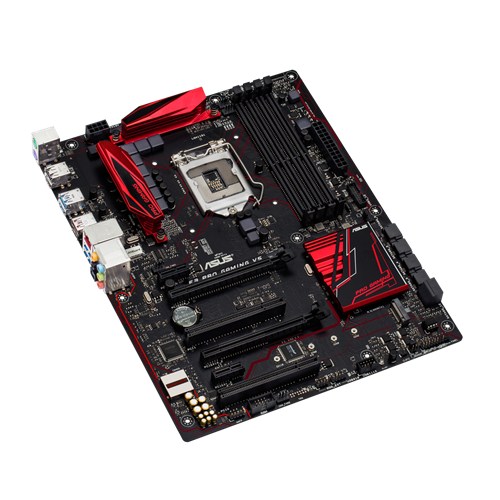

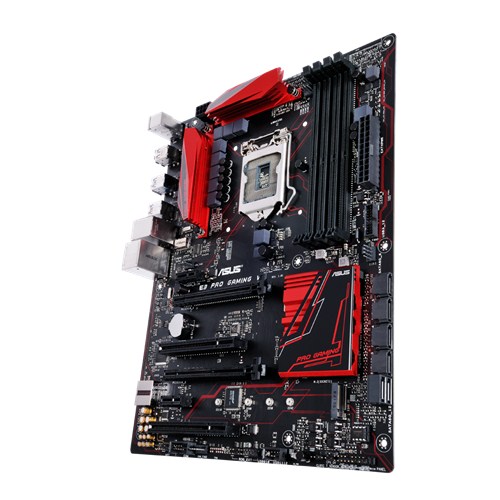

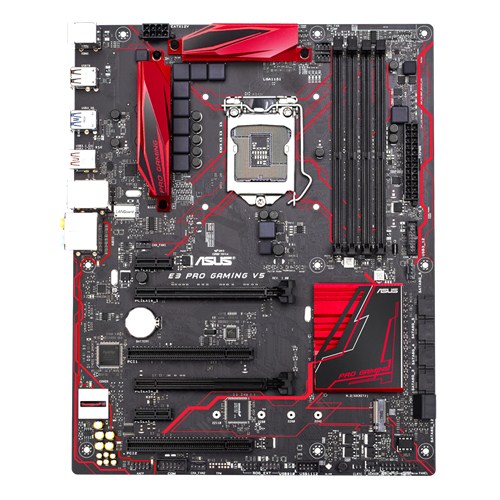

製品画像

スペック

  • CPU
    Intel® Socket 1151 for Xeon® E3-1200 v5 and 6th genereation CoreTM, Pentium® and Celeron® Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list
  • Chipset
    Intel® C232
  • Memory
    4 x DIMM, Max. 64GB, DDR4 2133 MHz ECC, Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * The maximum memory frequency supported varies by processor.
    * Due to Intel® chipset limitation, DDR4 2133 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR4 2133 Mhz.
  • Multi-GPU
    Support
    Supports AMD Quad-GPU CrossFireX™ Technology
    Supports AMD 2-Way CrossFireX Technology
  • Expansion Slots
    1 x PCIe 3.0/2.0 x16 (x16 mode, )
    1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1
    2 x PCIe 3.0/2.0 x1
    2 x PCI
  • Storage
    Intel® C232 chipset :
    1 x M.2 Socket 3, with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)*2
    6 x SATA 6Gb/s port(s),
    Support Raid 0, 1, 5, 10
    Intel® Rapid Storage Technology Enterprise supports*3
  • LAN
    Intel® I219LM, 1 x Gigabit LAN Controller(s), GameFirst technology
    Anti-surge LANGuard
  • Audio
    SupremeFX 8-Channel High Definition Audio CODEC
    - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
    - High quality 115 dB SNR stereo playback output
    Audio Feature :
    - SupremeFX Shielding™ Technology
    - Optical S/PDIF out port(s) at back panel
    - Sonic Radar II
  • USB Ports
    ASMedia® USB 3.1 controller :
    1 x USB 3.1 port(s) (Type-A)
    ASMedia® USB 3.1 controller :
    1 x USB 3.1 port(s) (Type-C, Reversible)
    Intel® C232 chipset :
    6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board)
    Intel® C232 chipset :
    6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
  • Special Features
    Gamer's Guardian:
    - ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
    - DRAM Overcurrent Protection
    - Stainless Steel Back I/O
    - Highly Durable Components
    - DIGI+ VRM
    ASUS EPU :
    - EPU
    ASUS Exclusive Features :
    - Ai Charger+
    - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    - USB 3.1 Boost
    - Disk Unlocker
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution
    - ASUS Fan Xpert 3
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    - Push Notice
    ASUS Q-Design :
    - ASUS Q-Shield
    - ASUS Q-LED (CPU, DRAM, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    Media Streamer
    RAMCache
  • Operating System
    Support
    Windows® 10 , 64bit
    Windows® 8.1 , 64bit
    Windows® 7 , 32bit/64bit *4

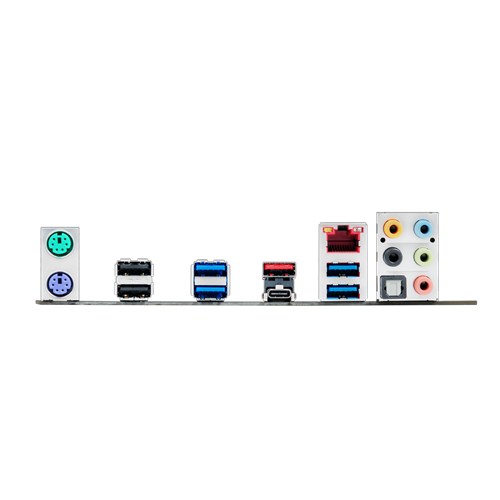

  • Back I/O Ports
    1 x PS/2 keyboard (purple)
    1 x PS/2 mouse (green)
    1 x LAN (RJ45) port(s)
    1 x USB 3.1 (red)Type-A
    1 x USB 3.1 Type-C
    4 x USB 3.0
    2 x USB 2.0
    1 x Optical S/PDIF out
    5 x Audio jack(s)
  • Internal I/O Ports
    1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)
    1 x COM port(s) connector(s)
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    3 x Chassis Fan connector(s) (3 x 4 -pin)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s)
    1 x Thermal sensor connector(s)
    1 x CPU OV
    1 x Clear CMOS jumper(s)
    1 x Water Pump header (4-pin)
    1 x ROG extension (ROG_EXT) header(s)
  • Accessories
    User's manual
    I/O Shield
    4 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x pack of cable tie
    1 x Supporting DVD
    1 x 12 in 1 Cable Label (s)
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3,
    CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Manageability
    WfM 2.0, DMI 3.0, WOL by PME, PXE
  • Support Disc
    Drivers
    ASUS Utilities
    ASUS EZ Update
    Anti-virus software (OEM version)
  • Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • Note
    *1: When PCIE x16_2 is occupied by x4 or faster devices, PCIE x1_1 and PCIE x1_2 will be disabled.
    *2: When the M.2 Socket 3 is operating in SATA mode, SATA port 1 will be disabled.
    *3: Before creating RAID on Windows 7, we recommend that you install Windows 7 first via ASUS EZ Installer.
    *4: Please refer to ASUS website and download "Windows 7 installation guide" and "ASUS EZ installer" to install Windows 7.
