販売終了

ゲーム用オーディオ機能やLAN機能を搭載するゲーム用Intel B150マザーボード

B150 PRO GAMING

JAN/UPC:0889349264744
TEKWIND型番:ASU-B150-PRO/GAMING

【主な特長】
・LGA1151対応
・Intel Core i7/i5/i3、Pentium、CeleronシリーズCPU対応
・Intel B150チップセット搭載
・DDR4メモリ×4枚(最大64GB)対応
・HDMI×1、D-Sub 15ピン×1
・ゲーム用の「SupremeFX」オーディオ機能を搭載
・ネットワークゲームの通信優先度を高める「GameFirst IV」機能を搭載
・デジタル電源回路「DIGI+ VRM」
・省電力を実現する電力制御チップ「EPU」
・CPUファン+ケースファンを細かく設定できる「Fan Xpert 3」
・USB 3.1をブーストする「USB 3.1 Boost」
・ATXフォームファクター


製品についてお気軽にお問い合わせください

この製品を問い合わせる

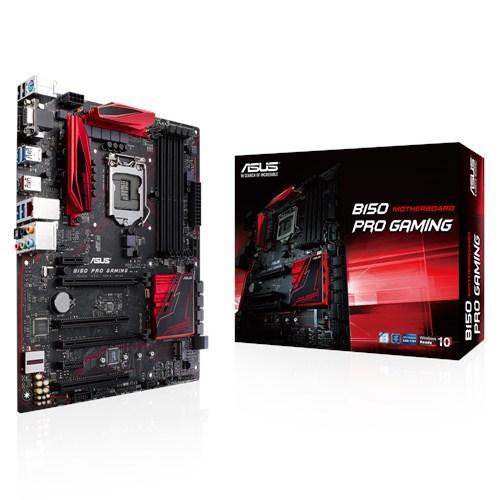

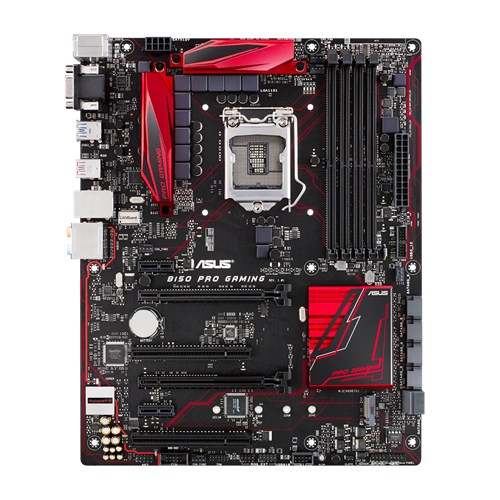

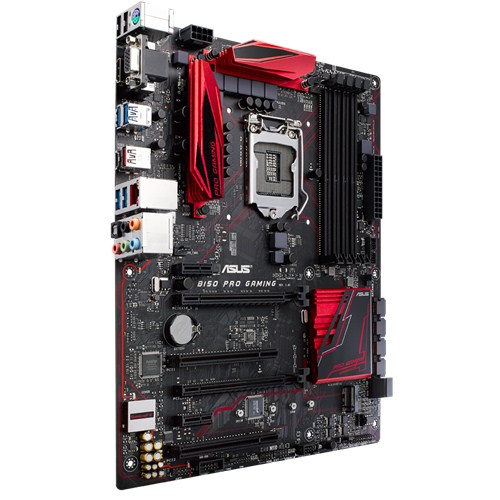

製品画像

スペック

CPU LGA1151
LAN Intel Gigabit LAN
USB 2x USB 3.1
オーディオ機能 SupremeFX 8-Channel High Definition Audio CODEC
チップセット INTEL B150
メモリ 4x DIMM, Max. 64GB, DDR4 2133 MHz,Non-ECC, Un-buffered Memory
拡張スロット 1x PCIe3.0x16, 1x PCIe3.0x16, 2x PCIe3.0x1, 2x PCI slots
背面端子類 1x PS/2 K/M,1xOptical SPDF,1xHDMI,1xD-sub,4x USB3.0,2xUSB2.0,2xUSB3.1,1x LAN,8-channel audio I/O
  • CPU
    Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list
  • Chipset
    Intel® B150
  • Memory
    4 x DIMM, Max. 64GB, DDR4 2133 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    Integrated Graphics Processor- Intel® HD Graphics support
    Multi-VGA output support : HDMI/RGB ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
    - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
    Maximum shared memory of 1024 MB
    Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  • Multi-GPU
    Support
    Supports AMD Quad-GPU CrossFireX™ Technology
    Supports AMD 2-Way CrossFireX Technology
  • Expansion Slots
    1 x PCIe 3.0/2.0 x16 (x16 mode, )
    1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1
    2 x PCIe 3.0/2.0 x1
    2 x PCI
  • Storage
    Intel® B150 chipset :
    1 x M.2 Socket 3, with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)*2
    6 x SATA 6Gb/s port(s),
  • LAN
    Intel® I219V, 1 x Gigabit LAN Controller(s), GameFirst technology
    Anti-surge LANGuard
  • Audio
    SupremeFX 8-Channel High Definition Audio CODEC
    - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
    - High quality 115 dB SNR stereo playback output
    Audio Feature :
    - SupremeFX Shielding™ Technology
    - Optical S/PDIF out port(s) at back panel
    - Sonic Radar II
  • USB Ports
    ASMedia® USB 3.1 controller :
    1 x USB 3.1 port(s) (Type-A)
    ASMedia® USB 3.1 controller :
    1 x USB 3.1 port(s) (Type-C, Reversible)
    Intel® B150 chipset :
    6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board)
    Intel® B150 chipset :
    6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
  • Special Features
    Gamer's Guardian:
    - ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
    - DRAM Overcurrent Protection
    - Stainless Steel Back I/O
    - Highly Durable Components
    - DIGI+ VRM
    ASUS EPU :
    - EPU
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger+
    - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    - USB 3.1 Boost
    - Disk Unlocker
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution
    - ASUS Fan Xpert 3
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    - Push Notice
    ASUS Q-Design :
    - ASUS Q-Shield
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    Media Streamer
    RAMCache
  • Operating System
    Support
    Windows® 10 , 64bit
    Windows® 8.1 , 64bit
    Windows® 7 , 32bit/64bit
  • Back I/O Ports
    1 x PS/2 keyboard/mouse combo port(s)
    1 x D-Sub
    1 x HDMI
    1 x LAN (RJ45) port(s)
    1 x USB 3.1 (red)Type-A
    1 x USB 3.1 Type-C
    4 x USB 3.0
    2 x USB 2.0
    1 x Optical S/PDIF out
    5 x Audio jack(s)
  • Internal I/O Ports
    1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)
    1 x COM port(s) connector(s)
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    3 x Chassis Fan connector(s) (3 x 4 -pin)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s)
    1 x Thermal sensor connector(s)
    1 x CPU OV
    1 x Clear CMOS jumper(s)
    1 x Water Pump header (4-pin)
    1 x ROG extension (ROG_EXT) header(s)
    1 x 14-1 pin TPM connector
  • Accessories
    User's manual
    I/O Shield
    4 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x pack of cable tie
    1 x Supporting DVD
    1 x 12 in 1 Cable Label (s)
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3,
    CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Manageability
    WfM 2.0, DMI 3.0, WOL by PME, PXE
  • Support Disc
    Drivers
    ASUS Utilities
    ASUS EZ Update
    Anti-virus software (OEM version)
  • Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • Note
    *1:When PCIE x16_2 is occupied by x4 or faster devices, PCIE x1_1 and PCIE x1_2 will be disabled.
    *2:When the M.2 Socket 3 is operating in SATA mode, SATA port 1 will be disabled.
