販売終了

Exclusive Combat Model

P10S-X

JAN/UPC:0889349172100
TEKWIND型番:ASU-P10S-X

【主な特長】
・Cost-effective C232 ServerBoard
・Platinum-Grade Power Efficiency
・Multiple PCI slots reserve the usage ability of legacy PCI devices


製品についてお気軽にお問い合わせください

この製品を問い合わせる

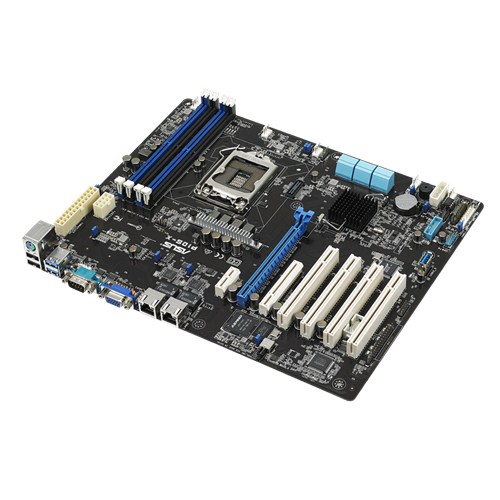

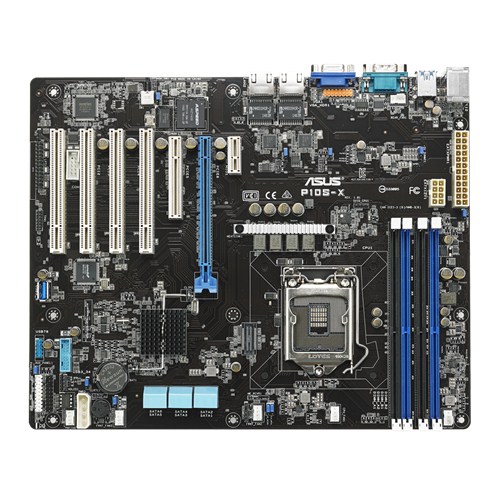

製品画像

スペック

CPU LGA1151
LAN 2x Intel I210
チップセット Intel C232
メモリ DDR4 2133 ECC/non-ECC UDIMM
拡張スロット 1x PCI, 1x PCI, 1x PCI, 1x PCI, 1x PCIe x8, 1x PCIe x16, MIO for Audio Card
背面端子類 2x USB3.0, 2x USB2.0, 1x VGA, 2x GbE LAN, 1x PS/2 KB/Mouse
  • Processor /
    System Bus
    1 x Socket LGA1151
    Intel® Xeon® processor E3-1200 v5 product family
    Intel® Core™ i3 processors
    Intel® Pentium™ processors
    Intel® Celeron™ processors
  • Core Logic
    Intel® C232 Chipset
  • Memory
    Total Slots : 4 (2-channel)
    Capacity : Maximum up to 64GB UDIMM
    Memory Type :
    DDR4 2133 UDIMM non ECC and with ECC
    Memory Size :
    16GB
    * Please refer to ASUS server AVL for the latest update
  • Expansion Slots
    Total Slot : 6
    Slot Location 1 : PCI 32bit/33MHz
    Slot Location 2 : PCI 32bit/33MHz
    Slot Location 3 : PCI 32bit/33MHz
    Slot Location 4 : PCI 32bit/33MHz
    Slot Location 5 : PCI-E x8 (Gen3 X4 Link)
    Slot Location 6 : PCI-E x16 (Gen3 X16 Link)
    Slot Location 7 : MIO Slot for Audio card
    Follow SSI Location#
  • Form Factor
    ATX (12"x9.6", 305mm x 244mm)
  • ASUS Features
    FAN speed control
    Rack Ready (Rack and Pedestal dual use)
    ASWM Enterprise
  • Storage
    SATA Controller :
    Intel® C232
    6 x SATA3 6Gb/s ports
    Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
    (Support Software RAID 0, 1, 5, 10 )
    SAS Controller :
    ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)
    ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional)
  • Networking
    2 x Intel® I210AT
  • Graphic
    Aspeed AST1400 with 64MB VRAM
  • On Board I/O
    1 x TPM header
    1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
    1 x USB 3.0 pin header , Up to 2 Devices
    1 x USB 2.0 pin header , Up to 2 Devices
    1 x USB connector*1
    6 x Fan Header , 4pin
    1 x Chassis Intruder
    2 x Front LAN LED
    1 x Device Power Connector*2
    1 x VGA Header
    1 x LPT

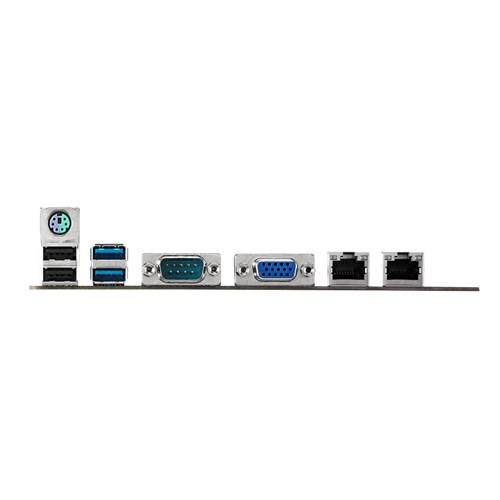

  • Back I/O Ports
    1 x External Serial Port
    2 x USB 3.0
    2 x USB 2.0
    1 x VGA Port
    2 x GbE LAN
    1 x PS/2 KB/Mouse
  • Management
    Solution
    ASWM Enterprise

  • Environment
    Operation temperature: 10℃ ~ 35℃
    Non operation temperature: -40℃ ~ 70℃
    Non operation humidity: 20% ~ 90% ( Non condensing)
  • Weight
    Gift Box (1-in-1)
    Net Weight : 0.69 KG
    Gross Weight : 1.31 KG

    Bulk Pack (10-in-1)
    Net Weight : 6.4 KG
    Gross Weight : 9.2 KG
  • Monitoring
    CPU Temperature
    Fan RPM
  • Note
    *1 1 x USB 3.0 connector (Type A USB socket)
    *2 4-pin power connector
