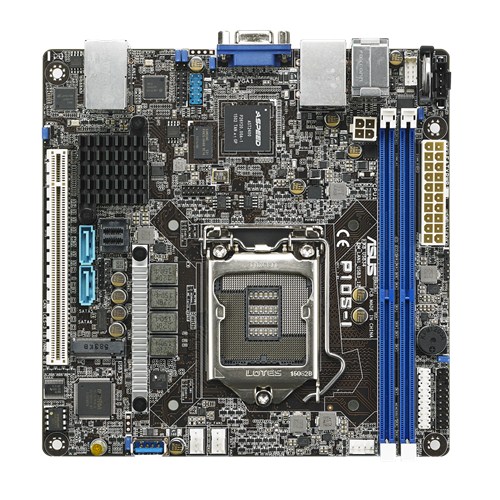

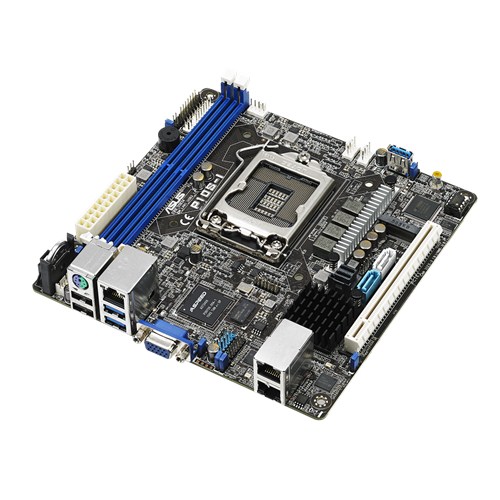

Best Storage and High Density Computing Candidate
・JAN/UPC：0889349160183
・TEKWIND型番：ASU-P10S-I
【主な特長】
・Streamline airflow design with smallest Mini-ITX small form factor
・Rich I/O capability with 6 SATA3,1 M.2 Type 2242 and 3 USB3.0 support
・Platinum-grade power efficiency with ultra longevity solid CAP & Beat Thermal Choke III
・Complete remote management saving time and efforts
製品についてお気軽にお問い合わせください
この製品を問い合わせる製品画像
スペック
| CPU | LGA1151 |
|---|---|
| LAN | 2x Intel I210AT + 1x Mgmt LAN |
| チップセット | Intel C232 |
| メモリ | DDR4 2133 ECC/non-ECC UDIMM |
| 拡張スロット | 1x PCIe x16 |
| 背面端子類 | 2x USB3.0, 2x USB2.0, 1x VGA, 2x GbE LAN + 1x Mgmt LAN, 1x PS/2 KB/Mouse |
- Processor /
System Bus1 x Socket LGA1151
Intel® Xeon® processor E3-1200 v5 product family
Intel® Core™ i3 processors
Intel® Pentium™ processors
Intel® Celeron™ processors - Core Logic
Intel® C232 Chipset
- Memory
Total Slots : 2 (2 Channels)
Capacity : Maximum up to 32GB UDIMM
Memory Type :
DDR4 2133 UDIMM non ECC and with ECC
Memory Size :
16GB - Expansion Slots
Total Slot : 1
Slot Location 7 : PCI-E x16 (Gen3 X16 Link)
Follow SSI Location# - Form Factor
Mini ITX (6.7" x 6.7", 170mm x 170mm)
- ASUS Features
FAN speed control
Rack Ready (Rack and Pedestal dual use)
ASWM Enterprise - Storage
SATA Controller :
Intel® C232
6 x SATA3 6Gb/s ports *1
1 x M.2 connector (2242) *2
Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
(Support Software RAID 0, 1, 5, 10 )
SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional) - Networking
2 x Intel® I210AT + 1 x Mgmt LAN
- Graphic
Aspeed AST2400 with 32MB VRAM
- On Board I/O
1 x TPM header
1 x PSU Power Connector (20-pin)*3
1 x USB connector*4
3 x Fan Header , 4pin
1 x SMBus
1 x Chassis Intruder
2 x Front LAN LED
1 x M.2 Connector
1 x Onboard header for optional management card - Back I/O Ports

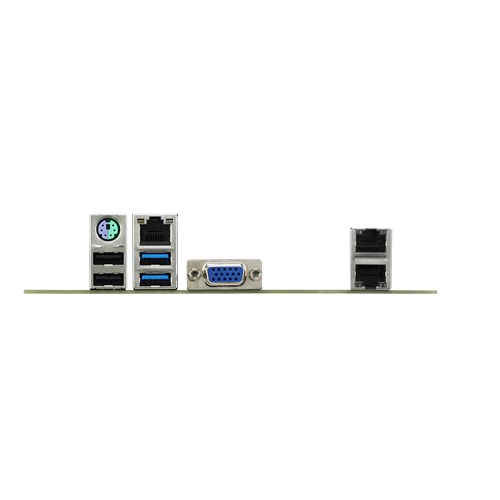

2 x USB 3.0
2 x USB 2.0
1 x VGA Port
2 x GbE LAN + 1 x Mgmt LAN
1 x PS/2 KB/Mouse - Management
SolutionASWM Enterprise
Optional ASMB8-iKVM for KVM-over-Internet - Environment
Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing) - Weight
Gift Box(1-in-1)
Net Weight : 0.52 KG
Gross Weight : 1.1 KG
Bulk Pack(10-in-1)
Net Weight : 3.66 KG
Gross Weight : 5.8 KG - Monitoring
CPU Temperature
Fan RPM - Note
*1 4 by 1 mini-SAS HD
*2 1 x M.2 connector (NGFF 2242, PCI-E Gen3X4 link or SATA signal, gray SATA port will disable when M.2 is SATA
signal)
*3 20-pin ATX power connector + 4-pin ATX 12V power connector
*4 1 x USB 3.0 connector (Type A USB socket)
