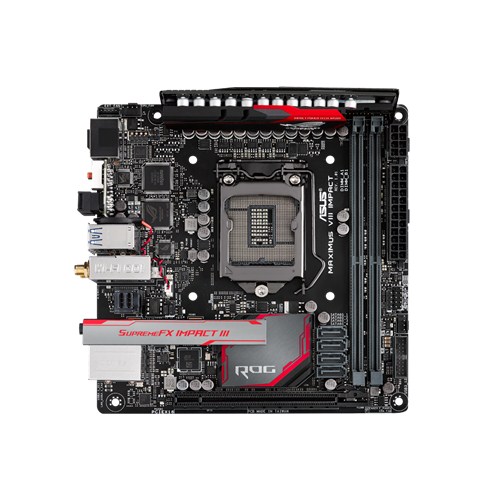

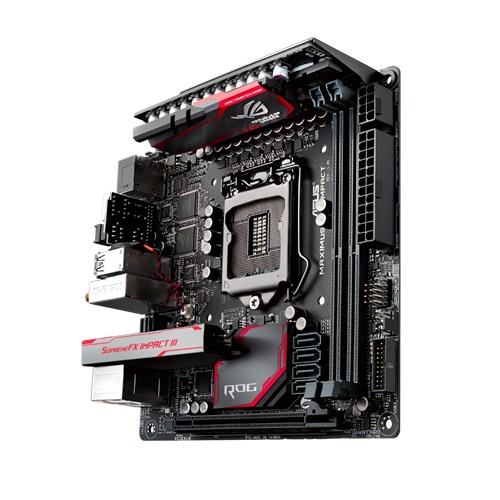

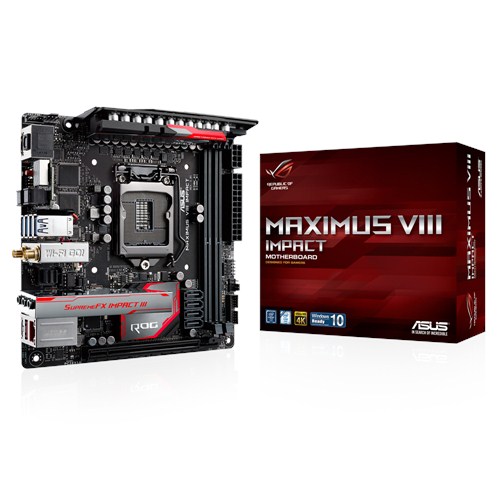

ASUS（エイスース） MAXIMUS VIII IMPACT

ゲーマー向けZ170 Mini-ITXマザーボード

・JAN/UPC：0889349213810
・TEKWIND型番：ASU-MAXIMUS8/IMPACT

【主な特長】

・LGA1151 socket for 6th-gen Intel® Core™ desktop processors.
・Dual DDR4 4133(OC) support.
・Best gaming performance– Impact Power III, 5-Way Optimization with Auto-Tuning, Pro Clock, second-generation T-Topology
・Best gaming audio– champion-level SupremeFX Impact III audio card with intuitive Sonic Studio II.
・Best gaming networking– Best-in-class Intel® Gigabit Ethernet, LANGuard and GameFirst technologies.
・Best gaming connectivity—2x2 802.11ac Wi-Fi with MU-MIMO , NVMe U.2 and USB 3.1 Type-A and Type-C for extreme-speed transfers and total compatibility.
・Best gaming protection– Carefully-selected premium components for maximum durability.
・ROG gives you more – More gaming-focused utilities, all free!

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

製品画像

スペック

CPU
Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Chipset
Intel® Z170
Memory
2 x DIMM, Max. 32GB, DDR4 4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3500(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic
Integrated Graphics Processor- Intel® HD Graphics support
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 mode, black)
Storage
Intel® Z170 chipset :
1 x U.2 port, black,
4 x SATA 6Gb/s port(s), gray,
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports*1
Supports Intel® Smart Response Technology*1
LAN
Intel® I219V, 1 x Gigabit LAN Controller(s), GameFirst technology
Intel® LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
Anti-surge LANGuard
Wireless Data
Network
Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO
Bluetooth
Bluetooth V4.1
Audio
ROG SupremeFX Impact III 5.1-channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- SupremeFX Shielding Technology
- ESS® ES9023P DAC: dB SNR, dB THD+N (Max. kHz/ -bit)
- 2VRMS Headphone Amp into (32-600Ohms)
- Front panel audio connector (AAFP)
Audio Feature :
- Gold-plated jacks
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- Sonic SenseAmp
- Sonic Studio II
- Sonic Radar II
USB Ports
Intel® Z170 chipset :
6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board)
Intel® USB 3.1 controller :
1 x USB 3.1 port(s) (1 at back panel, black, Type-C)
Intel® USB 3.1 controller :
1 x USB 3.1 port(s) (1 at back panel, red, Type-A)
ROG Exclusive
Features
Slow Mode
ROG RAMCache
Overwolf

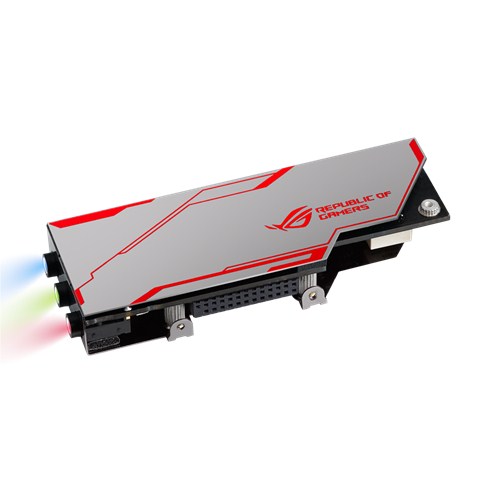

SupremeFX Impact III
Start Button
Reset Button
LN2 Mode
Impact Power III :
- MicroFine Alloy Chokes
- 10K Black Metallic Capacitors
- IR3553 PowIRStage® MOSFETs
Mem TweakIt
ProbeIt
KeyBot II
- One-click Overclocking
- X.M.P.
- DirectKey
- ClrCMOS
- Power On
UEFI BIOS features :
- O.C. Profile
- GPU.DIMM Post
- Tweakers' Paradise
- ROG SSD Secure Erase
- Graphic Card Information Preview
ROG RAMDisk
Extreme Tweaker
Special Features
OC Design - ASUS PRO Clock Technology
- Full BCLK range for extreme overclocking performance
5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App
ASUS Wi-Fi GO!

ASUS Exclusive Features :
- AI Suite 3
- Ai Charger+
- USB 3.1 Boost
- Disk Unlocker
- Mobo Connect
- PC Cleaner
Remote Entertainment
- Media Streamer
- HyStream
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS USB BIOS Flashback
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Operating System
Support
Windows® 10 , 64bit
Windows® 8.1 , 64bit
Windows® 7 , 32bit/64bit

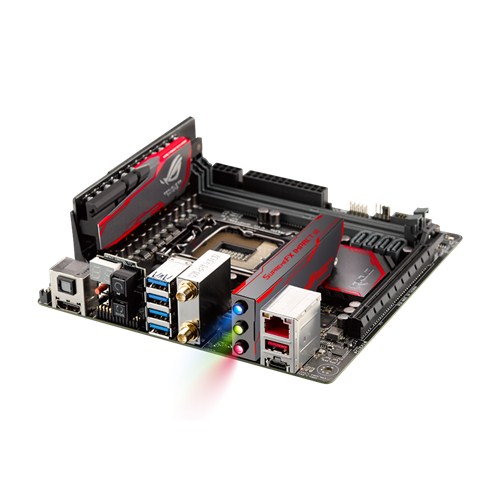

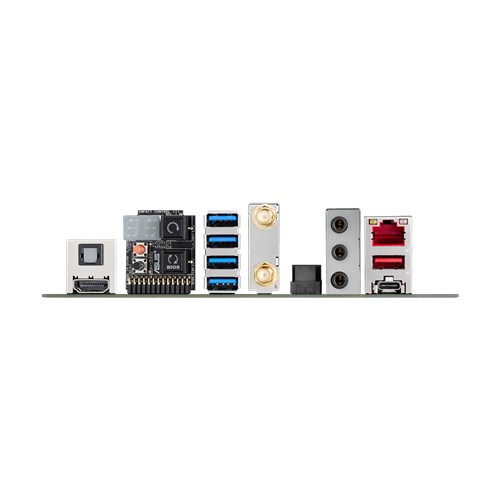

Back I/O Ports
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.1 (black)Type-C
1 x USB 3.1 (red)Type-A
4 x USB 3.0 (blue)
1 x Optical S/PDIF out
3 x Audio jack(s)
1 x Clear CMOS button(s)
2 x Wi-Fi antenna port(s)
1 x USB BIOS Flashback Button(s)
1 x Q-Code LED
1 x Start Button
1 x Reset Button
Internal I/O Ports
1 x U.2 port
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
1 x Chassis Fan connector(s) (4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)*2
1 x ProbeIt Measurement Points
1 x Thermal sensor connector(s)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x LN2 Mode jumper(s)
1 x Slow Mode jumper(s)
1 x SupremeFX Impact III connector
1 x M.2 socket pre-installed with a Wi-Fi/Bluetooth module
1 x System panel connector

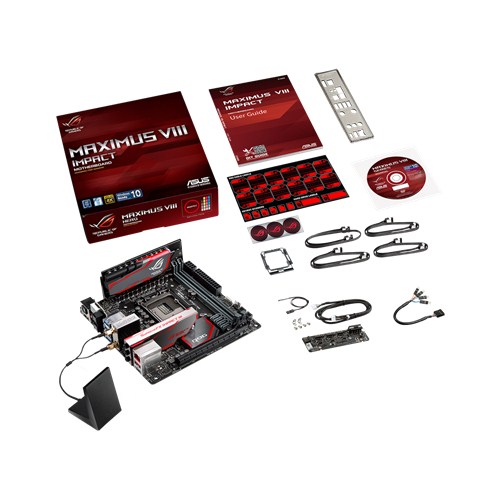

Accessories
User's manual
ASUS Q-Shield
4 x SATA 6Gb/s cable(s)
1 x CPU installation tool
1 x Supporting DVD
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x Fan Extension Card (3 x 4-pin fan out)
1 x Fan Extension card screw pack
1 x 12 in 1 ROG Cable Label(s)
ROG Fan Label
1 x 5-pin to 5-pin cable
1 x Panel cable
1 x Thermistor cable(s)
BIOS
1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.
Manageability
WfM2.0, DMI3.0, WOL by PME, PXE
Support Disc
Drivers
ROG GameFirst technology
ROG RAMDisk
ROG RAMCache
ROG CPU-Z
ROG Mem TweakIt
Overwolf
Keybot II
Kaspersky® Anti-Virus
DAEMON Tools Pro Standard
ASUS WebStorage
ASUS Utilities
Form Factor
Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
Note
*1 This function will work depending on the CPU installed.
*2 AAFP connector is built-in on the SupremeFX Impact III card
