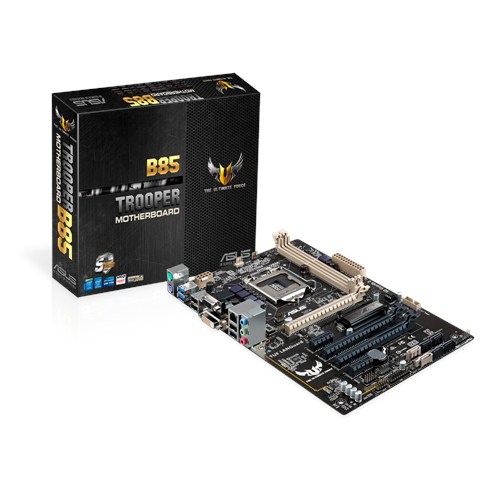

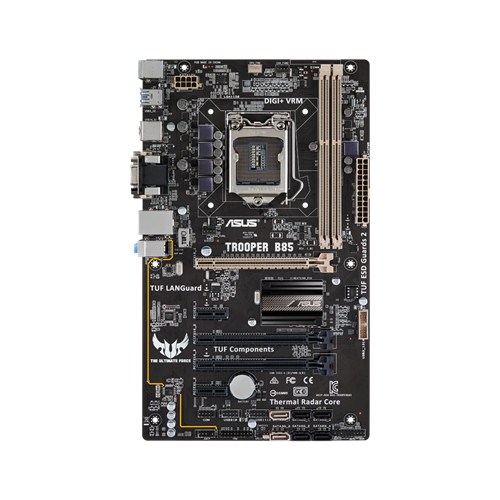

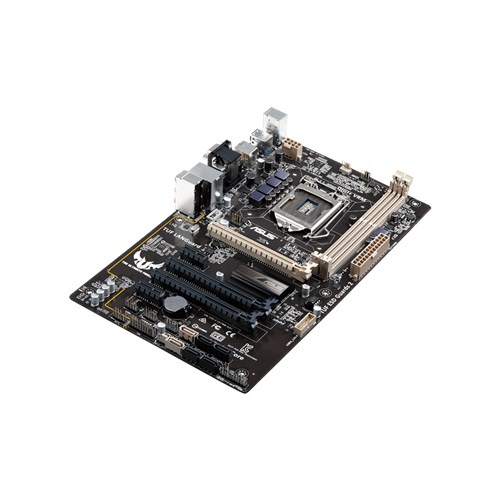

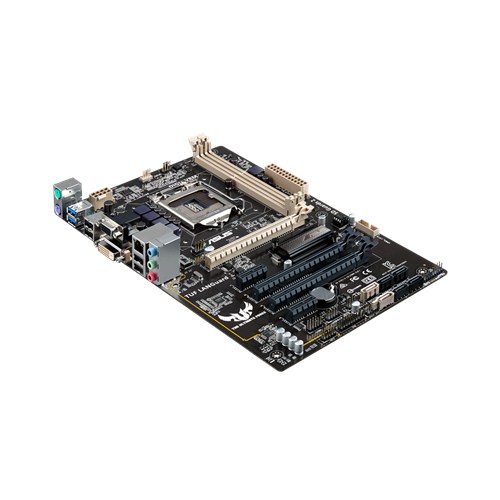

耐久性と信頼性の高さに特化したATXサイズのIntel B85マザーボード
・JAN/UPC:0889349057476
・TEKWIND型番:ASU-TROOPER/B85
【主な特長】
・LGA1150対応
・Intel Core i7/i5/i3、Pentium、CeleronシリーズCPU対応
・Intel B85チップセット搭載
・DDR3メモリ×2枚(最大16GB)対応
・DVI-D×1、D-Sub 15ピン×1
・PCIe 3.0 x16×1、PCIe 2.0 x16×2、PCIe 2.0 x1×2
・SATA 6Gb/s×4、SATA 3Gb/s×2
・USB 3.0×4、USB 2.0×8
・1000BASE-T×1
・デジタル電源回路「TUF ENGINE!」
・CPUファン+ケースファンを細かく設定できる「TUF Thermal Radar Core」
・USB 3.0をブーストする「USB 3.0 Boost」
・ATXフォームファクター
製品についてお気軽にお問い合わせください
この製品を問い合わせるスペック
- CPU
Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list - Chipset
Intel® B85
- Memory
2 x DIMM, Max. 16GB, DDR3 1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz. - Graphic
Integrated Graphics Processor
Multi-VGA output support : DVI/RGB ports
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 2 displays simultaneously - Multi-GPU
SupportSupports AMD Quad-GPU CrossFireX™ Technology
- Expansion Slots
1 x PCIe 3.0/2.0 x16
1 x PCIe 2.0 x16 (x4 mode, black)
1 x PCIe 2.0 x16 (x1 mode, black)
2 x PCIe 2.0 x1 - Storage
Intel® B85 chipset :
4 x SATA 6Gb/s port(s), black
2 x SATA 3Gb/s port(s), beige,
Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology - LAN
Realtek® 8111GR
- Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- LED-lit Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path
Separate layer for left and right track, ensuring both sound deliver equal quality - USB Ports
Intel® B85 chipset :
4 x USB 3.0/2.0 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® B85 chipset :
8 x USB 2.0/1.1 port(s) (4 at back panel, black, 4 at mid-board), 2 port(s) supports USB Over-Voltage Protection - Special Features

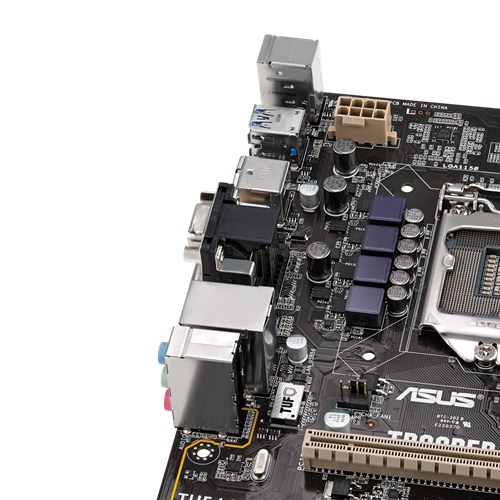

TUF ENGINE! Power Design :
- 4 +1 Digital Phase Power Design
- TUF Components (Choke, Cap. & MOSFET; certified by military-standard)
- ASUS DIGI+ VRM Utility
Ultimate COOL! Thermal Solution :
- TUF Thermal Radar Core
Safe & Stable! Guardian Angel :
- TUF ESD Guards 2
- TUF LANGuard
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
- Disk Unlocker
ASUS EZ DIY :
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM - Operating System
SupportWindows® 8.1
Windows® 8

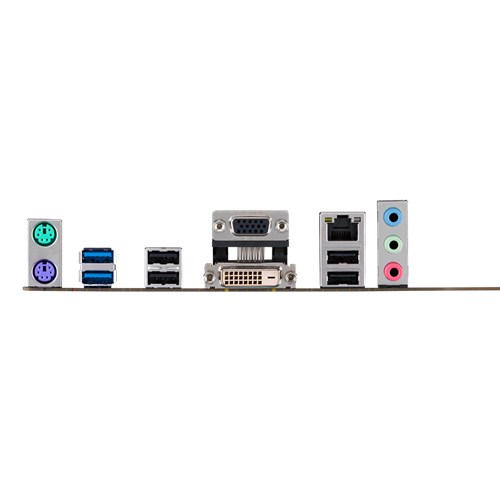

Windows® 7 - Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.0 (blue)
4 x USB 2.0
3 x Audio jack(s) - Internal I/O Ports
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin, beige)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x TPM header
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin, [Black])
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x Clear CMOS jumper(s) - Accessories
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x TUF Certification card(s)
1 x TUF Inside sticker(s)(white) - BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information
- Manageability
WfM 2.0, DMI 2.7, WOL by PME, PXE
- Support Disc
Drivers
ASUS Utilities
ASUS/TUF CPU-Z
Anti-virus software (OEM version) - Form Factor
ATX Form Factor
12 inch x 7.1 inch ( 30.5 cm x 18 cm )
