販売終了

ゲームに最適な機能を搭載したATXマザーボード

H170 PRO GAMING

JAN/UPC:0889349125052
TEKWIND型番:ASU-H170/PRO/GAMING

【主な特長】

・LGA1151対応
・Intel Core i7/i5/i3、Pentium、Celeron対応
・Intel H170チップセット搭載
・DDR4メモリ×4(最大64GB)対応
・PCIe x16×2、PCIe x1×4
・DisplayPort×1、HDMI×1、DVI-D×1、D-Sub 15ピン×1
・SATA 6Gb/s×6、SATA Express×1、M.2×1
・USB 3.1 Type-C×1、USB 3.1 Type-A×1、USB 3.0×6、USB 2.0×8
・TPU(オーバークロック制御チップ)搭載
・Fan Xpert 3搭載、USB高速充電機能搭載
・低ノイズオーディオ機能搭載
・ATXフォームファクター


製品についてお気軽にお問い合わせください

この製品を問い合わせる

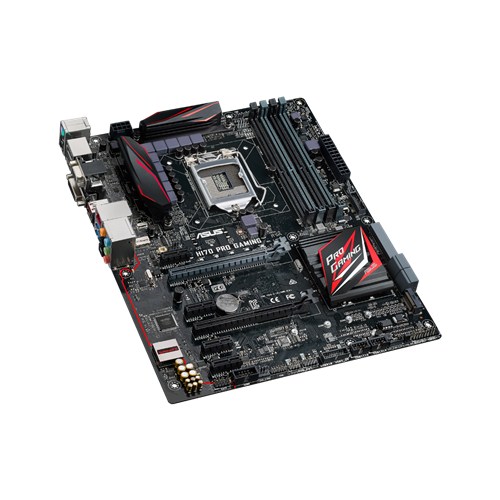

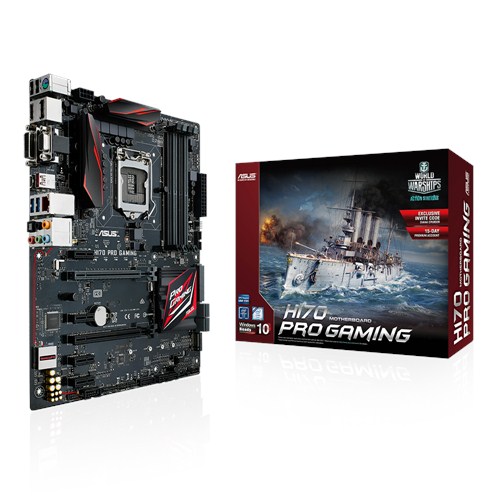

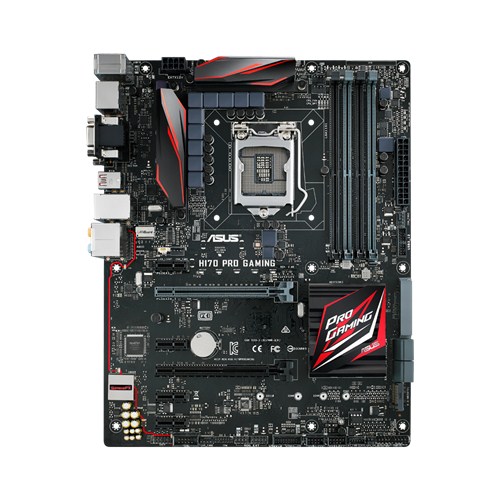

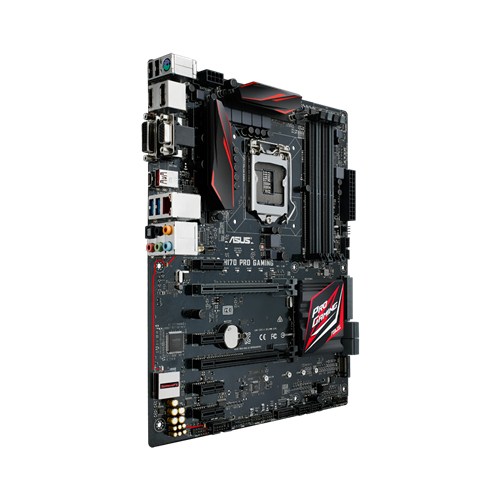

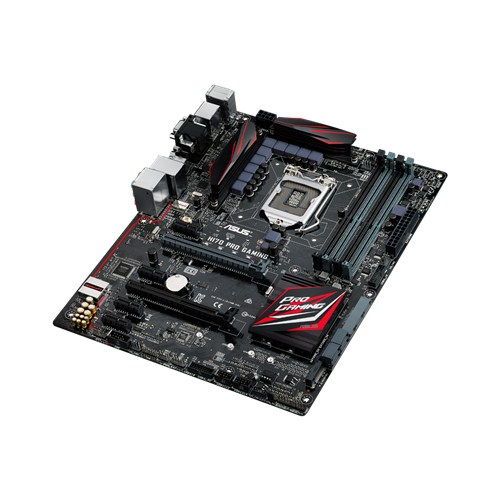

製品画像

スペック

  • CPU
    Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list
  • Chipset
    Intel® H170
  • Memory
    4 x DIMM, Max. 64GB, DDR4 2133 MHz Non-ECC Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    Integrated Graphics Processor- Intel® HD Graphics support
    Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
    - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
    - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
    - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
    Maximum shared memory of 512 MB
    Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  • Multi-GPU
    Support
    Supports AMD Quad-GPU CrossFireX™ Technology

  • Expansion
    Slots
    1 x PCIe 3.0/2.0 x16
    1 x PCIe 3.0/2.0 x16 (x4 mode, black)
    4 x PCIe 3.0/2.0 x1
  • Storage
    Intel® H170 chipset :
    1 x SATA Express portCompatible with 2 x SATA 6.0 Gb/s ports
    1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*1
    4 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 5, 10
    Supports Intel® Smart Response Technology*2
  • LAN
    Intel® I219V, 1 x Gigabit LAN Controller(s), GameFirst technology
    Anti-surge LANGuard

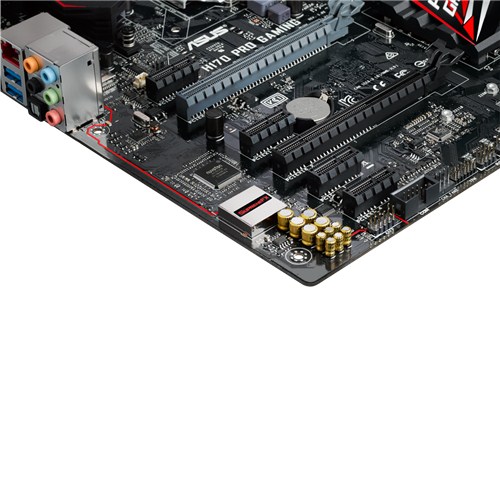

  • Audio
    SupremeFX 8-Channel High Definition Audio CODEC
    - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
    - High quality 115 dB SNR stereo playback output
    Audio Feature :
    - SupremeFX Shielding™ Technology
    - Optical S/PDIF out port(s) at back panel
    - Sonic Radar II
  • USB Ports
    ASMedia® USB 3.1 controller :
    1 x USB 3.1 port(s) (1 at back panel, , Type-A)
    ASMedia® USB 3.1 controller :
    1 x USB 3.1 port(s) (1 at back panel, , Type-C, Reversible)
    Intel® H170 chipset :
    6 x USB 3.0/2.0 port(s) (2 at back panel, , 4 at mid-board)
    Intel® H170 chipset :
    8 x USB 2.0/1.1 port(s) (2 at back panel, , 6 at mid-board)
  • Special
    Features
    Gamer's Guardian:
    - ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
    - DRAM Overcurrent Protection
    - Stainless Steel Back I/O
    - Highly Durable Components
    - DIGI+ VRM
    ASUS Exclusive Features :
    - GPU Boost
    - AI Suite 3
    - Ai Charger+
    - USB 3.1 Boost
    - Disk Unlocker
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution & MOS Heatsink
    - ASUS Fan Xpert 3
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    ASUS Q-Design :
    - ASUS Q-Shield
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    Media Streamer
    RAMCache
  • Operating
    System
    Support
    Windows® 10 , 64bit
    Windows® 8.1 , 64bit
    Windows® 7 , 32bit/64bit

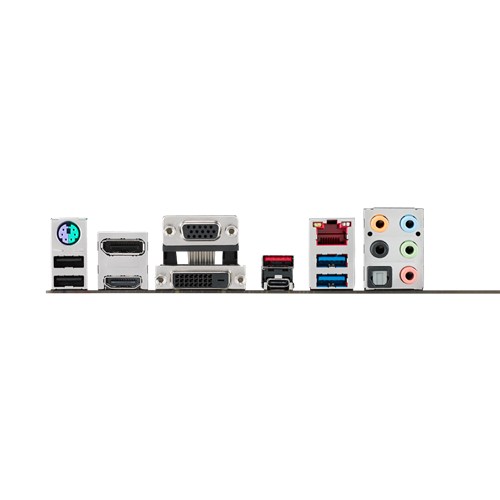

  • Back I/O
    Ports
    1 x PS/2 keyboard/mouse combo port(s)
    1 x DVI-D
    1 x D-Sub
    1 x DisplayPort
    1 x HDMI
    1 x LAN (RJ45) port(s)
    1 x USB 3.1 (black)Type-C
    1 x USB 3.1 (red)Type-A
    2 x USB 3.0
    2 x USB 2.0
    1 x Optical S/PDIF out
    5 x Audio jack(s)
  • Internal I/O
    Ports
    2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s)
    3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
    1 x SATA Express connector: , Compatible with 2 x SATA 6.0 Gb/s ports
    1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)
    1 x COM port(s) connector(s)
    4 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    1 x CPU OPT Fan connector(s) (1 x 4 -pin)
    3 x Chassis Fan connector(s) (3 x 4 -pin)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s)
    1 x Thermal sensor connector(s)
    1 x CPU OV
    1 x Clear CMOS jumper(s)
    1 x 5-pin EXT_FAN(Extension Fan) connector
    1 x ROG extension (ROG_EXT) header(s)
    1 x 14-1 pin TPM connector
  • Accessories
    User's manual
    I/O Shield
    4 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x Supporting DVD
    1 x 12 in 1 Cable Label (s)
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3,CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, F9 Quick Note, F12 PrintScreen function and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Manageability
    WfM 2.0, DMI 3.0, WOL by PME, PXE
  • Support Disc
    Drivers
    ASUS Utilities
    ASUS EZ Update
    Anti-virus software (OEM version)
  • Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • Note
    *1:When the M.2 Socket 3 is operating in SATA mode, SATA port 1 will be disabled.
    *2:These functions will work depending on the CPU installed.
