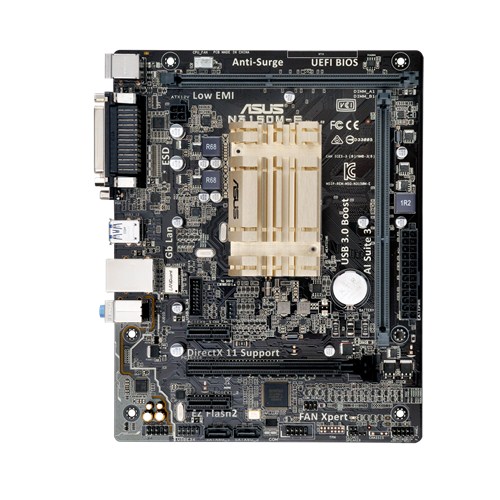

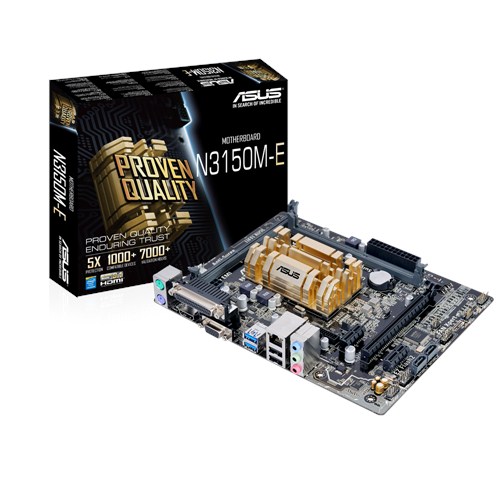

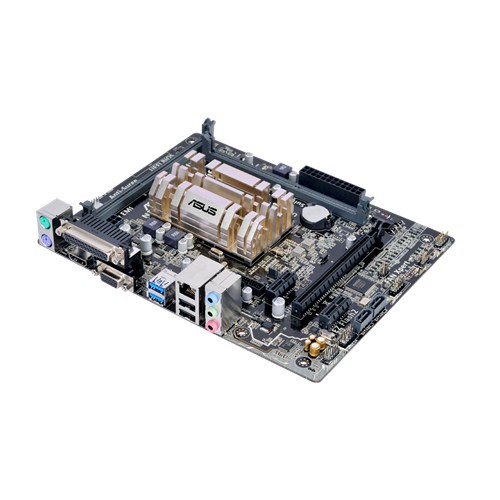

Low-power, fanless motherboard for Intel Celeron® SoC N3150 processors, with 5X Protection and HDMI/D-Sub support
・JAN/UPC:0889349053959
・TEKWIND型番:ASU-N3150M-E
【主な特長】
・Proven quality - 5X Protection. 1000+ compatible devices. 7000+ validation hours.
・USB 3.0 BOOST (UASP Support):170% faster transfer speeds than traditional USB 3.0
・AI Suite 3:One-stop access to innovative ASUS features
・Fan Xpert:Dedicated CPU and case fan controls
・New UEFI BIOS and EZ Mode:Friendlier, easier, and more intuitive with helpful info added
製品についてお気軽にお問い合わせください
この製品を問い合わせるスペック
- CPU
Intel® Celeron® Quad-Core N3150 SoC onboard Processors
- Memory
2 x U-DIMM, Max. 8GB, DDR3 1600/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture - Graphic
Integrated Graphics Processor
Multi-VGA output support : HDMI/RGB ports
- Supports HDMI with max. resolution 3840 x 2160 @ 30 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 512 MB - Expansion Slots
1 x PCIe 2.0 x16 (x1 mode)
2 x PCIe 2.0 x1 - Storage
Built-in Controller :
2 x SATA 6Gb/s port(s), dark brown,
Supports Intel® Smart Connect Technology - LAN
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
- Audio
Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *1
- USB Ports
Built-in Controller :
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
GL852G USB Hub :
4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board) - Special Features
ASUS 5X Protection :
- ASUS LANGuard - Advanced LAN protection
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
ASUS Exclusive Features :
- AI Suite 3
- Anti-Surge
- Low EMI Solution
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM - Operating System
SupportWindows® 8.1 , 64bit

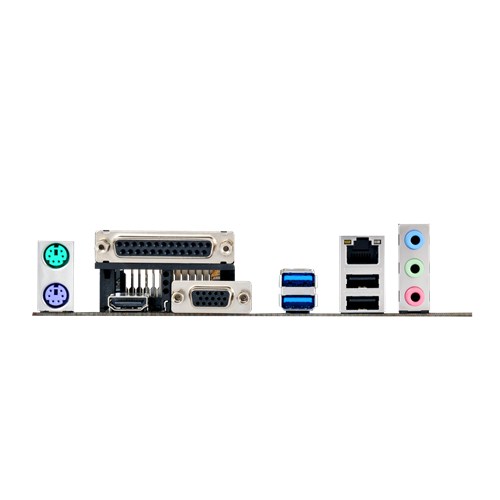

- Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0 (blue)
2 x USB 2.0
1 x Parallel port(s)
3 x Audio jack(s) - Internal I/O Ports
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)

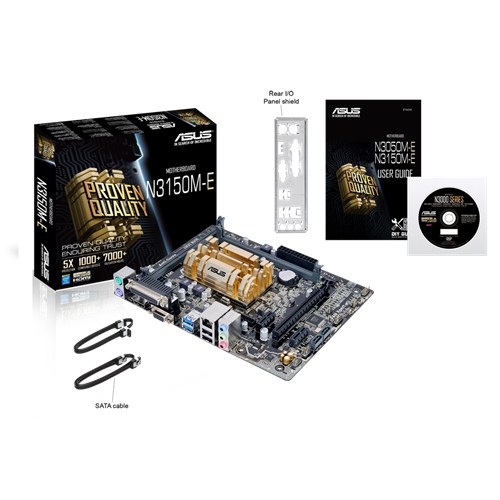

1 x System panel(s) - Accessories
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s) - BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
- Manageability
WfM 2.0, DMI 2.0, WOL by PME, PXE
- Support Disc
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version) - Form Factor
mATX Form Factor
8.9 inch x 7.0 inch ( 22.6 cm x 17.8 cm ) - Note
*1:Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
