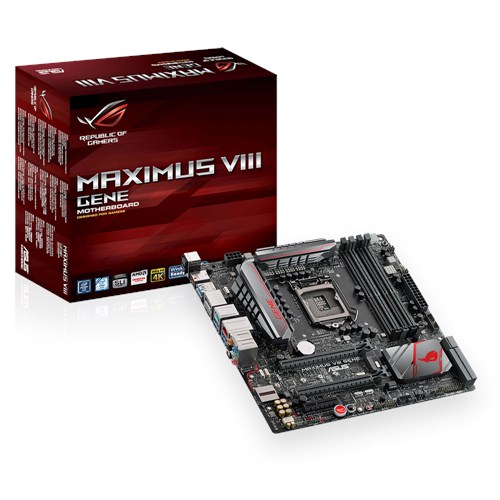

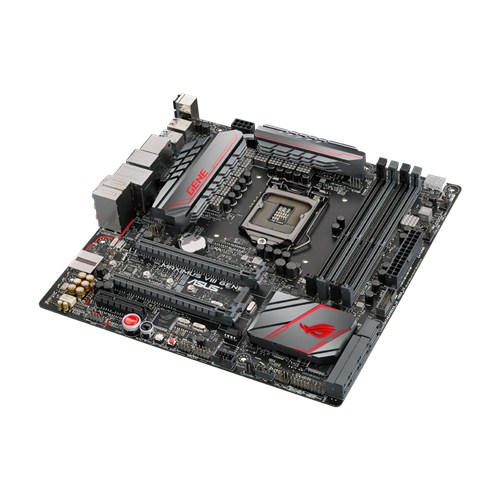

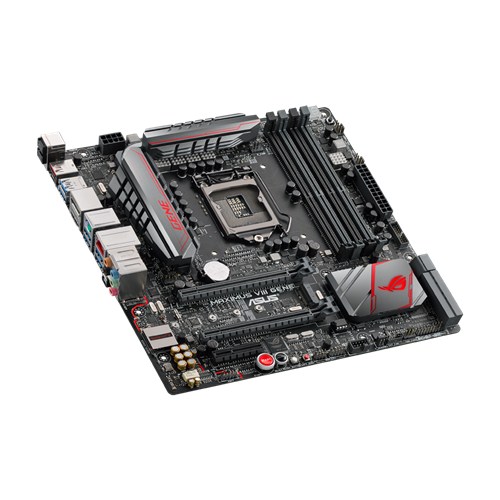

ゲーム用の機能を満載したR.O.G.シリーズのZ170 microATX マザーボード
・JAN/UPC：0889349124895
・TEKWIND型番：ASU-MAXIMUS8/GENE
【主な特長】
・第6世代 LGA1151ソケット Intel® Core™ デスクトッププロセッサ
・デュアル DDR4 3733 (OC) サポート
・最高のゲーミングパフォーマンス – 5-Way Optimization機能と第2世代T-Topology: 簡単かつ安定したオーバークロック
・高音質ゲーミングオーディオ機能 – SupremeFX 2015、Sonic Studio II
・優れたゲーミングネットワーク機能 – 安心のIntel® LAN、 LANGuard、GameFirst技術
・プレミアム品質 – 高品質部品を搭載し耐久性を向上
・R.O.G.付属ソフト – ゲーム用のユーティリティーが他にも付属!
製品についてお気軽にお問い合わせください
この製品を問い合わせる製品画像
スペック
| CPU | LGA1151 |
|---|---|
| LAN | Intel I219-V Gigabit LAN |
| USB | 8x USB 3.0, 4x USB 2.0, 1x USB 3.1, 1x USB port |
| オーディオ機能 | ROG SupremeFX 2015 8-Channel High Definition Audio CODEC |
| チップセット | Intel Z170 |
| メモリ | 4x DIMM, Max. 64GB, DDR4 3800/2133 MHz Non-ECC, Un-buffered Memory |
| 拡張スロット | 2x PCIe3.0 x16, 1x PCIe3.0 x4 |
| 背面端子類 | 1x PS/2,1x DisplayPort, 1x HDMI, 1x LAN, 1x USB3.1 Type-C,1x USB3.1 Type-A, 6x USB3.0 blue |
- CPU

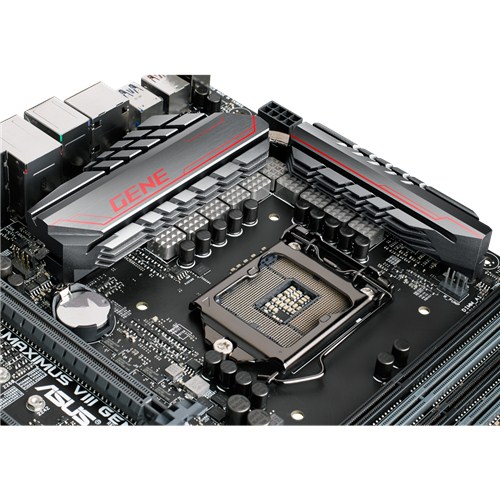

Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list - Chipset
Intel® Z170
- Memory
4 x DIMM, Max. 64GB, DDR4 3800(O.C.)/3733(O.C.)/3600(O.C.)/3500(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). - Graphic
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DisplayPort 1.2 ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 512 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ - Multi-GPU
SupportSupports NVIDIA® Quad-GPU SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology - Expansion Slots
2 x PCIe 3.0/2.0 x16 (x16 or dual x8, gray)
1 x PCIe 3.0 x4 (black) *1 - Storage
Intel® Z170 chipset :
1 x M.2 Socket 3with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*2
2 x SATA Express port, , Compatible with 4 x SATA 6.0 Gb/s ports
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports*3
Supports Intel® Smart Response Technology*4 - LAN
Intel® I219V, 1 x 10/100 LAN Controller(s), GameFirst technology
Intel® LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
Anti-surge LANGuard - Audio

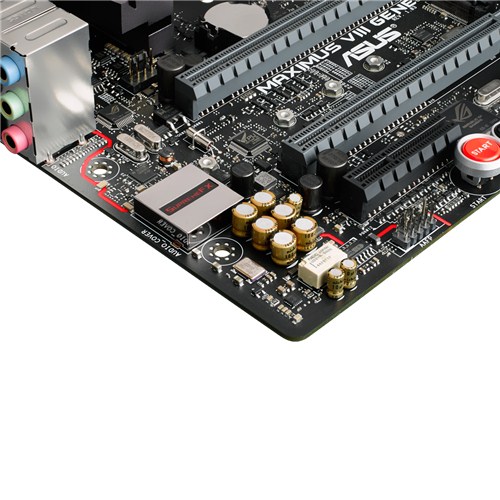

ROG SupremeFX 2015 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- SupremeFX Shielding Technology
- ESS® ES9023P DAC: dB SNR, dB THD+N (Max. kHz/ -bit)
- TI RC4580 2VRMS audio OP AMP(s)
Audio Feature :
- Gold-plated jacks
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- Sonic SenseAmp
- Sonic Studio II
- Sonic Radar II - USB Ports
Intel® Z170 chipset :
8 x USB 3.0 port(s) (6 at back panel, blue, 2 at mid-board)
Intel® Z170 chipset : *5
4 x USB 2.0 port(s) (4 at mid-board)
ASMedia® USB 3.1 controller :
1 x USB 3.1 port(s) (1 at back panel, black, Type-C)
ASMedia® USB 3.1 controller :
1 x USB port(s) (1 at back panel, red, Type-A) - ROG Exclusive
FeaturesReTry Button
Safe Boot Button
Start Button
Reset Button
LN2 Mode
Mem TweakIt
ProbeIt
KeyBot II
- One-click Overclocking
- X.M.P.
- DirectKey
- ClrCMOS
- Power On
UEFI BIOS features :
- O.C. Profile
- GPU.DIMM Post
- Tweakers' Paradise
- ROG SSD Secure Erase
- Graphic Card Information Preview
ROG RAMDisk
Extreme Tweaker - Special Features
OC Design - ASUS PRO Clock Technology
- Full BCLK range for extreme overclocking performance
5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App
ASUS Exclusive Features :
- MemOK!
- AI Suite 3
- Ai Charger+
- USB 3.1 Boost
- Disk Unlocker
- Mobo Connect
- PC Cleaner
Remote Entertainment
- Media Streamer
- HyStream
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS USB BIOS Flashback
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
RAMCache - Operating System
SupportWindows® 10 , 64bit
Windows® 8.1 , 64bit

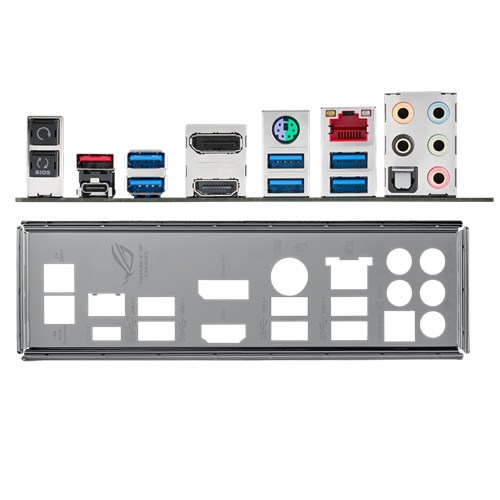

Windows® 7 , 32bit/64bit - Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.1 (black)Type-C
1 x USB 3.1 (red)Type-A
6 x USB 3.0 (blue)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x Clear CMOS button(s)
1 x USB BIOS Flashback Button(s) - Internal I/O Ports
1 x AAFP connector
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x SATA Express connector: gray, Compatible with 4 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)
2 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
1 x CPU OPT Fan connector(s) (4 -pin)
4 x Chassis Fan connector(s) (4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s) (Q-Connector)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x MemOK! button(s)
1 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Reset button(s)
1 x Water Pump header (4-pin)
1 x LN2 Mode jumper(s)
1 x ROG extension (ROG_EXT) header(s)
1 x Safe Boot button

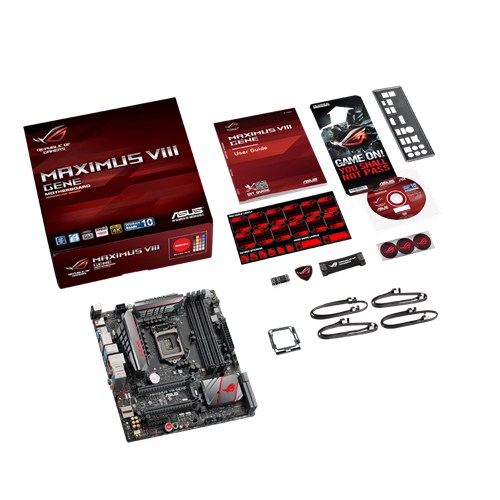

1 x ReTry button - Accessories
User's manual
ASUS Q-Shield
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x CPU installation tool
1 x Supporting DVD
1 x SLI bridge(s)
1 x Q-connector(s) (1 in 1)
1 x 12 in 1 ROG Cable Label(s)
ROG Fan Label
1 x ROG Door Hanger(s) - BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information.
- Manageability
WfM2.0, DMI3.0, WOL by PME, PXE
- Support Disc
Drivers
ROG GameFirst technology
ROG RAMCache
ROG RAMDisk
Overwolf
KeyBot II
ROG CPU-Z
ROG Mem TweakIt
Kaspersky® Anti-Virus
DAEMON Tools Pro Standard
ASUS WebStorage
ASUS Utilities - Form Factor
mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) - Note
*1 Supports Intel® RST for PCIE RAID storage.
*2 When the M.2 Socket 3 is operating in SATA mode, SATA port 1 will be disable.
*3 Supports PCIE RAID configurations via onboard M.2 and PCIEX4_1 slot storage.
*4 This function will work depending on the CPU installed.
*5 2 x USB2.0 port at mid-board comes from the ROG extension (ROG_EXT) port.
