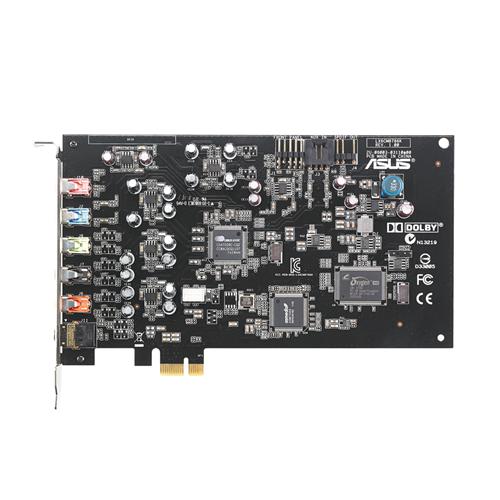

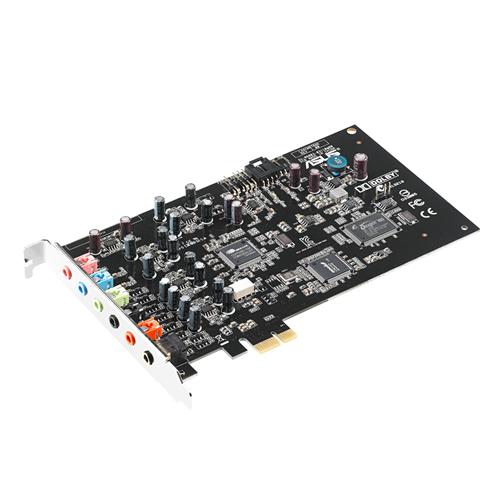

さまざまなエフェクトの追加やスタジオ品質の音声ミックスを行える実況用PCI Expressオーディオカード
・JAN/UPC:0886227534753
・TEKWIND型番:ASU-XONAR/D-KARAX
【主な特長】
・高音質設計でスタジオ品質のクリアな音声ミックスが可能
・歌の録音や配信に最適な5つの音質プリセットを用意
・さまざまなエフェクトを加えられる6つの音質設定項目を用意
・歌の練習に最適なボーカルキャンセル機能とキー変更機能を搭載
・DSPの搭載で限りなく遅延が少ないミックス処理を実現
・デジタル/アナログ分離基板によりSN比106dBのクリアな音質を実現
・5.1ch出力に対応
・ASIO 2.0に対応
・入力:3.5mmステレオミニジャック×2
・出力:3.5mmステレオミニジャック×3、S/P DIF(角型)×1
・PC内に取り付けるPCI Express x1接続カード
製品についてお気軽にお問い合わせください
この製品を問い合わせるスペック
SN比 | Line output (RCA, 3.5) : 1 Vrms (2.828 Vp-p) |
---|---|
シリーズ | Xonar |
周波数特性 | 10 Hz to 48 KHz |
出力端子 | 4 x 3.5 mm jack (1/8") (Front out/Side out/Center-Subwoofer out/Rear out) |
接続形式 | PCI Express |
入力端子 | 2 x 3.5 mm jack (1/8") (Line-in/Mic-in) |
- Audio Interface
PCI Express
- Audio
PerformanceOutput Signal-to-Noise Ratio (A-Weighted) (Front-out) :
106 dB
Output THD+N at 1kHz (Front-out) :
>0.0013 %(-98 dB)
Frequency Response (-3dB, 24bit/96KHz input) :
10 Hz to 48 KHz
Output/Input Full-Scale Voltage :
Line output (RCA, 3.5) : 1 Vrms (2.828 Vp-p) - Chipset
Audio Processor :C-Media CMI8786 High-Definition Sound Processor (Max. 96KHz/24bit)
- Digital-to-analog
Converter(DAC)Cirrus Logic CS47028
- Sample Rate and
ResolutionAnalog Playback Sample Rate and Resolution :
44.1K/48K/96KHz @ 16bit/24bit
Analog Recording Sample Rate and Resolution :
44.1K/48K/96KHz @ 16bit/24bit
S/PDIF Digital Output :
44.1K/48K/96KHz @ 16bit/24bit
ASIO Driver Support :
44.1K/48K/96KHz @ 16bit/24bit - Connectivity
Analog Output
4 x 3.5 mm jack (1/8") (Front out/Side out/Center-Subwoofer out/Rear out)
Analog Input
2 x 3.5 mm jack (1/8") (Line-in/Mic-in)
Digital
1 x S/PDIF out (1 x Optical (Toslink)/(combo with rear out))
1 x Front-Panel Header
1 x S/PDIF Header
1 x Aux in (4-pin header) - Special Features
Dolby® Technologies : Dolby® Headphone
Smart Volume Normalizer™
Karaoke Functions
10 -band Equalizer - Operating System
Windows® 8 , 32bit/64bit
Windows® 7 , 32bit/64bit
Windows® XP , 32bit/64bit - Accessories
S/PDIF adapter x 1
Quick start guide x 1 - Dimensions
108.15 x 178.06 mm ( L x W )
