販売終了

低ノイズにこだわったオーディオ機能を搭載するmicroATXマザーボード

A68HM-E

JAN/UPC:0886227922307
TEKWIND型番:ASU-A68HM-E

【主な特長】

・Socket FM2+対応
・AMD A/AthlonシリーズAPU対応
・AMD A68Hチップセット搭載
・DDR3メモリ×2枚(最大32GB)対応
・DVI-D×1、D-Sub 15ピン×1
・PCIe 3.0 x16×1、PCIe 2.0 x1×1、PCI×1
・SATA 6Gb/s×4
・USB 3.0×2、USB 2.0×6
・1000BASE-T×1
・安心の独自基準「5X PROTECTION」をクリア
・デジタル電源回路「DIGI+ VRM」
・省電力を実現する電力制御チップ「EPU」
・CPUファン+ケースファンを細かく設定できる「Fan Xpert」
・USB 3.0をブーストする「USB 3.0 Boost」
・microATXフォームファクター


製品についてお気軽にお問い合わせください

この製品を問い合わせる

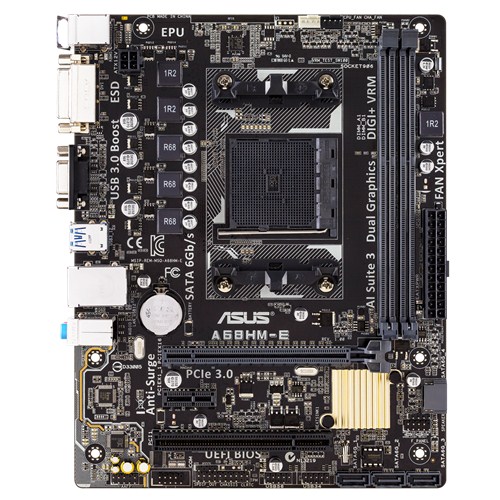

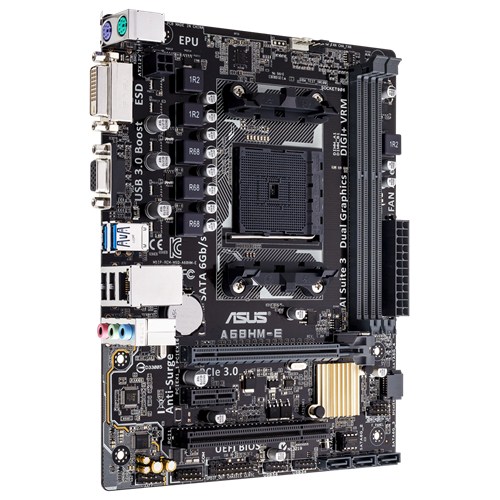

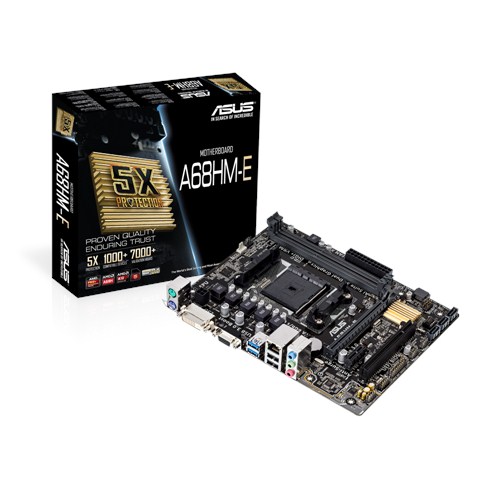

製品画像

スペック

  • CPU
    AMD Socket FM2+ Athlon™/A- Series Processors
    Supports CPU up to 4 cores
    Supports AMD® Turbo Core 3.0 Technology
    * Refer to www.asus.com for CPU support list
  • Chipset
    AMD A68H FCH (Bolton D2H)
  • Memory
    2 x DIMM, Max. 32GB, DDR3 2400(O.C.)/2133/1866/1600/1333 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Support AMD Memory Profile (AMP) memory
    * The Max. 32GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market.
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
  • Graphic
    Integrated AMD Radeon™ R/HD8000/HD7000 Series Graphics in the A-Series  APU
    Multi-VGA output support : DVI/RGB ports
    - Supports DVI with max. resolution 2560 x 1600 @ 60 Hz
    - Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
    Maximum shared memory of 2048 MB
    AMD® Dual Graphics technology support *1
  • Expansion Slots
    1 x PCIe 3.0/2.0 x16 *2
    1 x PCIe 2.0 x1
    1 x PCI
  • Storage
    AMD A68H FCH (Bolton D2H) chipset :
    4 x SATA 6Gb/s port(s), gray
    Support Raid 0, 1, 10, JBOD
  • LAN
    Realtek® 8111GR, 1 x Gigabit LAN Controller(s)
  • Audio
    Realtek® ALC887-VD 8-Channel High Definition Audio CODEC *3
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    Audio Feature :
    - LED-lit Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  • USB Ports
    AMD A68H FCH (Bolton D2H) chipset :
    6 x USB 2.0/1.1 port(s) (2 at back panel, black, 4 at mid-board)
    AMD A68H FCH (Bolton D2H) chipset :
    2 x USB 3.0 port(s) (2 at back panel, )
  • Special Features
    ASUS 5X Protection :
    - ASUS DIGI+ VRM - 3 + 2 Phase digital power design
    - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
    - ASUS ESD Guards - Enhanced ESD protection
    - ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
    - ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
    ASUS EPU :
    - EPU
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    - Anti-Surge
    - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    - USB 3.0 Boost
    - Disk Unlocker
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution
    - ASUS Fan Xpert
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 2
    - ASUS MyLogo 2
    - Push Notice
    ASUS Q-Design :
    - ASUS Q-Slot
  • Operating System
    Support
    Windows® 8.1 , 32bit/64bit
    Windows® 8 , 32bit/64bit
    Windows® 7 , 32bit/64bit
    Windows® XP , 32bit

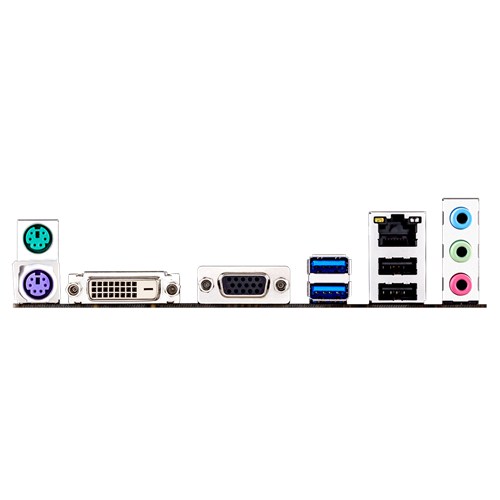

  • Back I/O Ports
    1 x PS/2 keyboard (purple)
    1 x PS/2 mouse (green)
    1 x DVI
    1 x D-Sub
    1 x LAN (RJ45) port(s)
    2 x USB 3.0
    2 x USB 2.0
    3 x Audio jack(s)
  • Internal I/O Ports
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x TPM connector(s)
    1 x COM port(s) connector(s)
    4 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s)
    1 x Chassis Fan connector(s)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x Internal speaker connector(s)
    1 x System panel(s)

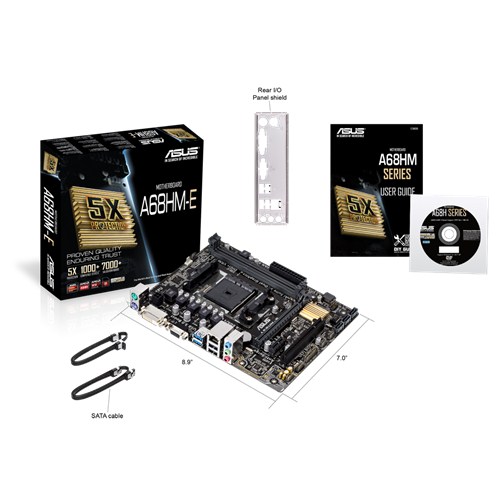

  • Accessories
    User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x Supporting DVD
  • BIOS
    64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 4.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Support Disc
    Drivers
    ASUS utilities
    ASUS Update
    Anti-virus software (OEM version)
  • Form Factor
    mATX Form Factor
    8.9 inch x 7.0 inch ( 22.6 cm x 18.0 cm )
  • Note
    *1: Refer to http://www.amd.com/us/products/technologies/dual-graphics/Pages/dual-graphics.aspx#3 for the discrete GPUs which support Dual Graphics technology.
    *2: Only FM2+ Processors can support PCIe3.0.
    *3: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

  • Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
  • All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
  • PCB color and bundled software versions are subject to change without notice. Brand and product names mentioned are trademarks of their respective companies.
