販売終了

4-way SLI/CrossFireX・最大128GBのメモリに対応したX99ワークステーションマザーボード

X99-E WS

JAN/UPC:0886227869107
TEKWIND型番:ASU-X99-E/WS

【主な特長】

・OC性能と安定性を高めたLGA2011-v3完全互換の独自ソケット「OC Socket」を搭載
・65℃環境で120万時間使用できる高耐久なコンデンサを使用
・32Gb/sの転送速度に対応するPCIe 3.0 x4接続のM.2スロットを搭載
・CPU+メモリ用デジタル電源回路「DIGI+ Power Control」を搭載
・CPUファン+ケースファンを細かく設定できる「Fan Xpert 3」機能を搭載
・低ノイズに徹底的にこだわったオーディオ機能「Crystal Sound 2」を搭載
・USB 3.0の速度をブーストする「USB 3.0 Boost」機能を搭載
・POST時のQ-CodeをUSBメモリに保存する「Q-Code Logger」機能
・電源ユニットの状態を監視する「ASUS Dr. Power」機能
・SSI CEBフォームファクター


製品についてお気軽にお問い合わせください

この製品を問い合わせる

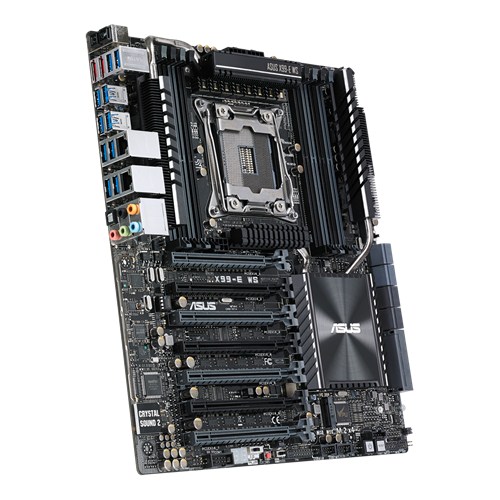

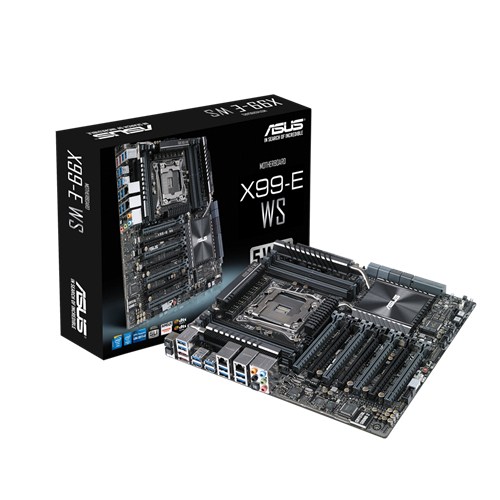

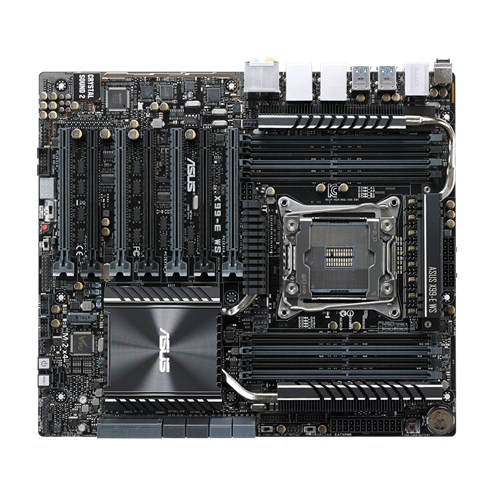

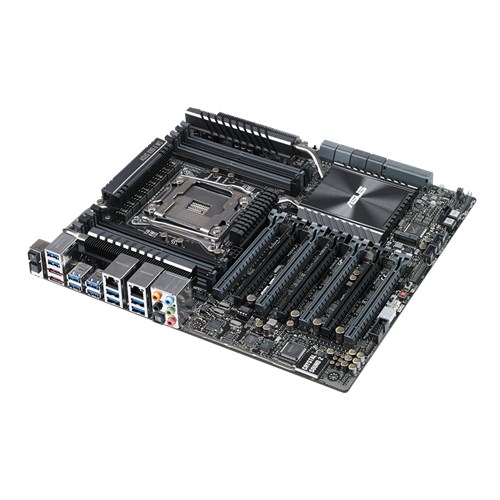

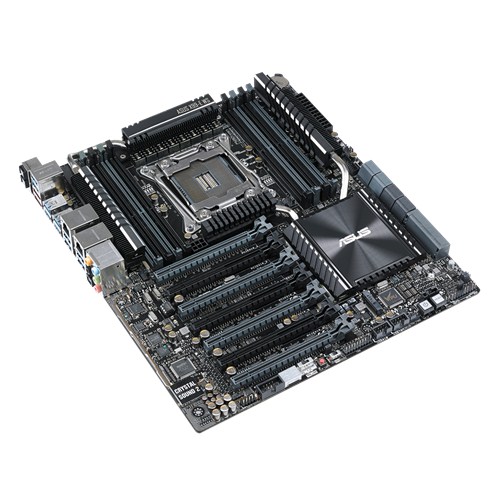

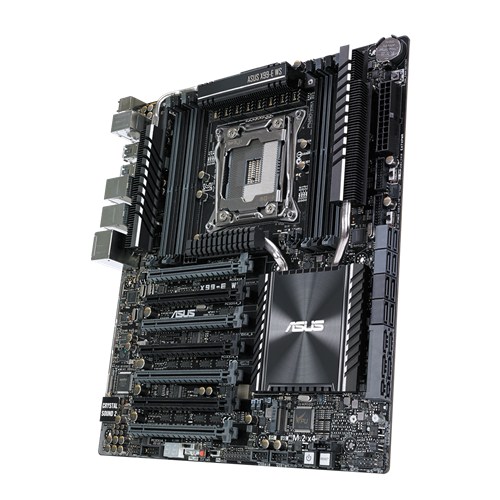

製品画像

スペック

  • CPU
    Build in Intel® Socket 2011-v3 Core™ i7 Processors
    Supports Intel® 22 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    Intel® Socket 2011-v3 for Intel® Xeon® processor E5-1600 v3 product family
    Intel® Socket 2011-v3 for Intel® Xeon® processor E5-2600 v3 product family
  • Chipset
    Intel® X99
  • Memory
    8 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory *1
    8 x DIMM, Max. 128GB, DDR4 2133/1866 MHz ECC, Un-buffered, Register Memory *2
    Quad Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Multi-GPU
    Support
    Supports NVIDIA® 4-Way SLI™ Technology
    Supports AMD 4-Way CrossFireX Technology
  • Expansion Slots
    40-Lane CPU-
    7 x PCIe 3.0/2.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8)
    28-Lane CPU-
    7 x PCIe 3.0/2.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8)
  • Storage
    Intel® X99 chipset : *3
    1 x SATA Express port, gray, compatible with 2 x SATA 6.0 Gb/s ports
    1 x M.2 x4 Socket 3, gray, , with M Key, type 2260/2280 storage devices support (PCIE mode)
    8 x SATA 6Gb/s port(s), gray, *4
    Intel® Rapid Storage Technology supports*5
    ASMedia® SATA Express controller : *6
    1 x SATA Express port, gray, compatible with 2 x SATA 6.0 Gb/s ports
    ASMedia® SATA 6Gb/s controller :
    2 x eSATA 6Gb/s port(s)compatible with 2 x SATA 6.0 Gb/s ports
  • LAN
    Intel® I210-AT, 1 x Gigabit LAN Controller(s)
    Intel® I218LM, 1 x Gigabit LAN, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
  • Audio
    Realtek® ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 2
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking
    - High quality 109 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR stereo playback input (Line-in)
    - High-fidelity audio OP AMP(s)
    Audio Feature :
    - DTS Ultra PC II
    - DTS Connect
    - Optical S/PDIF out port(s) at back panel
    - BD Audio Layer Content Protection
    - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Audio amplifier: Provides the highest-quality sound for headphone and speakers
    Premium Japanese-made 12K hours capacitors
    - Absolute Pitch 192khz/24bit true BD lossless sound
    Separate layer for left and right track, ensuring both sound deliver equal quality
  • USB Ports
    Intel® X99 chipset :
    4 x USB 3.0/2.0 port(s) (4 at back panel, , 4 at mid-board)
    Intel® X99 chipset :
    4 x USB 2.0/1.1 port(s) (4 at mid-board)
    ASMedia® USB 3.0 controller : *7
    2 x USB 3.0/2.0 port(s) (2 at back panel, blue)
    ASMedia® USB 3.0 controller : *8
    8 x USB 3.0/2.0 port(s) (4 at back panel, , 4 at mid-board)
  • Workstation
    Feature
    7 x PCIe x 16 slot(s)
    ASUS Dr. Power
    12K hours Capacitors
    ProCool Power Connector
    Q-Code Logger
  • Special Features
    5-Way Optimization by Dual Intelligent Processors 5
    - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
    ASUS TPU :
    - Auto Tuning
    - GPU Boost
    - TPU switch
    ASUS EPU :
    - EPU
    - EPU switch
    ASUS Digital Power Design :
    - Industry leading Digital 8 Phase Power Design
    - Industry leading Digital 4 Phase DRAM Power Design
    - CPU Power Utility
    - DRAM Power Utility
    ASUS Exclusive Features :
    - MemOK!
    - AI Suite 3
    - Ai Charger+
    - USB Charger+
    - M.2 & SATA Express
    - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    - USB 3.0 Boost
    - Disk Unlocker
    - Turbo LAN
    - Crystal Sound 2
    Interactive HomeCloud
    - Media Streamer
    ASUS EZ DIY :
    - Precision Tweaker 2
    - ASUS O.C. Tuner
    - ASUS CrashFree BIOS
    - ASUS EZ Flash
    - ASUS USB BIOS Flashback
    - ASUS UEFI BIOS EZ Mode
    - Push Notice
    ASUS Q-Design :
    - ASUS Q-Shield
    - ASUS Q-Code
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    - ASUS Q-Connector
    Media Streamer
    Special Memory O.C. Design
    Turbo App
    Fan Xpert 3
  • Operating System
    Support
    Windows® 8.1
    Windows® 8
    Windows® 7
  • Back I/O Ports
    2 x eSATA
    2 x LAN (RJ45) port(s)
    10 x USB 3.0 (blue)
    1 x Optical S/PDIF out
    8 x Audio jack(s)
    1 x USB BIOS Flashback Button(s)
    1 x Q-Code Logger button
  • Internal I/O Ports
    2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    2 x SATA Express connector: gray, compatible with 2 x SATA 6.0 Gb/s ports
    1 x M.2 Socket 3 for M Key, type 2260/2280 devices
    1 x TPM connector(s)
    8 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    1 x CPU OPT Fan connector(s) (1 x 4 -pin)
    4 x Chassis Fan connector(s) (4 x -pin)
    1 x S/PDIF out header(s)
    1 x Thunderbolt header(s)
    2 x 8-pin EATX 12 V Power connector
    1 x 6-pin EATX 12 V_1 Power connector(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x EZ XMP switch
    1 x Front panel connector(s)
    1 x System panel(s) (Q-Connector)
    1 x DRCT header(s)
    1 x MemOK! button(s)
    1 x Thermal sensor connector(s)
    1 x TPU switch(es)
    1 x CPU/DRAM overvoltage jumper(s)
    1 x Power-on button(s)
    1 x Reset button(s)
    1 x Clear CMOS button(s)
    1 x Dr.Power switch(es)
    1 x 3-pin CHASSIS(Chassis intrusion) connector
  • Accessories
    User's manual
    ASUS Q-Shield
    1 x COM port cable(s)
    12 x SATA 6Gb/s cable(s)
    1 x 3-Way SLI bridge(s)
    1 x 4-Way SLI bridge(s)
    1 x Q-connector(s) (2 in 1)
    1 x 2-port USB 2.0 module(s)
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS,
    ASUS EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log,
    F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.
  • Manageability
    WfM 2.0, DMI 2.7, WOL by PME, PXE
  • Support Disc
    Drivers、ASUS Utilities、EZ Update 、Anti-virus software (OEM version)
  • Operating System
    Windows® 8.1 32/64-bit
    Windows® 8 32/64-bit
    Windows® 7 32/64-bit
  • Form Factor
    CEB Form Factor
    12 inch x 10.5 inch ( 30.5 cm x 26.7 cm )
  • Note
    *1 When installing Intel® Socket 2011-v3 Core™ i7 Processors
    *2 When installing Intel® Xeon® E5-1600 v3/2600 v3 Processor
    *3 Intel® X99 Express Chipset with RAID 0, 1, 5, 10 and Intel Rapid Storage Technology 13 support
    *4 8 x SATA 6.0 Gb/s ports* (4 x gray from controller 1, 4 x black from controller 2)
    *5 These functions will work depending on the CPU installed
    *6 These SATA ports are for data hard drivers only. ATAPI devices are not supported
    *7 ASMedia® USB 3.0 controller- supports ASUS USB 3.0 Boost
    *8 ASMedia® USB 3.0 Hubs- supports ASUS USB 3.0 Boost
  • Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
  • All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
  • PCB color and bundled software versions are subject to change without notice. Brand and product names mentioned are trademarks of their respective companies.
