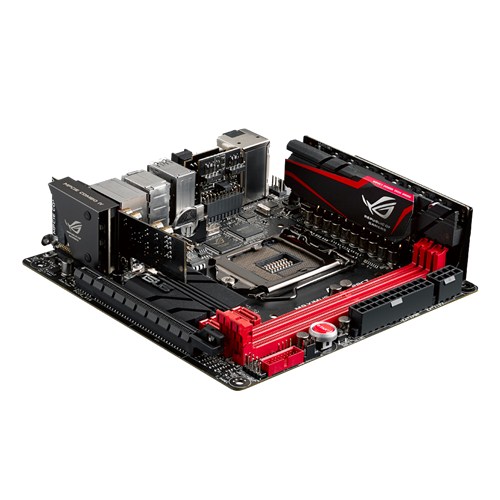

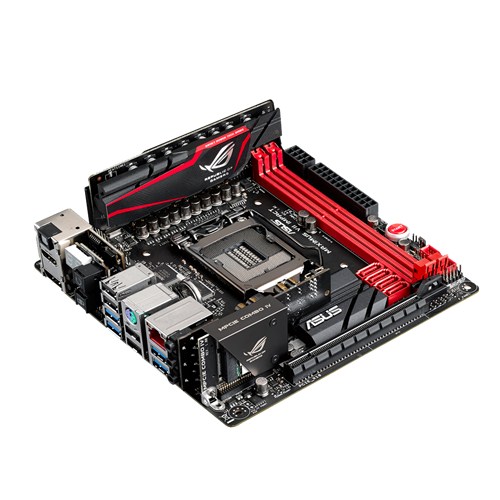

MAXIMUS VII IMPACT

• CPU
  Intel® Socket 1150 for the 5th/New 4th/4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 22 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list
• Chipset
  Intel® Z97
• Memory
  2 x DIMM, Max. 16GB, DDR3 3300(O.C.)/3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphic
  Integrated Graphics Processor- Intel® HD Graphics support
  Multi-VGA output support : HDMI/DisplayPort ports
  - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  - Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
  Maximum shared memory of 512 MB
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
• Expansion Slots
  1 x PCIe 3.0/2.0 x16 *1
  1 x mini-PCIe 2.0 x1 *2
• Storage
  Intel® Z97 chipset :
  4 x SATA 6Gb/s port(s), red,
  Support Raid 0, 1, 5, 10
  Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *3
  PCI Express gen 3.0 : *1
  1 x M.2 Socket 3 on mPCIe Combo IV expansion card(s), black, *4
  Support M.2 Type 2242/2260/2280/22110 SSD card (up to 110mm in length), support PCI express 3.0 x4 standard
• LAN
  Intel® I218V, 1 x Gigabit LAN Controller(s), featuring GAMEFIRST III
  Intel® LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
  Anti-surge LANGuard
• Wireless Data Network
  Wi-Fi 802.11a/b/g/n/ac*5
  Supports dual band frequency 2.4/5 GHz
  Support ASUS Wi-Fi Go! Utility
• Bluetooth
  Bluetooth V4.0
• Audio
  ROG SupremeFX Impact II 8-Channel High Definition Audio CODEC *6
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  Audio Feature :
  - SupremeFX Shielding™ Technology
  - ELNA premium audio capacitors
  - Blu-ray audio layer Content Protection
  - DTS Connect
  - Optical S/PDIF out port(s) at back panel
  - Sonic SoundStage
  - Sonic SenseAmp
  - Sonic Studio
  - Sonic Radar II
• USB Ports
  Intel® Z97 chipset : *7
  6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board)
  Intel® Z97 chipset : *8
  6 x USB 2.0 port(s) (4 at back panel, black, 2 at mid-board)
• ROG Exclusive
  Features
  SupremeFX Impact II
  Impact CoolHub
  mPCIe Combo IV (mPCIe/M.2 combo card)
  Impact Power II :
  - 8 + 2 phase power design
  - NexFET™ Power Block MOSFET
  - 60A BlackWing Chokes
  - 10K Black Metallic Capacitors
  Mem TweakIt
  ROG Extreme OC kit :
  - LN2 Mode *9
  ProbeIt
  KeyBot
  - CPU Level Up
  - XMP
  - Direct Key
  UEFI BIOS features :
  - GPU.DIMM Post
  - Tweakers' Paradise
  - ROG SSD Secure Erase
  - Graphic Card Information Preview
  ROG RAMDisk
  GameFirst III
  Extreme Tweaker
• Special Features
  5-Way Optimization by Dual Intelligent Processors 5
  - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 2, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
  Gamer's Guardian:
  - ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
  - DRAM Overcurrent Protection
  - 10K Black Metallic Capacitors
  - Stainless Steel Back I/O
  ASUS Wi-Fi GO!
  - Wi-Fi GO! Function: Cloud GO!, Remote Desktop, Remote Keyboard & Mouse, File Transfer
  - Wi-Fi GO! & NFC Remote app for portable smartphone/tablet, supporting iOS 7 & Android 4.0 systems
  ASUS Exclusive Features :
  - USB BIOS Flashback
  - AI Suite 3
  - Ai Charger
  - USB Charger+
  - USB 3.0 Boost
  - Disk Unlocker
  ASUS EZ DIY :
  - ASUS O.C. Profile
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 2
  - ASUS USB BIOS Flashback
  - ASUS UEFI BIOS EZ Mode
  - Push Notice
  ASUS Q-Design :
  - ASUS Q-Shield
  - ASUS Q-Cable
  - ASUS Q-Code
  - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
  - ASUS Q-DIMM
  Overclocking Protection :
  - ASUS C.P.R.(CPU Parameter Recall)
  Media Streamer
  Turbo App
• Operating
  System Support
  Windows® 8.1
  Windows® 8
  Windows® 7

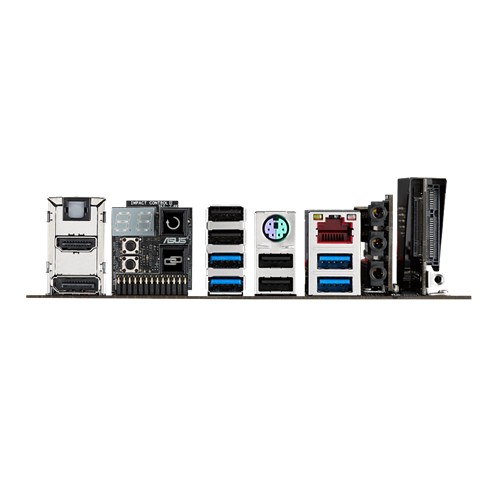

• Back I/O Ports
  1 x PS/2 keyboard/mouse combo port(s)
  1 x DisplayPort
  1 x HDMI
  1 x LAN (RJ45) port(s)
  4 x USB 3.0 (blue)
  4 x USB 2.0 (one port can be switched to ROG Connect)
  1 x Optical S/PDIF out
  3 x Audio jack(s)
  1 x Clear CMOS button(s)
  1 x ROG Connect On/ Off switch(es)
  1 x Q-Code LED
  1 x Sonic SoundStage button
  1 x KeyBot button

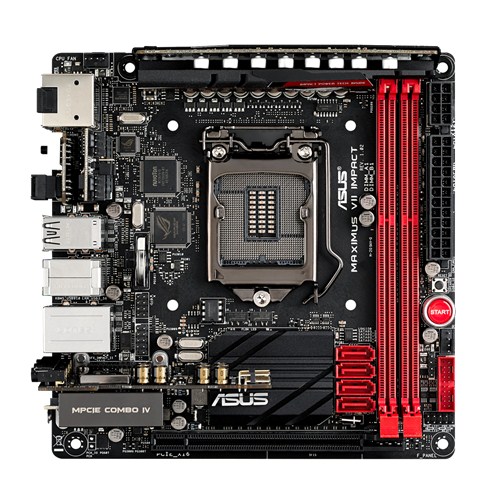

• Internal I/O Ports
  1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
  1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
  1 x TPM connector(s)
  4 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s)
  3 x Chassis Fan connector(s) *9
  1 x 8-pin EATX 12 V Power connector
  1 x 24-pin EATX Power connector(s)
  1 x Front panel audio connector(s) (AAFP)*10
  1 x System panel(s)
  10 x ProbeIt Measurement Points
  1 x LN2 Mode header(s)*9
  1 x Power-on button(s)
  1 x Reset button(s)
  1 x mPCIe Combo IV connector(s)
  1 x LN2 Mode jumper(s)
  1 x ROG extension (ROG_EXT) header(s)
  1 x Impact CoolHub connector(s)

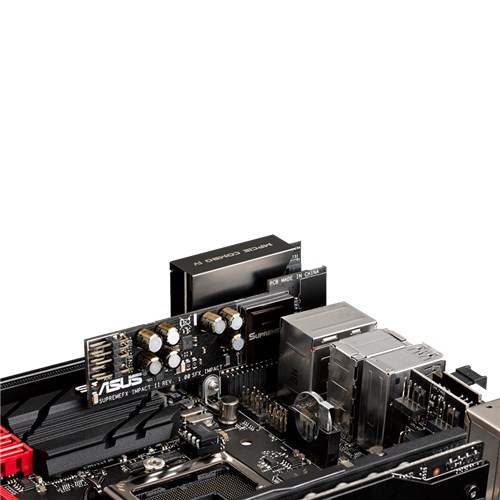

  1 x SupremeFX Impact II connector(s)
• Accessories
  User's manual
  1 x ASUS Q-Cable
  1 x SupremeFX Impact II audio card(s)
  1 x Optional 4-in-1 washers for CPU cooler backplate
  I/O Shield
  4 x SATA 6Gb/s cable(s)
  1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
  1 x 12 in 1 ROG Cable Label(s)

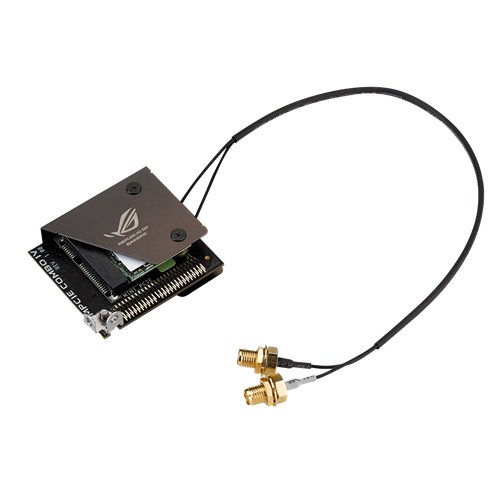

  1 x mPCIe Combo IV card(s) with dual-band WiFi 802.11 a/b/g/n/ac + Bluetooth v4.0 module
  1 x Impact CoolHub card(s)
• BIOS
  64Mb UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.8, ACPI5.0 Multi-Language BIOS
• Manageability
  WfM 2.0, DMI 2.7, WOL by PME, PXE
• Support Disc
  Drivers
  ROG GameFirst III
  ROG RAMDisk
  ROG CPU-Z
  ROG Mem TweakIt
  Kaspersky® Anti-Virus
  DAEMON Tools Pro Standard
  ASUS WebStorage
  Home Cloud
  ASUS Utilities
• Form Factor
  Mini ITX Form Factor
  6.7 inch x 6.7 inch ( 17 cm x 17 cm )
• Note
  *1: The M.2 slot shares bandwidth with PCIe 3.0/2.0 X16 slot. Bandwidth on the PCIe 3.0/2.0 x16 slot becomes x8 when M.2 device is inserted.
  *2: The mini-PCIe slot is pre-installed with a Wi-Fi/Bluetooth module on mPCIe Combo IV expansion card.
  *3: The functions support depends on the CPU types.
  *4: M.2 slot supports PCIE mode storage device only.
  *5: The module is pre-installed on mPCIe Combo IV expansion card.
  *6: 8-channel audio output is supported by jack-retasking using a chassis with HD audio module in the front panel.
  *7: Support ASUS USB 3.0 Boost, UASP standard on the Intel native USB 3.0 is only supported under WindowsR 8.1/8.
  *8: 2 x USB2.0 ports at mid-board (USB1213) shares with ROG extension (ROG_EXT) port.
  *9: 1 x LN2 mode header and CHAFAN_2/3 locate on Impact CoolHub card.
  *10: AAFP header locates on the SupremeFX Impact II card.
