カテゴリー: PCパーツ > マザーボード > LGA1150

販売終了

ゲーマー向けに特化したIntel Z97マザーボード

MAXIMUS VII FORMULA

JAN/UPC:0886227820184
TEKWIND型番:ASU-MAXIMUS7/FORMULA

【主な特長】
・M.2(type2260 SATA接続/PCI Express x2接続両対応)ソケット搭載
・ビデオカードの熱からマザーボードを守る「ROG Armor」
・すべてのキーボードにマクロ機能を追加する「KeyBot」機能
・ASUS史上最高性能のファンコントロール機能
・USBデバイスを安定させる強化型USBポート「TrueVolt USB」
・優れた信号特性を実現した独自LANポート「LANGuard」
・ゲーム用PCに最適な「Extreme Engine Digi+ III」デジタル電源回路
・液冷対応VRMクーラー「CrossChill Copper」搭載
・Intel LAN&GameFirst III-ネットワークゲームを快適に楽しめる高速LAN機能
・SupremeFX Formula 2014-ゲームをクリアな音質で楽しめるオーディオ機能
・Sonic Radar II - 敵の足音を画面上にグラフィカルに表示

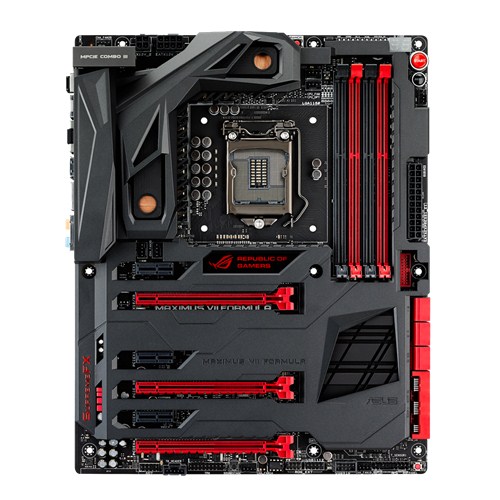

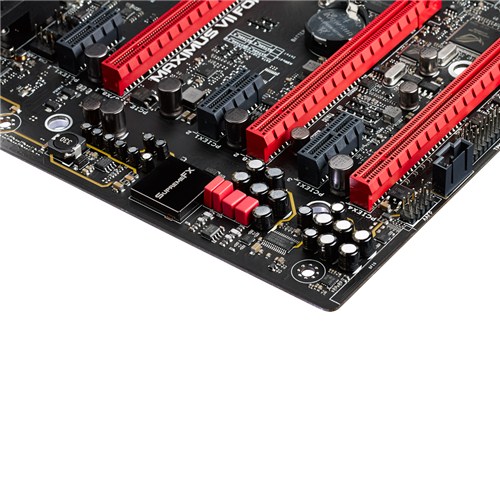

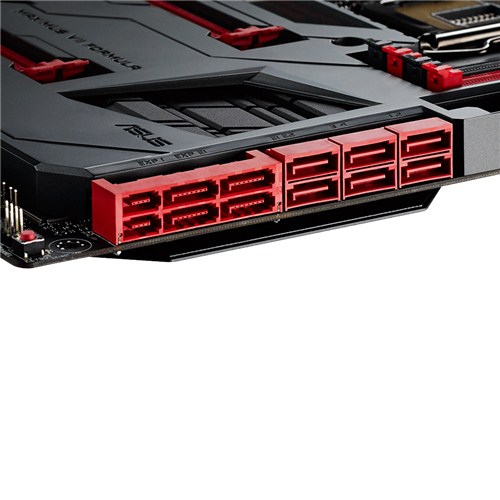

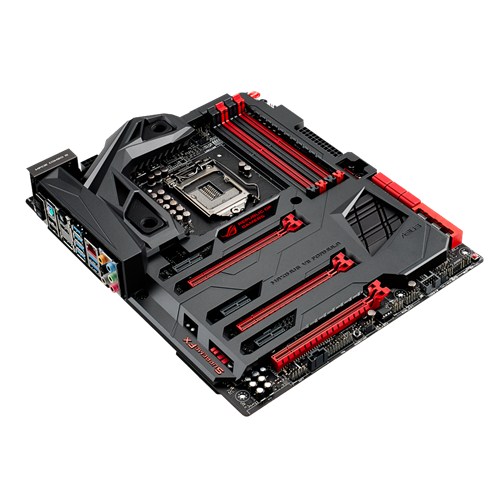

製品画像


スペック

  • CPU
    Intel® Socket 1150 for the 5th/New 4th/4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
    Supports Intel® 22 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list
  • Chipset
    Intel® Z97
  • Memory
    4 x DIMM, Max. 32GB, DDR3 3300(O.C.)/3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    Integrated Graphics Processor- Intel® HD Graphics support
    Multi-VGA output support : HDMI/DisplayPort 1.2 ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
    - Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
    Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  • Multi-GPU
    Support
    Supports NVIDIA® Quad-GPU SLI™ Technology
    Supports AMD 3-Way CrossFireX™ Technology
  • Expansion Slots
    2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
    1 x PCIe 2.0 x16 (x4 mode) *1
    3 x PCIe 2.0 x1
    1 x mini-PCIe 2.0 x1 *2
  • Storage
    Intel® Z97 chipset :
    1 x SATA Express port, compatible with 2 x SATA 6.0 Gb/s ports
    1 x M.2 Socket 3, , with M Key, type 2260 storage devices support (both SATA & PCIE mode)
    4 x SATA 6Gb/s port(s), red
    Support Raid 0, 1, 5, 10
    Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *3
    ASMedia® SATA Express controller : *4
    1 x SATA Express port, compatible with 2 x SATA 6.0 Gb/s ports
    ASMedia® ASM1061 controller : *4
    2 x SATA 6Gb/s port(s), red
  • LAN
    Intel® I218V, 1 x Gigabit LAN Controller(s), featuring GAMEFIRST III
    Intel® LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
    Anti-surge LANGuard
  • Wireless Data
    Network
    Wi-Fi 802.11a/b/g/n/ac
    Supports dual band frequency 2.4/5 GHz
  • Bluetooth
    Bluetooth V4.0
  • Audio
    ROG SupremeFX Formula 2014 8-Channel High Definition Audio CODEC *4
    - Supports : Jack-detection, Multi-streaming
    - SupremeFX Shielding Technology
    - Cirrus Logic® CS4398 DAC: 120 dB SNR, -107 dB THD+N (Max. 192 kHz/ 24 -bit)
    - WIMA® film capacitors
    - ELNA® premium audio capacitors
    - TI LM4562 high-fidelity audio OP AMP(s)
    Audio Feature :
    - Blu-ray audio layer Content Protection
    - DTS Connect
    - Optical S/PDIF out port(s) at back panel
    - Sonic SoundStage
    - Sonic SenseAmp
    - Sonic Studio
    - Sonic Radar II
  • USB Ports
    Intel® Z97 chipset : *5
    6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board)
    Intel® Z97 chipset : *6
    6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
    ASMedia® USB 3.0 controller :
    2 x USB 3.0 port(s) (2 at back panel, blue)
  • ROG Exclusive
    Features

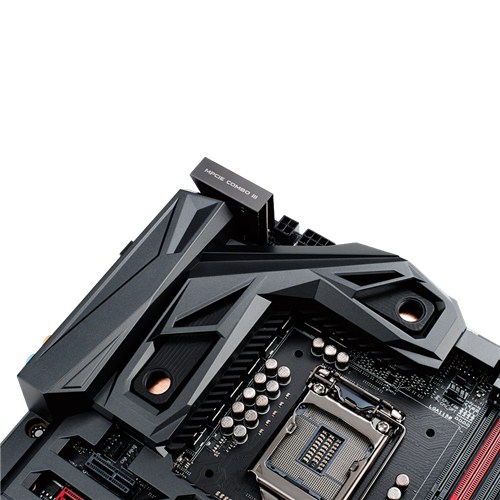

    CrossChill Copper (Hybrid air and liquid cooling)*7

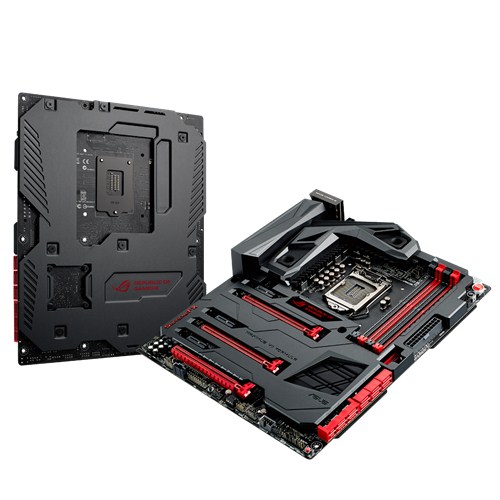

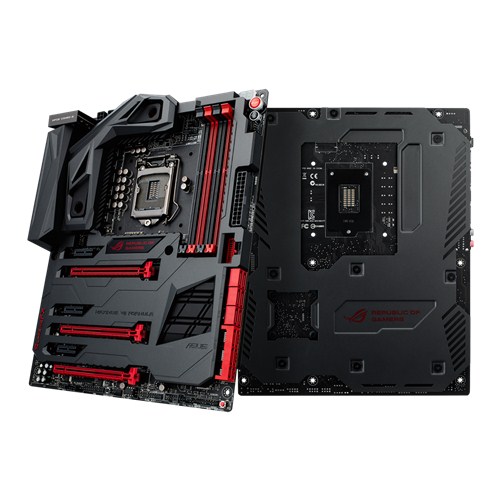

    ROG Armor (including top cover and SECC steel backplate)*8

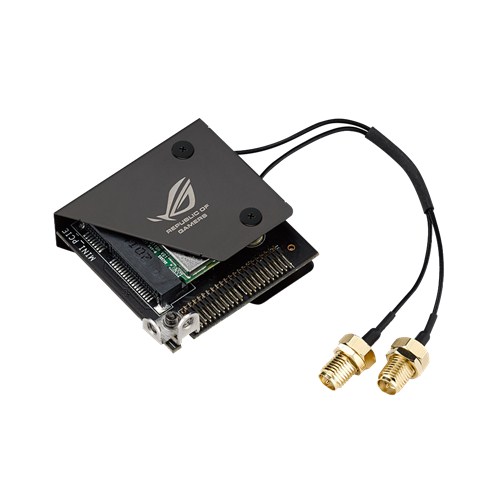

    mPCIe Combo III (mPCIe/M.2 combo card)
    ROG Connect :
    - RC Diagram
    - RC Remote
    - RC Poster

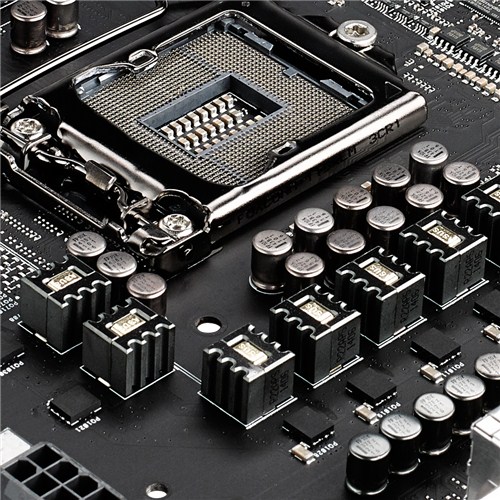

    Extreme Engine Digi+ III :
    - 8 + 2 phase power design
    - NexFET™ Power Block MOSFET
    - 60A BlackWing Chokes
    - 10K Black Metallic Capacitors
    ProbeIt
    KeyBot
    - CPU Level Up
    - XMP
    - Direct Key
    UEFI BIOS features :
    - GPU.DIMM Post
    - Tweakers' Paradise
    - ROG SSD Secure Erase
    - Graphic Card Information Preview
    ROG RAMDisk
    GameFirst III
    Extreme Tweaker
  • Special Features
    5-Way Optimization by Dual Intelligent Processors 5
    - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
    Gamer's Guardian:
    - ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
    - DRAM Overcurrent Protection
    - 10K Black Metallic Capacitors
    - Stainless Steel Back I/O
    ASUS Wi-Fi GO!
    - Wi-Fi GO! Function: Cloud GO!, Remote Desktop, Remote Keyboard & Mouse, File Transfer
    - Wi-Fi GO! & NFC Remote app for portable smartphone/tablet, supporting iOS 7 & Android 4.0 systems
    ASUS Exclusive Features :
    - MemOK!
    - AI Suite 3
    - Ai Charger+
    - USB Charger+
    - USB 3.0 Boost
    - Disk Unlocker
    ASUS EZ DIY :
    - ASUS O.C. Profile
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 2
    - ASUS USB BIOS Flashback
    - Push Notice
    ASUS Q-Design :
    - ASUS Q-Shield
    - ASUS Q-Code
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    - ASUS Q-Connector
    Overclocking Protection :
    - ASUS C.P.R.(CPU Parameter Recall)
    Media Streamer
  • Operating System
    Support
    Windows® 8.1
    Windows® 8
    Windows® 7

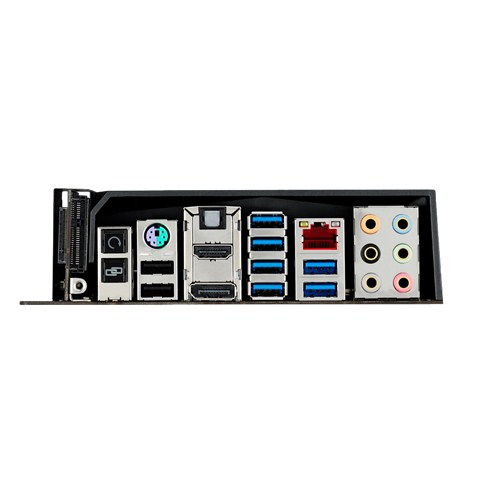

  • Back I/O Ports
    1 x PS/2 keyboard/mouse combo port(s)
    1 x DisplayPort
    1 x HDMI
    1 x LAN (RJ45) port(s)
    6 x USB 3.0 (blue)
    2 x USB 2.0 (one port can be switched to ROG Connect)
    1 x Optical S/PDIF out
    6 x Audio jack(s)
    1 x Clear CMOS button(s)
    1 x ROG Connect On/ Off switch(es)
  • Internal I/O Ports
    1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    2 x SATA Express connector: red,
    1 x TPM header
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    1 x CPU OPT Fan connector(s) (1 x 4 -pin)
    6 x Chassis Fan connector(s) (6 x 4 -pin)
    1 x Thunderbolt header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s) (Q-Connector)
    1 x MemOK! button(s)
    10 x ProbeIt Measurement Points
    1 x Thermal sensor connector(s)
    1 x Power-on button(s)
    1 x Reset button(s)
    1 x mPCIe Combo III connector(s)
    1 x ROG extension (ROG_EXT) header(s)
    1 x KeyBot Button
    1 x Sonic SoundStage Button
  • Accessories
    User's manual
    I/O Shield
    8 x SATA 6Gb/s cable(s)
    1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
    1 x SLI bridge(s)
    1 x Q-connector(s) (2 in 1)
    1 x 12 in 1 ROG Cable Label(s)
    1 x mPCIe Combo III card(s) with dual-band WiFi 802.11 a/b/g/n/ac + Bluetooth v4.0 module
    1 x ROG Door Hanger(s)
  • BIOS
    64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS
  • Manageability
    WfM2.0, DMI2.7, WOL by PME, PXE
  • Support Disc
    Drivers
    ROG GameFirst III
    ROG RAMDisk
    ROG CPU-Z
    ROG Mem TweakIt
    Kaspersky® Anti-Virus
    DAEMON Tools Pro Standard
    ASUS WebStorage
    HomeCloud
    ASUS Utilities
  • Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • Note
    1. The PCIe 2.0 x 16 slot (PCIEX4_3) shares bandwidth with SATAExpress_E1 connector. The default setting is in Auto mode that automatically optimizes the system bandwidth. If you install PCIe 2.0 x4 device, the system will automatically detect and disable SATAExpress_E1 connector.
    2. The mPCIe slot is on mPCIe Combo III card and pre-installed with a Wi-Fi/Bluetooth module.
    3. The functions support depends on the CPU types.
    4. These SATA ports are for data hard drives only. ATAPI devices are not supported.
    5. Support ASUS USB 3.0 Boost, UASP standard on the Intel native USB 3.0 is only supported under Windows® 8.1/8.
    6. 2 x USB2.0 port at mid-board shares with ROG extension (ROG_EXT) port.
    7. Supports G1/4" threaded fittings. Fittings require separate purchase.
    8. Chassis must conform to ATX specification for successful installation: brass stand-offs of at least 6mm are required.

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

  • All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
  • PCB color and bundled software versions are subject to change without notice.
  • Brand and product names mentioned are trademarks of their respective companies.
