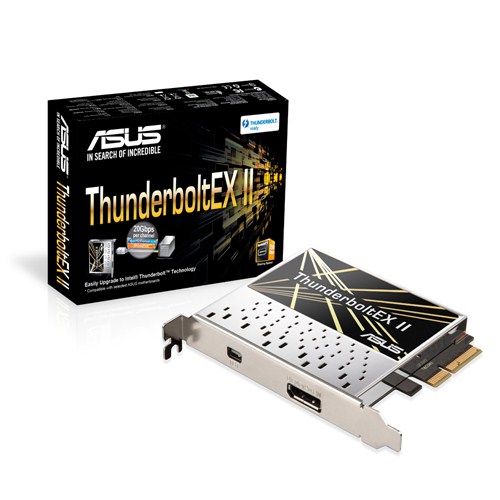

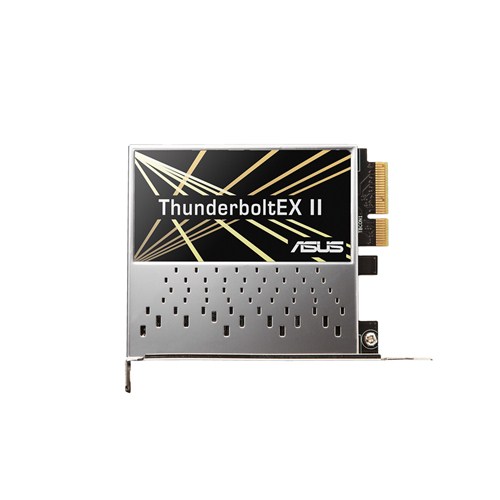

転送速度20Gb/sのThunderbolt 2ポートをPCに増設できる拡張カード
・JAN/UPC：0886227689682
・TEKWIND型番：ASU-THUNDERBOLTEX/2
【主な特長】
・転送速度20Gb/sのThunderbolt 2ポートを1ポート搭載
・ ディスプレイ9台までのデイジーチェーン接続に対応
製品についてお気軽にお問い合わせください
この製品を問い合わせる製品画像
スペック
- Chipset
Intel® DSL5320 Thunderbolt™ 2 Controller

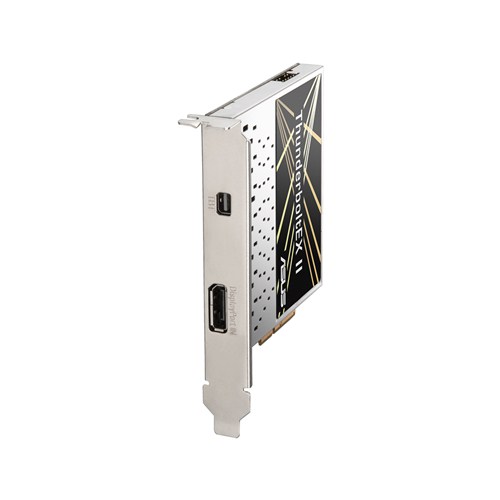

- External
Connectors1 x Thunderbolt™ 2 port runs up to 20Gbps
1 x DisplayPort IN port
1 x 9 pin TB header - Interface
PCI Express 2.0 x4 interface
Compatible with PCI Express x8, and x16 slots - VGA
Supports Thunderbolt™ 2 Interface* with max. resolution of 4096 x 2160@24Hz / 3840 x 2160@60Hz
DisplayPort 1.2 Multi-Stream Transport compliant; supports DisplayPort 1.2 monitor daisy-chain up to 3 displays**
* Use Thunderbolt™ cables to link Thunderbolt™ monitors and other Thunderbolt technology-enabled devices in a daisy-chain connection.
**Use the mini DisplayPort cables to link up to 3 DisplayPort 1.2 monitors in a daisy-chain connection. - Data Rate
1 x Thunderbolt™ 2 port, maximum at 20Gbps bidirectional
- Compatible Model
MAXIMUS VI EXTREME
SABERTOOTH Z87
Z87-PRO
Z87-PRO(V EDITION)
Z87-PLUS
Z87-PLUS(VivoMouse EDITION)
Z87-A
Z87-A(NFC EXPRESS EDITION) - Operating System
Windows® 8.1 32/64-bit
Windows® 8.1 64-bit
Windows® 8 64-bit
Windows® 8 32/64-bit
Windows® 7 32/64-bit
Windows® 7 (Ultimate SP1) 32/64-bit - Dimensions
3.35 inch x 3.94 inch (10cm*8.5cm)

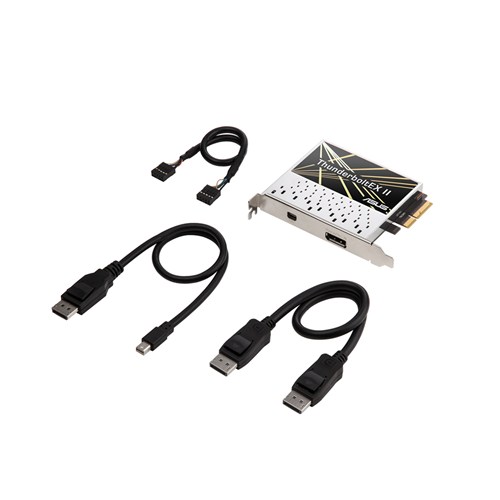

- Accessories
1 x 9 pin to 5 pin adapter (TB header cable)
1 x DisplayPort cable*
1 x mini DisplayPort Cable*

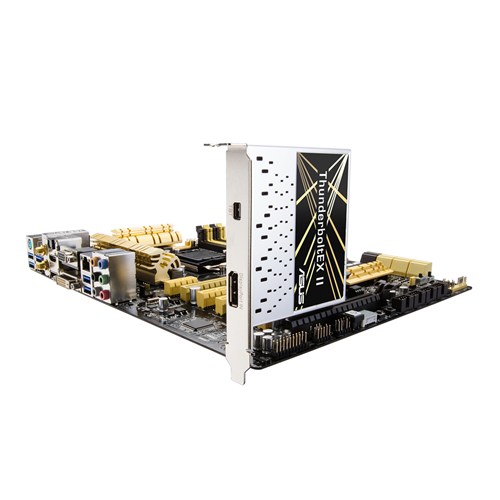

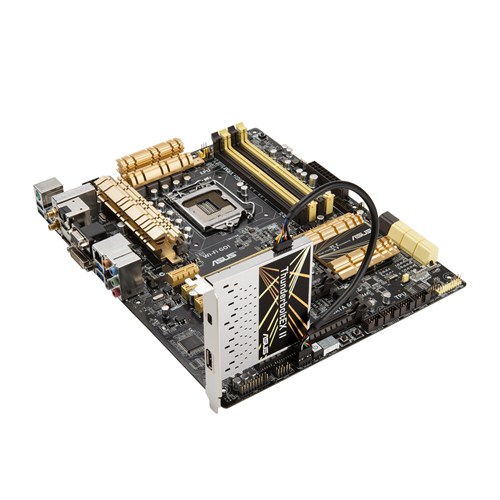

1 x ASUS TB header cable(linked from an ASUS motherboard's TB header to ThunderboltEX II card's TB header)

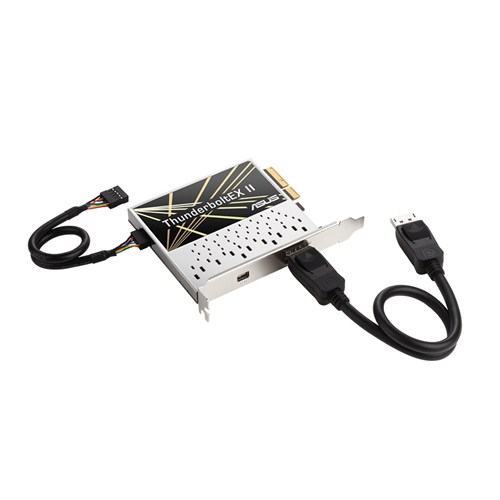

*Provides link from the motherboard's DisplayPort to the DisplayPort IN port on the ThunderboltEX II card. Use the bundled DisplayPort or mini DisplayPort cable depending on the available DisplayPort connector on your motherboard. - Note
Support CD: Thunderbolt™ 2 Driver inside
The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
- All specifications are subject to change without notice. Please check with your supplier for exactoffers. Products may not be available in all markets.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
