販売終了

ゲームPCに最適な機能を満載したゲーマー向けIntel H97マザーボード

H97-PRO GAMER

JAN/UPC:0886227824151
TEKWIND型番:ASU-H97-PRO/GAMER

【主な特長】

・Intel Core i7/i5/i3、Pentium、CeleronシリーズCPU対応
・Intel H97 Express Chipset搭載
・デュアルチャンネルDDR3-1600対応
・SupremeFX- ゲームをクリアな音質で楽しめるオーディオ機能
・Intel LAN & GameFirst II- ネットワークゲームを快適に楽しめる高速LAN機能
・Sonic Radar II- 敵の足音を画面上にグラフィカルに表示
・M.2 & SATA Express- ゲームをより快適にする転送速度10Gb/sのストレージインターフェース
・Gamer's Guardian- 高耐久高品質な搭載パーツ


製品についてお気軽にお問い合わせください

この製品を問い合わせる

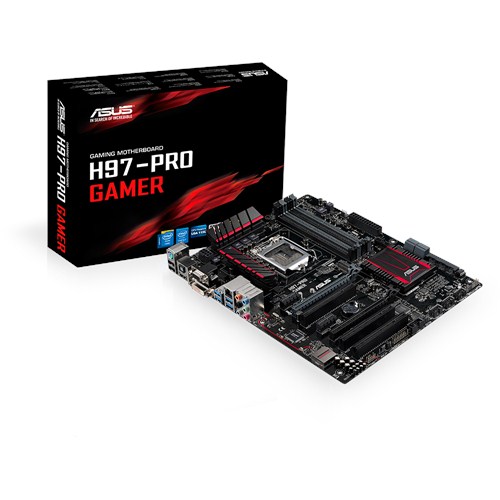

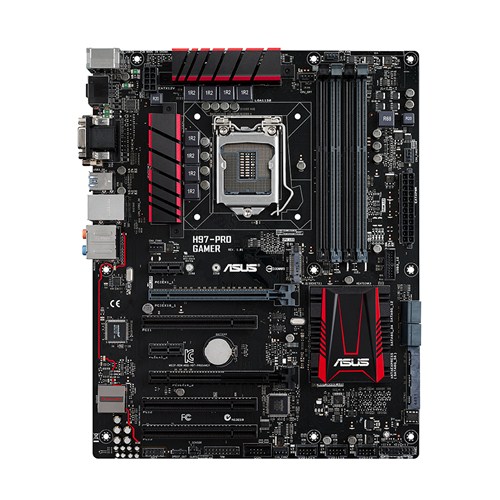

製品画像

スペック

  • CPU
    Intel® Socket 1150 for the 5th/New 4th/4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
    Supports Intel® 22 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list
  • Chipset
    Intel® H97
  • Memory
    4 x DIMM, Max. 32GB, DDR3 1600/1333 MHz Non-ECC, Un-buffered Memory *
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.
  • Graphic
    Integrated Graphics Processor- Intel® HD Graphics support
    Multi-VGA output support : HDMI/DVI-D/RGB ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
    - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
    - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
    Maximum shared memory of 512 MB
    Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
    Supports up to 3 displays simultaneously
  • Multi-GPU
    Support
    Supports AMD Quad-GPU CrossFireX™ Technology

  • Expansion Slots
    1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
    1 x PCIe 2.0 x16 (max at x4 mode, black) *1
    2 x PCIe x1
    3 x PCI
  • Storage
    Intel® H97 chipset :
    1 x SATA Express port, compatible with 2 x SATA 6.0 Gb/s ports
    1 x M.2 Socket 3, , with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)*2
    4 x SATA 6Gb/s port(s), gray
    Support Raid 0, 1, 5, 10
    Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *3
  • LAN
    Intel® I218V, 1 x Gigabit LAN Controller(s), featuring GAMEFIRST II
    Gigabit Intel® LAN Connection- 802.3az Energy Efficient Ethernet (EEE) appliance
  • Audio
    SupremeFX 8-Channel High Definition Audio CODEC featuring Crystal Sound 2
    - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
    - High quality 115 dB SNR stereo playback output
    - High-fidelity audio OP AMP(s)
    Audio Feature :
    - SupremeFX Shielding™ Technology
    - ELNA premium audio capacitors
    - Optical S/PDIF out port(s) at back panel
    - Sonic Radar II
  • USB Ports
    Intel® H97 chipset :
    6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board)
    Intel® H97 chipset :
    8 x USB 2.0/1.1 port(s) (2 at back panel, black, 6 at mid-board)
  • ROG Exclusive
    Features
    GameFirst II

  • Special Features
    ASUS Dual Intelligent Processors 2 with DIGI+ VRM :
    - The tuning key perfectly consolidates ASUS-exclusive DIGI+ Power Control, TPU, EPU, and Fan Xpert 3 optimize the digital power setting, system performance, power saving and whole system cooling configuration
    Gamer's Guardian:
    - ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
    - DRAM Overcurrent Protection
    - 10K Black Metallic Capacitors
    - Stainless Steel Back I/O
    - DIGI+ VRM
    ASUS TPU :
    - Auto Tuning
    - TurboV
    - GPU Boost without switch
    ASUS EPU :
    - EPU
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    - USB 3.0 Boost
    - Disk Unlocker
    Interactive HomeCloud
    - Media Streamer
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution
    - ASUS Fan Xpert 3
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 2
    - ASUS UEFI BIOS EZ Mode
    - Push Notice
    ASUS Q-Design :
    - ASUS Q-Shield
    - ASUS Q-Slot
    - ASUS Q-DIMM
  • Operating Syste
    Support
    Windows® 8.1
    Windows® 8
    Windows® 7

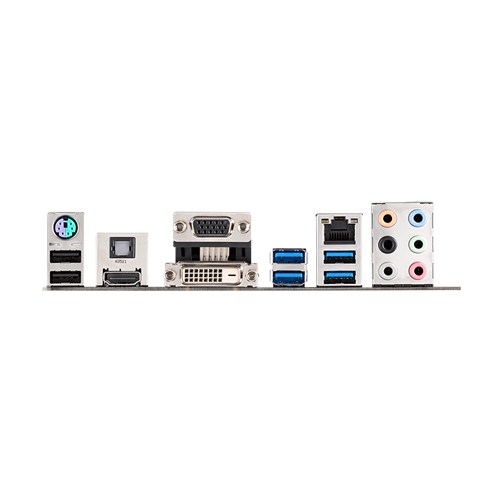

  • Back I/O Ports
    1 x PS/2 keyboard/mouse combo port(s)
    1 x DVI-D
    1 x D-Sub
    1 x HDMI
    1 X Optical S/PDIF
    1 x LAN (RJ45) port(s)
    4 x USB 3.0 (blue)
    2 x USB 2.0
    6 x Audio jack(s)
  • Internal I/O Ports
    1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
    3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
    1 x SATA Express connector: black, compatible with 2 x SATA 6.0 Gb/s ports
    1 x M.2 Socket 3 for M Key, type 2260/2280 devices
    1 x TPM header
    1 x COM port(s) connector(s)
    4 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    1 x CPU OPT Fan connector(s) (1 x 4 -pin)
    3 x Chassis Fan connector(s) (3 x 4 -pin)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s)
    1 x Thermal sensor connector(s)
    1 x Clear CMOS jumper(s)
  • Accessories
    User's manual
    ASUS Q-Shield
    4 x SATA 6Gb/s cable(s)
  • BIOS
    64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.7, WfM 2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2,
    CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, F3 Shortcut function, and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Manageability
    WfM 2.0, DMI 2.7, WOL by PME, PXE
  • Support Disc
    Drivers
    ASUS Utilities
    EZ Update
    Anti-virus software (OEM version)
  • Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • Note
    *1: When PCIEX1_1 or PCIEX1_2 is occupied by x1 device,PCIEX16_2 will be at x2 mode.
    *2: M.2 Socket 3 shares bandwidth with PCIEX1_1 and PCIEX1_2(in PCIE mode) & SATA6G_4(in SATA mode), and supports M Key and type 2260/2280 storage devices.
    *3: These functions will work depending on the CPU installed.

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

  • All specifications are subject to change without notice. Please check with your supplier for exactoffers. Products may not be available in all markets.
  • PCB color and bundled software versions are subject to change without notice.
  • Brand and product names mentioned are trademarks of their respective companies.
