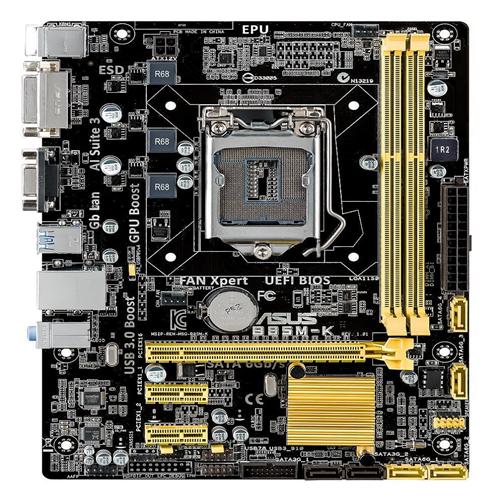

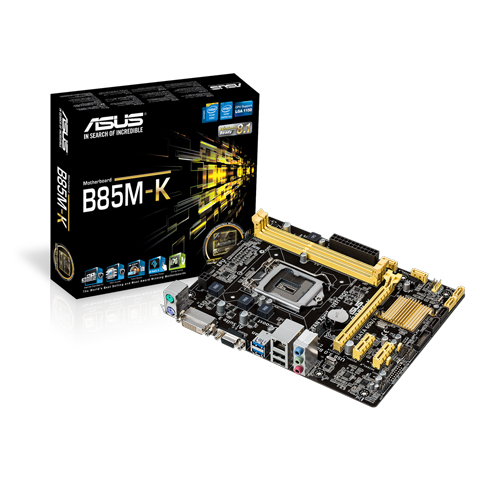

質実剛健なエントリーモデル
・JAN/UPC:0886227625369
・TEKWIND型番:ASU-B85M-K
【主な特長】
・Intel B85
・DDR3メモリ×2(最大16GB)
・PCIe 3.0 x16×1、PCIe 2.0 x1×2
・DVI-D×1、D-Sub 15ピン×1
・SATA 6Gb/s×4、SATA 3Gb/s×2
・1000BASE-T×1
・USB 3.0×4、USB 2.0×6
・EPU、Fan Xpert
製品についてお気軽にお問い合わせください
この製品を問い合わせるスペック
CPU | LGA1150 socket |
---|---|
LAN | Realtek 8111G Gigabit LAN |
USB | 4x USB3.0, 6x USB2.0 |
オーディオ機能 | Realtek ALC887 8-channel High Definition Audio CODEC |
チップセット | Intel B85 Express Chipset |
メモリ | 2 x DIMMs, max.16GB, DDR3 1600/1333/1066 MHz, non-ECC, un-buffered memory |
拡張スロット | 1xPCI Express 3.0 x16,2xPCI Express 2.0 x1 |
背面端子類 | 1xPS/2keyboard,1xPS/2mouseport,2xUSB3.0,2xUSB2.0,1xD-Subport,1xDVIport,1xLAN(RJ-45)port,3xAudiojacks |
- CPU
Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list - チップセット
Intel® B85
- メモリ
2 x DIMM, Max. 16GB, DDR3- 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz. - グラフィックス機能
Integrated Graphics Processor
Multi-VGA output support : DVI/RGB ports
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ - 拡張スロット
1 x PCIe 3.0/2.0 x16 (x16 mode, yellow)
2 x PCIe 2.0 x1 - ストレージ機能
Intel® B85 chipset :
4 x SATA 6Gb/s port(s), yellow
2 x SATA 3Gb/s port(s), dark brown,
Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology *1 - LAN機能
Realtek® 8111G, 1000BASE-T/100BASE-TX/10BASE-T×1
- オーディオ機能
Realtek® ALC887 8-Channel High Definition Audio CODEC *2
- Supports : Jack-detection, Front Panel Jack-retasking - USB
Intel® B85 chipset :
4 x USB 3.0/2.0 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® B85 chipset :
6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board) - Special Features
ASUS EPU :
- EPU
ASUS Exclusive Features :
- GPU Boost
- AI Suite 3
- Ai Charger
- Anti-Surge
- ESD Guards
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
ASUS Q-Design :
- ASUS Q-Slot - Operating System
SupportWindows® 8.1
Windows® 8

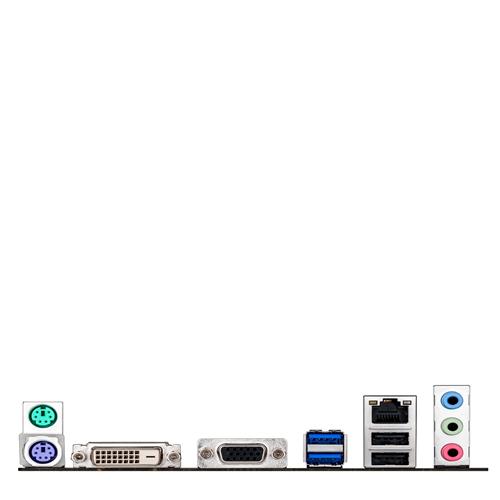

Windows® 7 - バックパネル
インターフェース1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.0 (blue)
2 x USB 2.0
3 x Audio jack(s) - 基板上
インターフェース1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
4 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x Clear CMOS jumper(s) - 主な付属品
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s) - BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
- Manageability
WfM 2.0, DMI 2.0, WOL by PME, PXE
- サポートDVD
Drivers
ASUS Utilities
EZ Update
Anti-Virus Software (OEM Version) - フォームファクター
/サイズ(W×D)uATX Form Factor
8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm ) - その他
*1:These functions will work depending on the CPU installed.
*2:Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
- All specifications are subject to change without notice. Please check with your supplier for exactoffers. Products may not be available in all markets.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
