ASUS（エイスース） Z9PE-D16/2L(ASMB6-IKVM)

Xeon E5-2600シリーズデュアルCPU対応/最大512GBメモリ/SSI EEB

・JAN/UPC：0610839186150
・TEKWIND型番：ASU-Z9PE-D16/2L/ASMB6-IKVM

【主な特長】

The ASUS Z9PE-D16/2L serverboard provides an ideal foundation for reliable performance and future upgrades. Through innovative ASUS design, it offers high power efficiency of up to 90%, dual Intel® LAN ports with great virtualization support, and high I/O expandability. Users also obtain high manageability via the latest ASMB6, making this an ideal general purpose host server, AP server, mail server, and storage server.

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

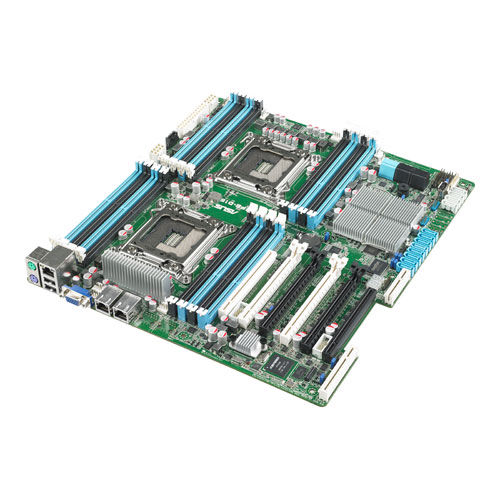

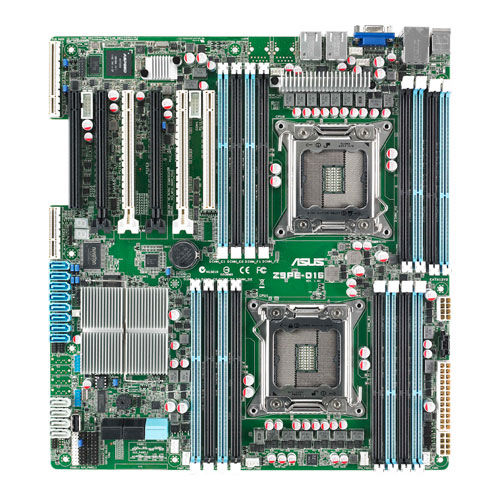

製品画像

スペック

Processor/
System Bus
2 x Socket 2011
Intel® Xeon® processor E5-2600 product family
Intel® Xeon® processor E5-2600 v2 product family
QPI 6.4 / 7.2 / 8.0 GT/s
Core Logic
Intel® C602-A PCH
Memory
Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU)
Capacity : Maximum up to 512GB RDIMM
Memory Type :
DDR3 1866/1600/1333/1066 RDIMM
DDR3 1866/1600/1333/1066 UDIMM
DDR3 1866/1600/1333/1066 LRDIMM
Memory Size :
32GB, 16GB, 8GB, 4GB, 2GB RDIMM
8GB, 4GB, 2GB UDIMM
32GB, 16GB, 8GB LRDIMM
Expansion Slots
Total Slot : 6
Slot Location 1 : PCI-E x16 (Gen3 X8 Link)
Slot Location 2 : PCI-E x16 (Gen3 X16 Link)
Slot Location 3 : PCI-E x16 (Gen3 X16 Link)
Slot Location 4 : PCI-E x16 (Gen3 X16 Link)
Slot Location 5 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 6 is occupied
Slot Location 6 : PCI-E x16 (Gen3 X8 Link), MIO supported
Additional Slot 1 : PIKE Slot for Stroage expansion
Follow SSI Location#
Form Factor
EEB (12"x13")
ASUS Features
Fan Speed Control
Rack Ready (Rack and Pedestal Dual Use)
ASWM Enterprise
Storage
SATA Controller :
Intel® C602-A AHCI
4 x SATA2 3Gb/s ports
2 x SATA3 6Gb/s ports
Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
LSI® MegaRAID (For Linux/Windows)
(Support Software RAID 0, 1, 10 )
SATA Controller :
Intel® C602-A SCU
4 x SATA2 3Gb/s ports
Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
SAS Controller :
ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional)
ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional)
ASUS PIKE 2108-32PD 8-port SAS2 6G RAID card (Optional)
ASUS PIKE 2208 8-port SAS 6G HW RAID card (Optional)
ASUS PIKE 2308 8-port SAS 6G RAID card (Optional)
ASUS PIKE 9230 4-port SATA 6G RAID card (Optional)
Networking
1 x Dual Port Intel Ethernet Controller i350-AM2 + 1 x Mgmt LAN
Graphic
Aspeed AST2300 with 16MB VRAM
On Board I/O
1 x TPM header
1 x PSU Power Connector (24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector)
1 x Management Connector , Onboard socket for management card
2 x USB pin header , Up to 4 Devices
1 x Internal A Type USB Port
8 x Fan Header , 4pin
1 x Chassis Intruder
2 x Serial Port Header
2 x SMBus

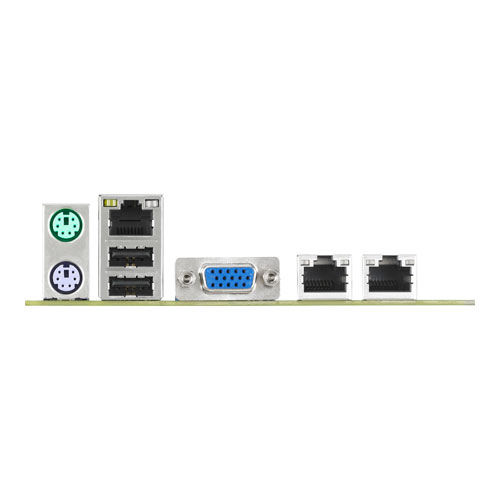

Back I/O Ports
2 x External USB Port
1 x VGA Port
2 * GbE LAN + 1 * Mgmt LAN
1 x PS/2, 1 KB/mouse
Management
Solution
ASWM Enterprise
ASMB6-iKVM for KVM-over-Internet
Regulatory
Compliance
CE, C-Tick, FCC(Class B)
Environment
Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
Accessories
Gift Box Pack :
1 x User's Guide
1 x ASUS Mainboard Support CD
1 x I/O Shield
1 x ASWM Enterprise SDVD
10 x SATA Data Cables
1 x ASMB6-iKVM Support CD
1 x ASMB6-iKVM User Guide
1 x USB to SATA DOM Power cable
Bulk Pack :
1 x User's Guide
1 x ASUS Mainboard Support CD
1 x I/O Shield
1 x ASWM Enterprise SDVD
1 x ASMB6-iKVM Support CD
1 x ASMB6-iKVM User Guide
Product SKUs
Standard Gift Box Pack with ASMB6-ikvm
Standard Bulk Pack with ASMB6-ikvm
Monitoring
CPU Temperature
Fan RPM
Note
* Refer to ASUS Server AVL for latest update.
** Specifications are subject to change without notice.
