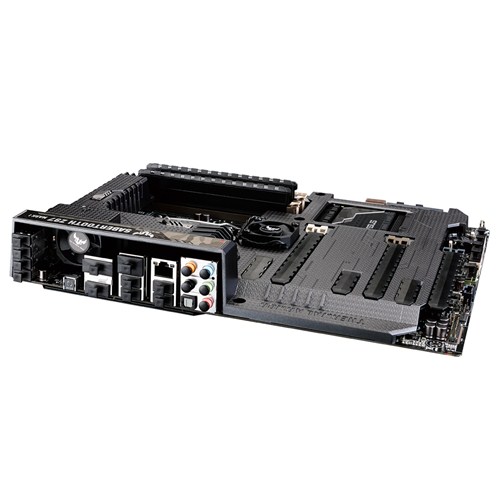

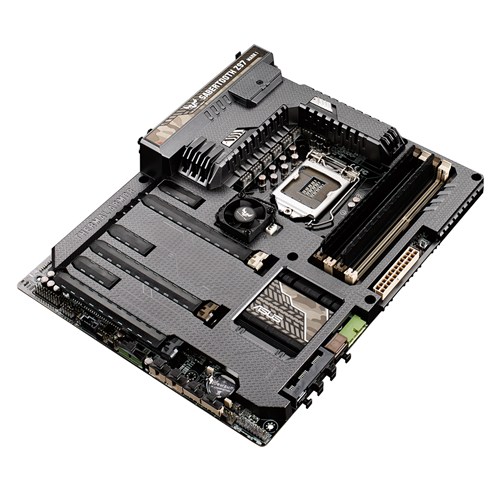

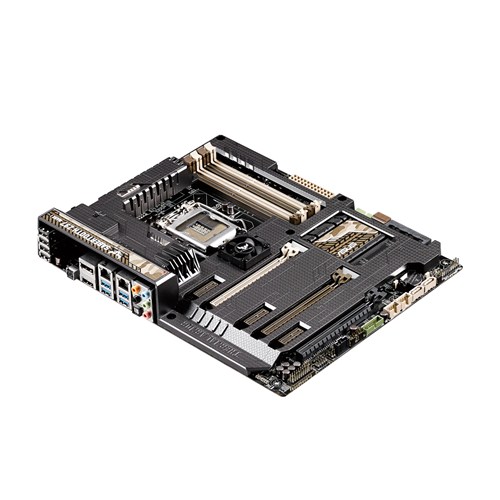

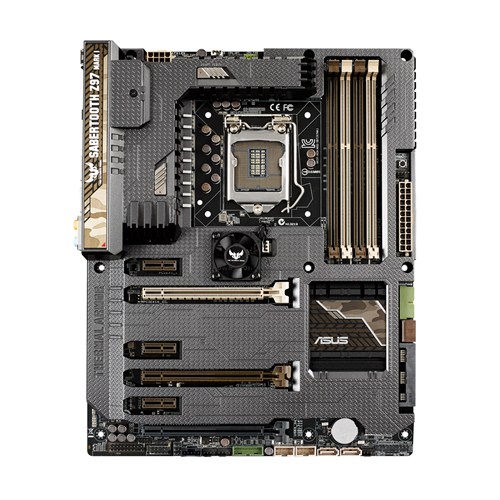

高耐久特化マザー
・JAN/UPC：0886227764457
・TEKWIND型番：ASU-SABERTOOTH/Z97/MARK1
サイズ：ATX / 305mm×244mm
対応ソケット：LGA1150
チップセット：Intel Z97
上限対応メモリ：DDR3-1866×4（最大32GB）
拡張スロット：
PCI Express 3.0/2.0 x16×2
PCI Express 2.0 x16×1
PCI Express 2.0 x1×3
画面出力機能：
DisplayPort×1
HDMI×1
ストレージ機能：
SATA 6Gb/s×8
SATA Express×1
有線LAN機能：1000BASE-T×1（Intel I218-V, Realtek RTL8111GR）
オーディオ：8チャンネル出力（Realtek ALC1150）
USB（外部/内部）：USB 3.0×8（4/4）、USB 2.0×8（4/4）
製品についてお気軽にお問い合わせください
この製品を問い合わせる製品画像
スペック
| CPU | Intel Socket 1150 for the 5th/New 4th/4th Gen Core i7/i5/i3/Pentium/Celeron |
|---|---|
| LAN | Intel I218V |
| USB | 6xUSB 3.0, 2xUSB 3.0, 8xUSB 2.0 |
| オーディオ機能 | Realtek ALC1150 8-Channel High Definition Audio CODEC |
| チップセット | Intel Z97 |
| メモリ | 4 x DIMM, Max. 32GB, DDR3- 1866/1600/1333 MHz Non-ECC, Un-buffered Memory |
| 拡張スロット | 2 x PCIe 3.0/2.0 x16 ,1 x PCIe 2.0 x16 ,3 x PCIe x1 |
| 背面端子類 | 1xDisplayPort,1xHDMI,2xLAN(RJ45)port,4xUSB 3.0,4xUSB 2.0,1xOptical S/PDIF out,5xAudio jack |
| 製品保証について | 日本国内におけるASUSマザーボード製品の代理店保証期間は、本製品を含み全て製品購入から1年間となります。 |
- CPU
Intel® Socket 1150 for the 5th/New 4th/4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list - Chipset
Intel® Z97
- Memory
4 x DIMM, Max. 32GB, DDR3 1866/1600/1333 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). - Graphic
Integrated Graphics Processor
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
Maximum shared memory of 512 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays - Multi-GPU
SupportSupports NVIDIA® Quad-GPU SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology - Expansion Slots
2 x PCIe 3.0/2.0 x16 (Single at x16, dual at x8/x8)
1 x PCIe 2.0 x16 (max at x4 mode, black)
3 x PCIe x1 - Storage
Intel® Z97 chipset :
1 x SATA Express port, black*1
4 x SATA 6Gb/s port(s), ,
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *2
ASMedia® PCIe SATA controller : *3
2 x SATA 6Gb/s port(s), beige - LAN
Intel® I218V
Realtek® 8111GR
Dual Gigabit LAN controllers- 802.3az Energy Efficient Ethernet (EEE) appliance - Audio
Realtek® ALC1150 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR recording input (Line-in)
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- Blu-ray audio layer Content Protection
- Optical S/PDIF out port(s) at back panel
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs - USB Ports
Intel® Z97 chipset :
6 x USB 3.0/2.0 port(s) (2 at back panel, blue, 4 at mid-board)
ASMedia® USB 3.0 controller :
2 x USB 3.0/2.0 port(s) (2 at back panel, blue)
Intel® Z97 chipset :
8 x USB 2.0/1.1 port(s) (4 at back panel, black, 4 at mid-board) - Special Features
TUF Features:
TUF ENGINE! Power Design :
- 8 + 2 Digital Phase Power Design
- TUF Components (New Alloy Choke, Ti-Cap. & MOSFET; certified by military-standard)
- ASUS DIGI+ Power Control Utility

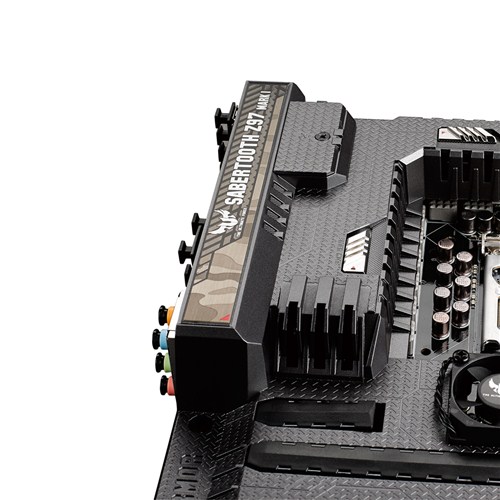

Ultimate COOL! Thermal Solution :
- TUF Thermal Armor with Flow Valve
- TUF Thermal Radar 2
- TUF ICe
Safe & Stable! Guardian Angel :
- Dust Defenders
- TUF Fortifier
- TUF ESD Guards
ASUS Exclusive Features :
- MemOK!
- AI Suite 3
- Ai Charger+
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
- Disk Unlocker
- Turbo LAN
Interactive HomeCloud
- Media Streamer
ASUS EZ DIY :
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS USB BIOS Flashback
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector - Operating System
SupportWindows® 8.1
Windows® 8

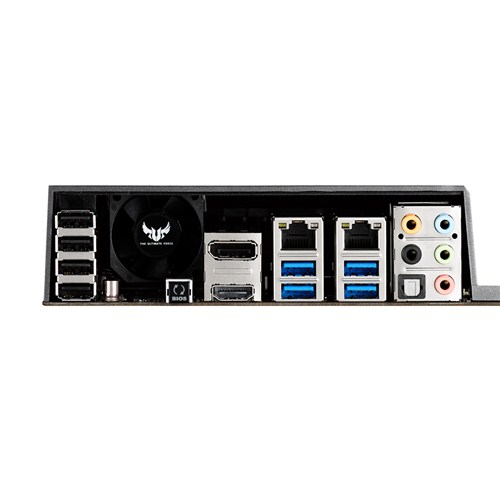

Windows® 7 - Back I/O Ports
1 x DisplayPort
1 x HDMI
2 x LAN (RJ45) port(s)
4 x USB 3.0 (blue)
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x USB BIOS Flashback Button(s) - Internal I/O Ports
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x SATA Express connector: , compatible with 2 x SATA 6.0 Gb/s ports
1 x TPM header
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
4 x Chassis Fan connector(s) (4 x 4 -pin)
3 x Assistant Fan connector(s) (2 x 3 -pin, 1 x 4 -pin)
1 x S/PDIF out header(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x DRCT header(s)
1 x MemOK! button(s)
3 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s) - Accessories

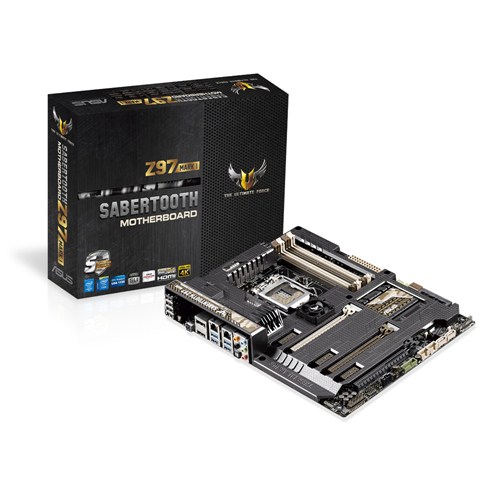

User's manual
Accessory Guide
ASUS Q-Shield
4 x SATA 6Gb/s cable(s)
1 x SLI bridge(s)
1 x Q-connector(s) (2 in 1)
2 x Accessory Fan(s) ( 35 /40 mm )
1 x TUF 5 Year Warranty manual(s) (by region)
1 x TUF Inside sticker(s)
1 x Accessory Package(s):
- 3 x PCIe x16 slot dust cover(s)
- 2 x DRAM slot dust cover(s)
- 3 x PCIe x1 slot dust cover(s)
- 2 x Short fan screw(s)
- 4 x Long fan screw(s)
- 3 x Thermistor cable(s)
- 1 x back I/O dust frame
- 1 x back I/O dust grid
- 1 x connector dust cover collection (On board USB 3.0, DVI, HDMI, DP, LAN)
- 2 x On board USB 2.0 connector dust cover(s)
- 8 x back I/O USB 2.0 connector dust cover(s)
- 7 x On board SATA connector dust cover(s)
- 1 x SATA Express conector dust cover(s)
- 5 x Audio connector dust cover(s) - BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS,
ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information - Manageability
WfM 2.0, DMI 2.7, WOL by PME, PXE
- Support Disc
Drivers
Anti-virus software (OEM version)
ASUS/TUF CPU-Z
ASUS Utilities - Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) - Note
*2: These functions will work depending on the CPU installed.
*3: These SATA ports are for data hard drivers only. ATAPI devices are not supported.
The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
