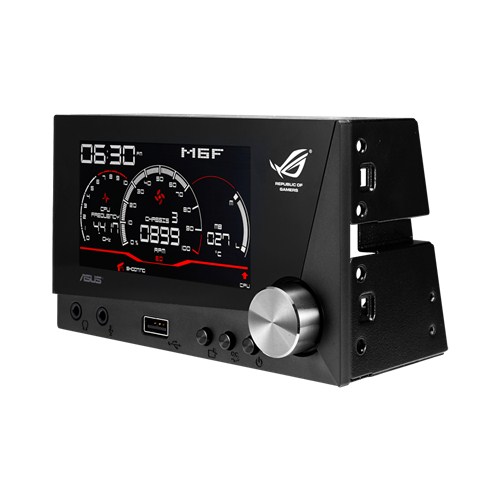

ASUS（エイスース） FRONT/BASE

Dual-Bay Gaming Panel

・JAN/UPC：0886227646630
・TEKWIND型番：ASU-FRONT/BASE

【主な特長】

・Ultimate audio companion- Enjoy true-to-life gaming with awesome sound quality

・One-click overclocking- Your one-button supply line for instant extra performance

・Hit the button, hide your game- ‘Escape Mode’ instantly hides your gaming activity — any time

・Monitor your system and control multiple fans– real-time management of the CPU cooler and up to four other case fans – and all can be controlled individually!

・Always-on USB charger- Quick charge in sleep, hibernate and shutdown modes

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

製品画像

スペック

コネクター	1xUSB 2.0、1xHeadphone、1xMicrophone、1xSATA power、1 x 18-1 pin ROG_EXT、1 x AAFP

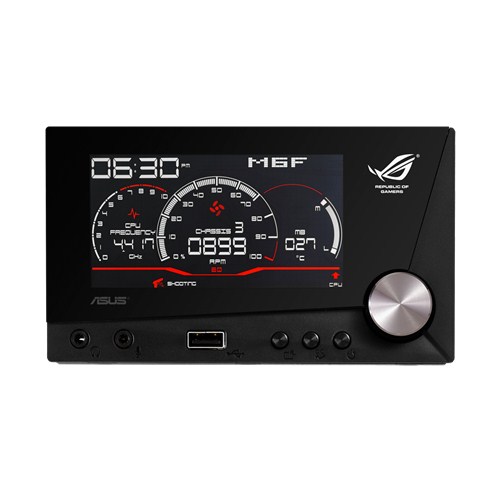

Display
4-inch LCD
Features
Quick EQ Switch
One-click overclocking with CPU Level Up
Escape Mode
Always-on USB charger
Full fan controls & system monitoring
I/O Ports
1 x USB 2.0 port
1 x Headphone out port
1 x Microphone in port

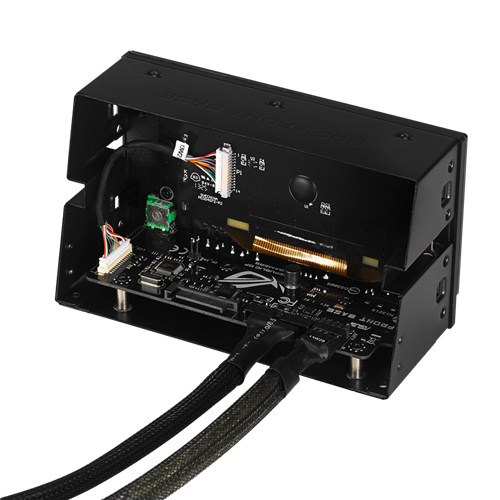

Internal I/O Ports
1 x SATA power connector
1 x 18-1 pin ROG_EXT connector
1 x AAFP connector
Power
Voltage: +12V, +5V, +5VSB
Power consumption: 3A
System
Requirements
2 x 5.25-inch drive bays
1 x SATA power cable from system power supply
Compatibility
ROG Maximus VI series motherboards, Rampage IV Black Edition motherboard and other motherboards with ROG_EXT port

Visit the ASUS website for:
- the latest list of supported motherboards
- the latest Front Base firmware downloads
- the latest BIOS downloads for compatible motherboards
Operating
System Support
Windows® 8.1
Windows® 8
Windows® 7

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.
